Description
8910DPA63V02

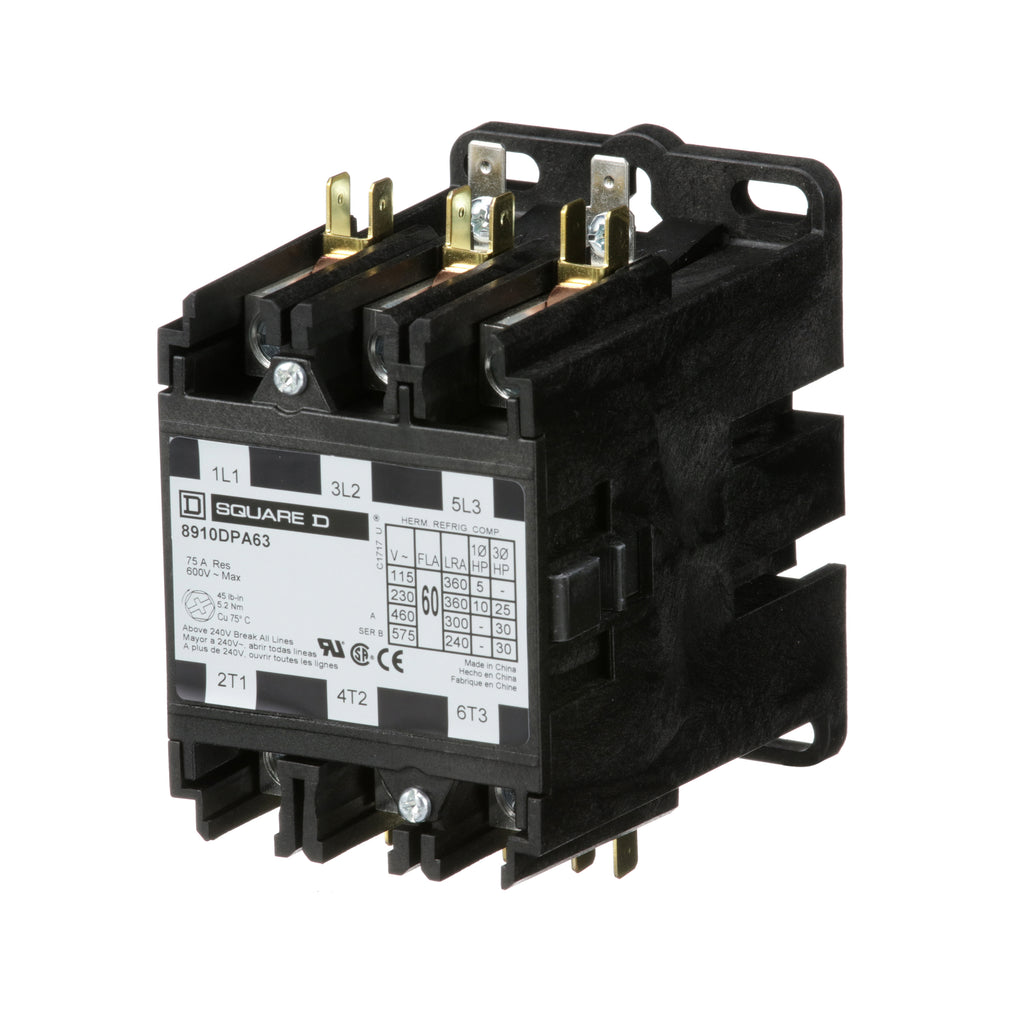

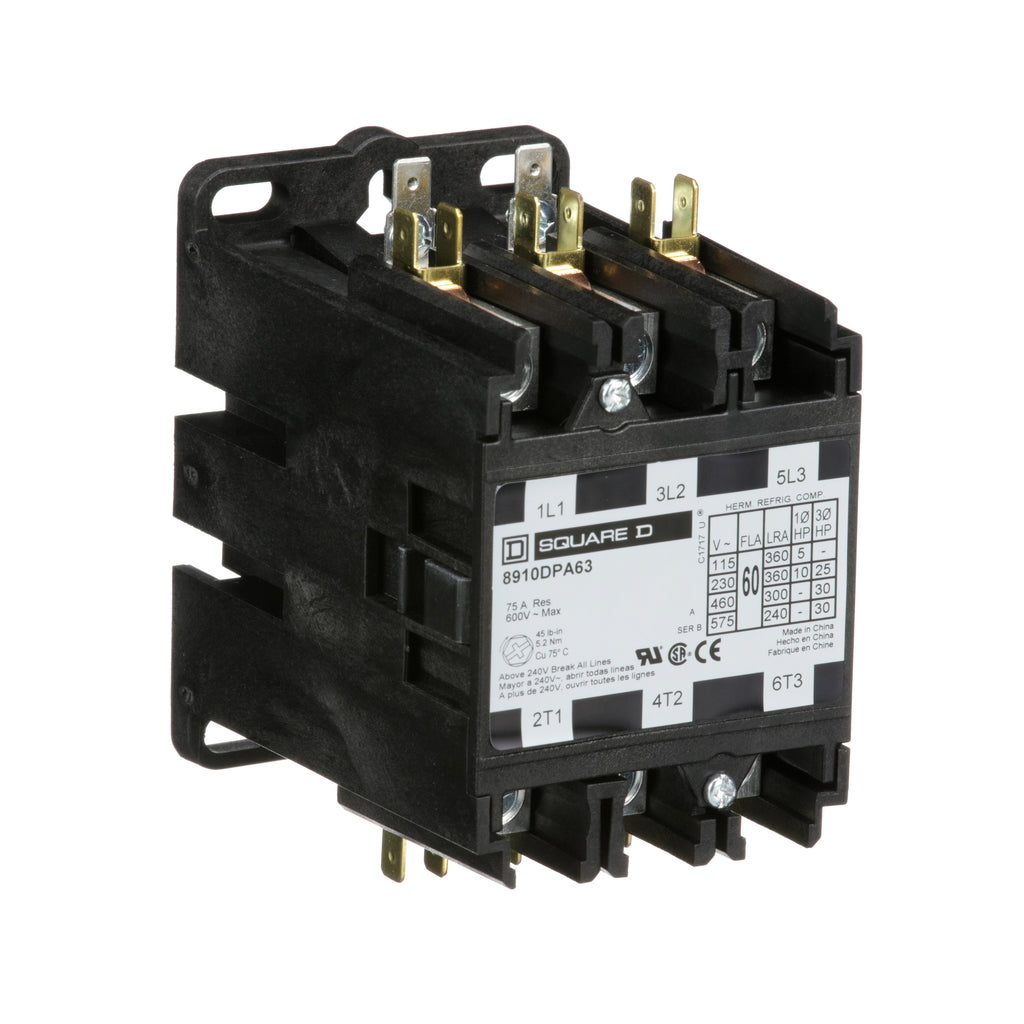

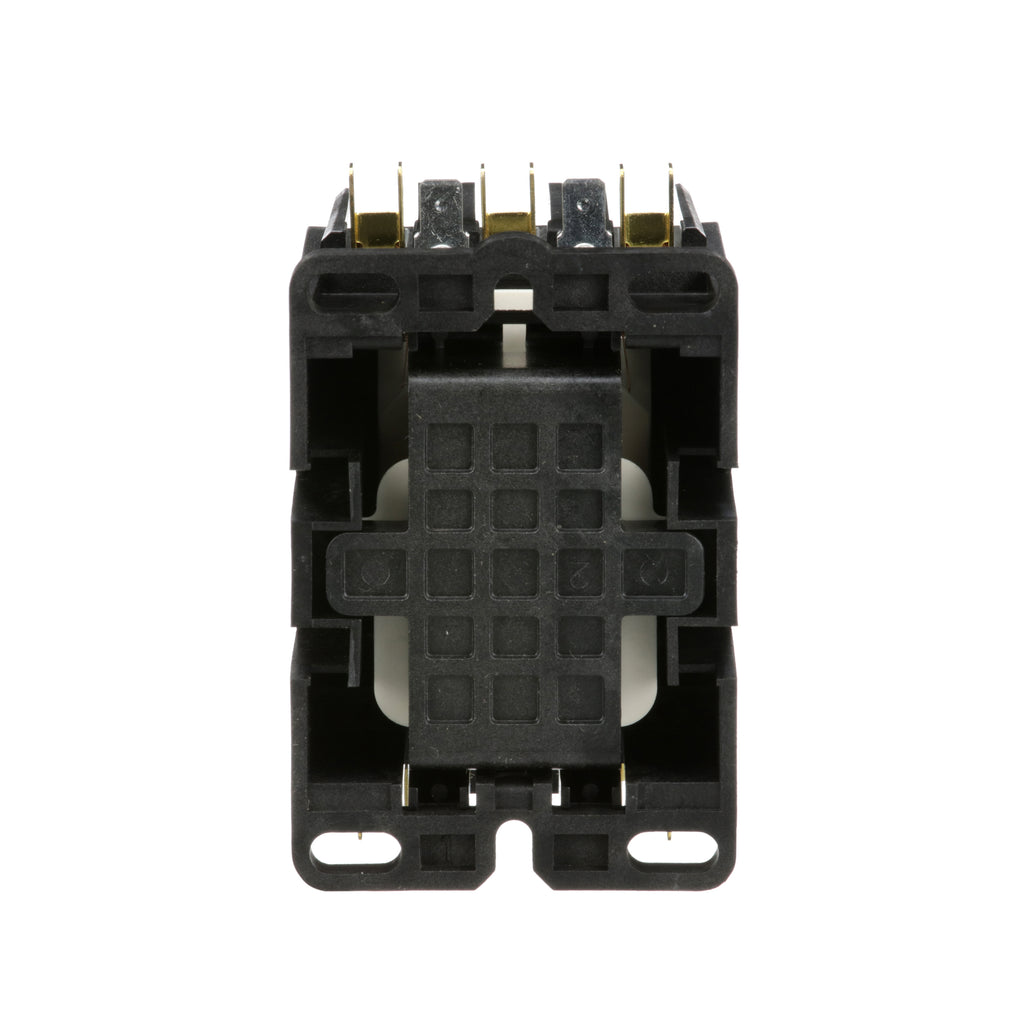

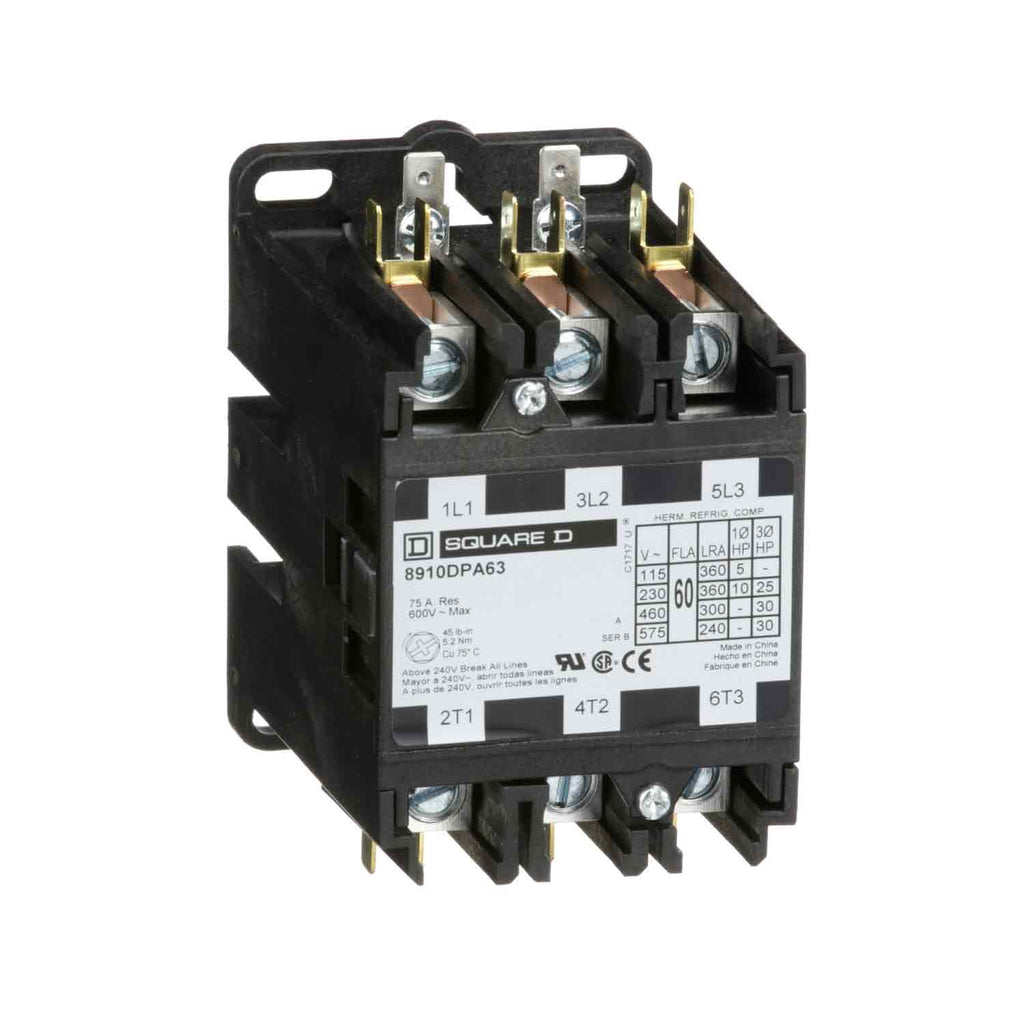

8910DPA63V02 is a Square D definite purpose contactor designed for motor control applications.This 3-pole, 60 amp contactor features a 120V coil voltage and panel mounting type.This contactor is part of the Square D DPA series, suitable for 3-phase systems with a 60A rating. It supports motor loads up to 25HP at 230V and 30HP at 460/575V. The device includes quick connect terminals for easy installation and is UL recognized and CSA certified.
- Brand: Square D
- Series: DPA
- Amperage: 60A
- Voltage: 120V coil
- Poles: 3
- Phase: 3
- Mounting Type: Panel
- Contactor Type: Definite Purpose
- Motor HP: 25HP @ 230V, 30HP @ 460/575V
- Certifications: UL recognized, CSA certified
- Connection: Quick connect terminals
- Frame: Compact DPA series
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8910DPA63V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA6
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- Horse Power : 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases-25 hp 230 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
- Coil Voltage Minimum : 110V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901080817
- GTIN : 00785901080817
- Country of Origin : China
- Dimensions : 4.13 in x 2.56 in x 3.67 in (Height x Width x Depth)
- Weight : 1.51
- Certification : CSA, RoHS, UL Listed
