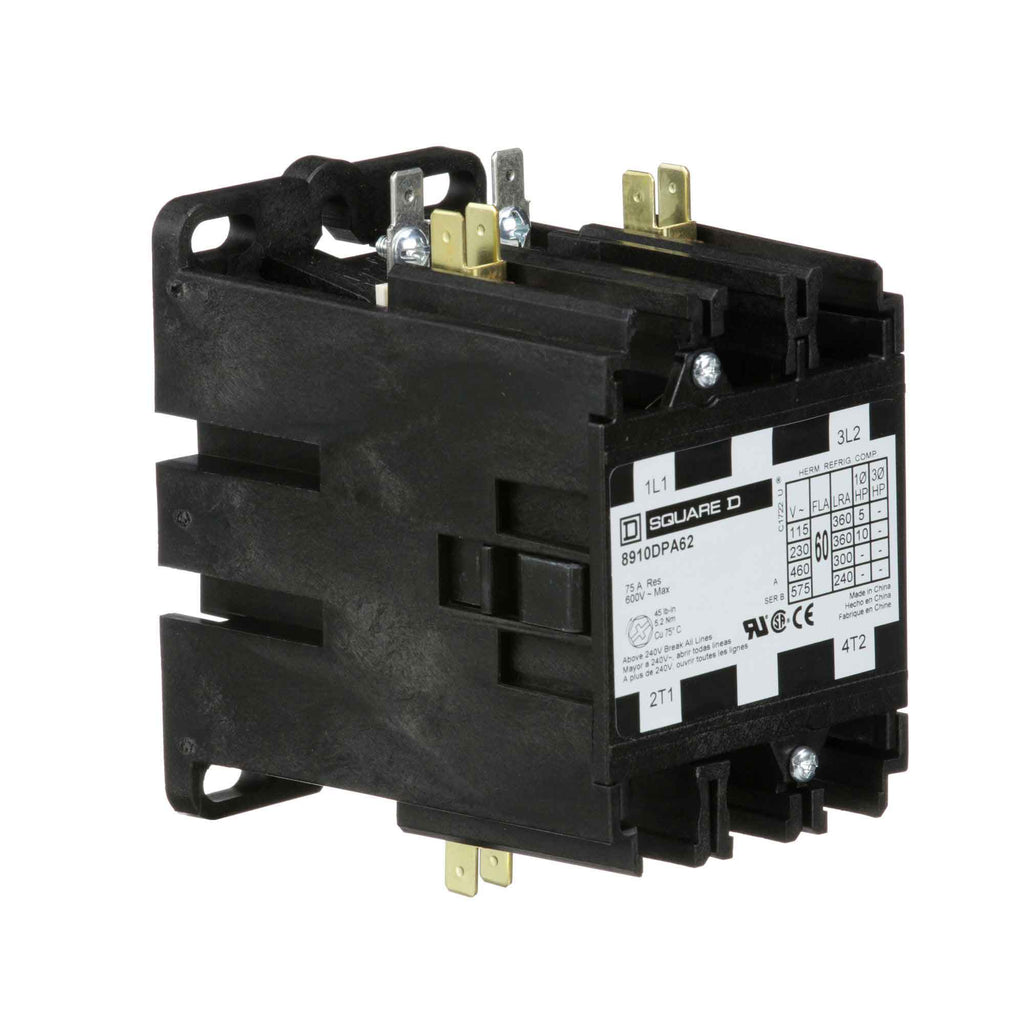

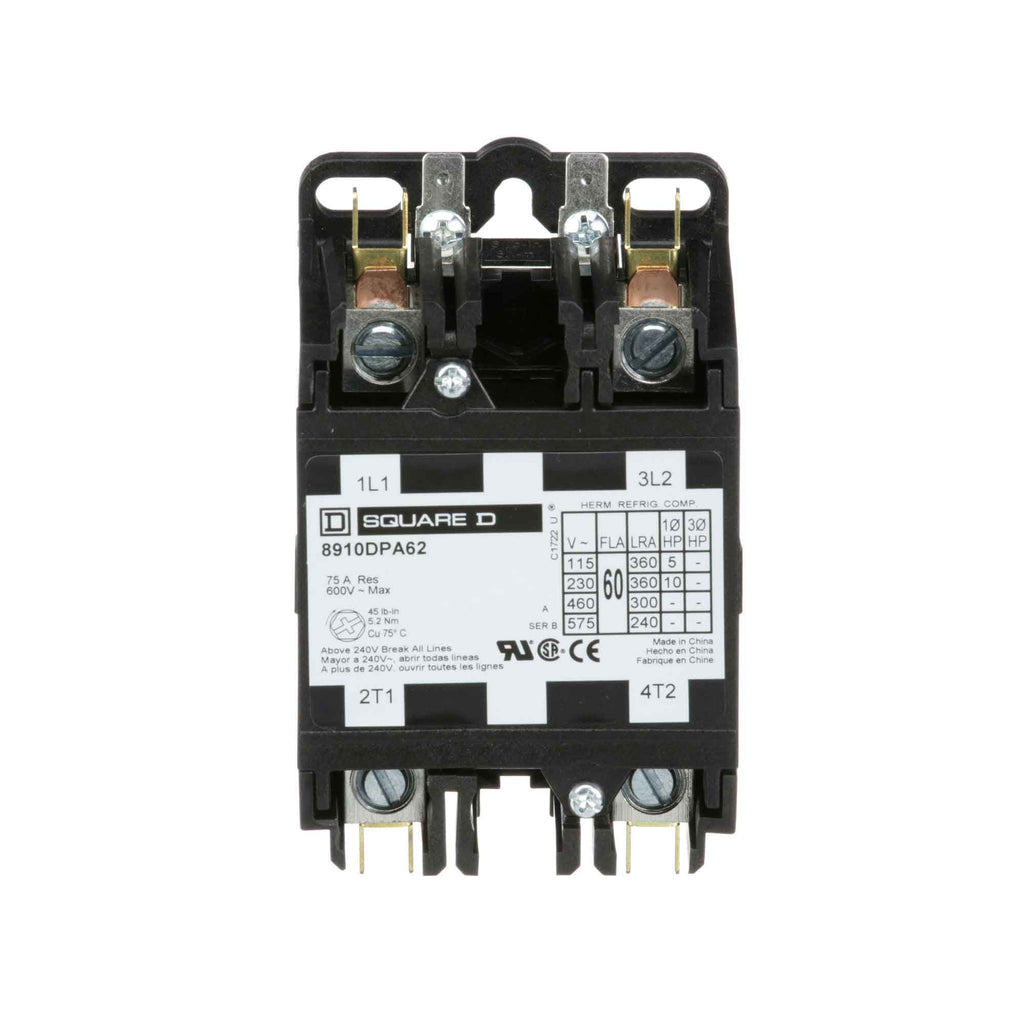

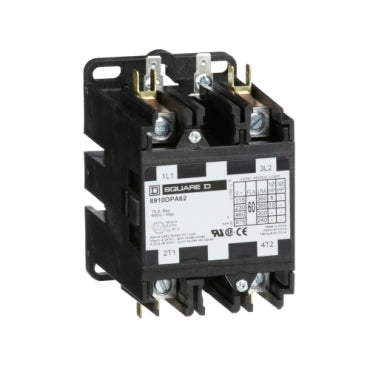

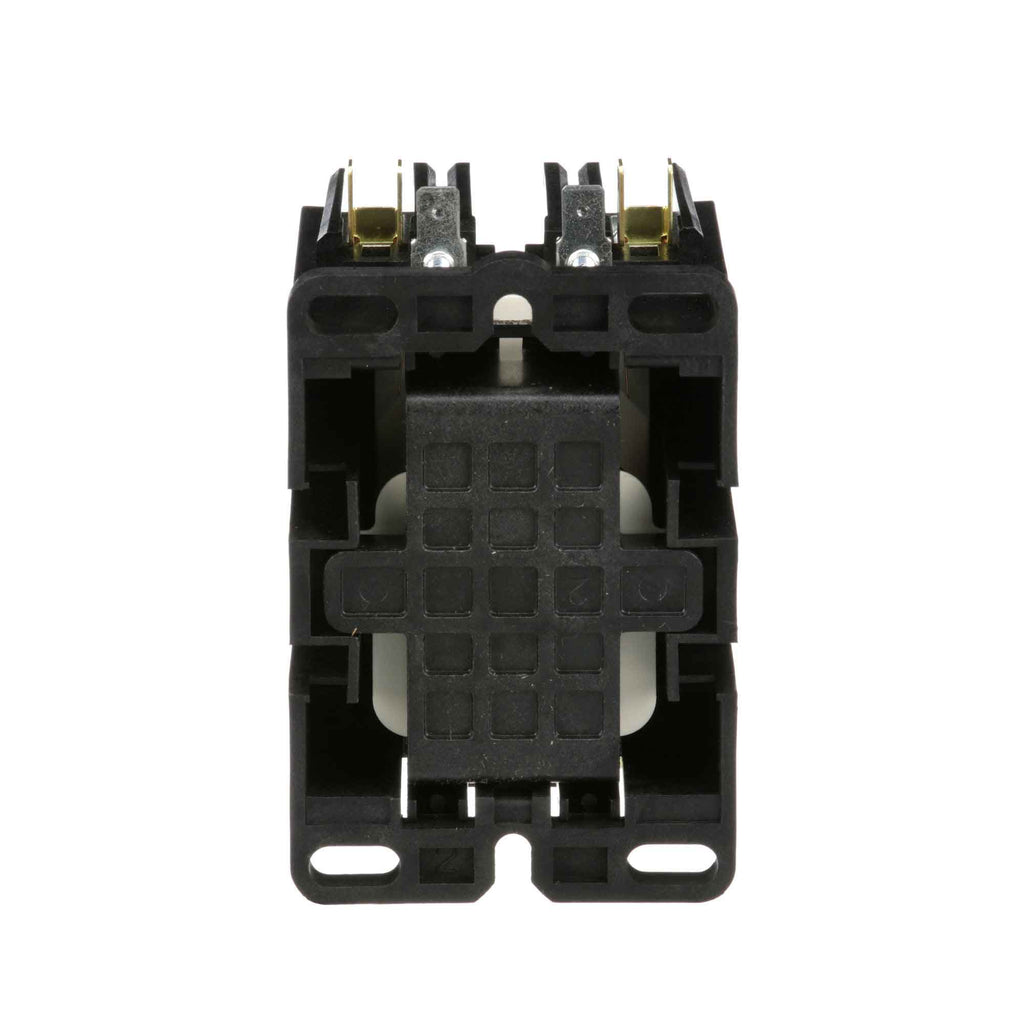

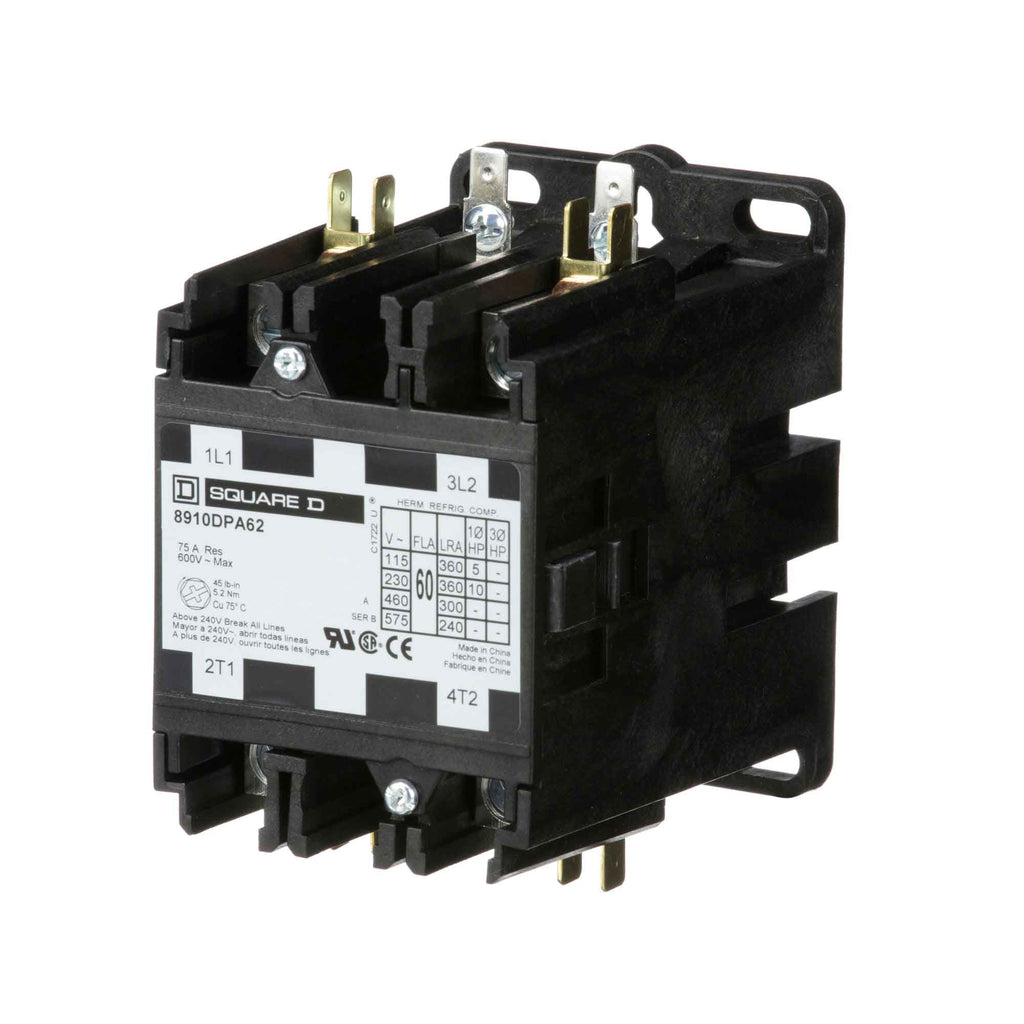

8910DPA62V02 - Square D 2-Pole 60A 120V Definite Purpose Contactor Class 8910

8910DPA62V02

8910DPA62V02 is a Square D Class 8910 definite purpose contactor rated for 60 amps with a 120V AC coil and 2 poles.This contactor features a compact design with double quick connect terminals and a metal base plate for mounting. It supports a maximum horsepower of 25 HP at 230V and 30 HP at 460V for 3-phase applications. The coil voltage is 110/120V AC at 50/60 Hz, and it is suitable for heating, air conditioning, refrigeration, and food service equipment. The contactor has a resistive rating of 75 amps and includes features such as low coil VA, double break contacts, and industry standard mounting.

Key Specifications
• Amperage: 60A (75A resistive load)
• Voltage: 110/120V AC coil
• Poles: 2
• Maximum HP: 25 HP @ 230V, 30 HP @ 460V (3-phase)
• Mounting: Metal base plate
• Contact Type: Double break contacts
• Terminals: Double quick connect
• Series/Frame: Class 8910, Type DPA6
• Phase: 1 phase
• Interrupt Rating: Locked rotor 360A @ 230V, 300A @ 460V
• Certifications: Meets industry standards for definite purpose contactors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DPA62V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA6
• Voltage : 600
• Amperage : 60
• Phase : 1
• Horse Power : 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901080824
• GTIN : 00785901080824
• Country of Origin : China
• Dimensions : 2.56 in x 4.06 in
• Weight : 1.46
• Certification : CSA, RoHS, UL Listed
