Description

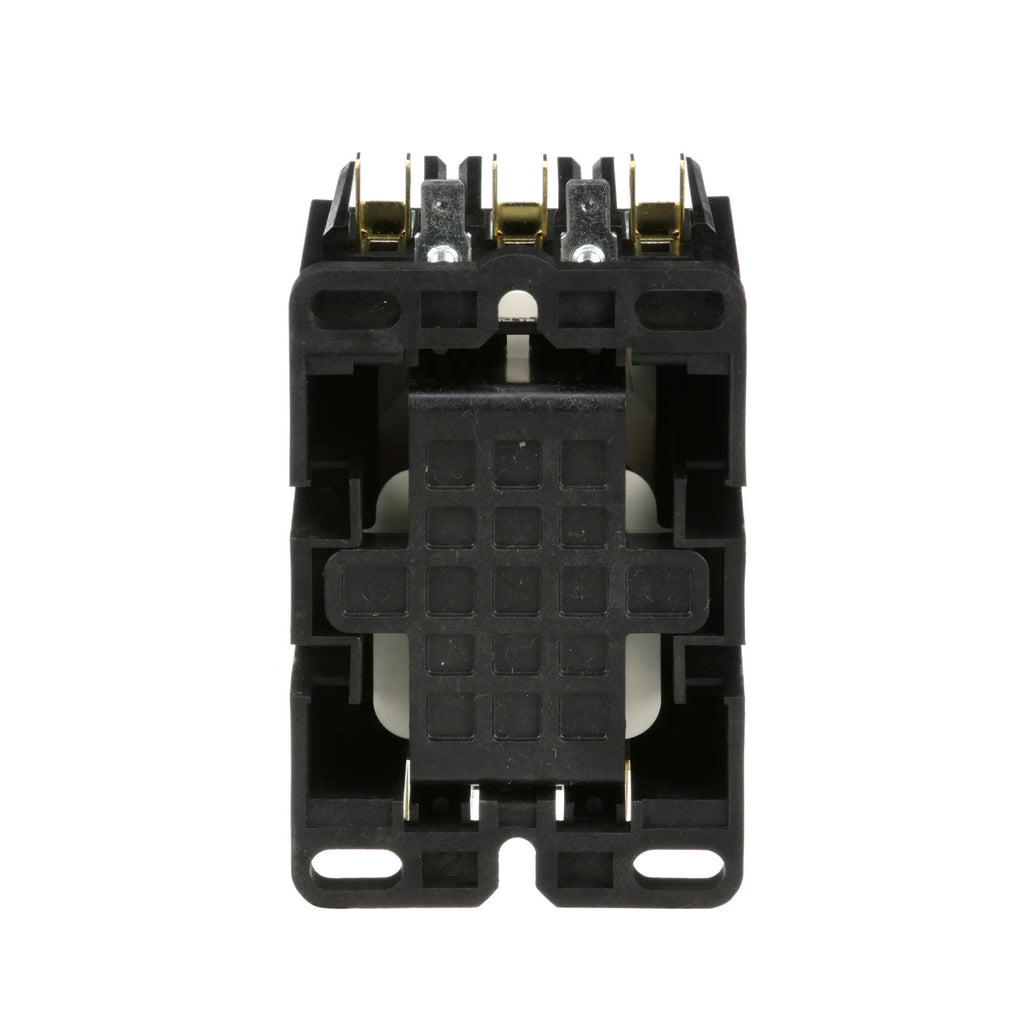

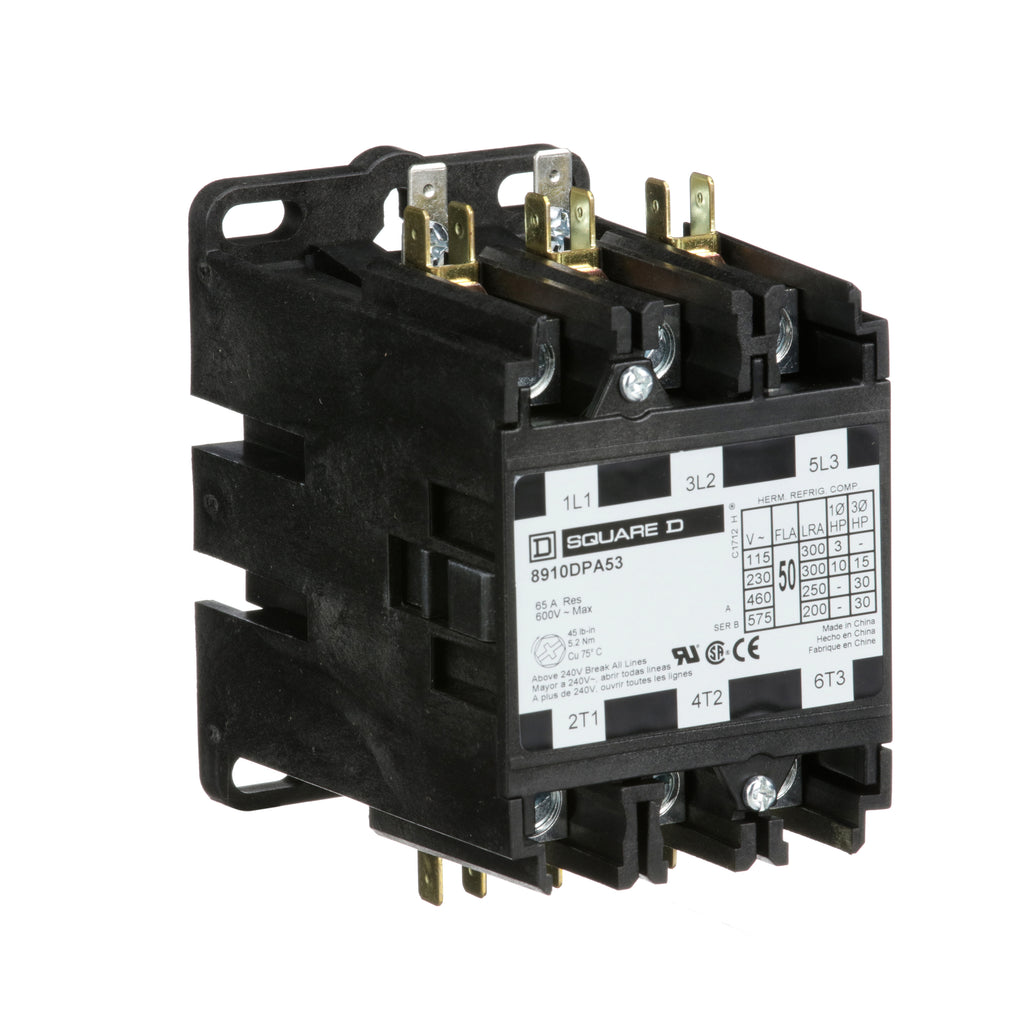

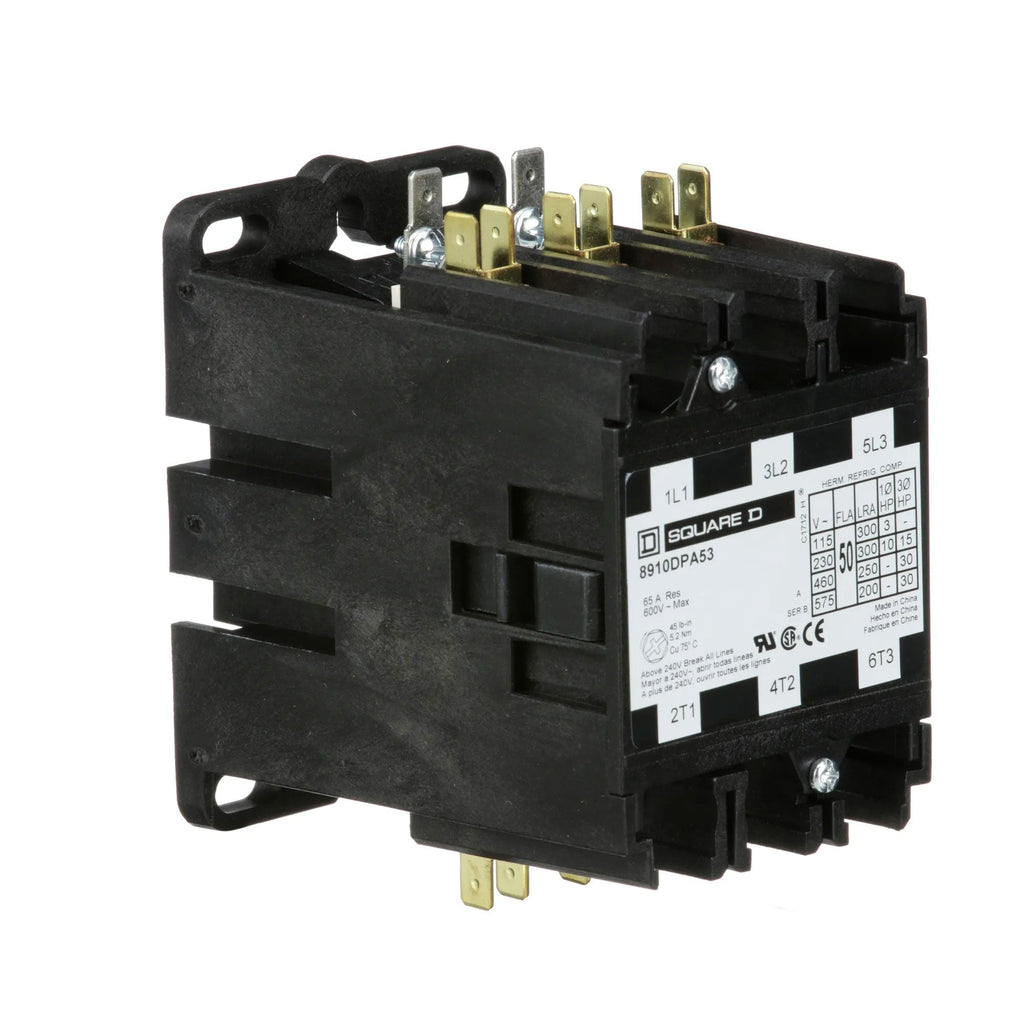

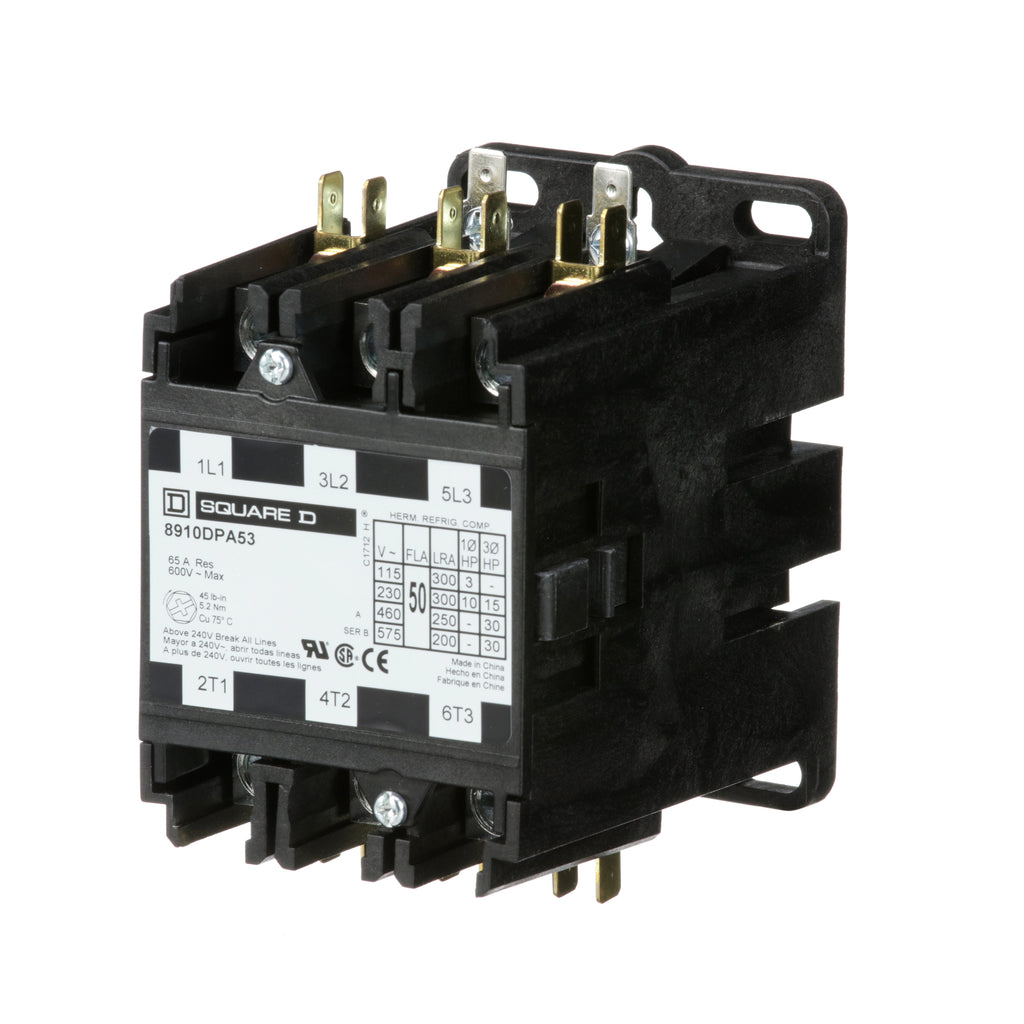

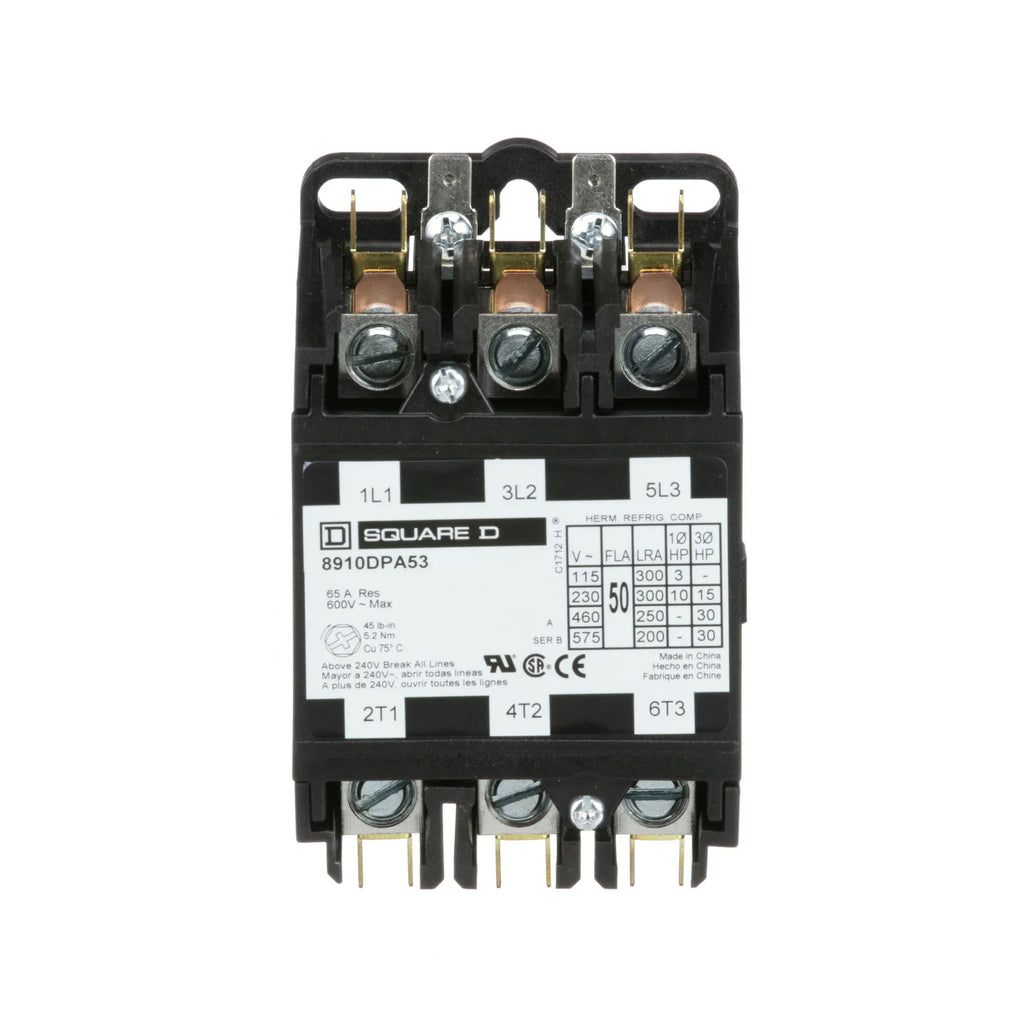

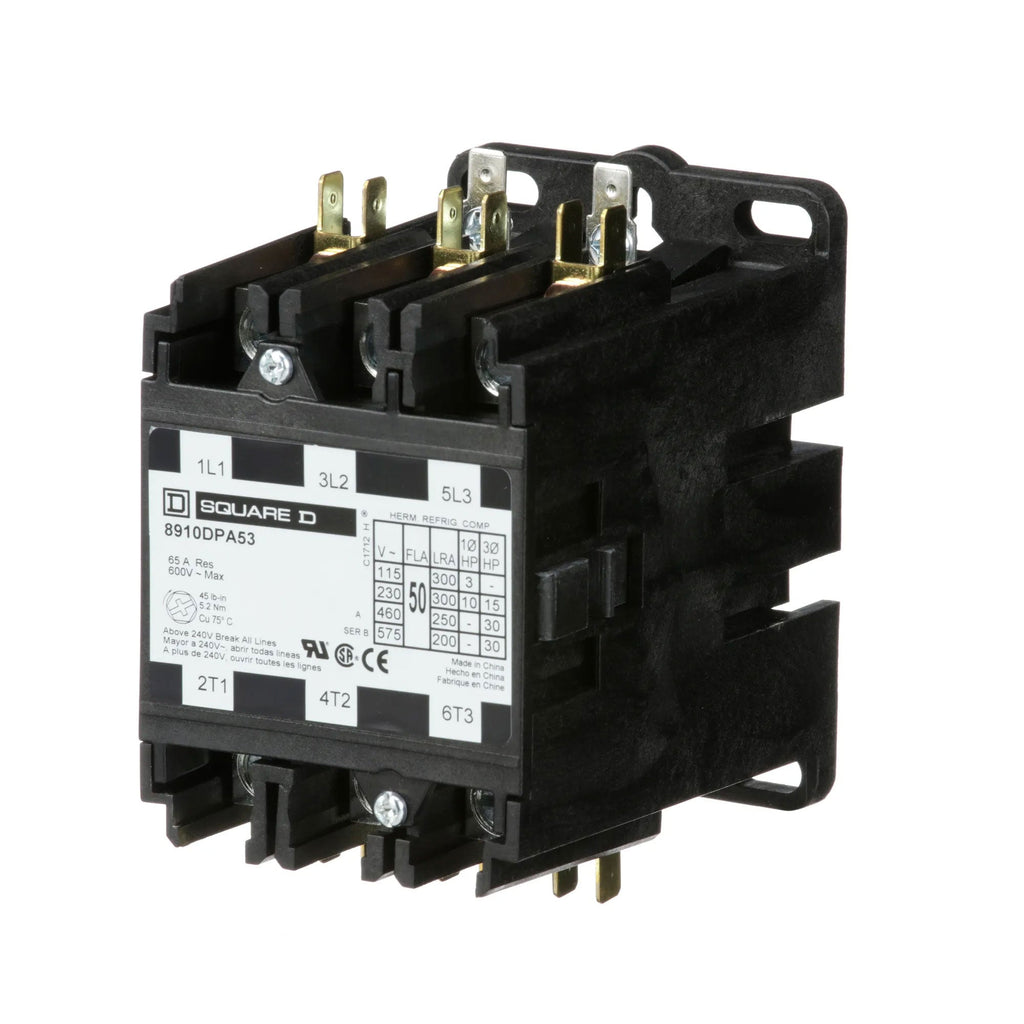

8910DPA53V02
8910DPA53V02 is a Square D definite purpose contactor designed for motor control applications with a 50 amp rating and 3 poles.
This contactor features a 110/120 VAC coil operating at 50/60 Hz, suitable for 3-phase systems. It supports up to 30 HP at 575 VAC and 15 HP at 230 VAC. The device includes double quick connect terminals and a metal base plate for panel mounting. It offers a compact design with box lugs and binder head screws for easy wiring, and an exclusive DIN track mounting option to reduce installation costs. Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment.
- Amperage: 50A
- Voltage: 110/120 VAC coil, 600 VAC max system voltage
- Poles: 3
- Phase: 3-phase
- Horsepower Rating: 30 HP at 575 VAC, 15 HP at 230 VAC
- Mounting Type: Panel mount with metal base plate, DIN track option
- Terminals: Double quick connect and box lugs
- Series/Frame: 8910 DPA series
- Coil Frequency: 50/60 Hz
- Contact Type: Definite purpose contactor
- Interrupt Rating: Suitable for motor loads, locked rotor amps 300A @ 230V, 250A @ 460V
- Certifications: UL listed (implied by manufacturer standards)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8910DPA53V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA5
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
- Coil Voltage Minimum : 110V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901080756
- GTIN : 00785901080756
- Country of Origin : China
- Dimensions : 4.13 in x 2.56 in x 3.67 in (Height x Width x Depth)
- Weight : 1.5
- Certification : CSA, RoHS, UL Listed
