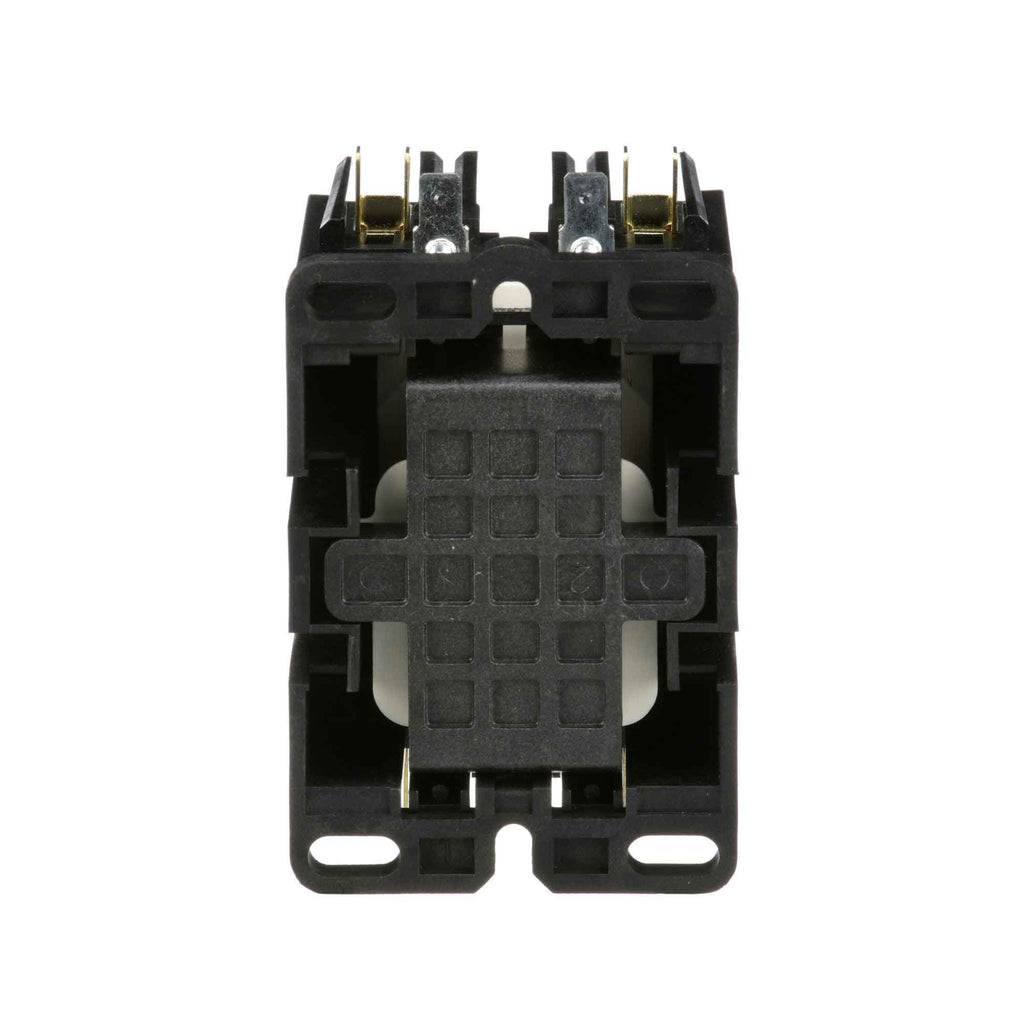

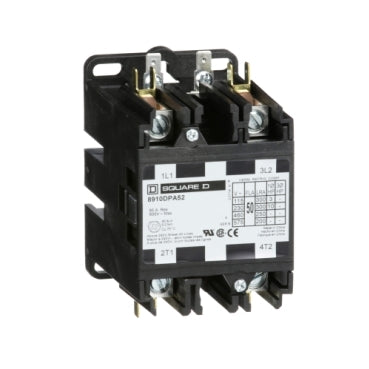

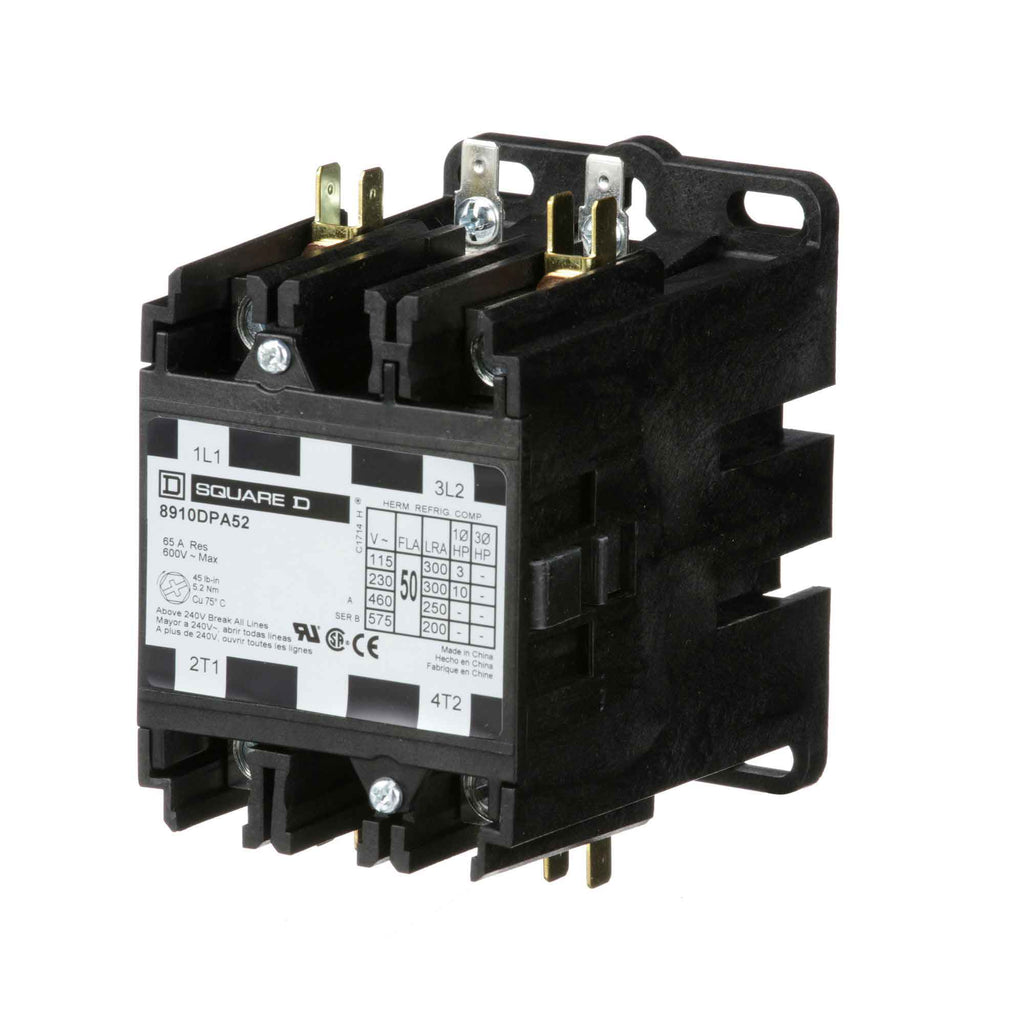

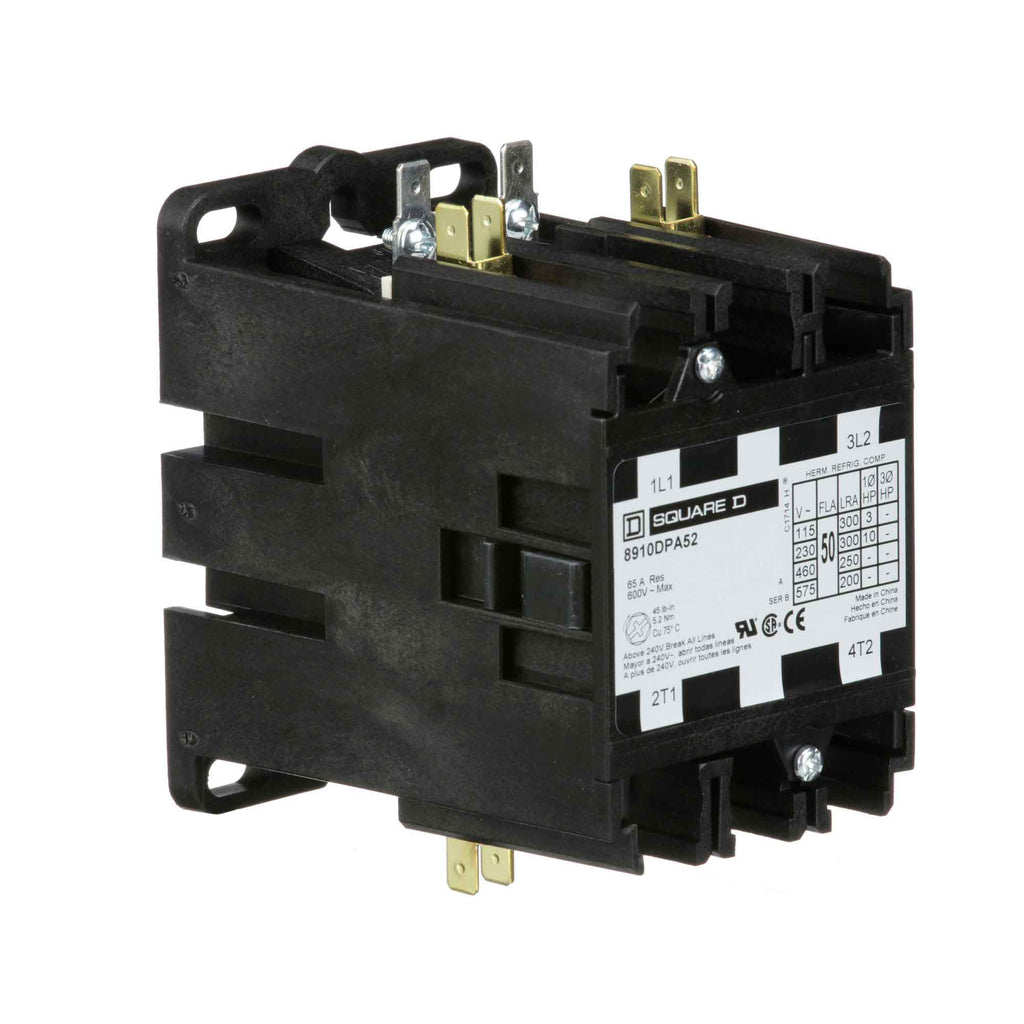

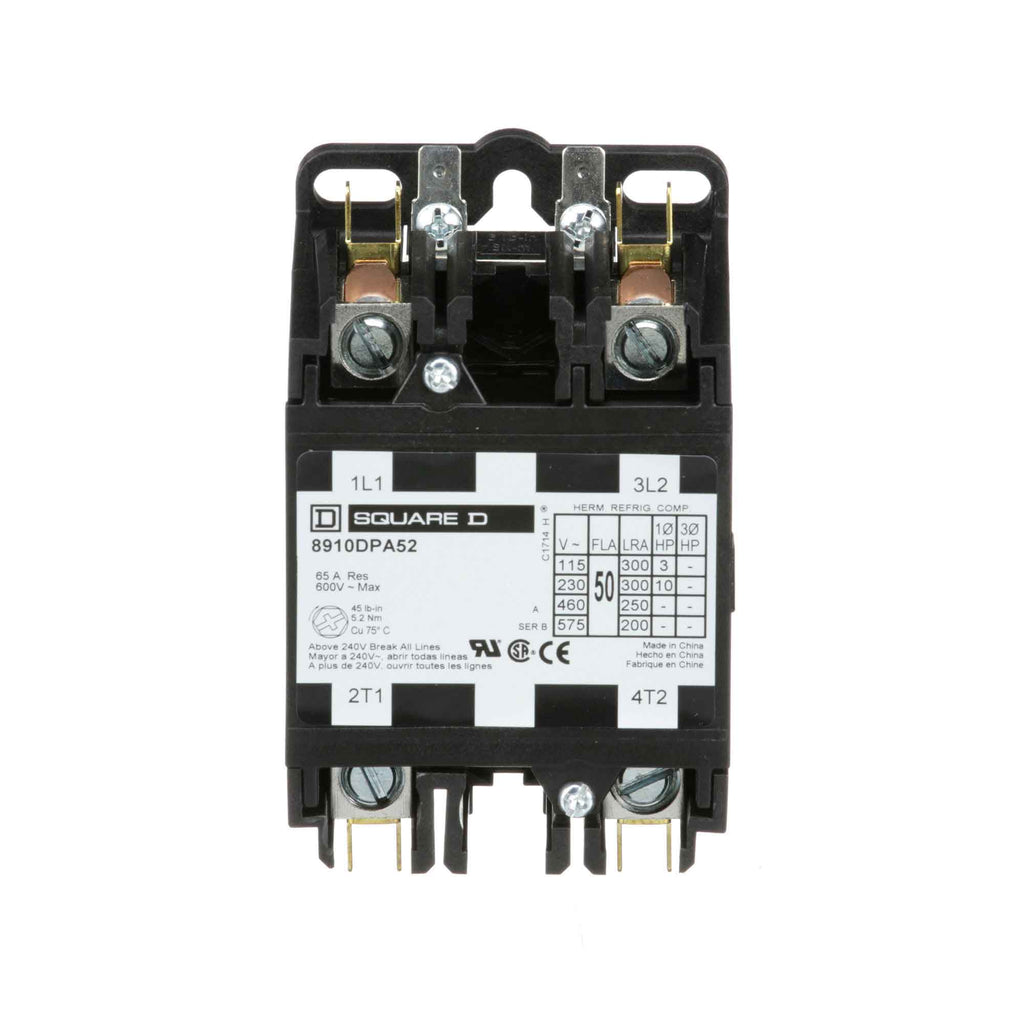

8910DPA52V02 - Square D 50A 2-Pole Definite Purpose Contactor 110/120V Coil 10HP 1-Phase

8910DPA52V02

8910DPA52V02 is a Square D definite purpose contactor rated for 50 amps with a 2-pole configuration and a 110/120V AC coil.

This contactor supports up to 10 horsepower at 230 volts single-phase and features double quick connect terminals for easy wiring. It has a compact design with a metal base plate for mounting and is ideal for HVAC, refrigeration, and food service equipment applications. The contactor offers a locked rotor current rating of 300A at 230V and 250A at 460V, making it suitable for heavy-duty motor control tasks.

Key Specifications
• Amperage: 50A
• Voltage: 110/120V AC coil
• Number of Poles: 2
• Horsepower Rating: 10 HP at 230V, 1 phase
• Mounting Type: Metal base plate
• Interrupt Rating: Locked rotor 300A @ 230V, 250A @ 460V
• Terminals: Double quick connect
• Series/Frame: Class 8910
• Coil Frequency: 50/60 Hz
• Application: Definite purpose for HVAC and motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DPA52V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA5
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901080763
• GTIN : 00785901080763
• Country of Origin : China
• Dimensions : 2.56 in x 4.06 in
• Weight : 1.44
• Certification : CSA, RoHS, UL Listed
