Description
8910DPA44V14

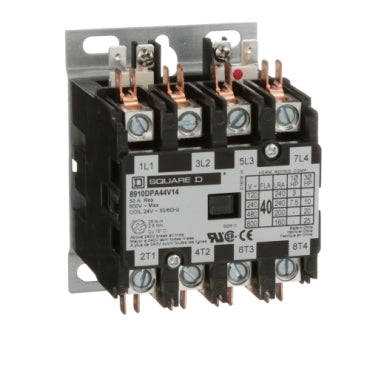

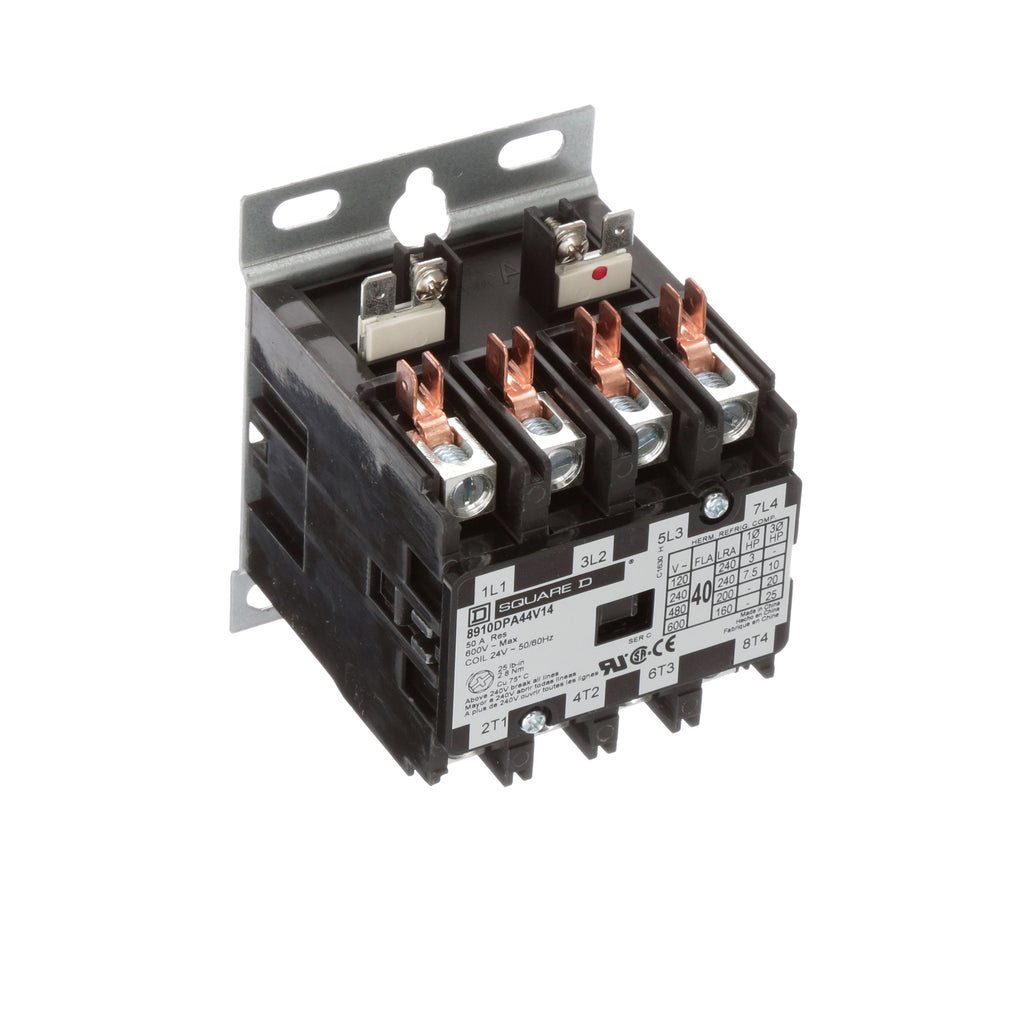

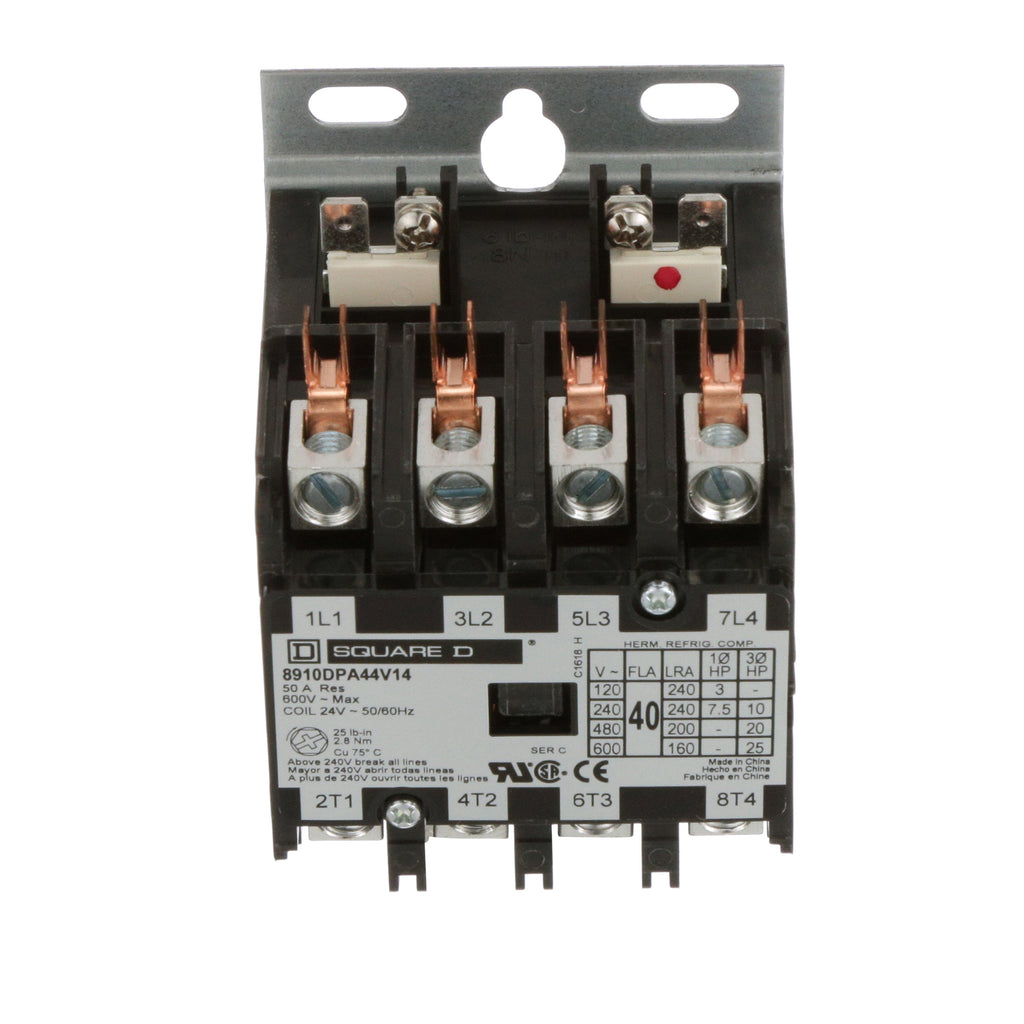

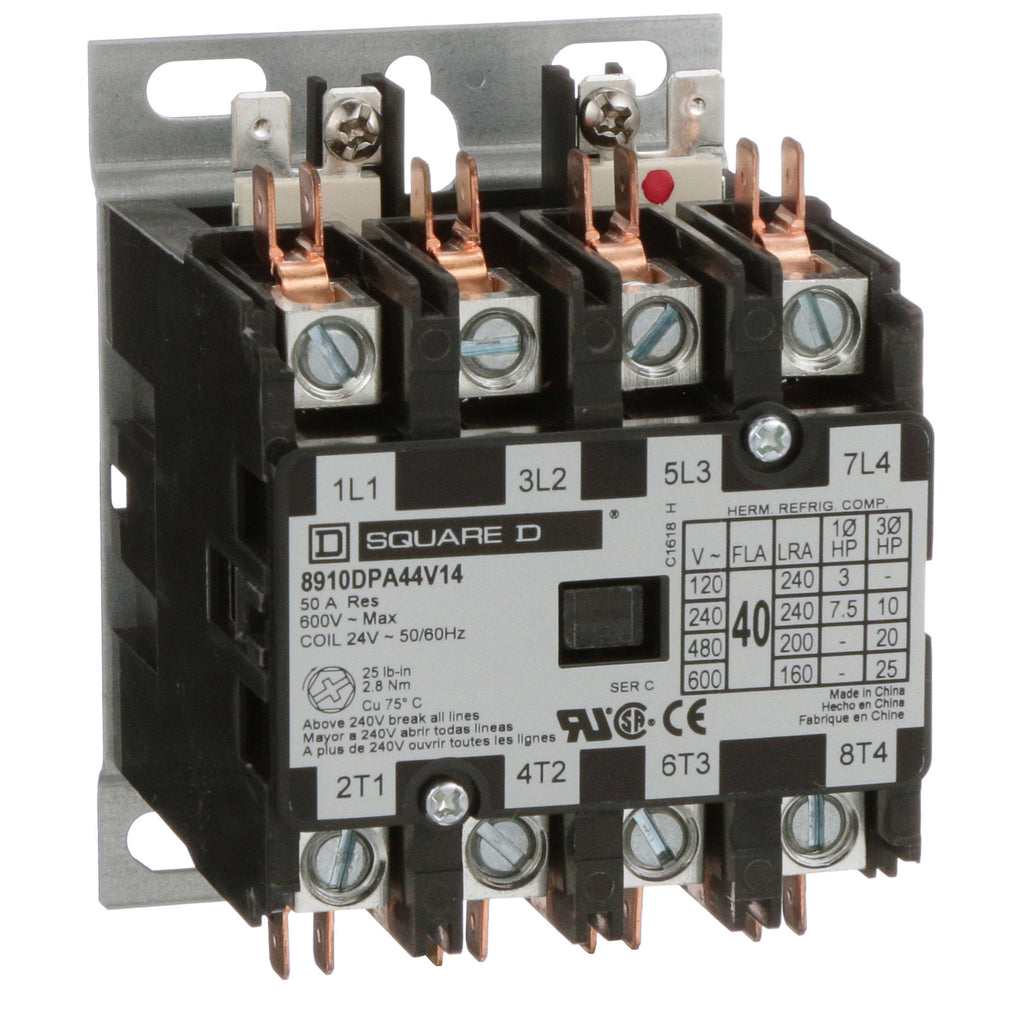

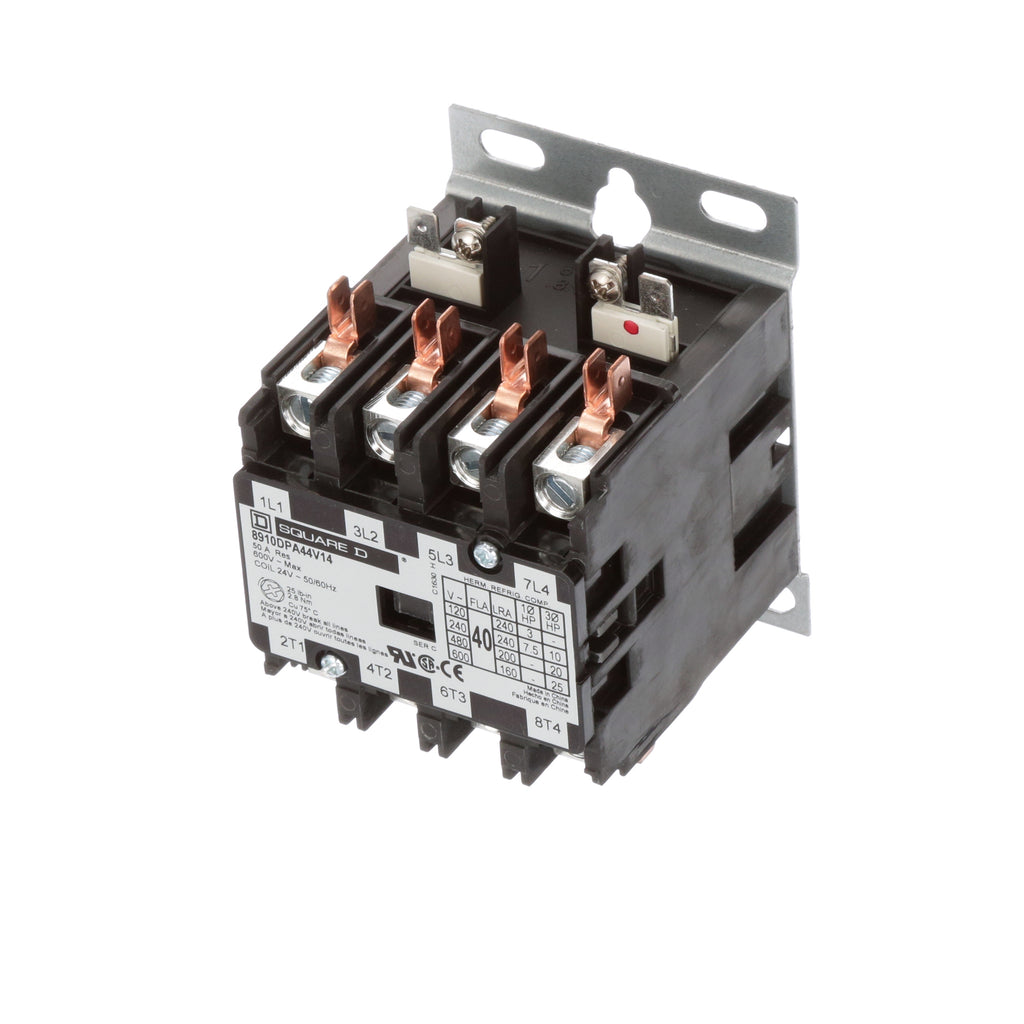

8910DPA44V14 is a Square D definite purpose contactor designed for motor control applications with a 40 amp rating and 4 poles.
This contactor operates at 24V AC coil voltage and supports 3-phase motor loads up to 10 HP at 230V. It features a metal base mounting plate and double quick connect terminals for reliable installation. The device is part of the Square D 8910 series, suitable for panel mounting and designed for 50/60 Hz operation.
- Key Specifications
- Amperage: 40A
- Voltage: 24V AC coil
- Poles: 4
- Phase: 3
- Horsepower Rating: 10 HP @ 230V

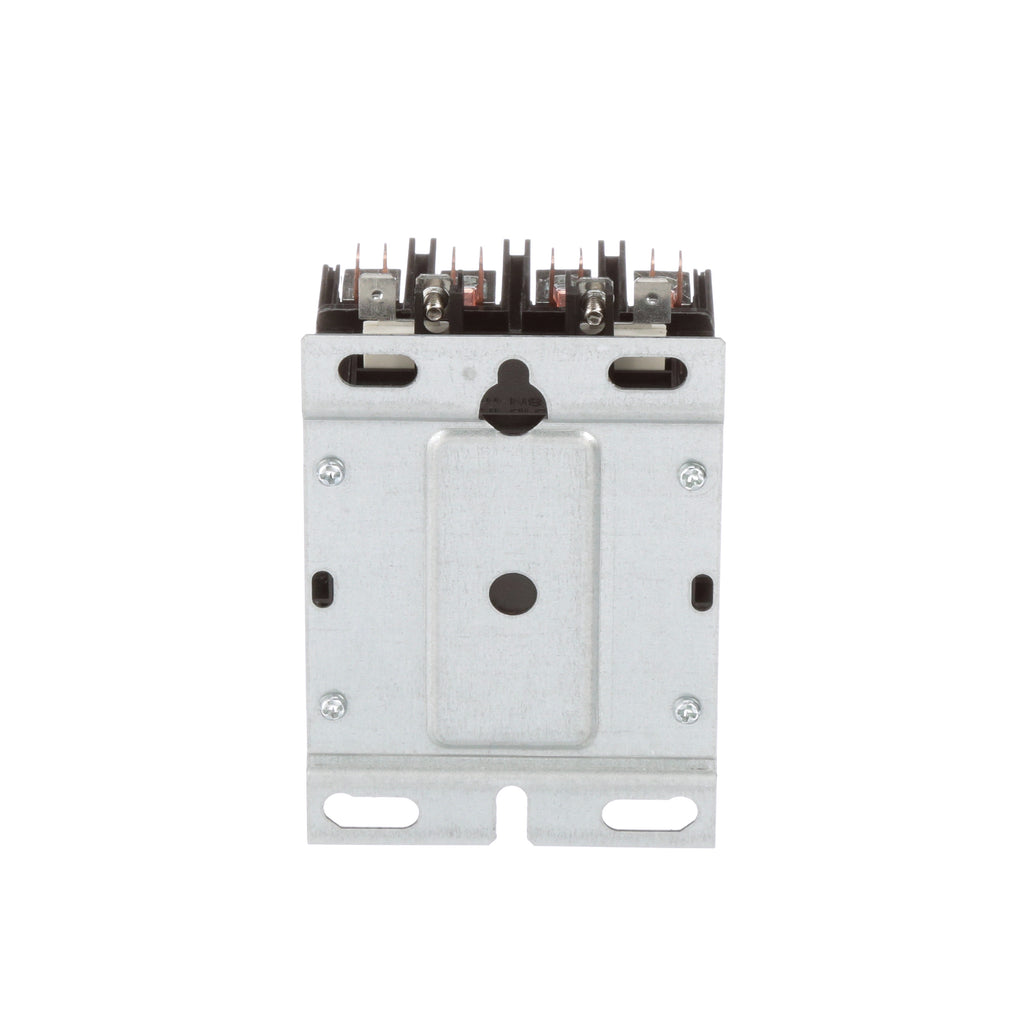

- Mounting Type: Panel mount with metal base plate
- Contactor Type: Definite Purpose
- Frequency: 50/60 Hz
- Terminals: Double quick connect
- Series/Frame: 8910
- Part Number: 8910DPA44V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 6
- Amperage : 4
- Poles : 4
- Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
- Aux Contacts : 4 NO
- Coil Voltage Maximum : 24V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 24V
- Frequency : 50/60 Hz
- UPC : 785901024491
- GTIN : 00785901024491
- Country of Origin : China
- Dimensions : 3.17 in x 4 in
- Weight : 1.27 lb
- Certification : CSA, RoHS, UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 600 VAC coil.
