8910DPA44V09 - Square D 40A 4-Pole Definite Purpose Contactor 208-240VAC Coil 25HP 3-Phase

8910DPA44V09

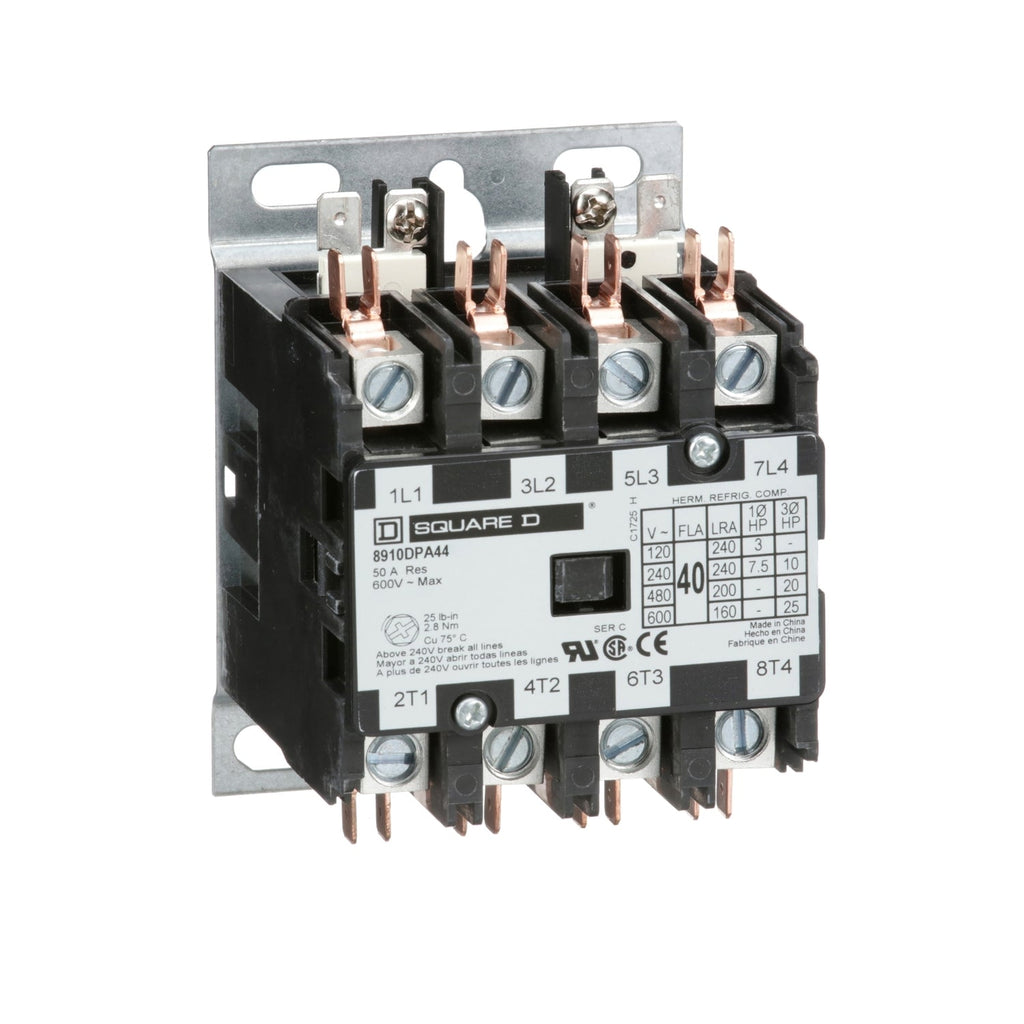

8910DPA44V09 is a Square D definite purpose contactor rated for 40 amps with a 4-pole configuration and a 208-240VAC coil voltage.8910DPA44V09 features a compact design with double quick connect terminals and a metal base plate for mounting. It supports motor horsepower ratings of 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase, 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase, and 25 HP at 575 VAC three phase. This contactor is ideal for heating, air conditioning, refrigeration, and other motor control applications. It includes screw binding head terminals and is UL recognized and CSA certified.

Key Specifications
• Amperage: 40A full load, 50A resistive
• Voltage: 208-240 VAC coil, 600 VAC max system voltage
• Poles: 4 poles (4 NO contacts)
• Horsepower Ratings: 3 HP @ 115 VAC, 7.5 HP @ 230 VAC (1 phase), 10 HP @ 230 VAC (3 phase), 20 HP @ 460 VAC (3 phase), 25 HP @ 575 VAC (3 phase)
• Mounting: Metal base plate, DIN track mounting option
• Interrupt Rating: 240A locked rotor @ 230 VAC, 200A @ 460 VAC, 160A @ 575 VAC
• Terminals: Double quick connect and screw binding head
• Series/Frame: Type DPA, Class 8910
• Trip Unit: Definite purpose contactor (non-reversing)
• Certifications: UL recognized, CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8910DPA44V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 4
• Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901749837
• GTIN : 00785901749837
• Country of Origin : China
• Dimensions : 2.75 in x 3.77 in
• Weight : 1.28
• Certification : CSA, RoHS, UL Listed
