Description
8910DPA44V04

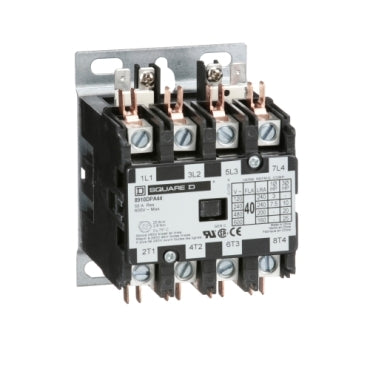

8910DPA44V04 is a Square D definite purpose contactor designed for reliable motor control in commercial and industrial applications.
This 4-pole, 40A contactor is rated for up to 600VAC and features a 277VAC coil. It is part of the DPA series and is suitable for a wide range of motor loads, including 3HP at 115VAC, 7.5HP at 230VAC, 10HP at 230VAC, 20HP at 460VAC, and 25HP at 575VAC. The contactor offers robust performance for HVAC, pumps, and other motor-driven equipment.
-
Key Specifications
- Part Number: 8910DPA44V04
- Manufacturer: Square D
- Category: Motor Control
- Amperage: 40A full load, 50A resistive
- Voltage: 600VAC maximum
- Poles: 4
- Coil Voltage: 277VAC 60Hz
- Mounting Type: Not specified in available data
- Interrupt Rating: Not specified in available data
- Series/Frame: DPA
- Trip Unit: Not applicable (standard contactor)
- Certifications: Not specified in available data
- Contact Configuration: 4NO (4 normally open)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8910DPA44V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 4
- Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
- Aux Contacts : 4 NO
- Coil Voltage Maximum : 277V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 277V
- Frequency : 60 Hz
Product Data
- UPC : 785901342717
- GTIN : 00785901342717
- Country of Origin : China
- Dimensions : 3.17 in x 4 in
- Weight : 1.36
- Certification : CSA, RoHS, UL Listed
