Description
8910DPA43V14

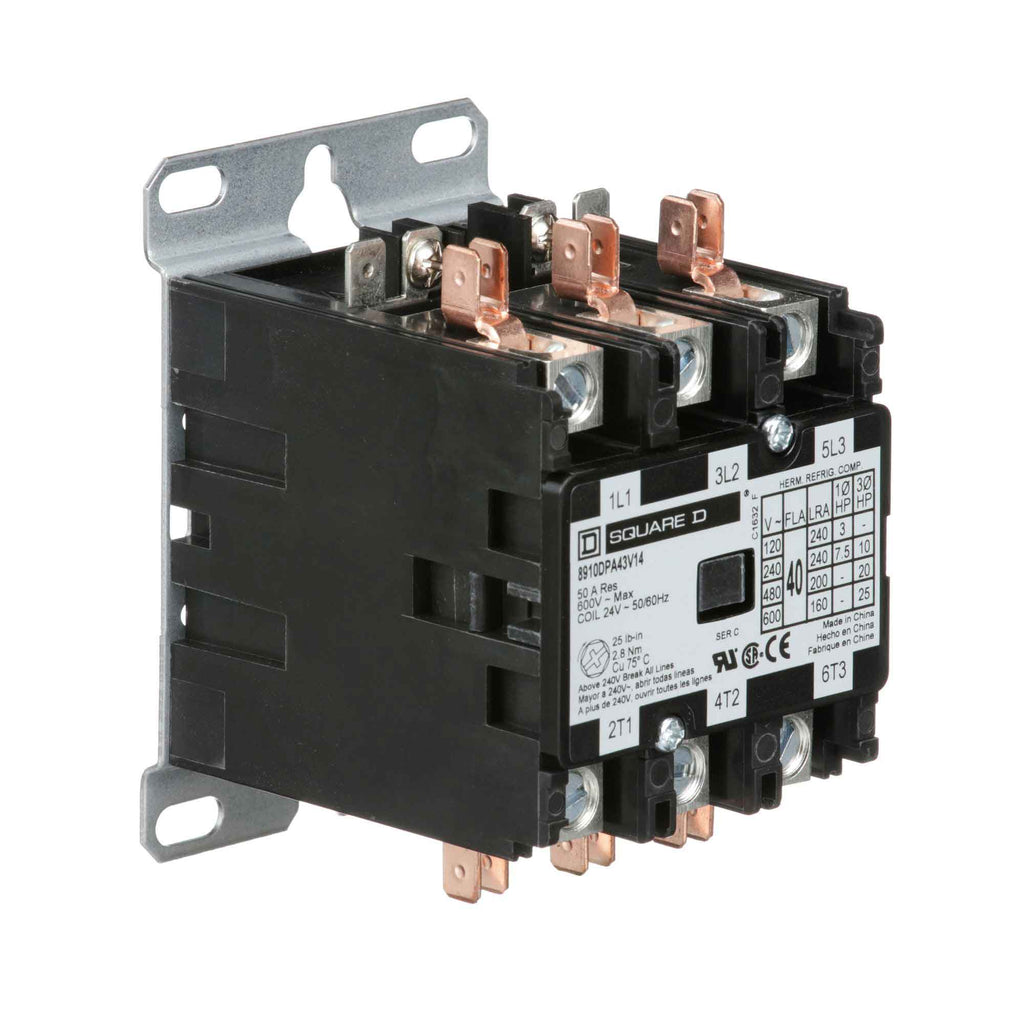

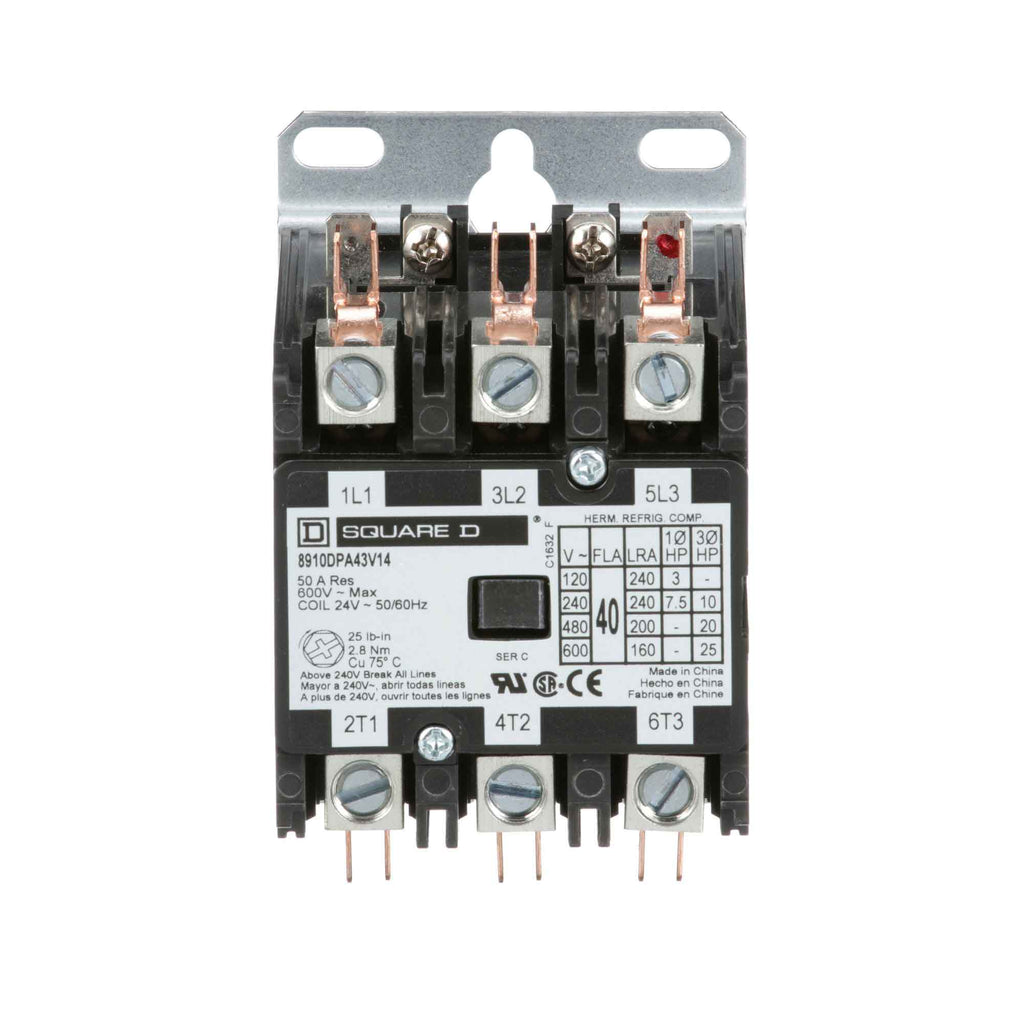

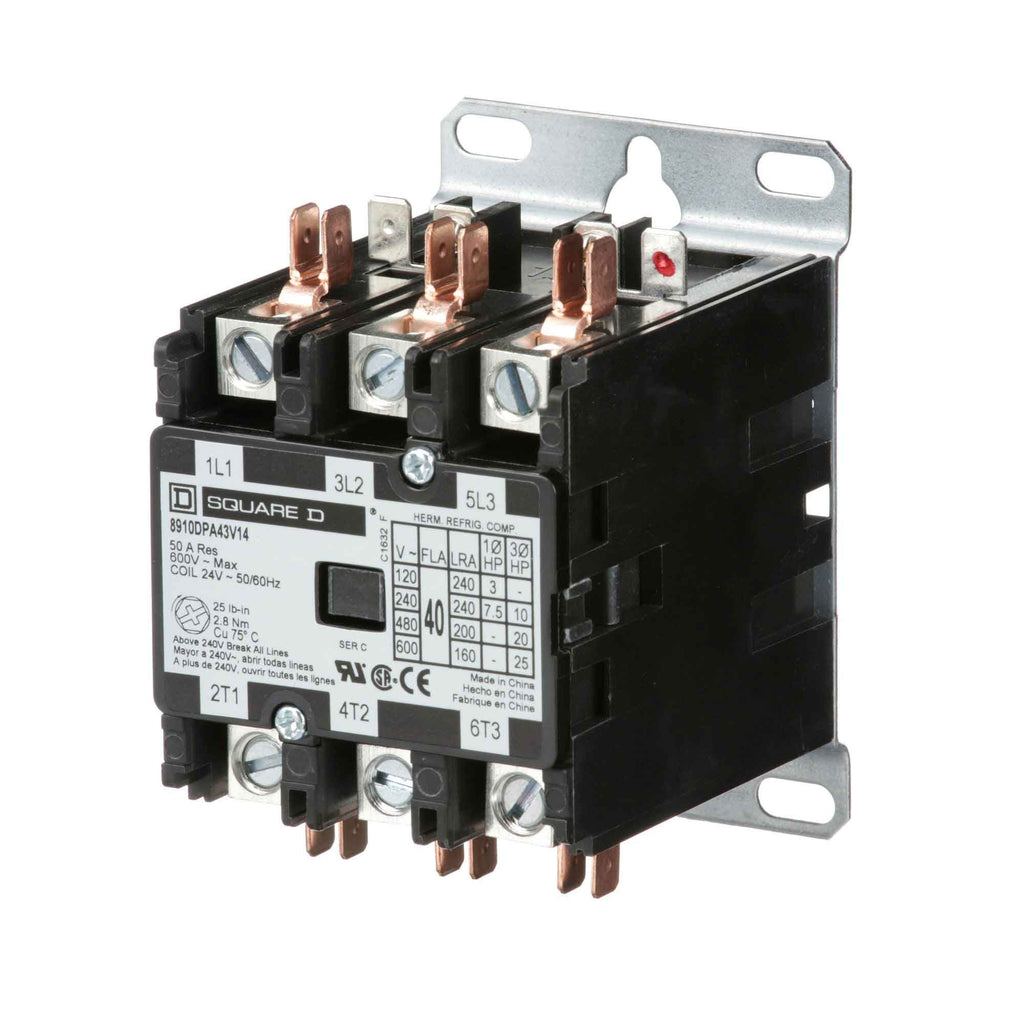

8910DPA43V14 is a Square D 3-pole definite purpose contactor rated for 40 amps and 600 volts with a 24V AC coil.This contactor features a compact design with double quick connect terminals and a metal base plate for mounting. It supports 3-phase operation with horsepower ratings of 10 HP at 230V and 20 HP at 460/575V. The device includes quick-connect terminals and binder head screws for easy wiring, and offers an exclusive DIN track mounting option to reduce installation costs. It is ideal for heating, air conditioning, refrigeration, data processing, and food service equipment applications.
- Key Specifications
- Amperage: 40 Amps
- Voltage: 600 Volts
- Number of Poles: 3
- Coil Voltage: 24V AC 50/60 Hz
- Horsepower Ratings: 10 HP @ 230V, 20 HP @ 460/575V (3-phase)

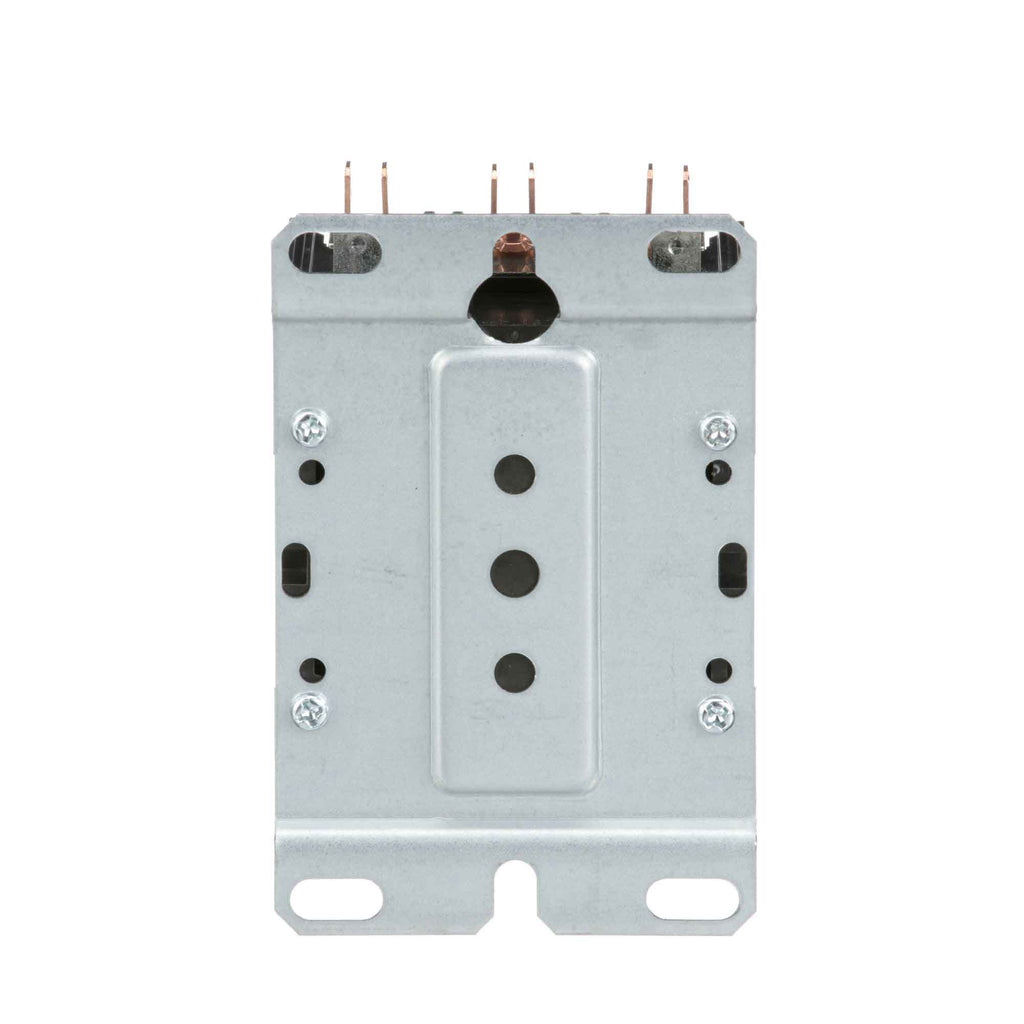

- Mounting: Metal base plate with optional DIN track
- Terminals: Double quick connect
- Series/Class: 8910, Type DPA
- Interrupt Rating: Suitable for definite purpose applications
- Certifications: Meets industry standards for motor control contactors
Additional Information
This Definite Purpose Contactor includes a 600 VAC coil.
Specifications
- Part Number: 8910DPA43V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 24V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901073451
- GTIN : 00785901073451
- Country of Origin : China
- Dimensions : 2.5 in x 4 in
- Weight : 1.04
- Certification : CSA, RoHS, UL Listed
