Description

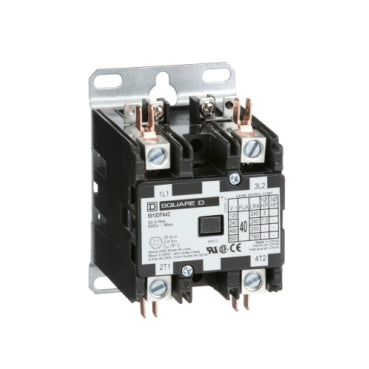

8910DPA42V04
8910DPA42V04 is a Square D definite purpose contactor designed for motor control applications with a 40 amp rating and 2 poles.This contactor features a 277 VAC coil, supports 3 HP at 115 VAC and 7.5 HP at 230 VAC, and includes normally open contacts. It is non-reversing and suitable for single-phase systems. The device meets CE, CSA, and UL certifications and is built on the 8910 series frame. Quick connect terminals facilitate easy wiring.
- Amperage: 40A full load
- Voltage: 277 VAC coil
- Poles: 2
- Horsepower: 3 HP at 115 VAC, 7.5 HP at 230 VAC
- Phase: Single-phase
- Contact Configuration: Normally Open (2NO)
- Series/Frame: 8910
- Mounting Type: Panel mount (NEMA 1 enclosure)
- Standards: CE, CSA, UL Listed
- Frequency: 50/60 Hz
- Type: Definite Purpose Contactor
- Non-reversing
Specifications
- Part Number: 8910DPA42V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 6
- Amperage : 4
- Poles : 2
- Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 277V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 277V
Product Data
- UPC : 785901150565
- GTIN : 00785901000000
- Country of Origin : China
- Dimensions : 2.5 in x 4 in
- Weight : 0.96
- Certification : CSA, RoHS, UL Listed
