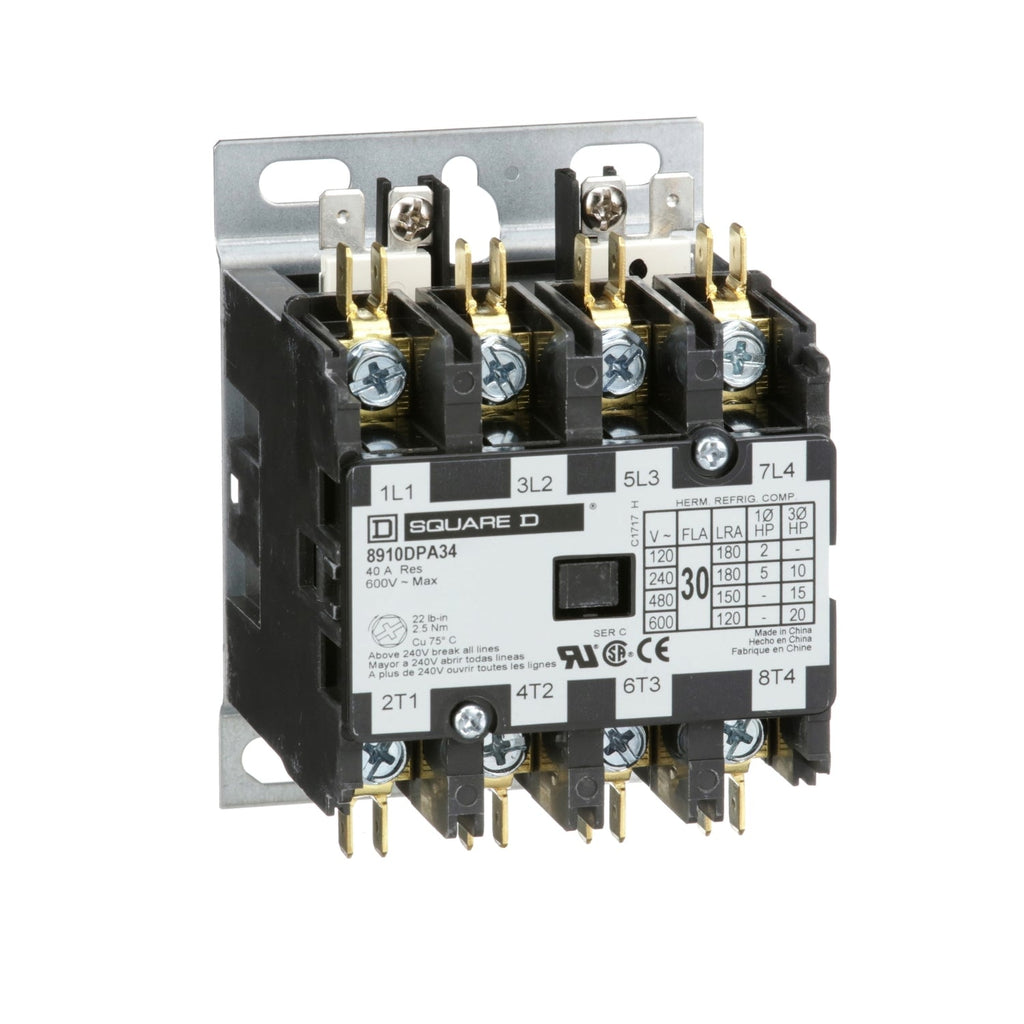

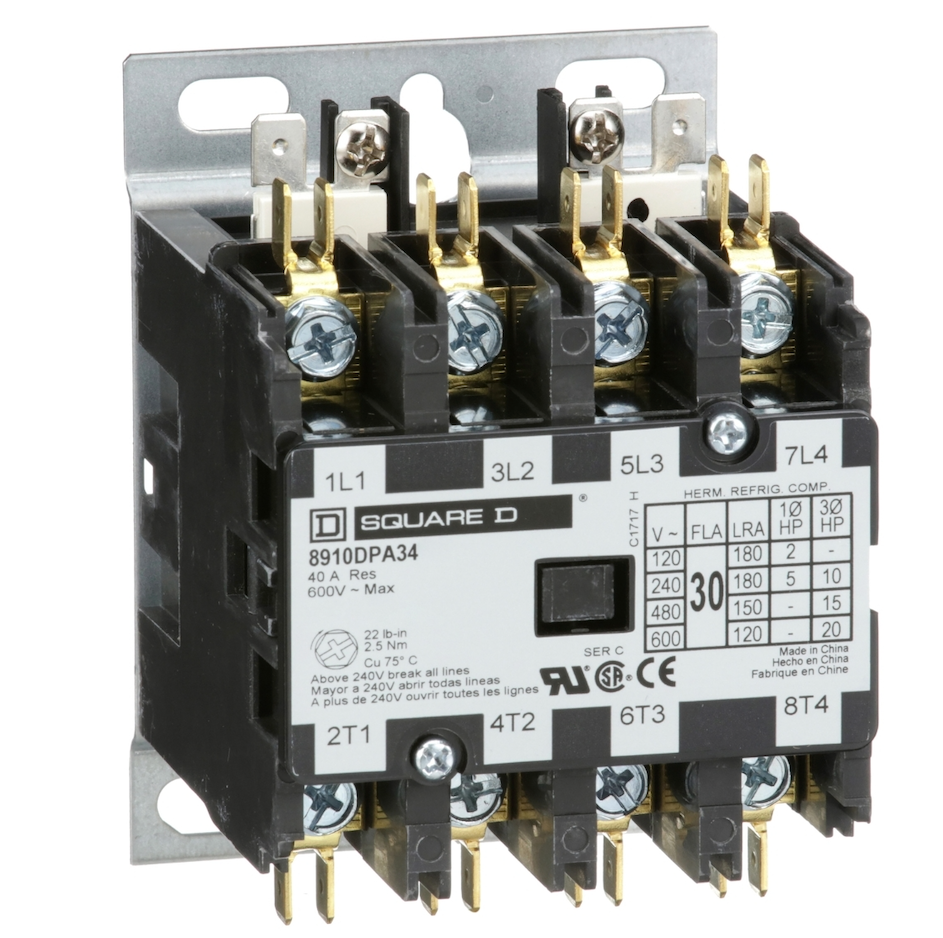

8910DPA34V14 - Square D 30A 600V 4-Pole 3-Phase Definite Purpose Contactor 24VAC Coil

8910DPA34V14

This contactor supports 3-phase systems up to 600 volts and features a 24 VAC coil operating at 50/60 Hz. It is rated for motor horsepower up to 20 HP at 575 VAC and includes quick connect terminals with binder head screws for easy wiring. The unit is open type and mounts on a panel, suitable for various industrial motor control needs.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 VAC maximum
• Number of Poles: 4
• Phase: 3-Phase
• Coil Voltage: 24 VAC, 50/60 Hz
• Mounting Type: Panel mount
• Horsepower Ratings: 2 HP at 115 VAC, 5 HP at 230 VAC, 10 HP at 230 VAC, 15 HP at 460 VAC, 20 HP at 575 VAC
• Interrupt Rating: Locked rotor rated current up to 180A at 277 VAC
• Enclosure: Open type
• Electrical Connection: Quick connect terminals with binder head screws
• Series/Frame: Class 8910

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

This Definite Purpose Contactor includes a 600 VAC coil.




Specifications

• Part Number: 8910DPA34V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 4
• Temp Rating : 32 to 149 deg
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 24V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 24V
• Frequency : 50/60 Hz



Product Data

• UPC : 785901073512
• GTIN : 00785901073512
• Country of Origin : China
• Dimensions : 3.17 in x 4 in
• Weight : 1.31 lb
• Temp Rating : 32 to 149 deg
• Certification : CSA, RoHS, UL Listed
