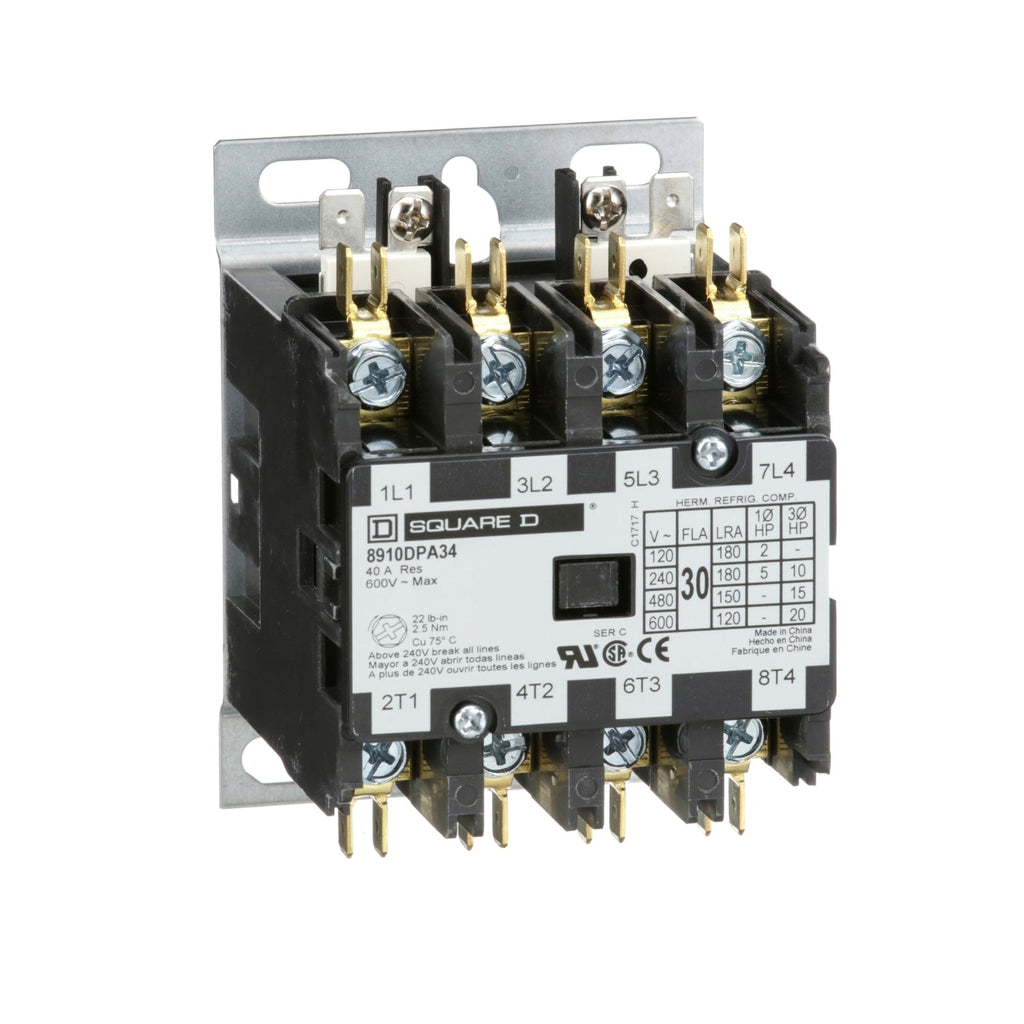

8910DPA34V09 - Square D 30A 240V 4-Pole 3-Phase Definite Purpose Contactor

8910DPA34V09

8910DPA34V09 is a Square D Class 8910 definite purpose contactor designed for motor control applications.This 4-pole, 3-phase contactor operates at 30 amps with a coil voltage of 208-240 VAC. It supports horsepower ratings up to 20 HP at 575 VAC and features a panel mounting type. The contactor is suitable for use in 600V systems and is non-reversing, providing reliable switching for motor starters.

Key Specifications
• Amperage: 30A
• Voltage: 208-240 VAC coil, 600V max system voltage
• Poles: 4
• Phase: 3-phase
• Mounting Type: Panel mount
• Horsepower Ratings: 2 HP @ 115 VAC, 5 HP @ 230 VAC, 20 HP @ 575 VAC
• Contactor Type: Definite Purpose, Non-Reversing
• Series/Frame: Class 8910 DPA
• Interrupt Rating: Suitable for motor control applications
• Certifications: Meets applicable industry standards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.




Specifications

• Part Number: 8910DPA34V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 4
• Temp Rating : 32 to 149 deg
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz



Product Data

• UPC : 785901073499
• GTIN : 00785901073499
• Country of Origin : China
• Dimensions : 3.17 in x 4 in
• Weight : 1.24 lb
• Temp Rating : 32 to 149 deg
• Certification : CSA, RoHS, UL Listed
