8910DPA34V02 - Square D 30A 4-Pole Definite Purpose Contactor, 110/120VAC Coil, 3-Phase, Panel Mount

8910DPA34V02

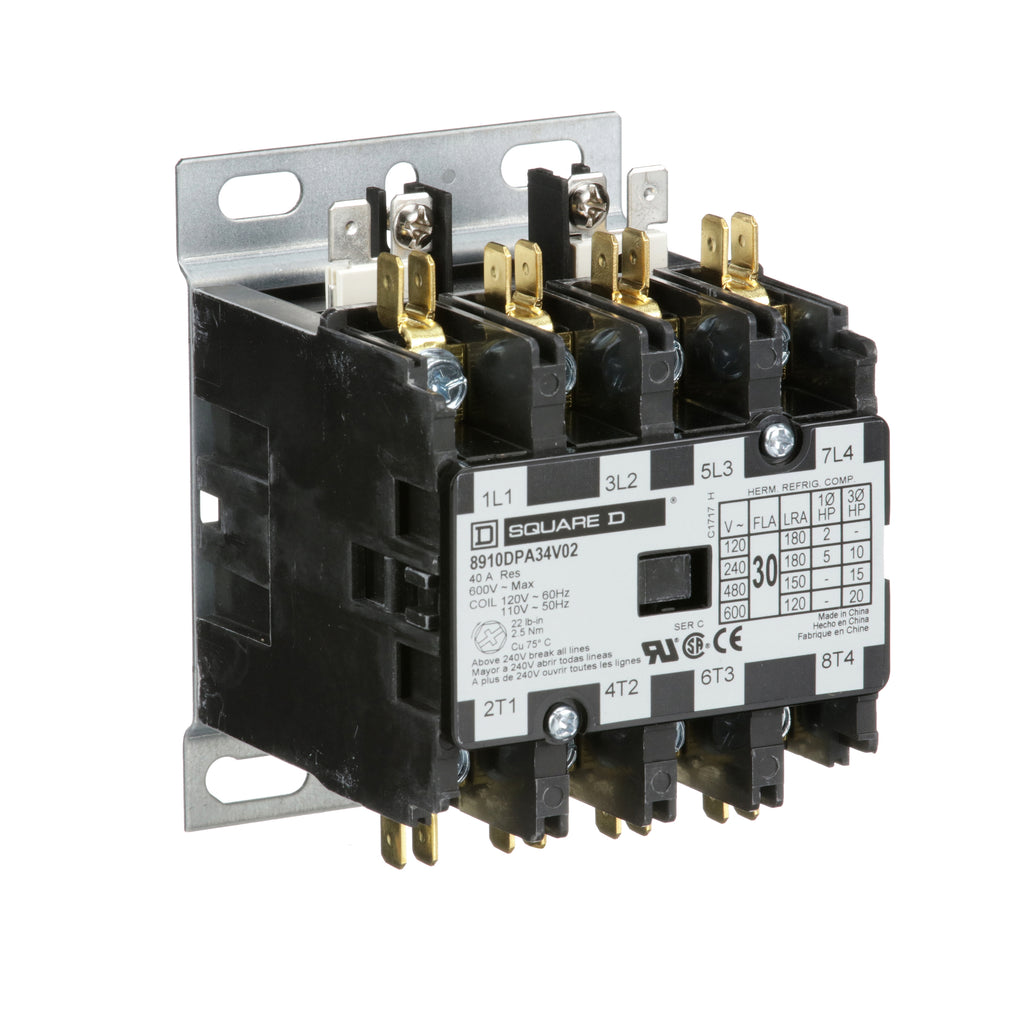

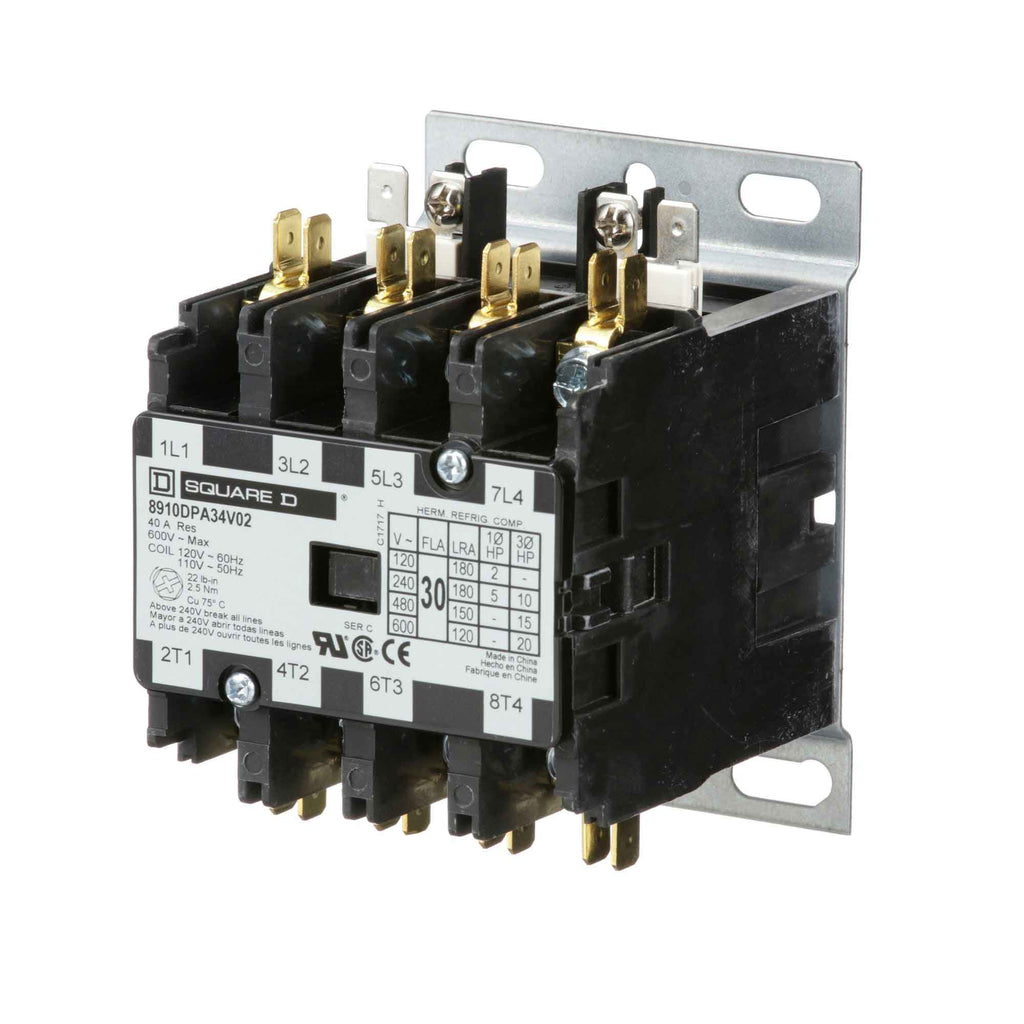

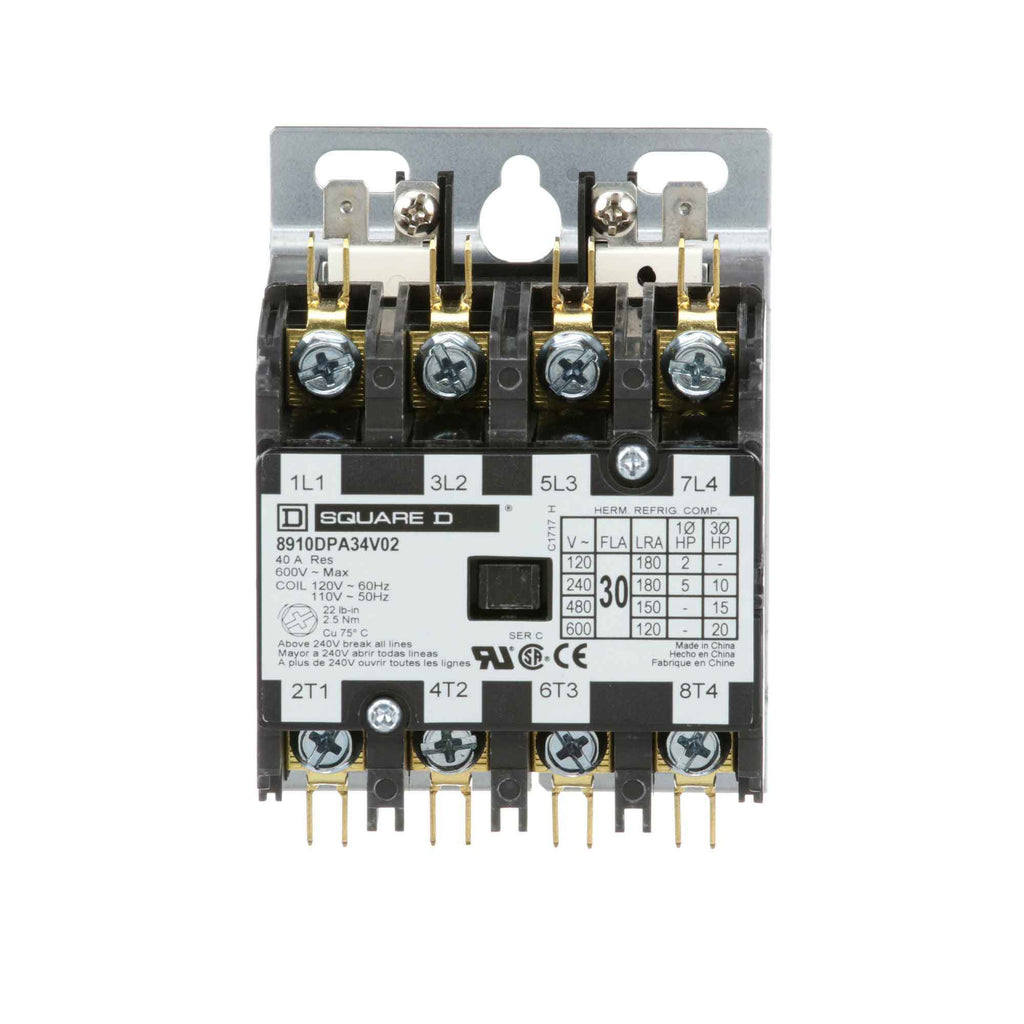

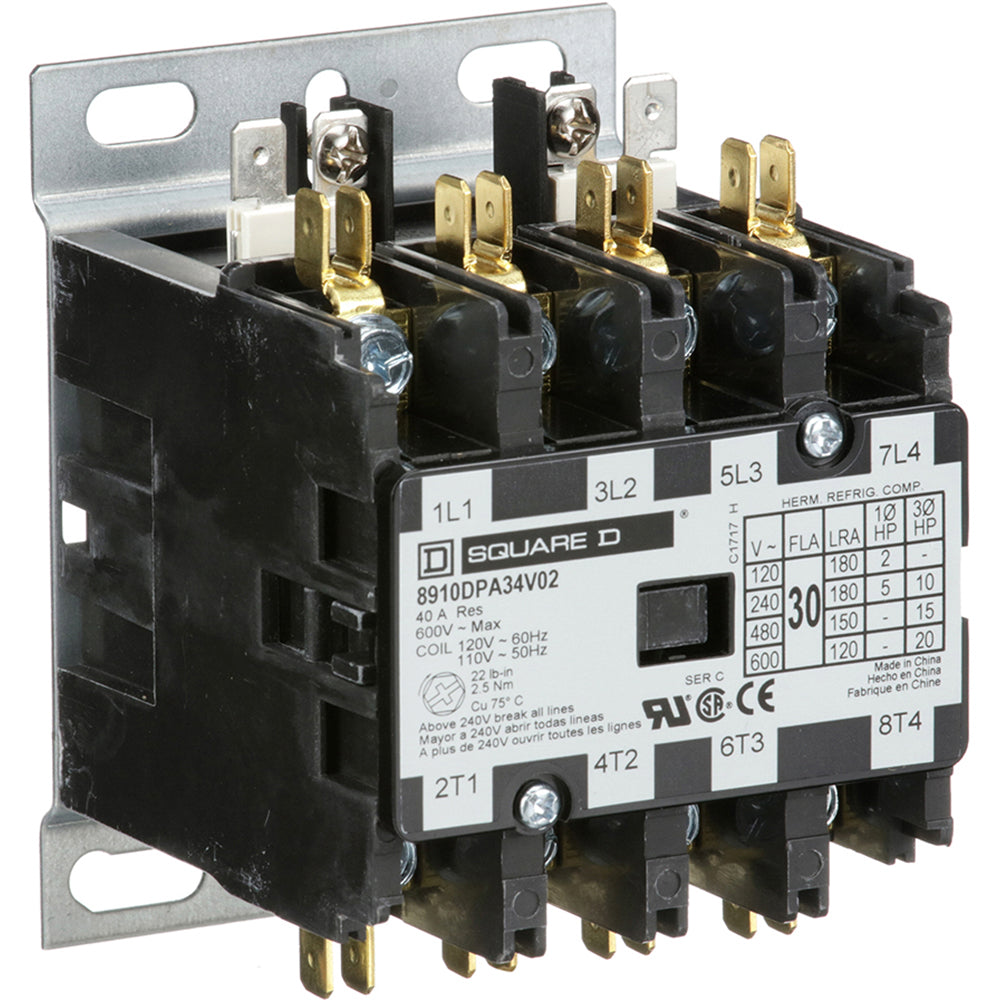

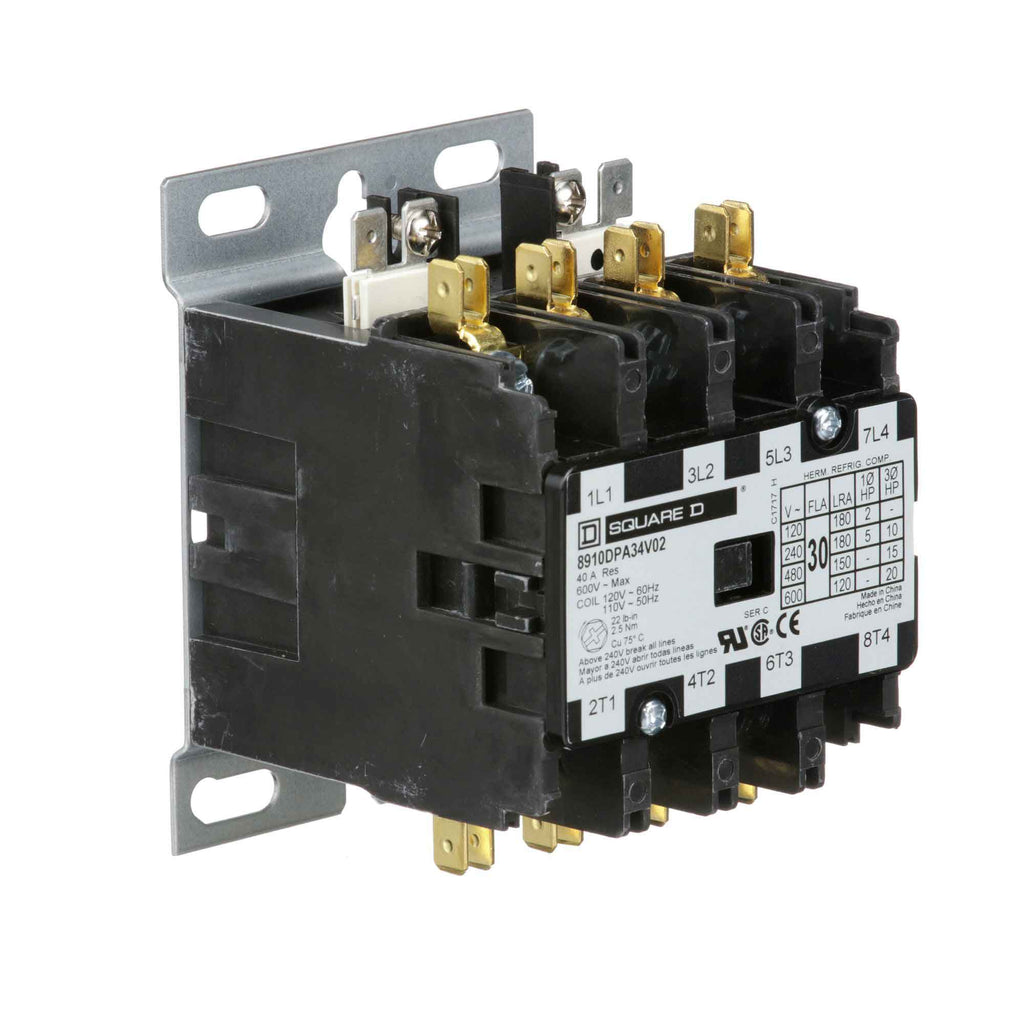

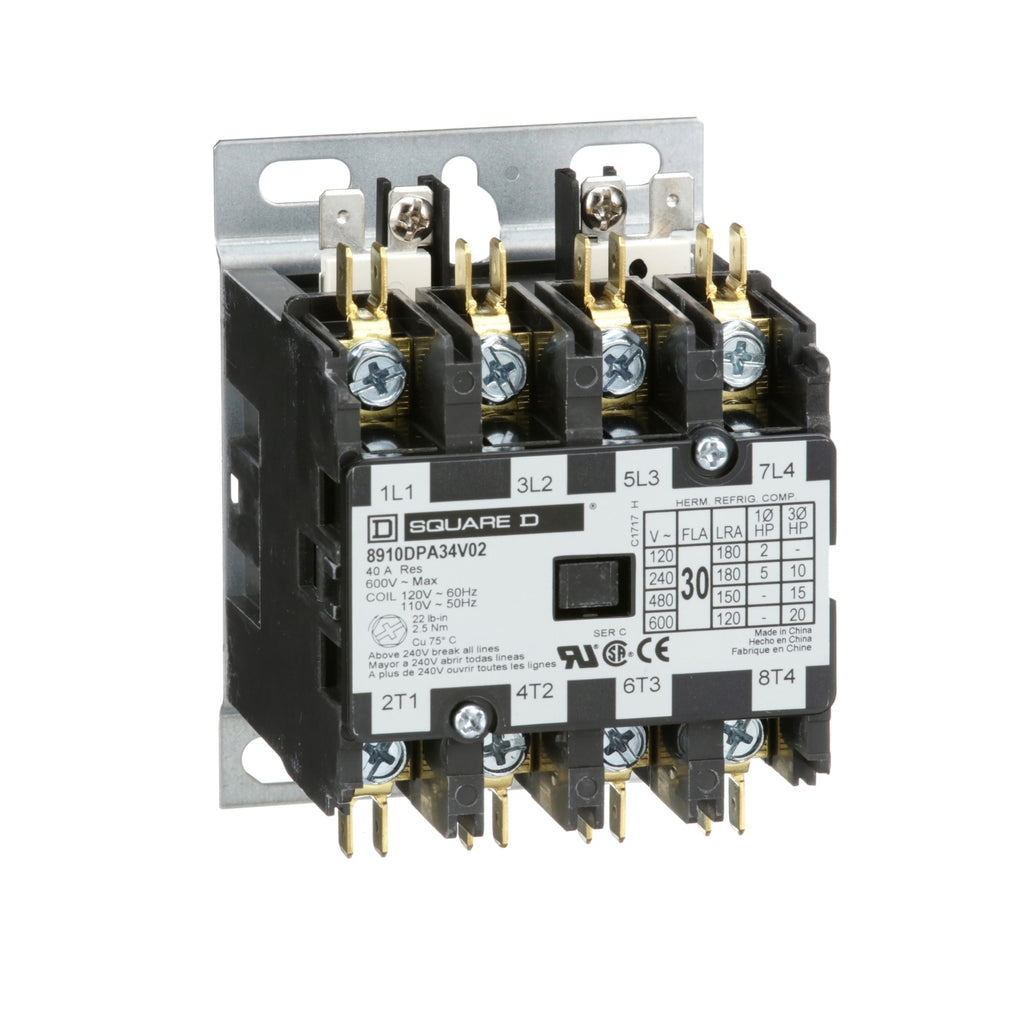

8910DPA34V02 is a Square D definite purpose contactor rated for 30 amps with a 4-pole configuration and a 110/120 VAC coil designed for motor control applications.This 3-phase contactor supports motor horsepower ratings of 10 HP at 230 VAC and 15 HP at 460/575 VAC. It features quick connect terminals and binder head screws for easy wiring, a metal base plate for panel mounting, and is UL recognized and CSA certified. The contactor is suitable for use in systems up to 600 VAC with a locked rotor current rating up to 180A at 277 VAC. It is an open enclosure type and part of the DPA series.

• Line Rated Current: 30A
• Number of Poles: 4
• Number of Phases: 3-Phase
• Control Circuit Voltage: 110 VAC 50Hz / 120 VAC 60Hz
• Motor Horsepower: 10 HP @ 230 VAC, 15 HP @ 460/575 VAC

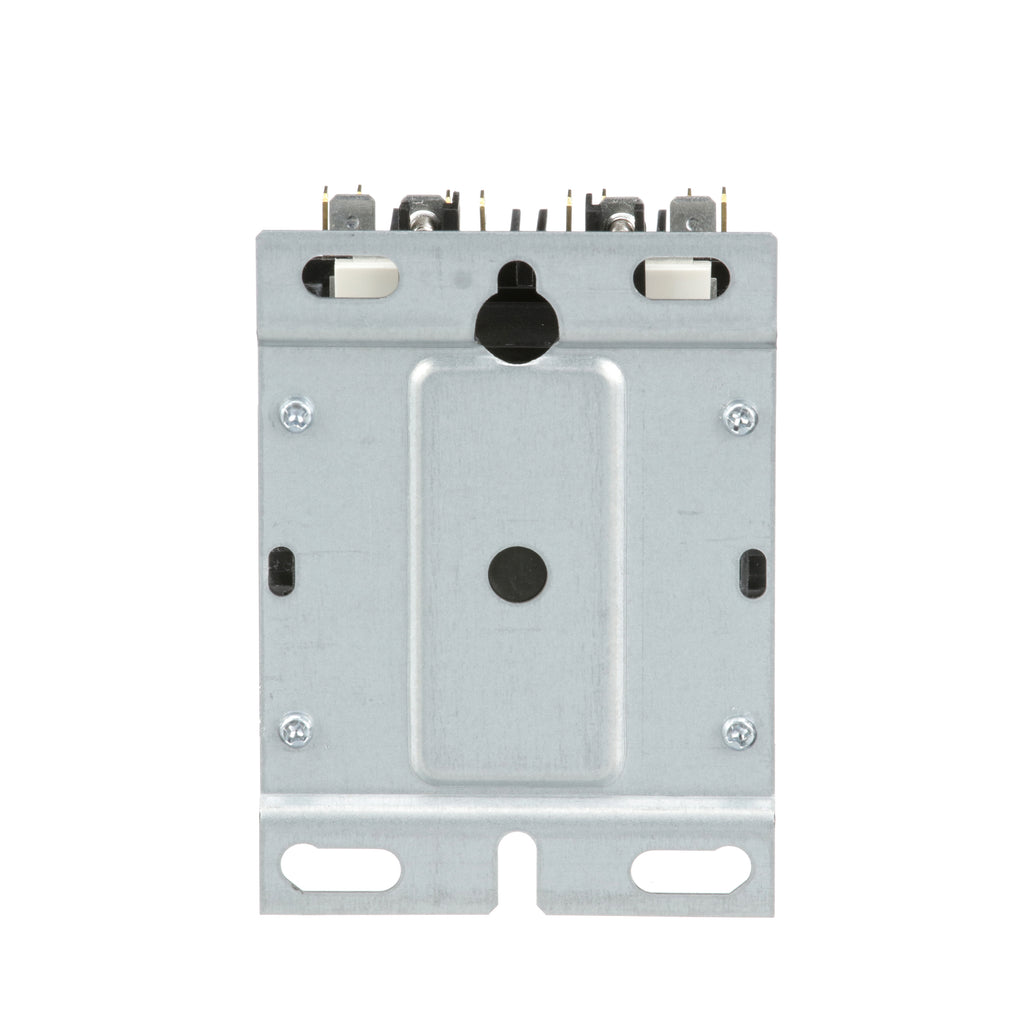

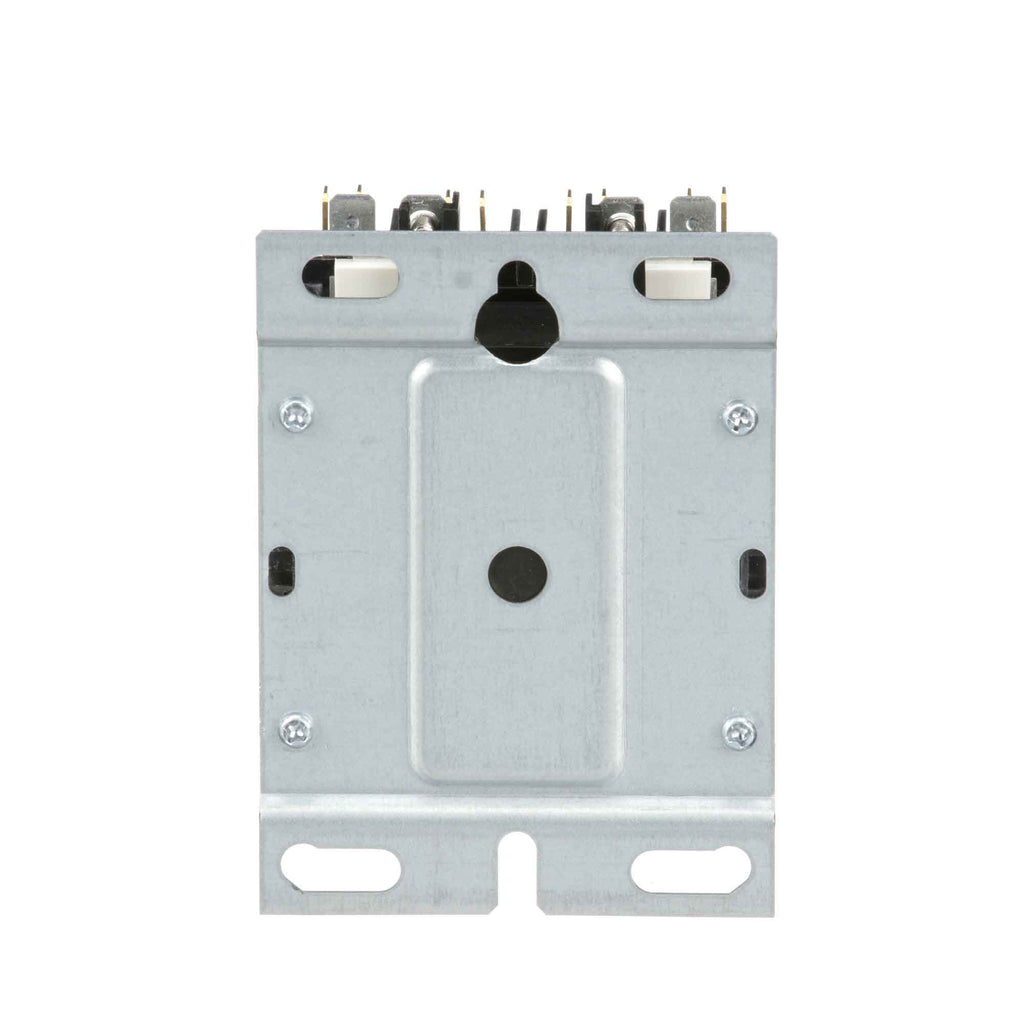

• Mounting Type: Panel mount with metal base plate
• Interrupt Rating: Locked Rotor Rated Current 150A @ 460 VAC, 120A @ 575 VAC, 180A @ 277 VAC
• Electrical Connections: Quick connect terminals and binder head screws
• Enclosure Rating: Open
• Certifications: UL Recognized, CSA Certified
• Series: DPA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DPA34V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 4
• Temp Rating : 32 to 149 deg
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901073505
• GTIN : 00785901073505
• Country of Origin : China
• Dimensions : 3.77 in x 2.75 in x 3.00 in (Height x Width x Depth)
• Weight : 1.23 lb
• Temp Rating : 32 to 149 deg
• Certification : CSA, RoHS, UL Listed
