Description

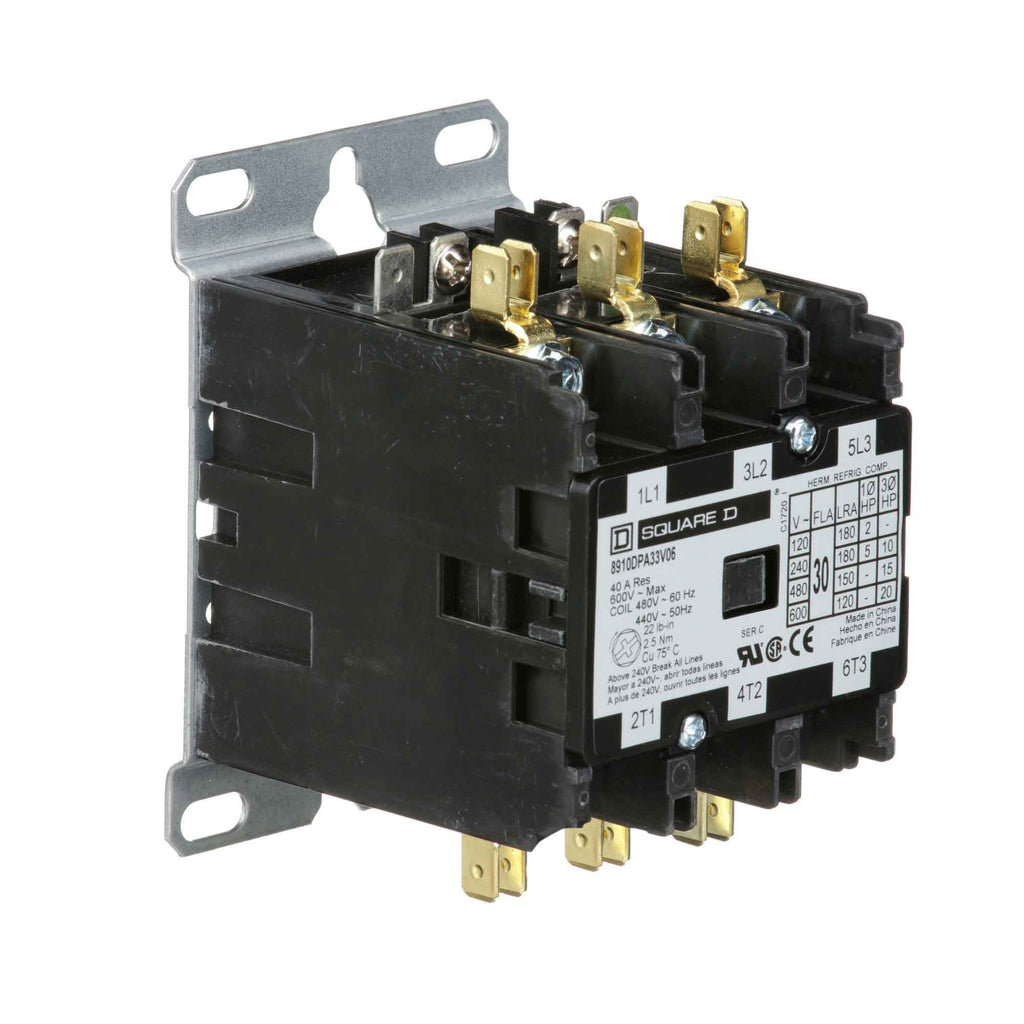

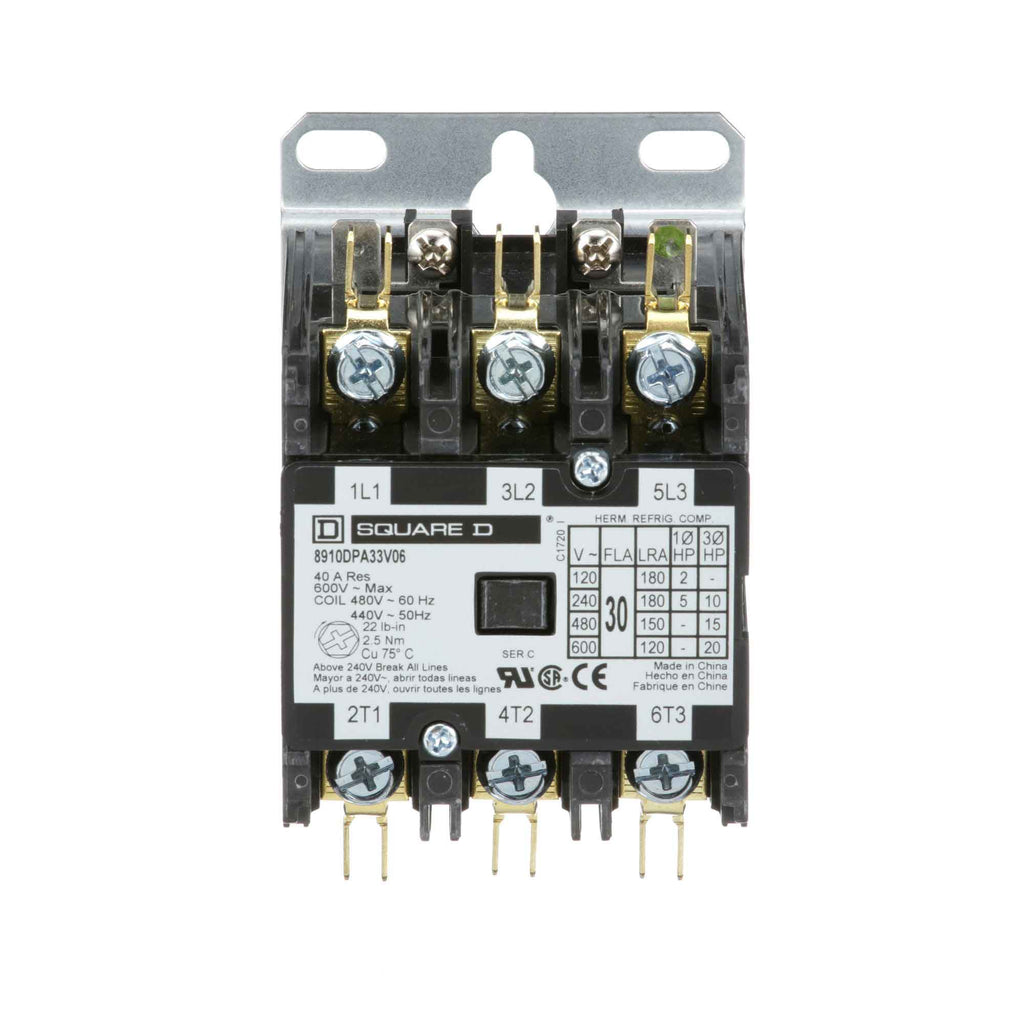

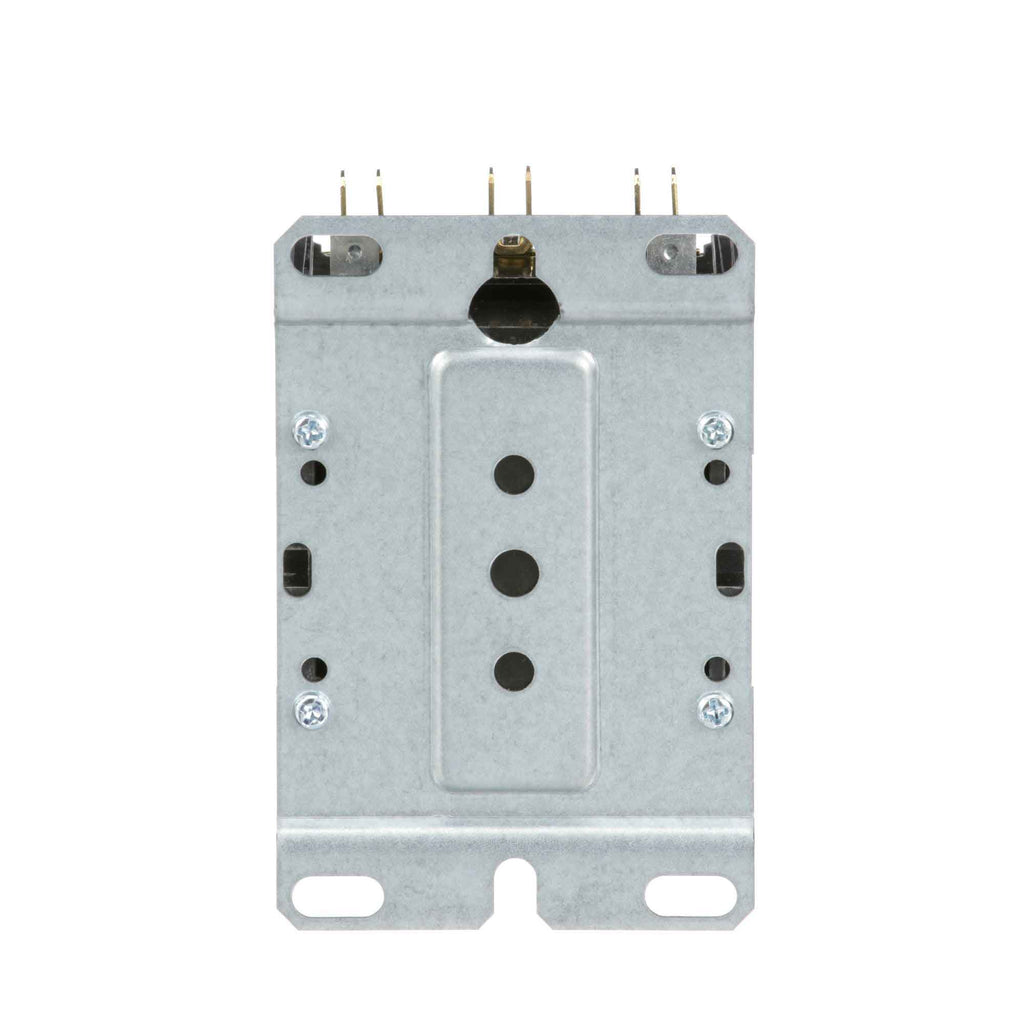

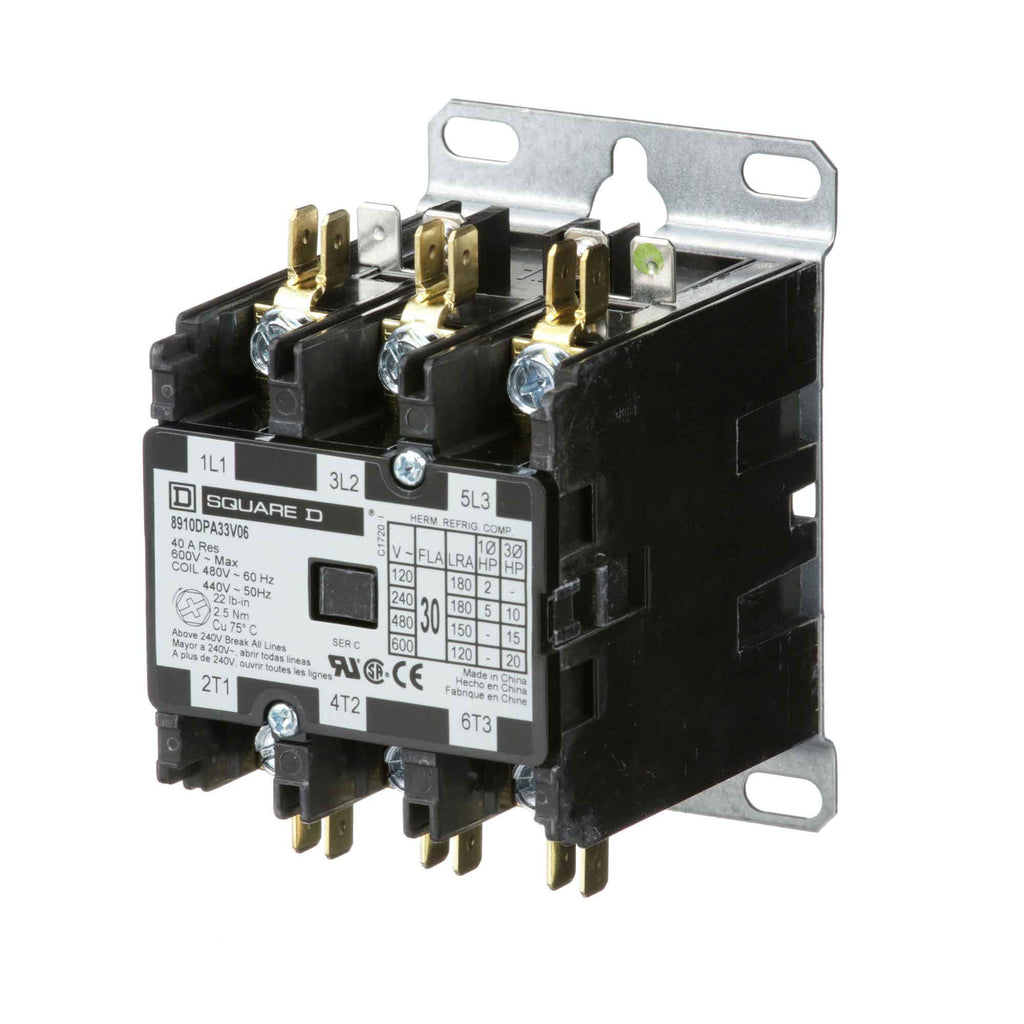

8910DPA33V06
8910DPA33V06 is a Square D definite purpose contactor designed for reliable motor control in commercial and industrial applications. This 3-pole, 3-phase contactor features a 30A current rating and a 480VAC coil, suitable for use in heating, air conditioning, refrigeration, and food service equipment. The open design allows for easy installation and maintenance, while the quick connect terminals provide secure wiring connections. This contactor is part of the Class 8910 series and is UL recognized and CSA certified for safety and performance. It is non-reversing and operates at 50/60Hz, making it versatile for various electrical systems. The compact panel mounting design saves space in control panels and enclosures.
- Part Number: 8910DPA33V06
- Manufacturer: Square D
- Series: Class 8910
- Type: Definite Purpose Contactor
- Amperage: 30A
- Voltage: 480VAC
- Poles: 3
- Phase: 3-Phase
- Mounting Type: Panel
- Interrupt Rating: Not specified
- Certifications: UL Recognized, CSA Certified
- Features: Quick Connect Terminal, Open Design
Additional Information
This Definite Purpose Contactor includes a 440 VAC coil.
Specifications
- Part Number: 8910DPA33V06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 480V
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 440V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901849841
- GTIN : 00785901849841
- Country of Origin : China
- Dimensions : 2.5 in x 4 in
- Weight : 1.09
- Certification : CSA, RoHS, UL Listed
