Description
8910DPA32V04

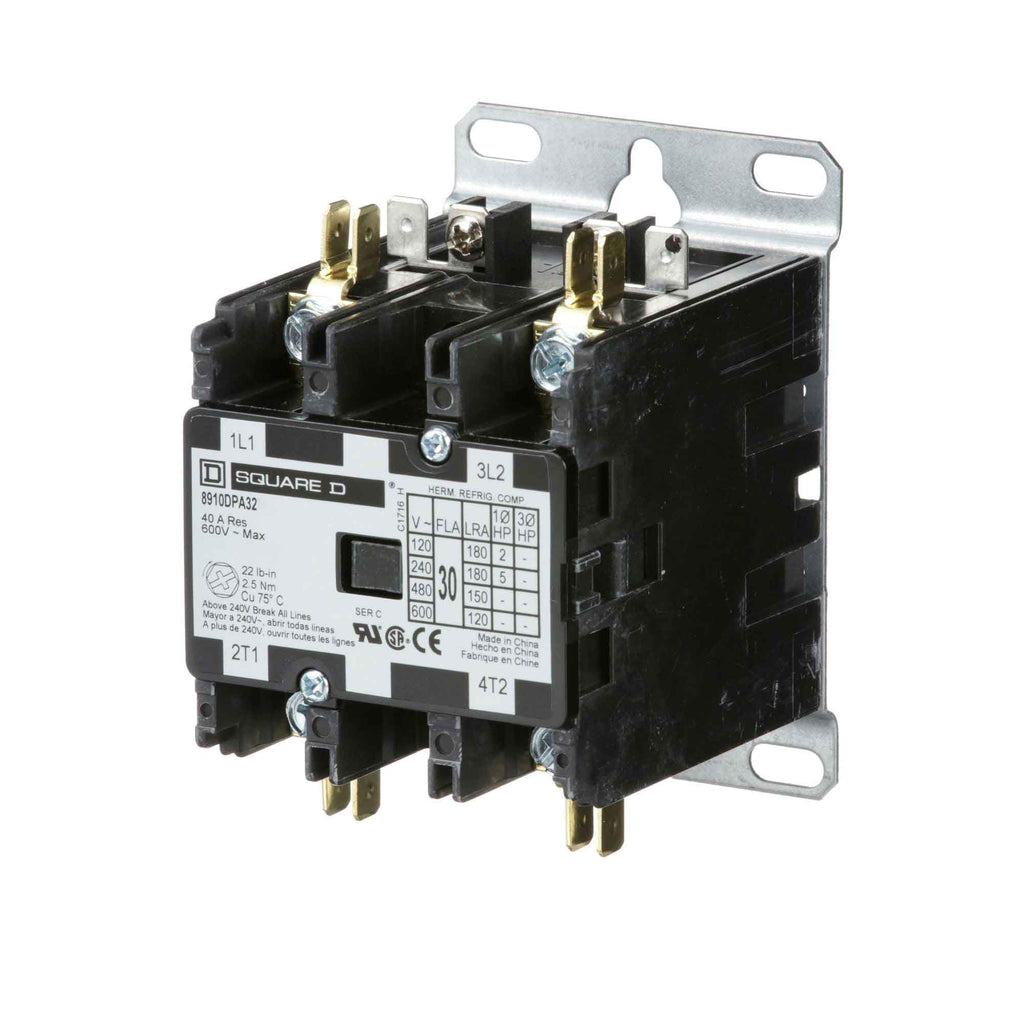

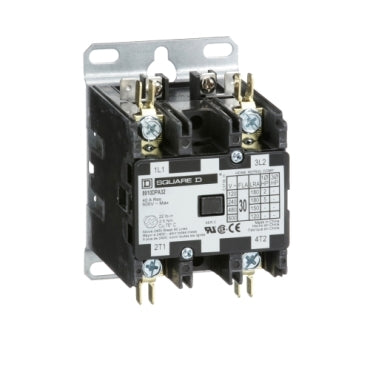

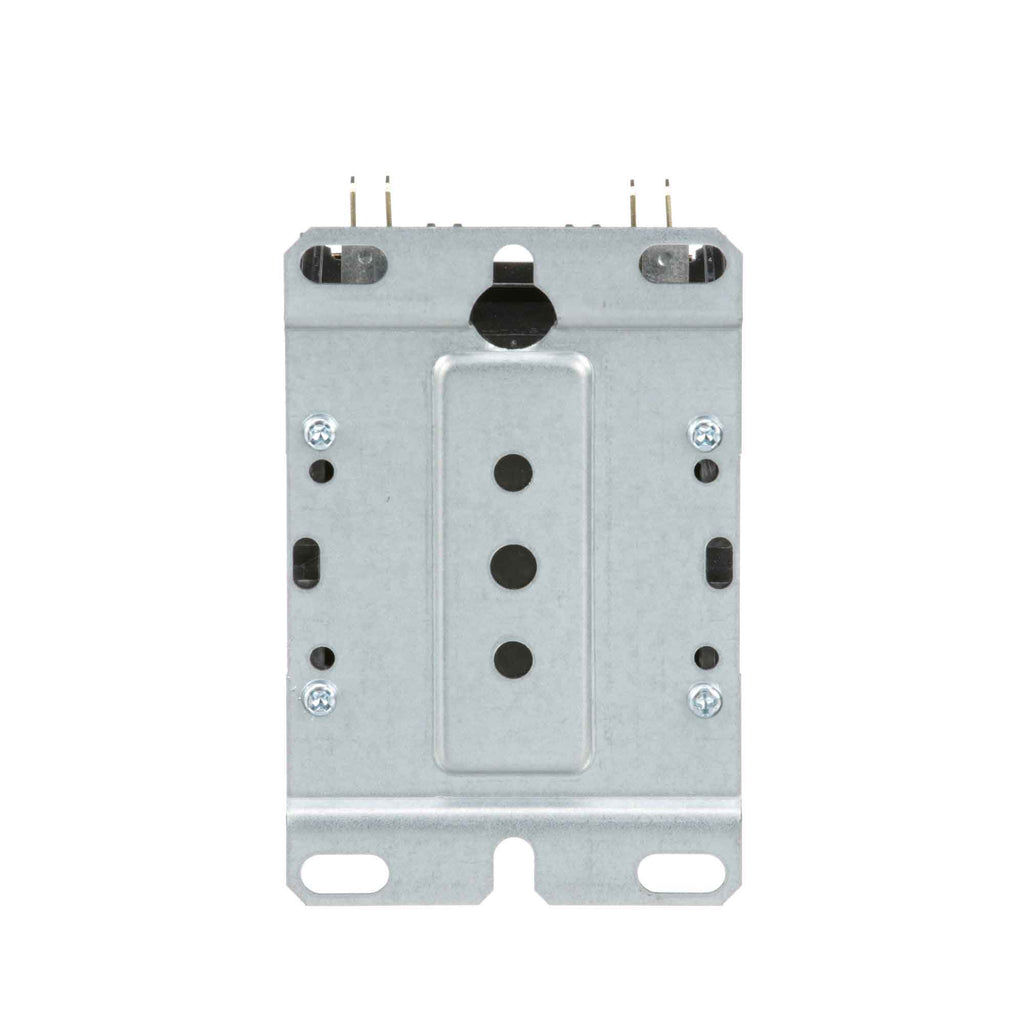

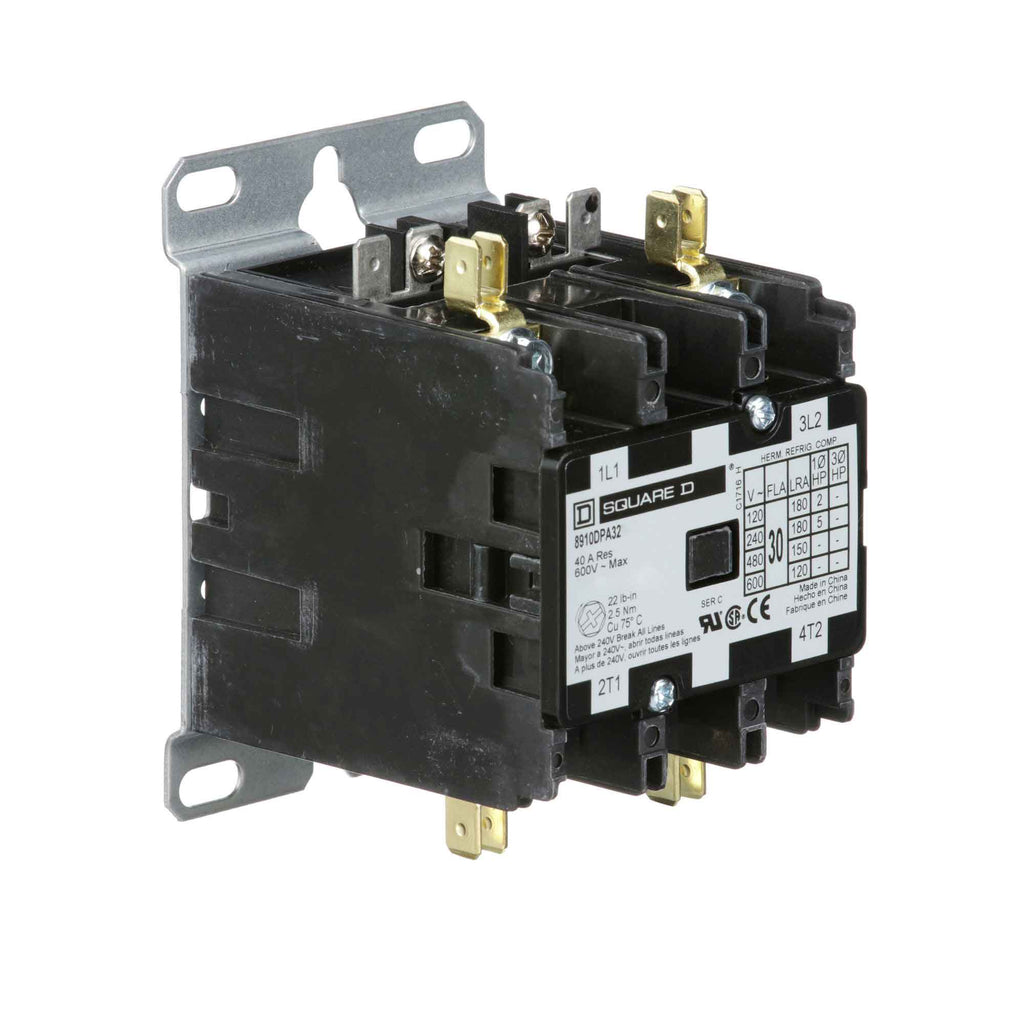

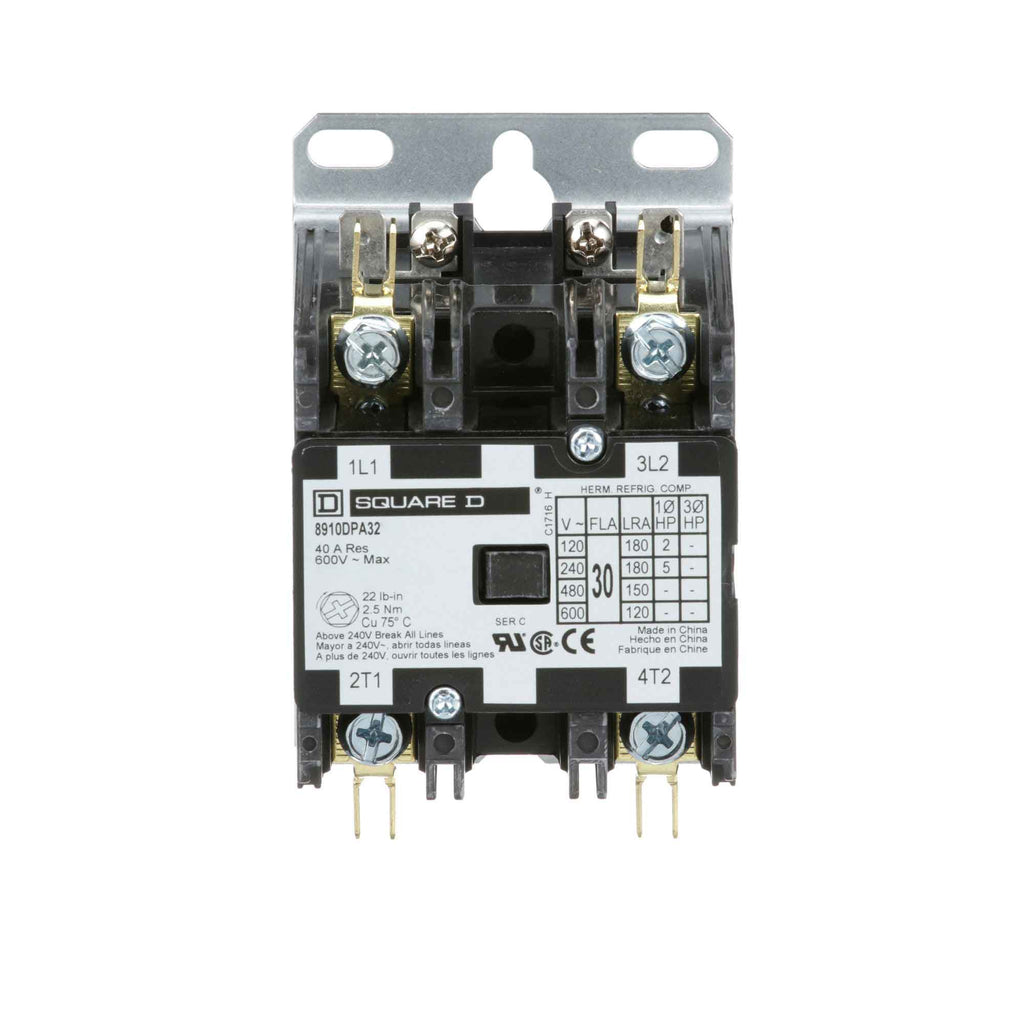

8910DPA32V04 is a Square D definite purpose contactor designed for motor control applications with 30 amps, 2 poles, and a 277V coil.This 1 phase contactor from the 8910 series features a non-reversing design, supports up to 2 HP at 115V and 5 HP at 230V, and includes quick connect terminals for easy installation. It operates at 50/60 Hz and is rated for 600V maximum voltage.
- Amperage: 30A
- Voltage: 277V Coil, 600V Max
- Poles: 2 Pole
- Phase: 1 Phase
- Horsepower Rating: 2 HP @ 115V, 5 HP @ 230V
- Frame/Series: 8910
- Contact Type: Normally Open (2 NO)
- Mounting Type: Open
- Frequency: 50/60 Hz
- Non-reversing
- Terminal Type: Quick Connect
Additional Information
This Definite Purpose Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8910DPA32V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 277V
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 277V
- Frequency : 60 Hz
Product Data
- UPC : 785901024408
- GTIN : 00785901024408
- Country of Origin : China
- Dimensions : 2.5 in x 4 in
- Weight : 1.02
- Certification : CSA, RoHS, UL Listed
