Description

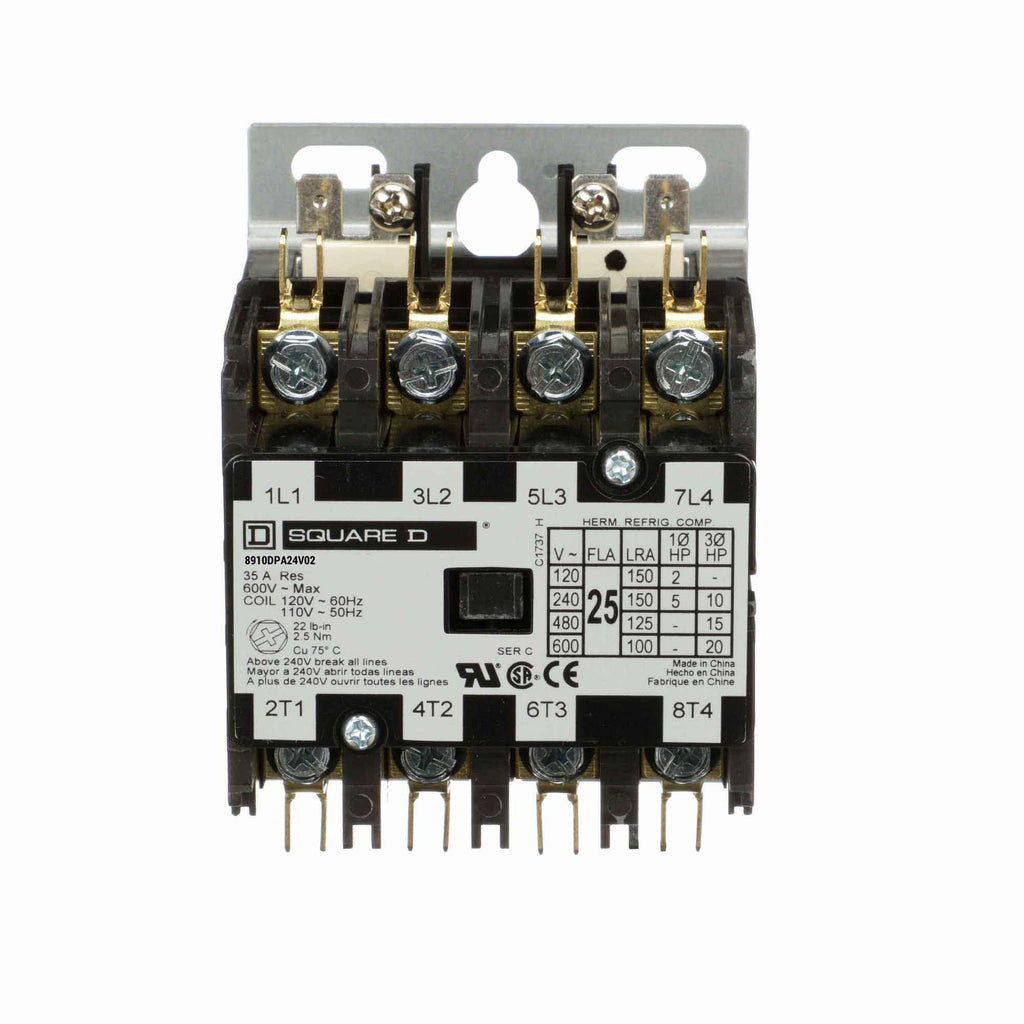

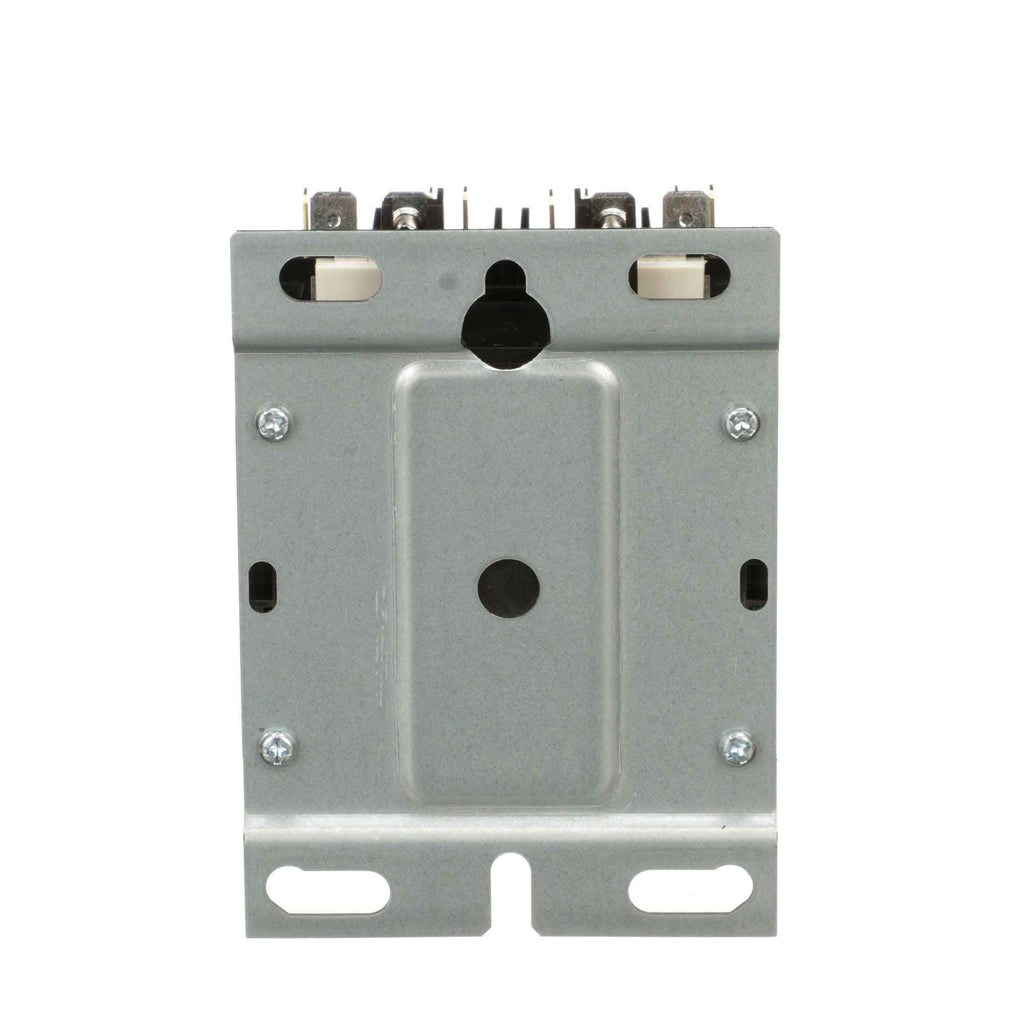

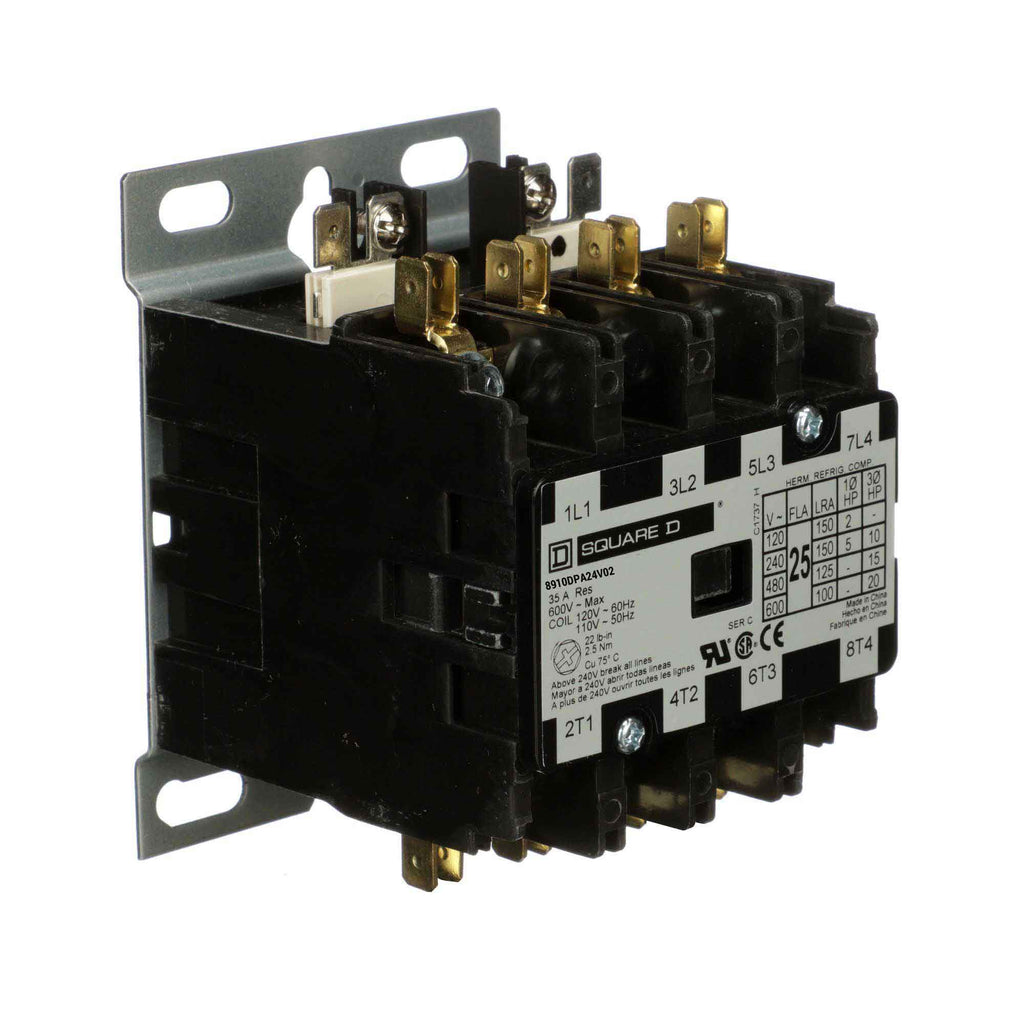

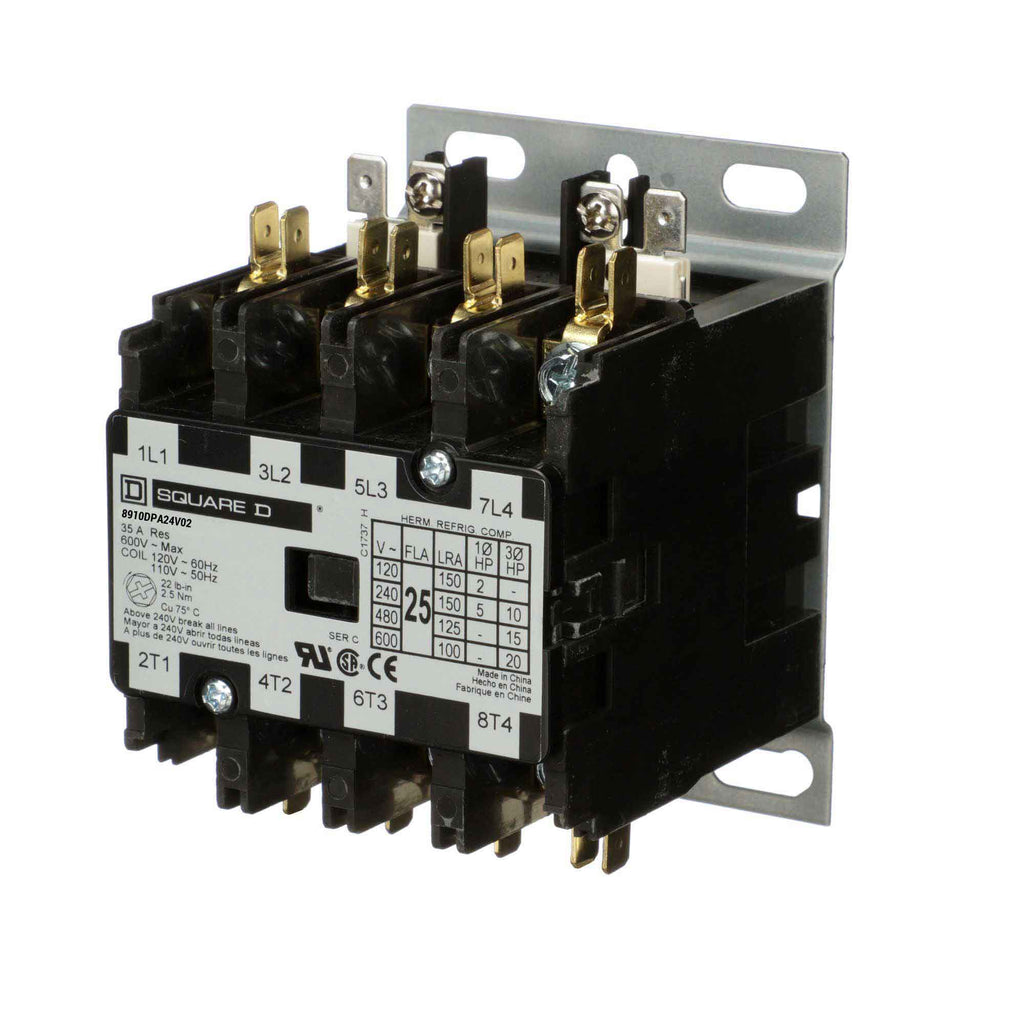

8910DPA24V02
8910DPA24V02 is a 4-pole definite purpose contactor from Square D designed for motor control applications.This contactor features a 25 amp full load current rating and supports a coil voltage of 110/120 VAC at 50/60 Hz. It is rated for up to 20 horsepower at 575 VAC for 3-phase motors and has a resistive rating of 35 amps. The device includes double quick connect terminals and binder head screws for easy wiring and is intended for open enclosure mounting. It is suitable for use in heating, air conditioning, refrigeration, data processing, and food service equipment.
- Key Specifications
- Current Rating: 25 Amps Full Load
- Coil Voltage: 110/120 VAC, 50/60 Hz
- Number of Poles: 4
- Horsepower Ratings: 2 HP at 115 VAC 1 Phase, 5 HP at 230 VAC 1 Phase, 10 HP at 230 VAC 3 Phase, 15 HP at 460 VAC 3 Phase, 20 HP at 575 VAC 3 Phase
- Resistive Rating: 35 Amps
- Mounting Type: Open Enclosure
- Type: Definite Purpose Contactor
- Manufacturer Series: Square D Class 8910, Type DPA
Specifications
- Part Number: 8910DPA24V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
- Aux Contacts : 4 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 110V
Product Data
- UPC : 785901080084
- GTIN : 00785901080084
- Weight : 1.24
- Certification : UL recognized CSA
