8910DPA23V14 - Square D 25A 3-Pole Definite Purpose Contactor 24VAC Coil 20HP at 575V 3-Phase

8910DPA23V14

This contactor features a 24 VAC coil operating at 50/60 Hz, supports up to 20 HP at 575 VAC 3-phase motors, and includes quick connect terminals with a metal base mounting plate for easy installation. It is rated for resistive loads up to 35 amperes and offers reliable switching performance in an open enclosure design.

Key Specifications
• Amperage: 25 A full load, 35 A resistive
• Voltage: 24 VAC coil, 575 VAC line voltage rating
• Poles: 3-pole
• Motor Power Rating: 20 HP at 575 VAC 3-phase

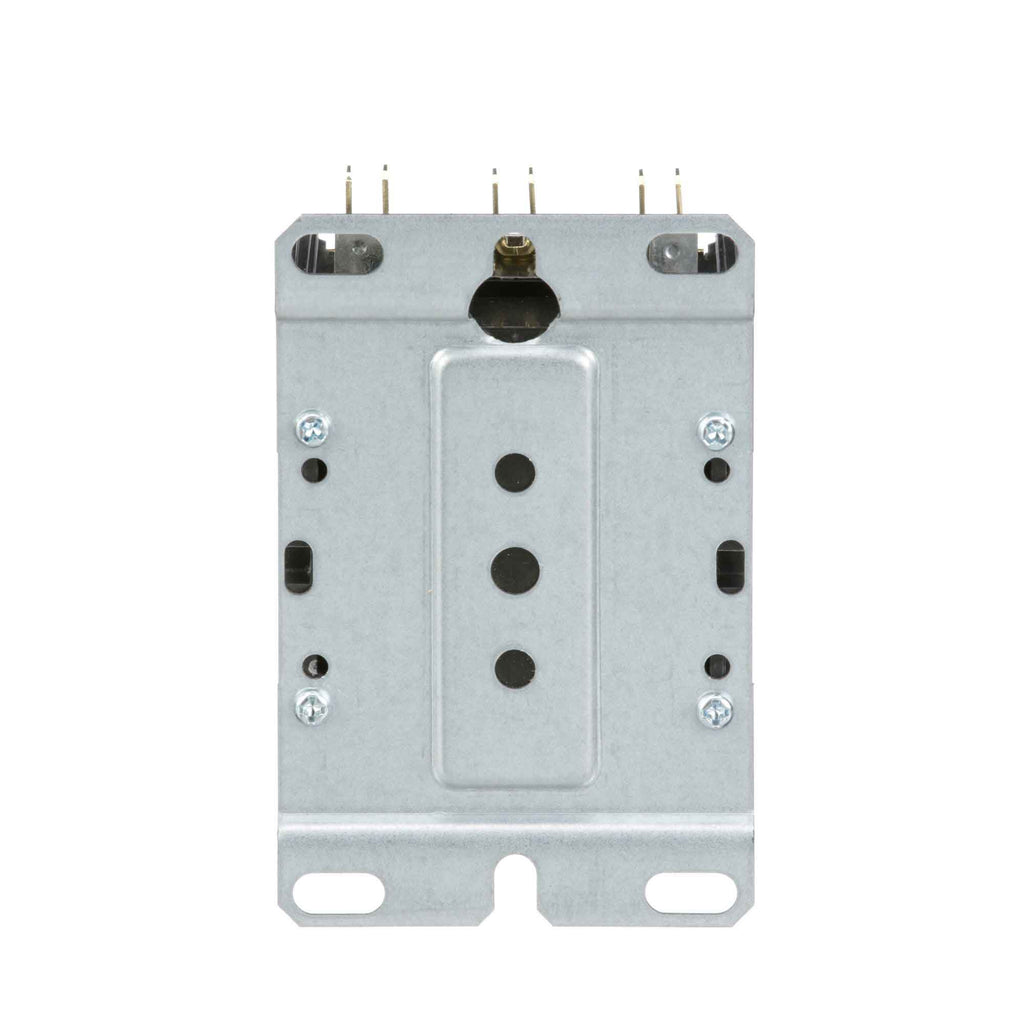

• Mounting Type: Metal base plate
• Contact Configuration: 3 Normally Open (NO)
• Enclosure: Open type
• Frequency: 50/60 Hz coil operation
• Interrupt Rating: Suitable for definite purpose motor control
• Series/Frame: Square D Class 8910, Type DPA
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: 8910DPA23V14
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24V
• Coil Voltage Minimum : 24V



Product Data

• GTIN : 00785901080114
• Dimensions : Depth 4.22 in (107.19 mm) Width 3.22 in (81.79 mm) Height 4.34 in (110.24 mm)
• Weight : 1.07
• Certification : UL recognized CSA
