Description
8910DPA23V09

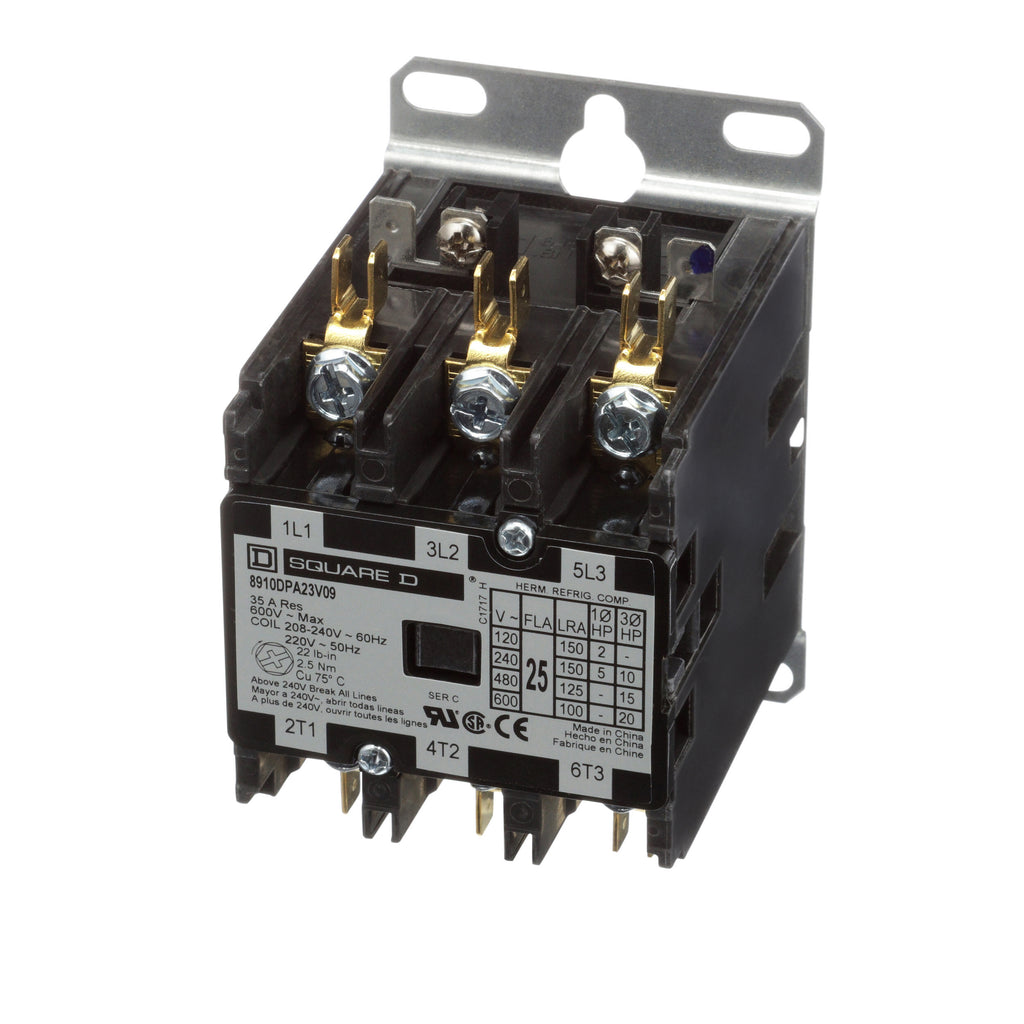

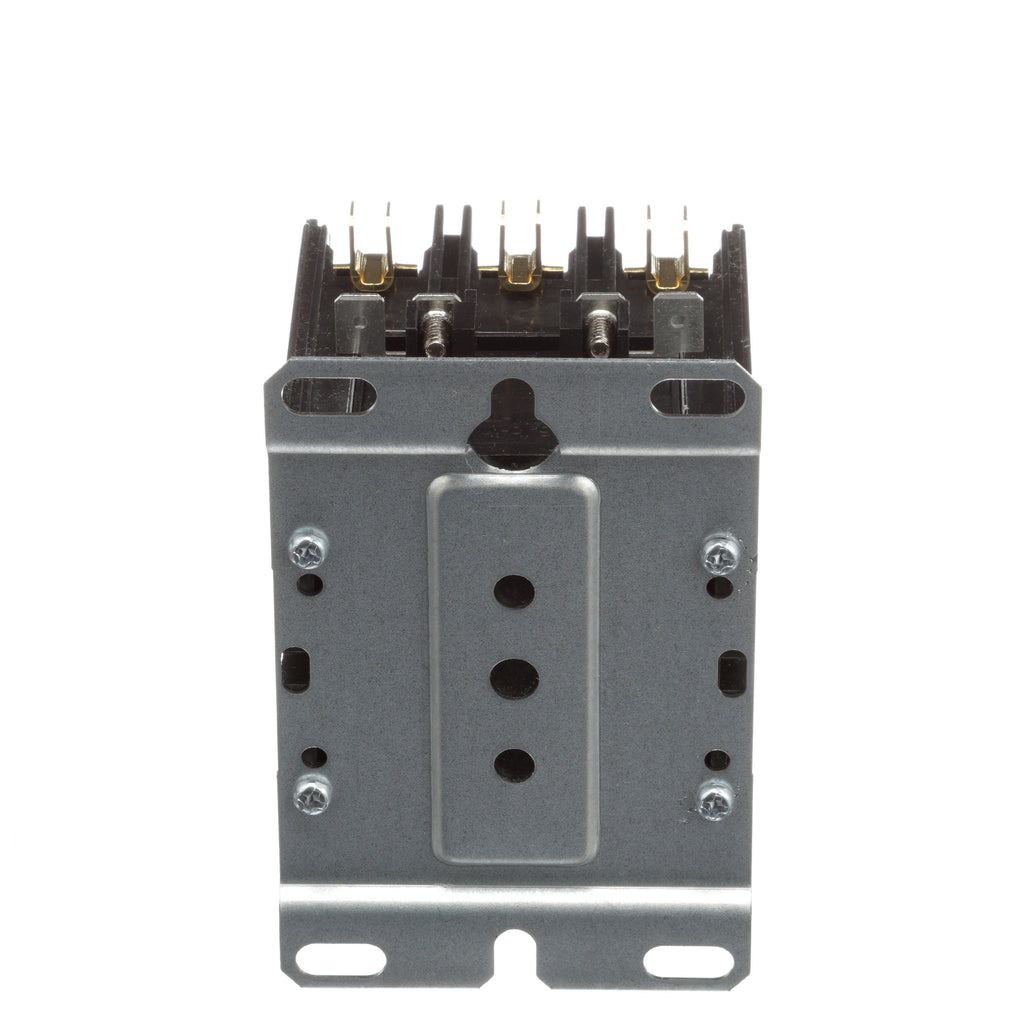

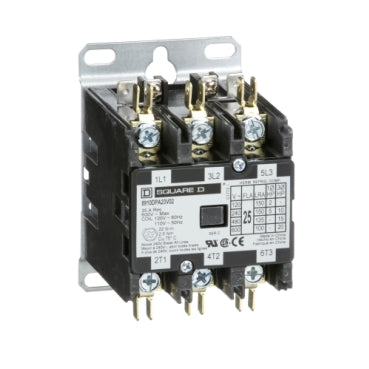

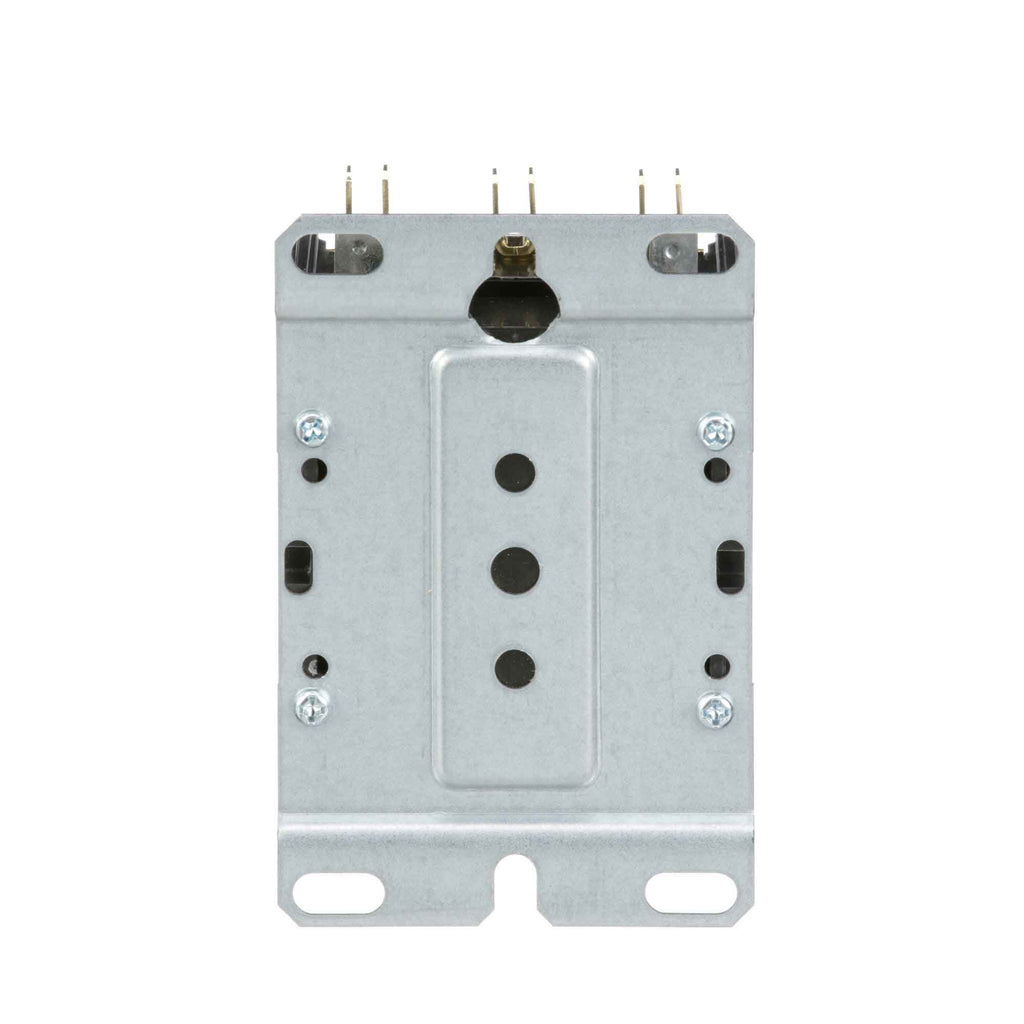

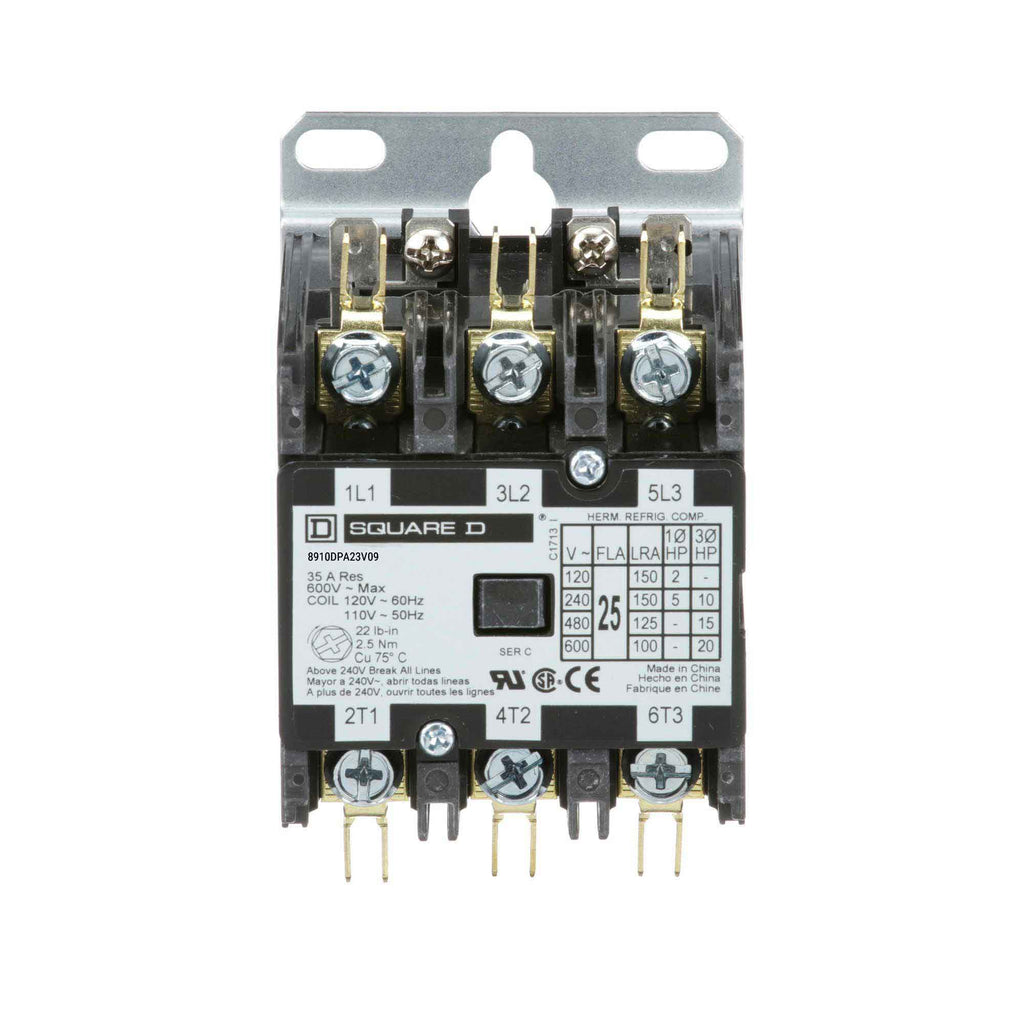

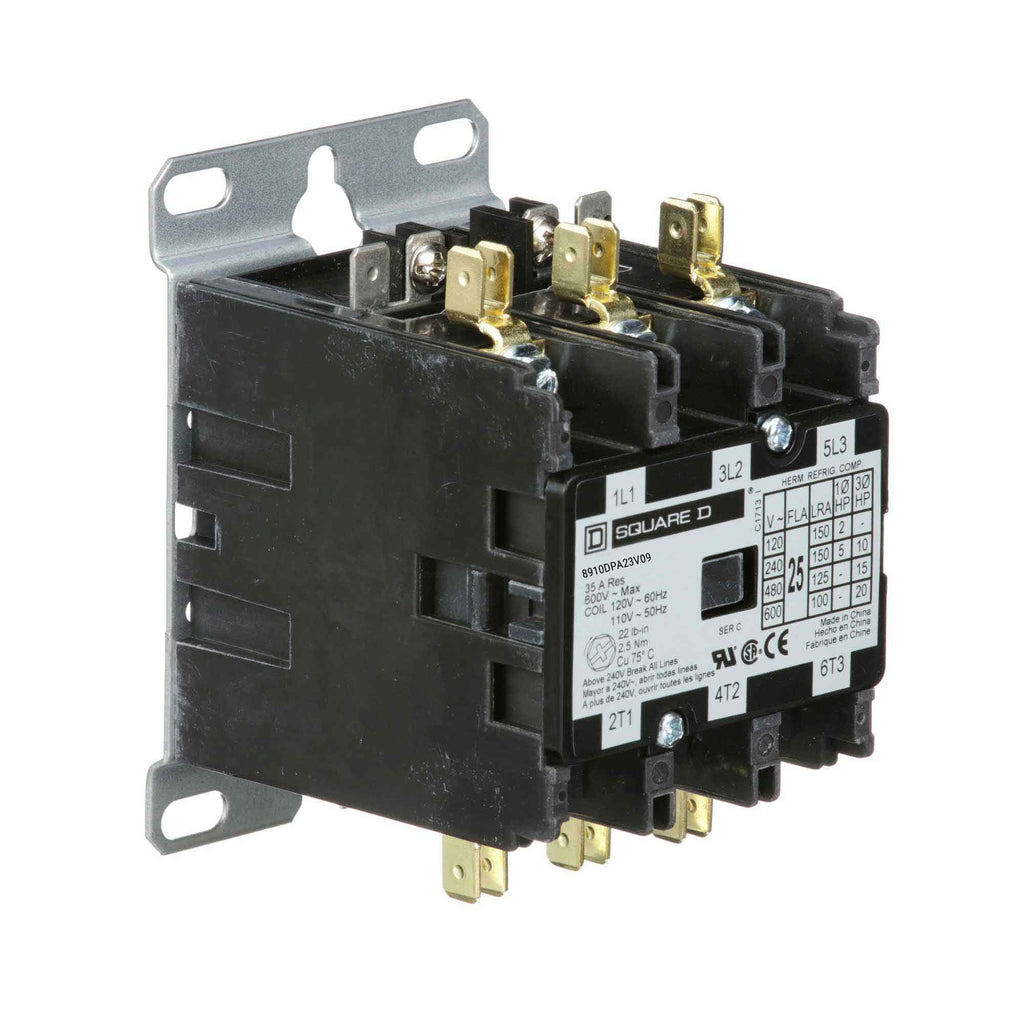

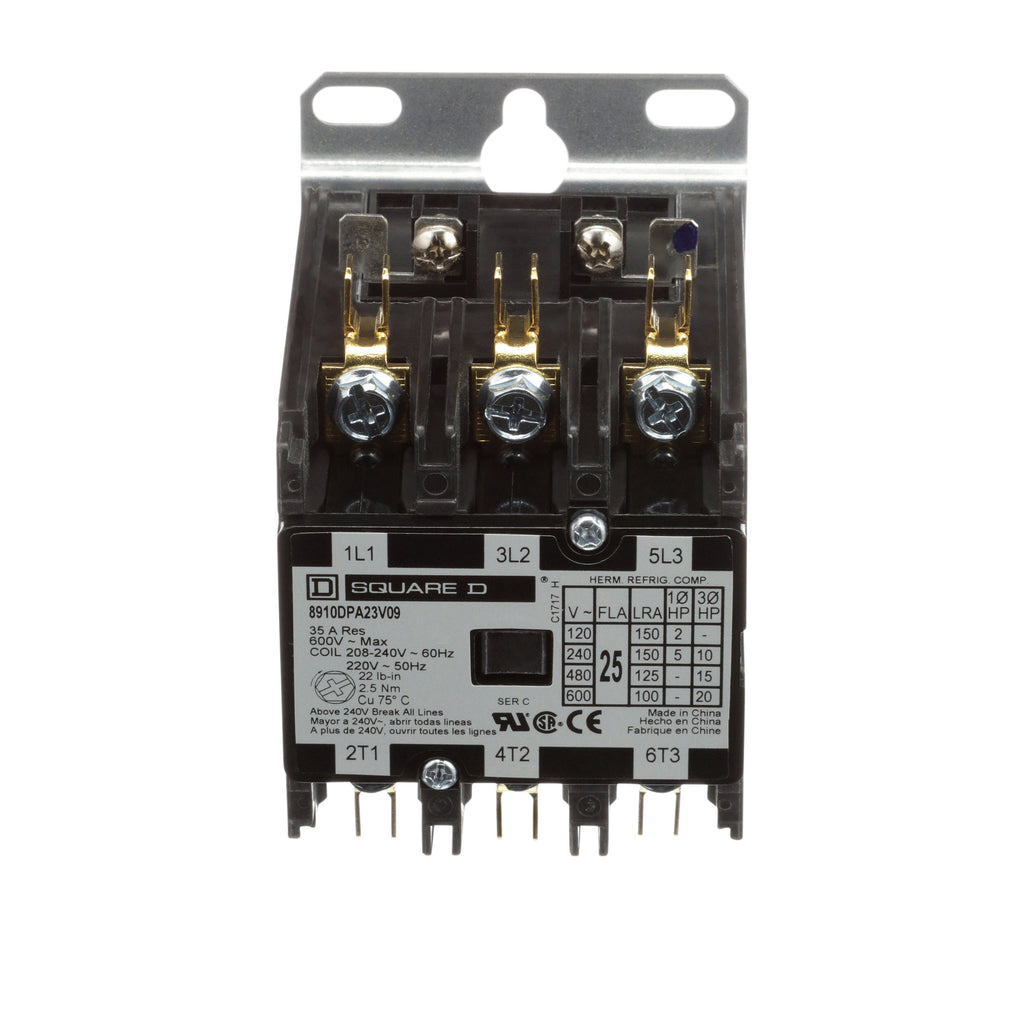

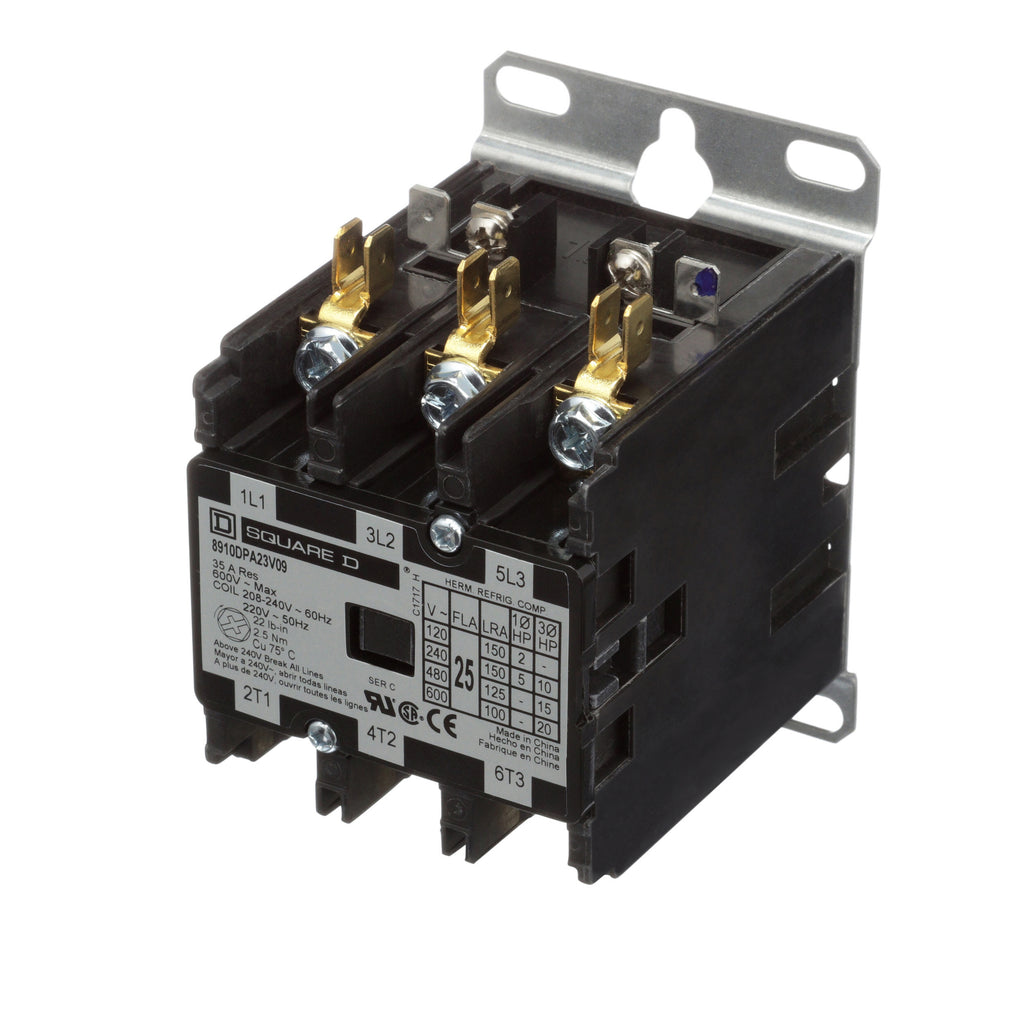

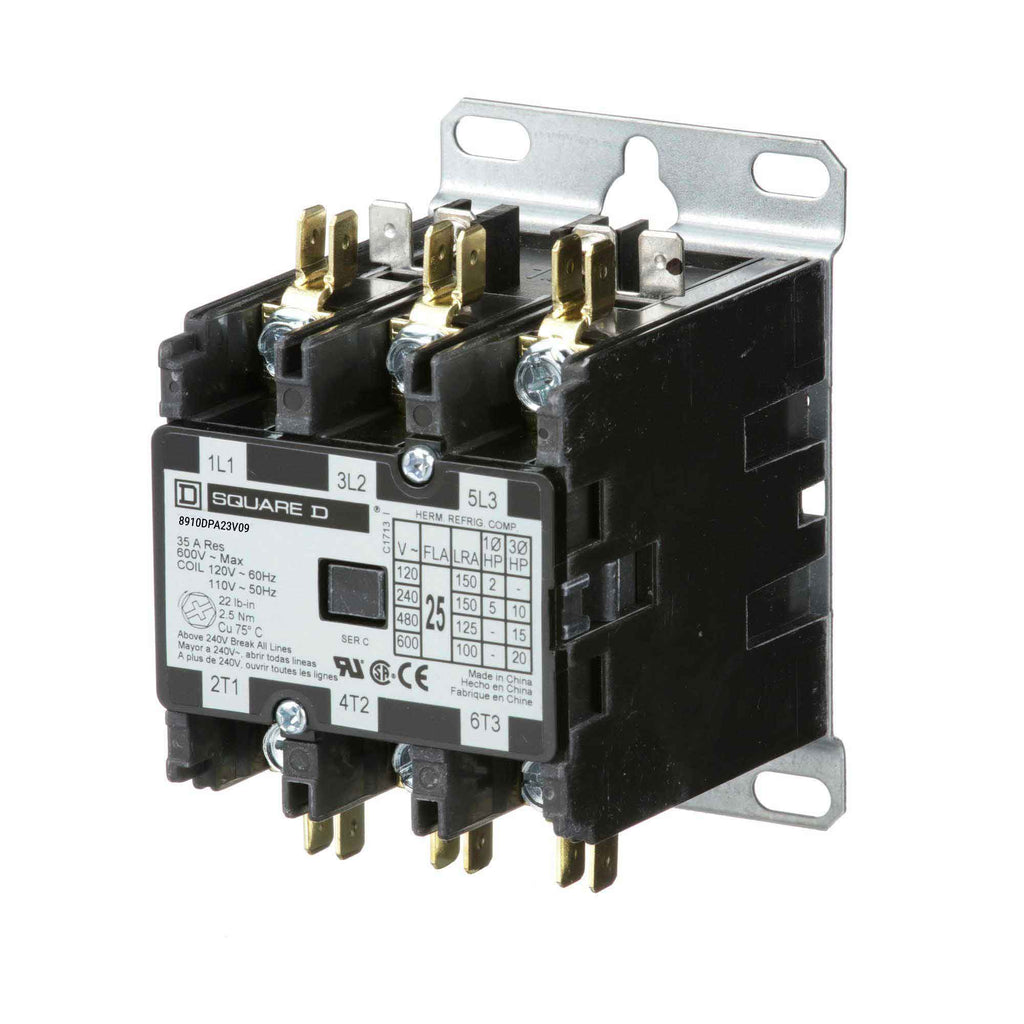

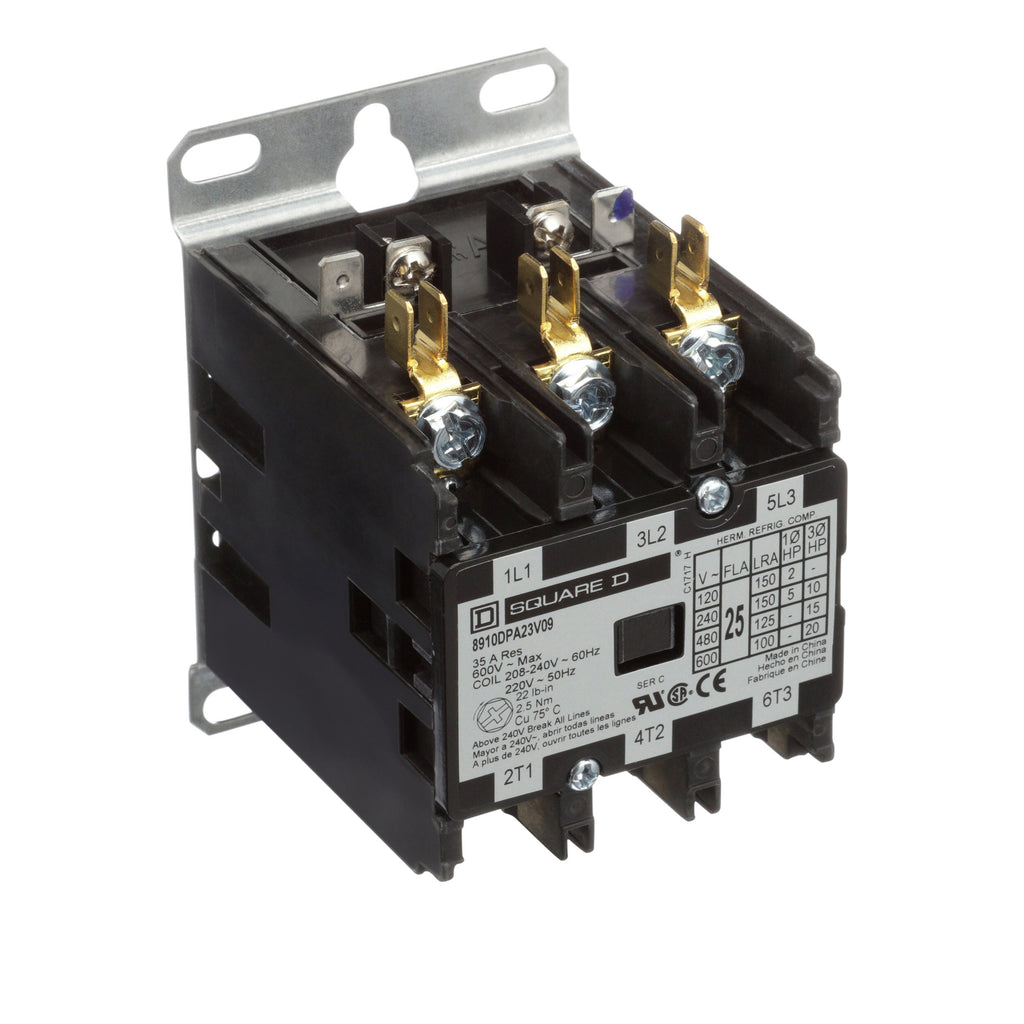

8910DPA23V09 is a Square D Class 8910 definite purpose contactor designed for motor control applications.This 3-pole contactor is rated for 25 amps and 600 volts AC, suitable for 3-phase power systems. It supports a coil voltage of 208/240 VAC at 60 Hz and 220 VAC at 50 Hz. The contactor is capable of handling up to 20 horsepower at 575 VAC, making it ideal for heating, air conditioning, refrigeration, and other motor control uses. It features quick connect terminals for easy wiring and is an open type without enclosure.
- Key Specifications
- Amperage: 25A
- Voltage Rating: 600 VAC
- Poles: 3
- Coil Voltage: 208/240 VAC (60 Hz), 220 VAC (50 Hz)
- Horsepower Rating: 20 HP at 575 VAC, 3 phase
- Phase: 3
- Mounting Type: Open (no enclosure)
- Series/Frame: Class 8910
- Interrupt Rating: Definite Purpose
- Trip Unit: Not applicable (contactor)
- Certifications: Standard industrial certifications (manufacturer typical)
- Part Number: 8910DPA23V09
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 220V
- Coil Voltage Minimum : 220V
- GTIN : 00785901080091
- Dimensions : Depth 4.22 in (107.19 mm) Width 3.22 in (81.79 mm) Height 4.34 in (110.24 mm)
- Weight : 1.08
- Certification : UL recognized CSA
