Description
8910DPA23V04

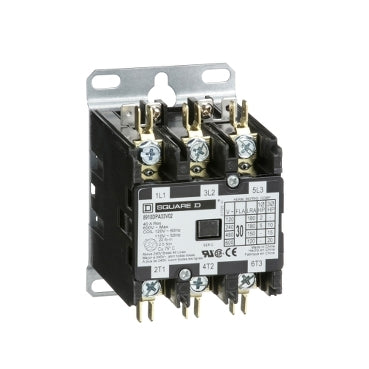

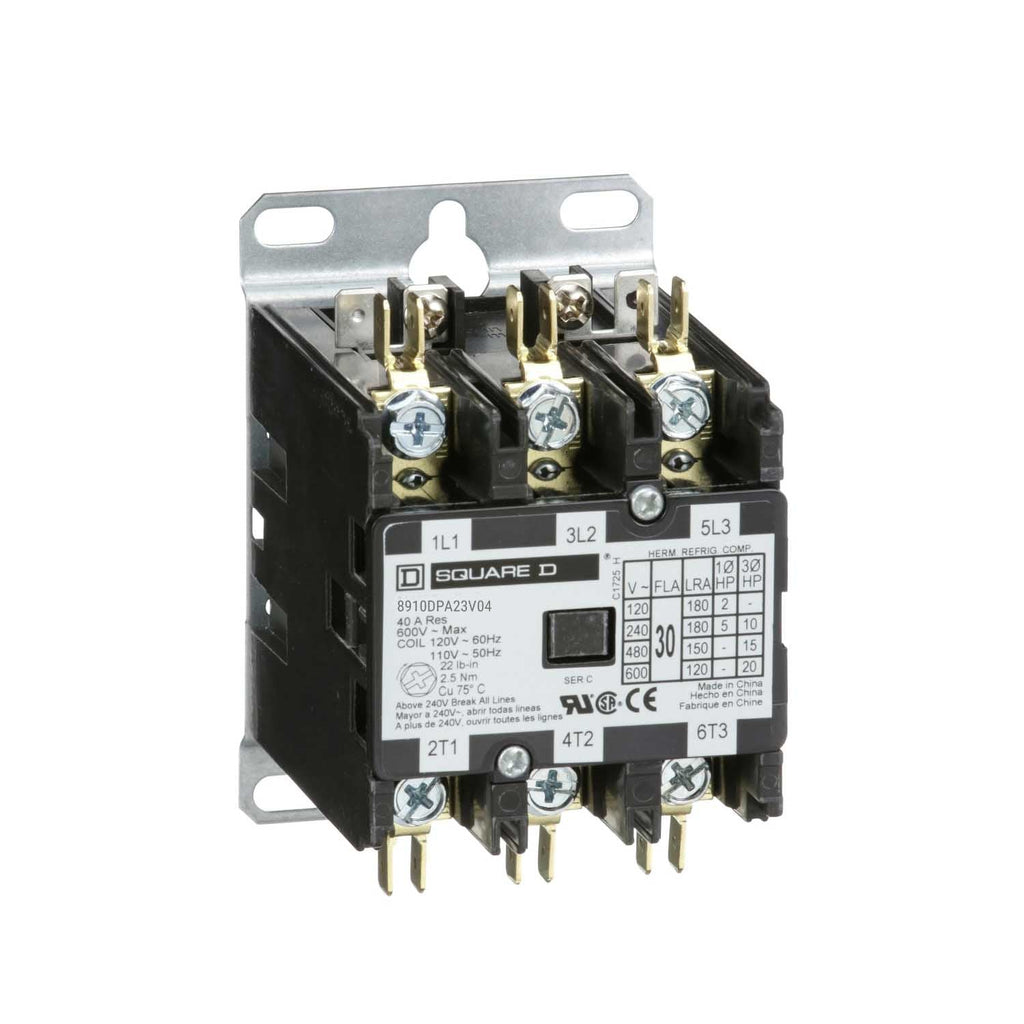

8910DPA23V04 is a Square D Class 8910 definite purpose contactor designed for motor control applications.This 3 pole contactor operates at 277V AC control voltage and supports a 25 ampere current rating. It is suitable for 3 phase systems and features quick connect terminals for easy installation. The contactor is rated for inductive loads and is built to meet industrial standards for durability and performance.
- Manufacturer: Square D
- Part Number: 8910DPA23V04
- Class: 8910
- Poles: 3
- Current Rating: 25 Amps
- Control Voltage: 277V AC
- Phase: 3 Phase
- Mounting Type: Panel Mount
- Electrical Connection: Quick Connect Terminals
- Application: Definite Purpose Contactor for Motor Control
- Interrupt Rating: Suitable for inductive loads
- Certifications: Meets industry standards
Specifications
- Part Number: 8910DPA23V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 277V
- Coil Voltage Minimum : 277V
Product Data
- UPC : 785901024361
- GTIN : 00785901024361
- Dimensions : Depth 4.22 in (107.19 mm) Width 3.22 in (81.79 mm) Height 4.34 in (110.24 mm)
- Weight : 1.01
- Certification : UL recognized CSA
