Description
8910DPA23V02

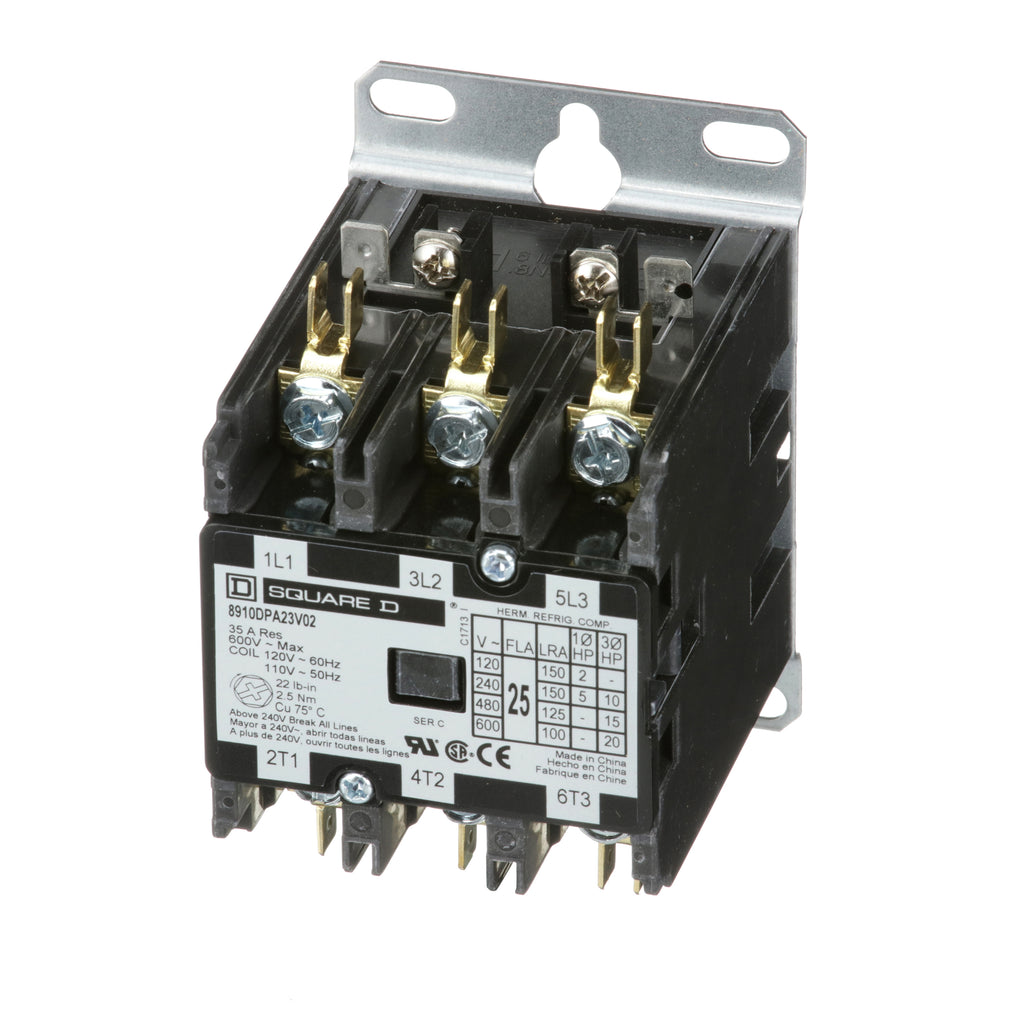

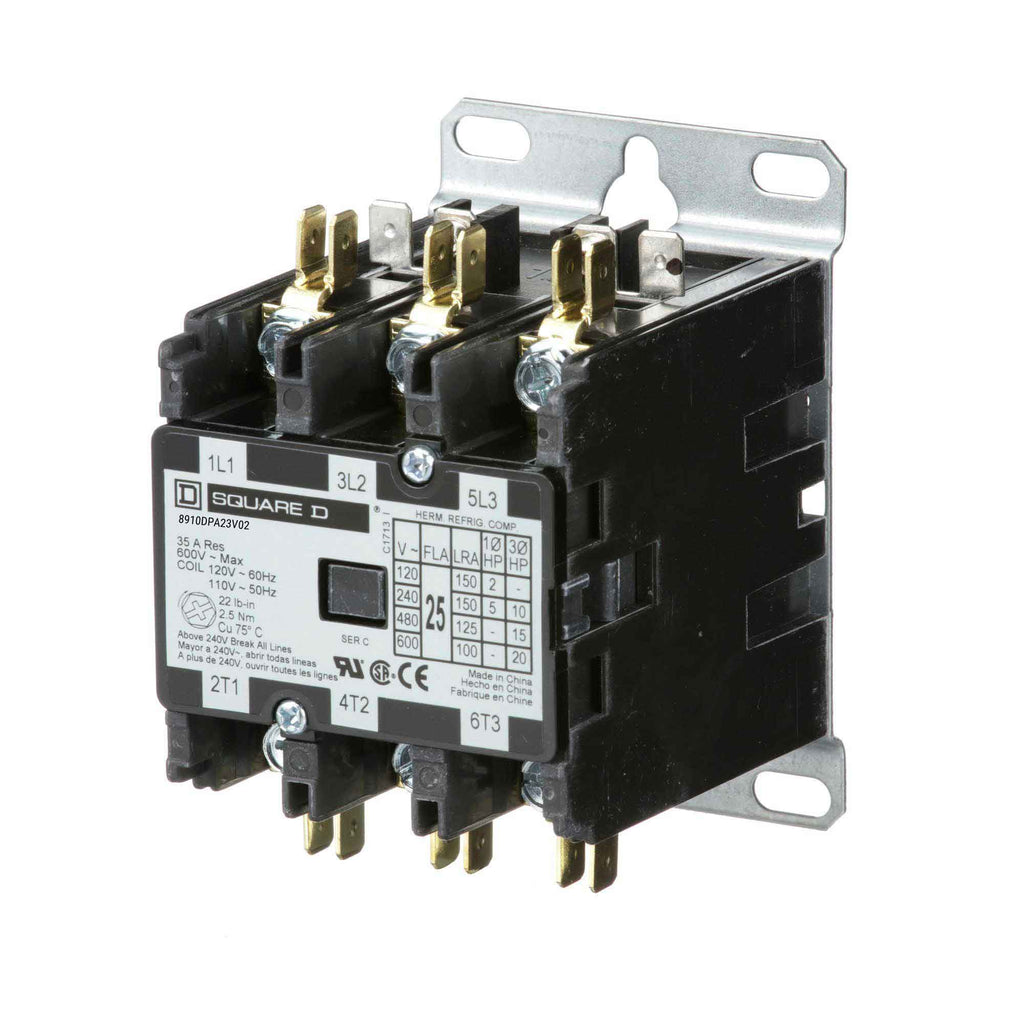

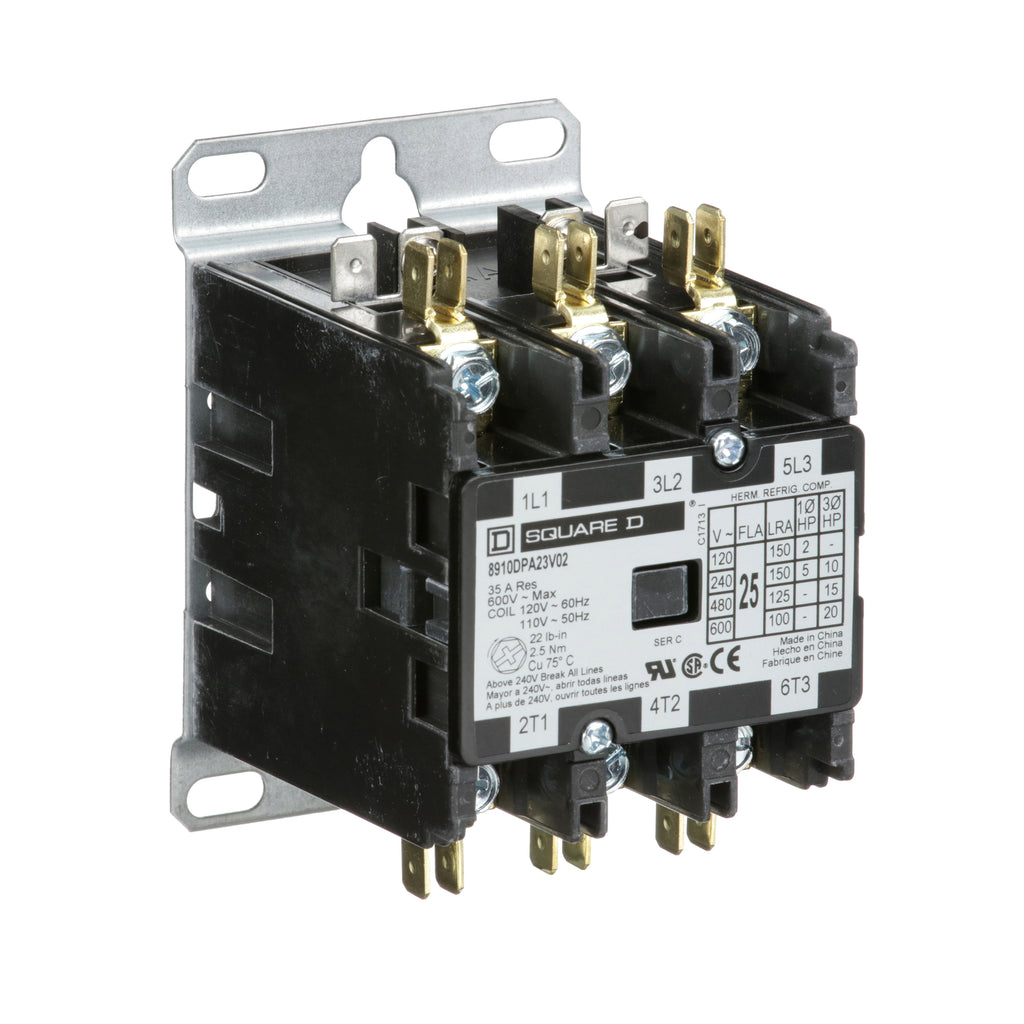

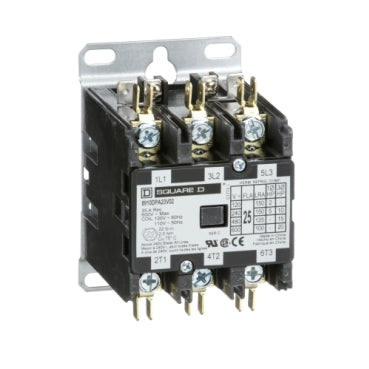

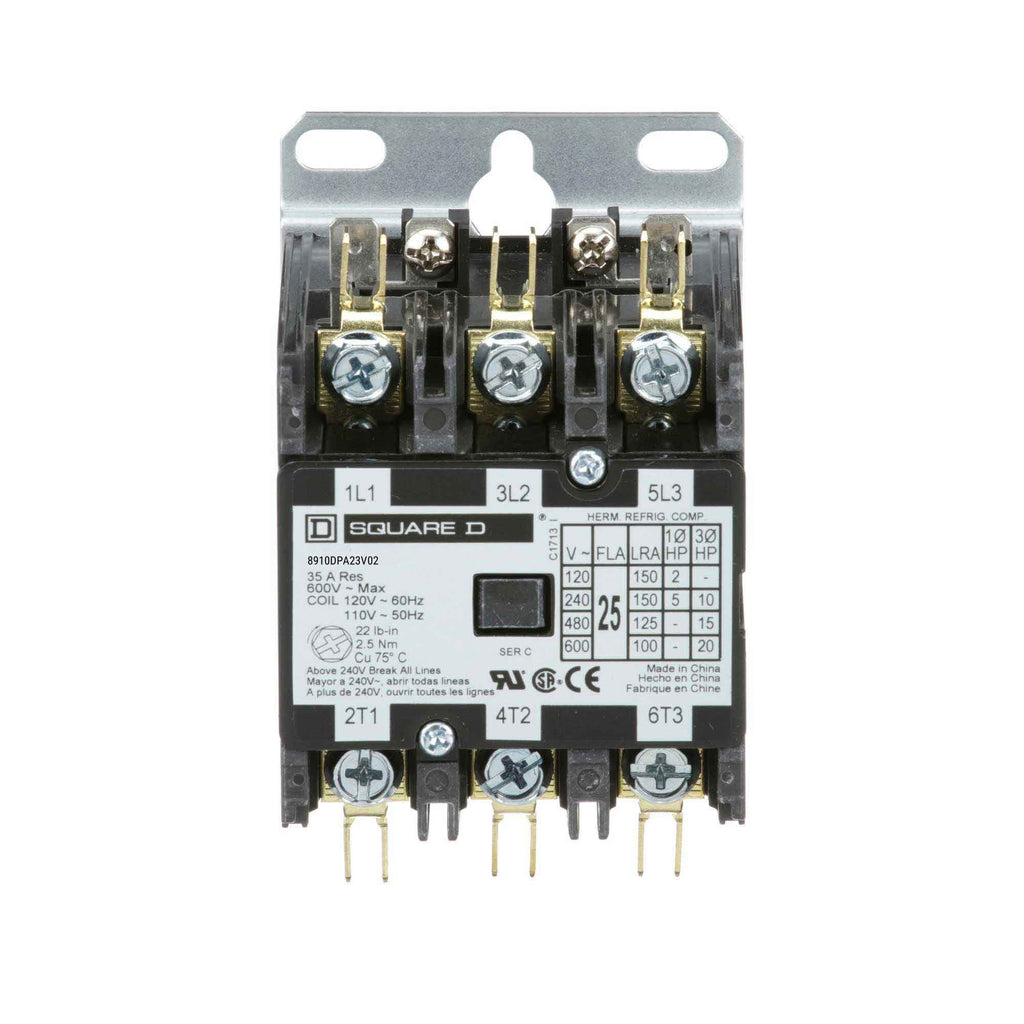

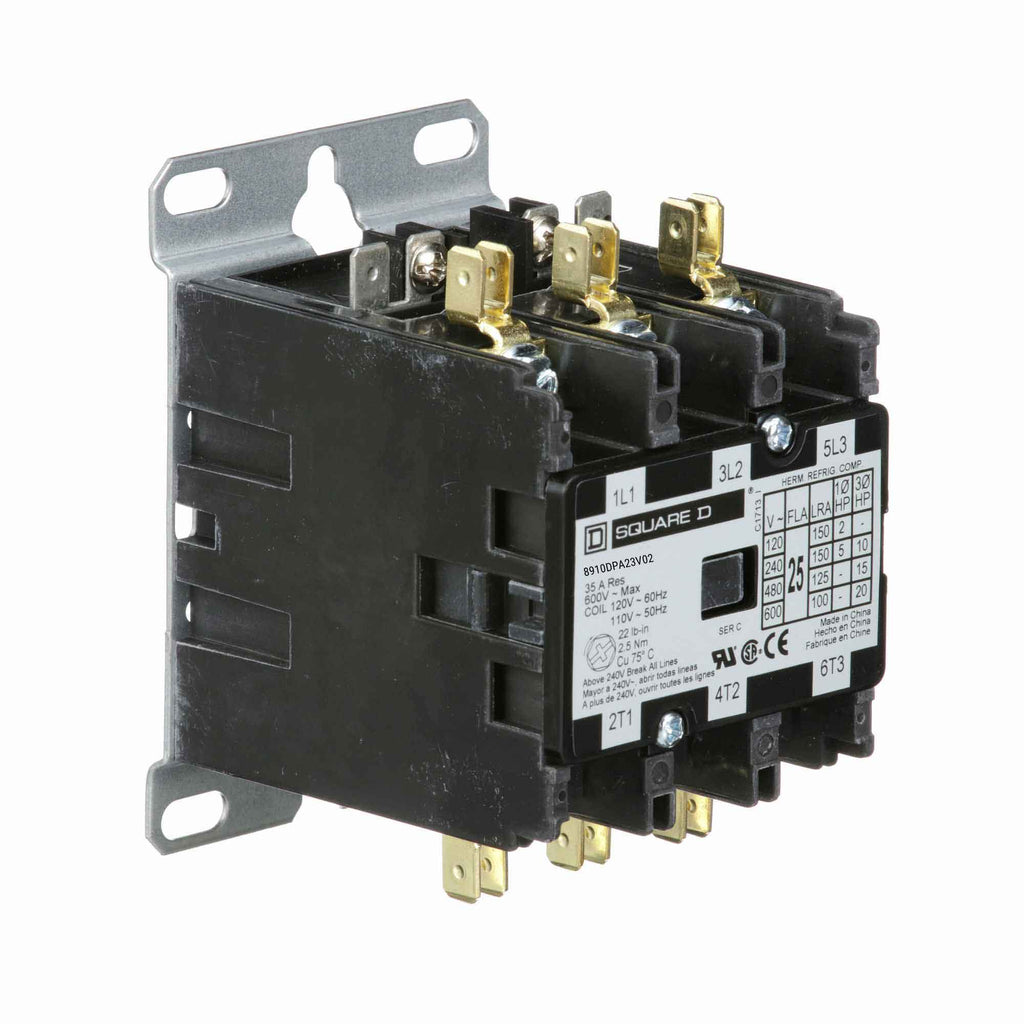

8910DPA23V02 is a Square D Class 8910 definite purpose contactor designed for motor control applications in heating, air conditioning, refrigeration, and food service equipment. This 3-pole, 25-ampere contactor operates at 600V AC, 3-phase with a 110/120V AC 50/60Hz control circuit coil. The unit features non-reversing contact configuration with quick connect terminals and a metal base mounting plate for secure installation. Key Specifications
- Manufacturer: Square D (Schneider Electric)
- Part Number: 8910DPA23V02
- Amperage Rating: 25A
- Voltage Rating: 600V AC, 3-phase
- Poles: 3-pole
- Contact Configuration: 3 NO (normally open)
- Coil Voltage: 110/120V AC, 50/60Hz
- Motor Power: 20 HP at 575VAC, 3-phase
- Enclosure Type: Open type, no enclosure

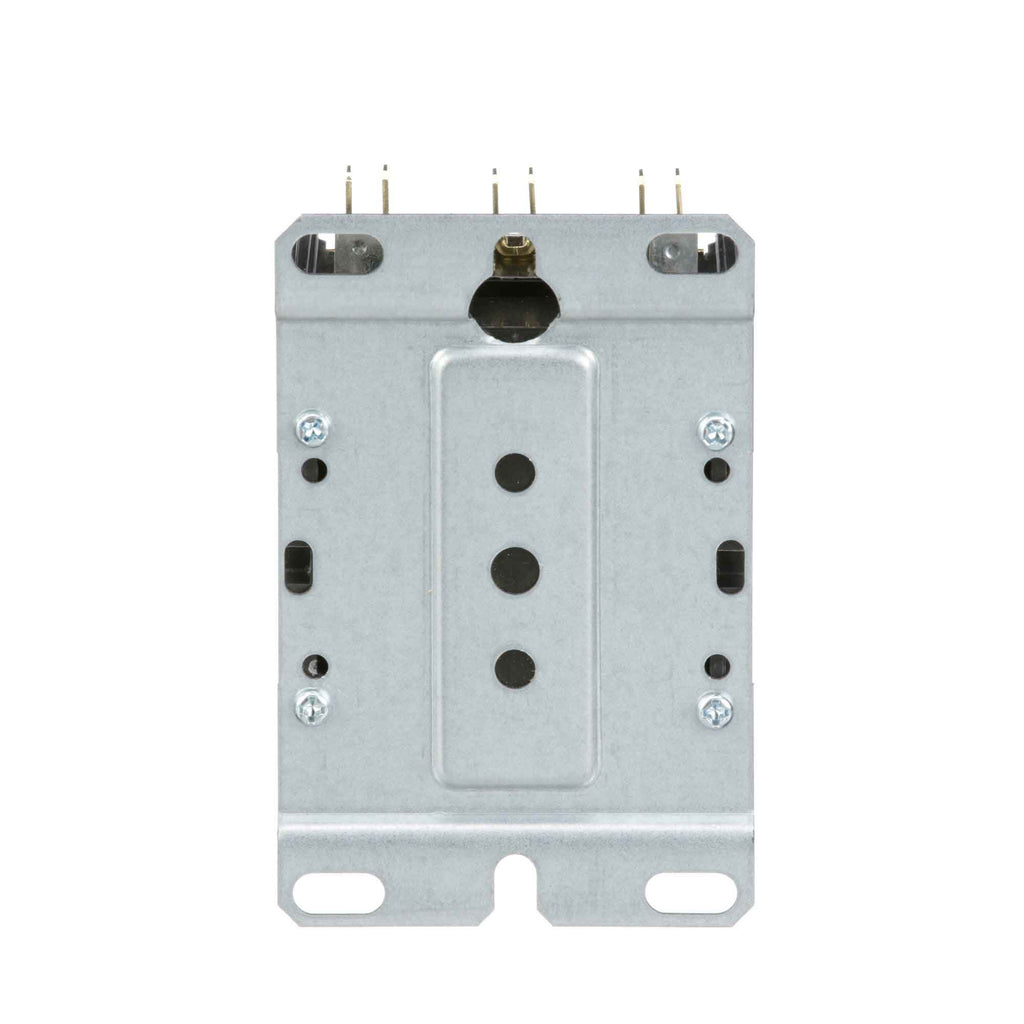

- Mounting: Metal base mounting plate
- Terminal Type: Quick connect terminals
Specifications
- Part Number: 8910DPA23V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 120
Product Data
- UPC : 782113973548
- GTIN : 00785901080107
- Dimensions : Depth 4.21 in (107 mm) Width 3.50 in (89 mm) Height 6.77 in (172 mm)
- Weight : 0.99
- Certification : UL recognized CSA
