8910DPA22V02 - Square D 25A 2-Pole Definite Purpose Contactor 120VAC 1-Phase

8910DPA22V02

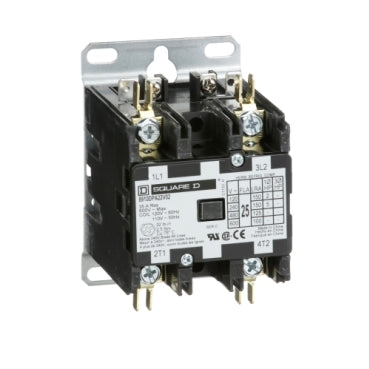

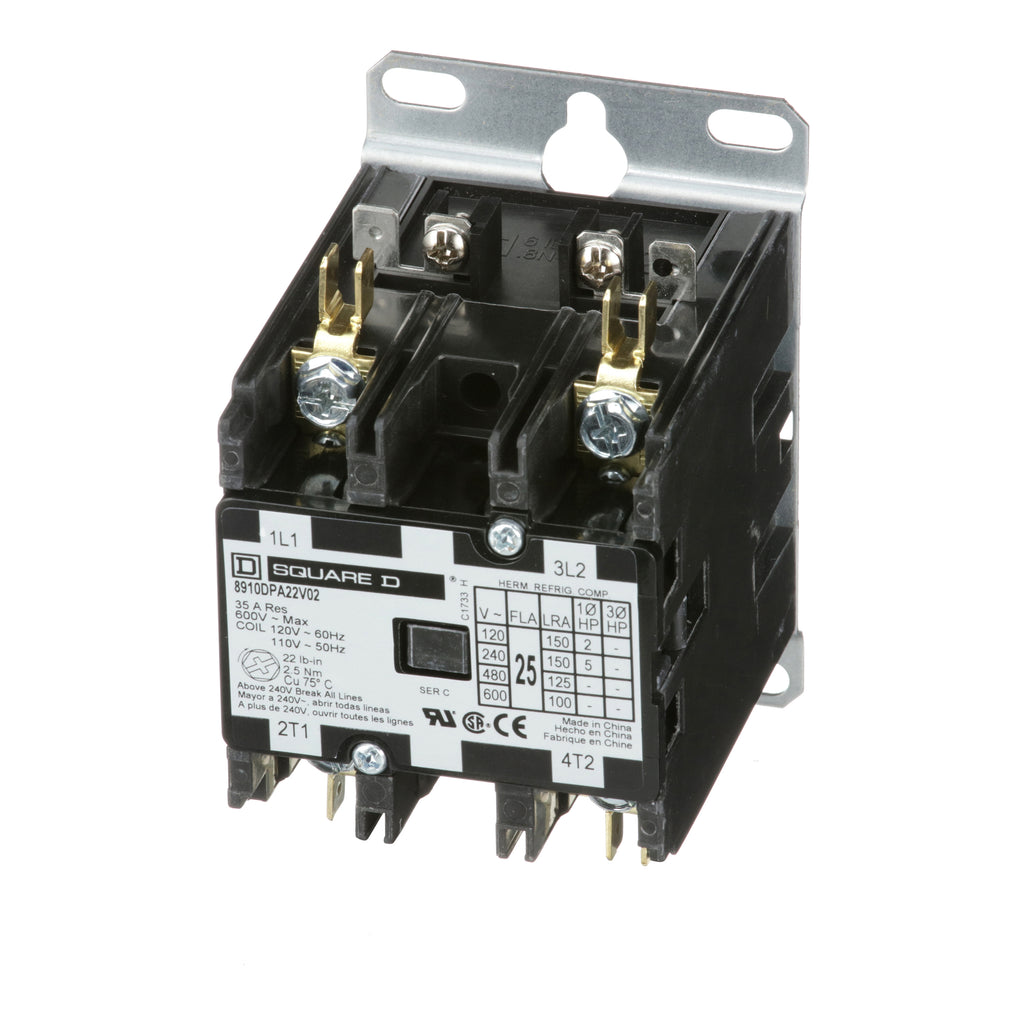

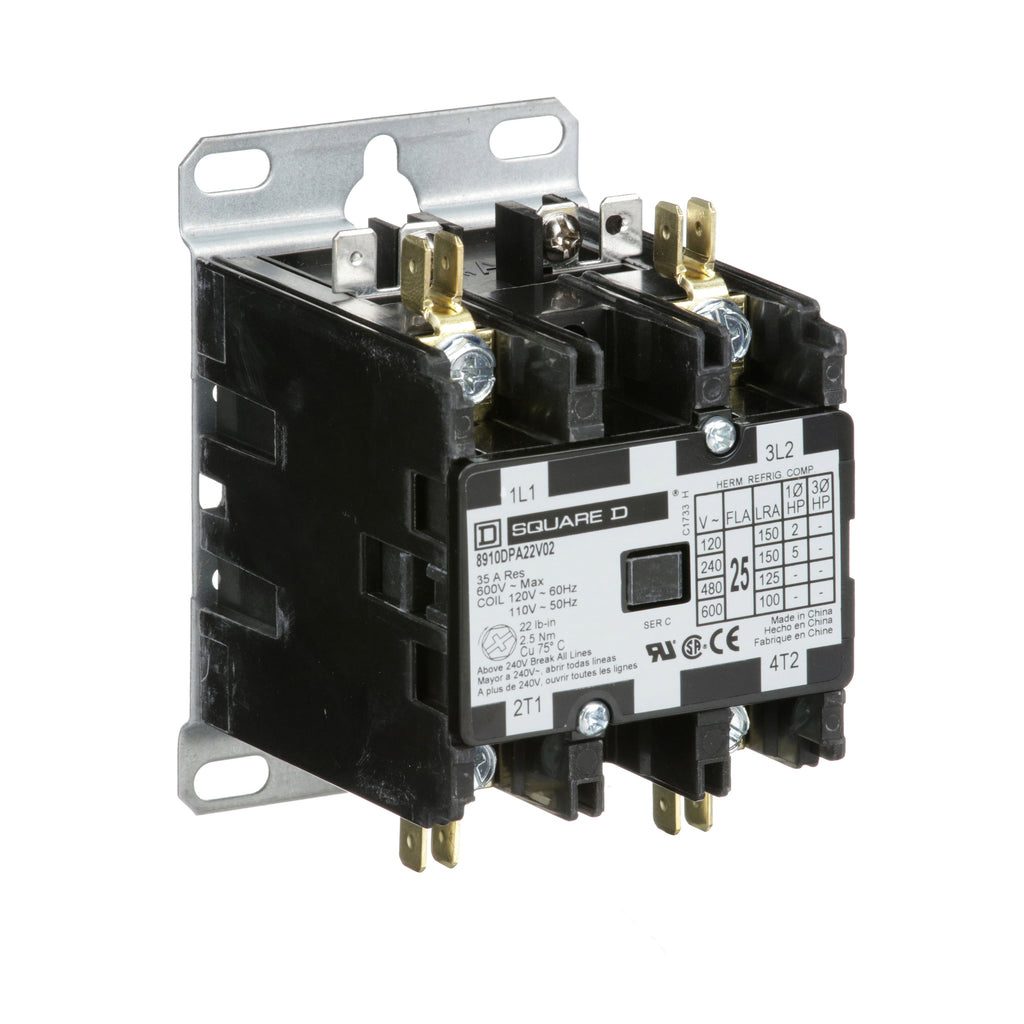

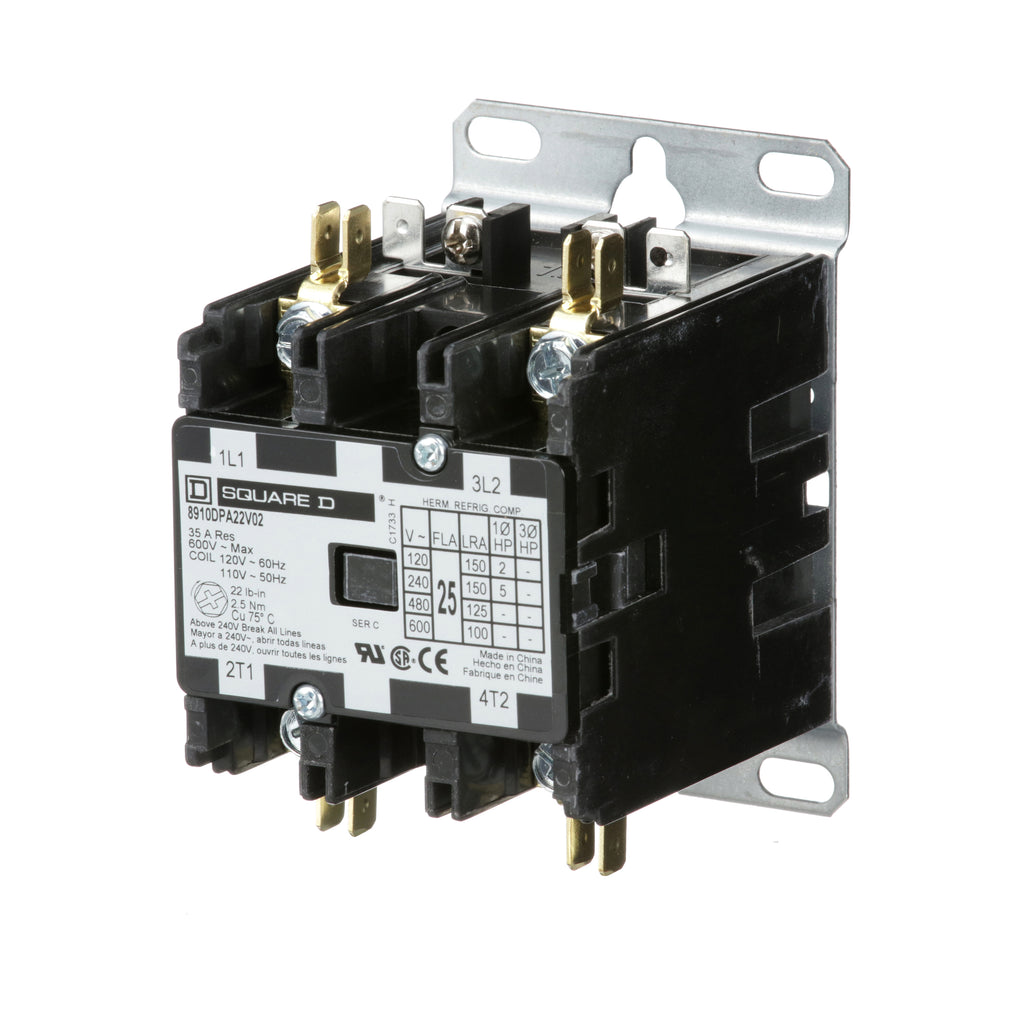

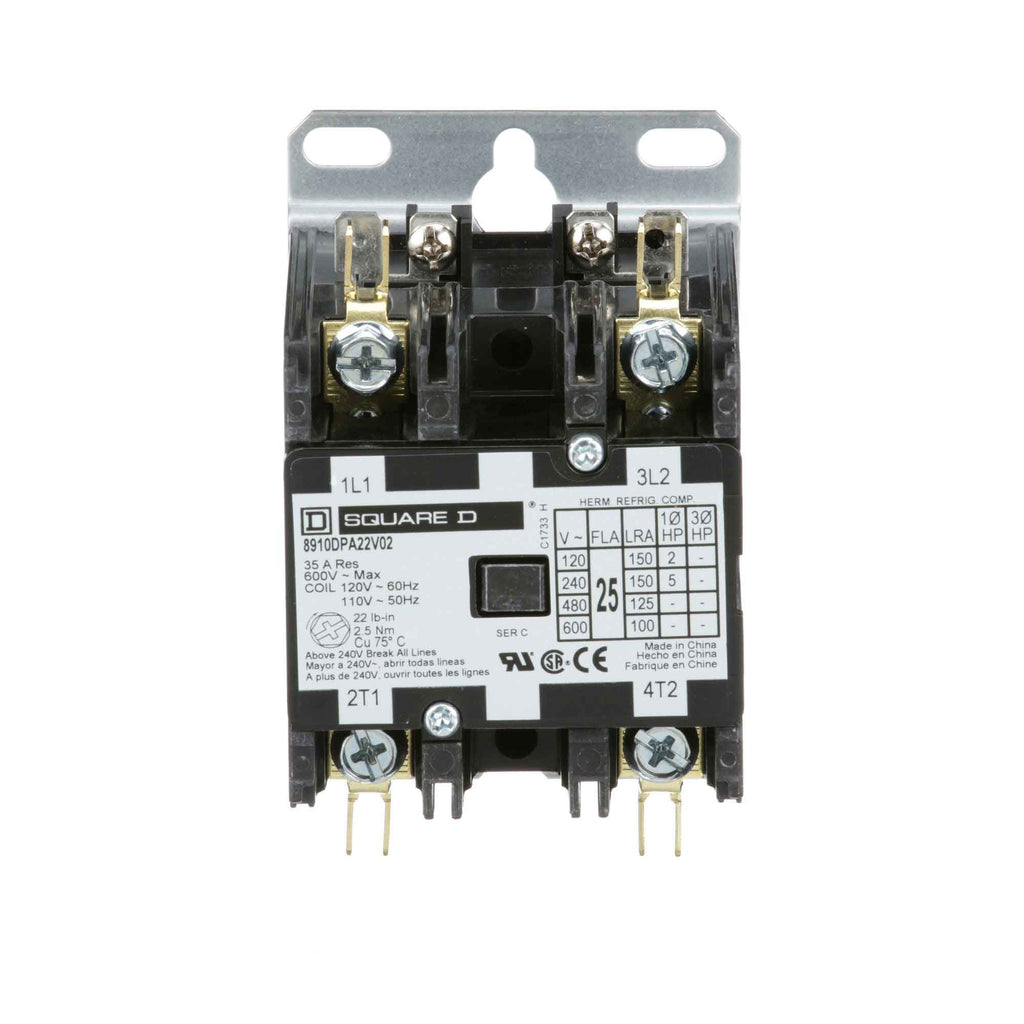

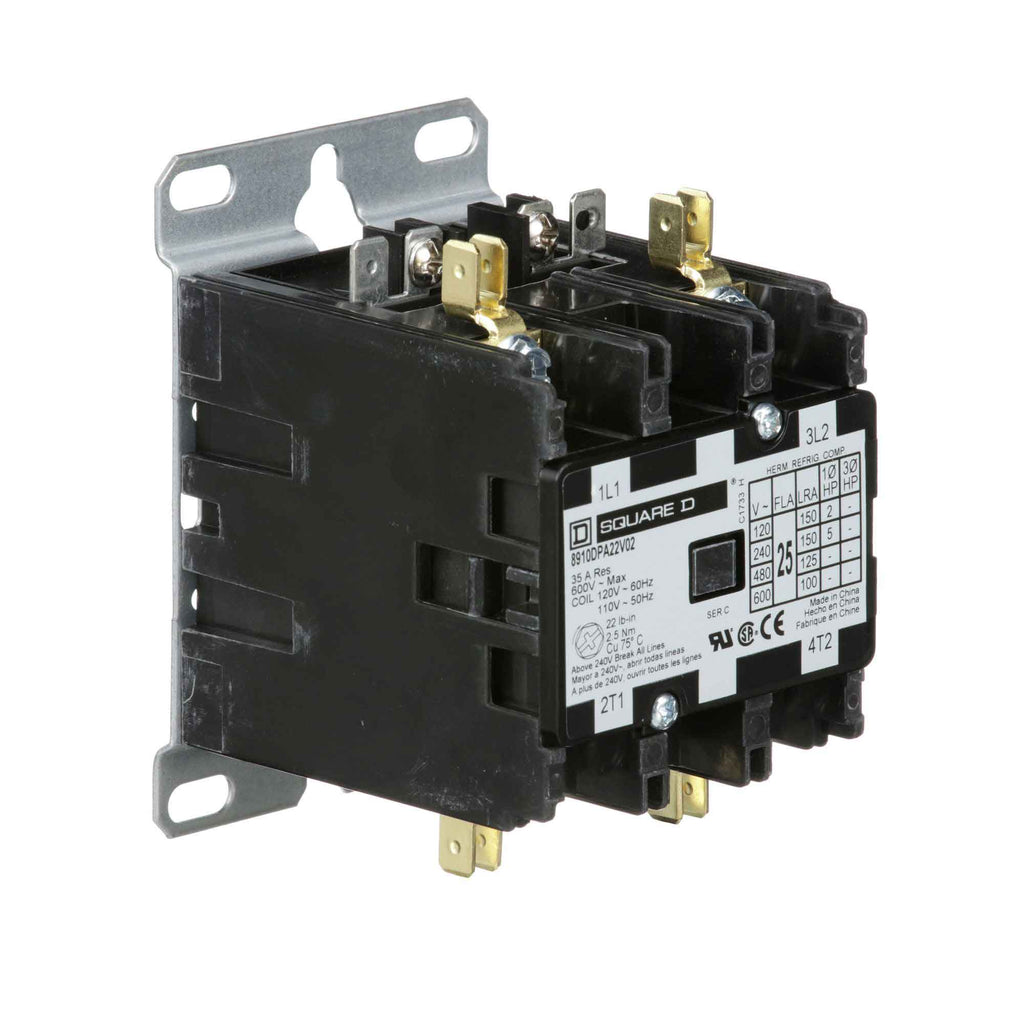

8910DPA22V02 is a Square D definite purpose contactor designed for reliable motor control in HVAC, refrigeration, and other single-phase applications. This 2-pole contactor features a 25A current rating and is built for use with 110VAC/120VAC 50Hz/60Hz coils, providing efficient switching for inductive and resistive loads. The unit includes double quick connect terminals for easy wiring and a metal base mounting plate for secure installation. This contactor is suitable for single-phase systems up to 600V and is commonly used in heating, air conditioning, and refrigeration equipment. It is UL recognized, CSA certified, and CE marked for compliance with major safety standards. The open style design allows for flexible mounting options, including panel or DIN rail mounting.

• 25A maximum current rating
• 2 poles
• 110VAC/120VAC 50Hz/60Hz coil voltage
• Single-phase operation
• 600V maximum voltage
• Double quick connect terminals

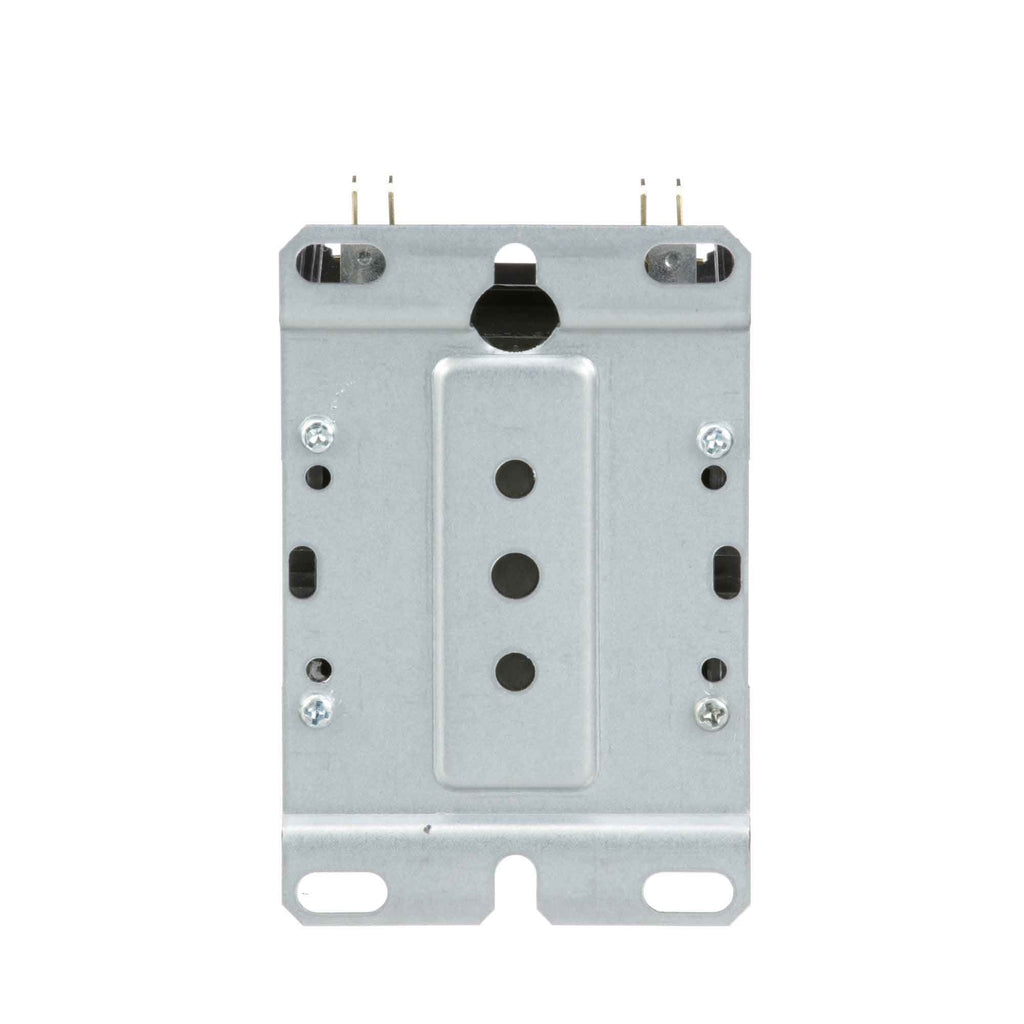

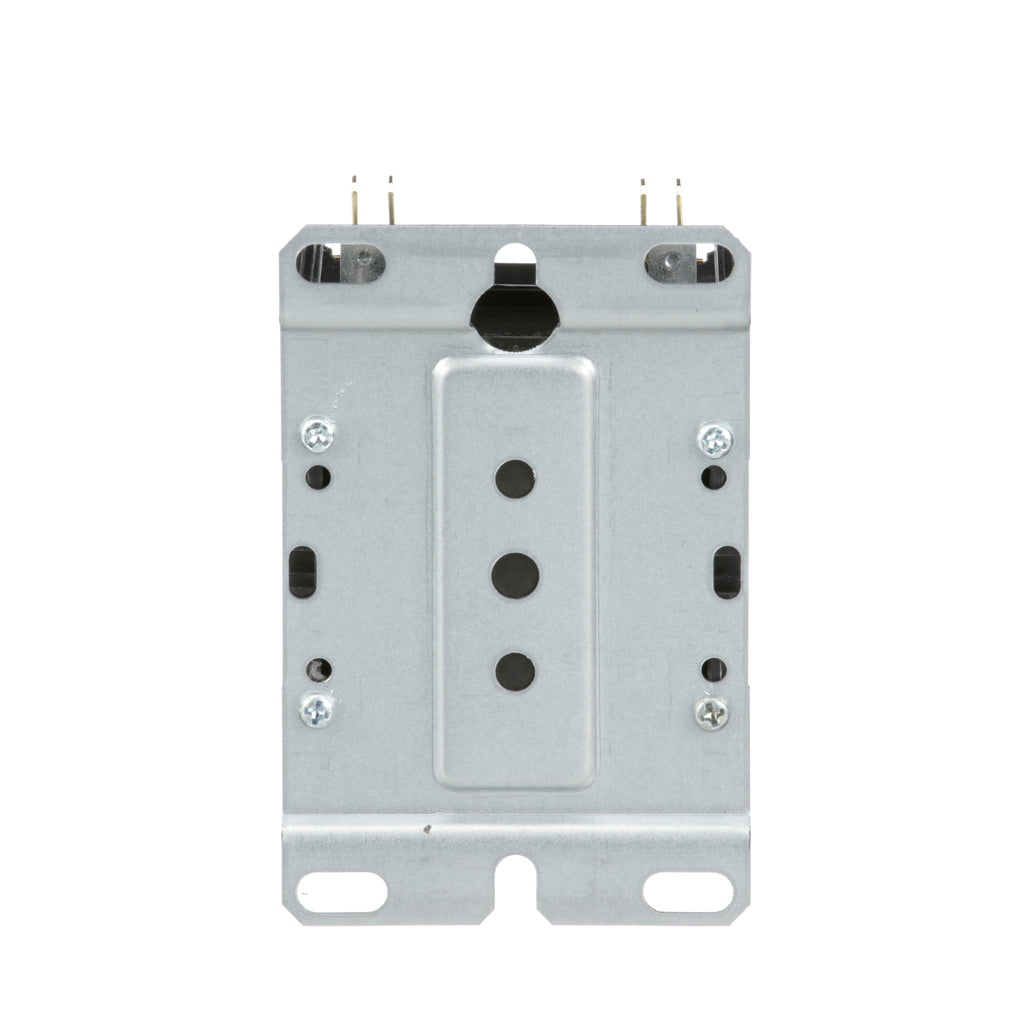

• Metal base mounting plate
• UL recognized
• CSA certified
• CE marked
• Open style enclosure
• Panel or DIN rail mounting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DPA22V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 25
• Phase : 1
• Poles : 2
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 120V
• Coil Voltage Minimum : 110V

Product Data

• UPC : 785901116974
• GTIN : 00785901116974
• Dimensions : Depth 4.13 in (104.90 mm) Width 5 in (127.00 mm) Height 8.63 in (219.20 mm)
• Weight : 1.02
• Certification : UL recognized CSA
