Description
8910DPA14V02

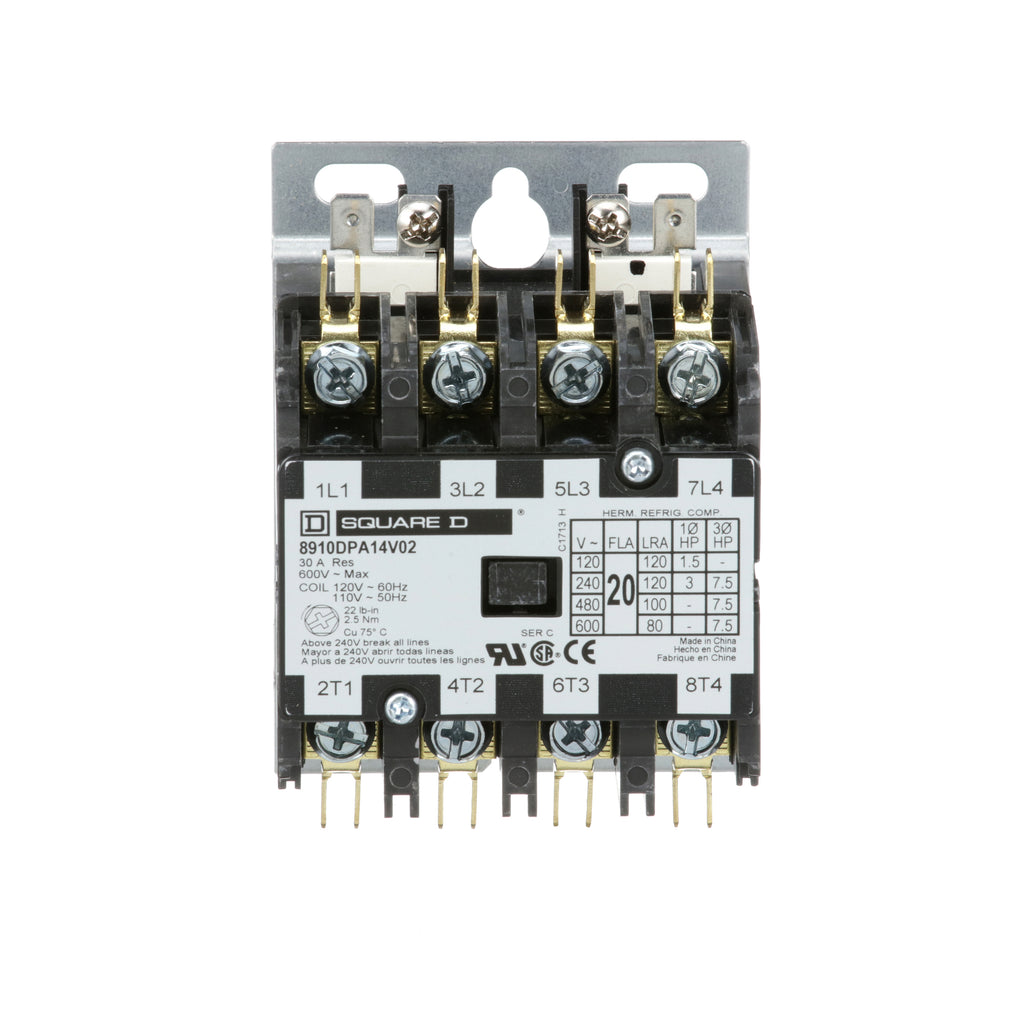

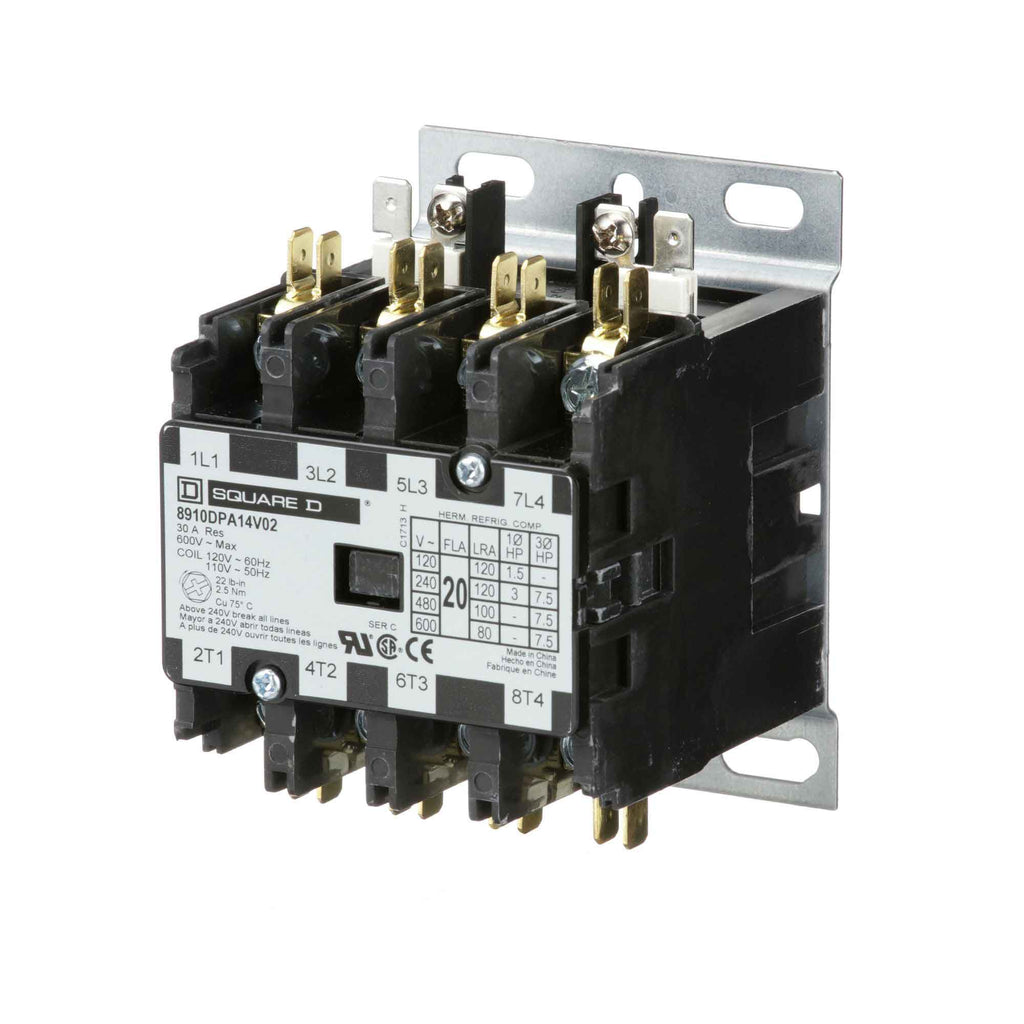

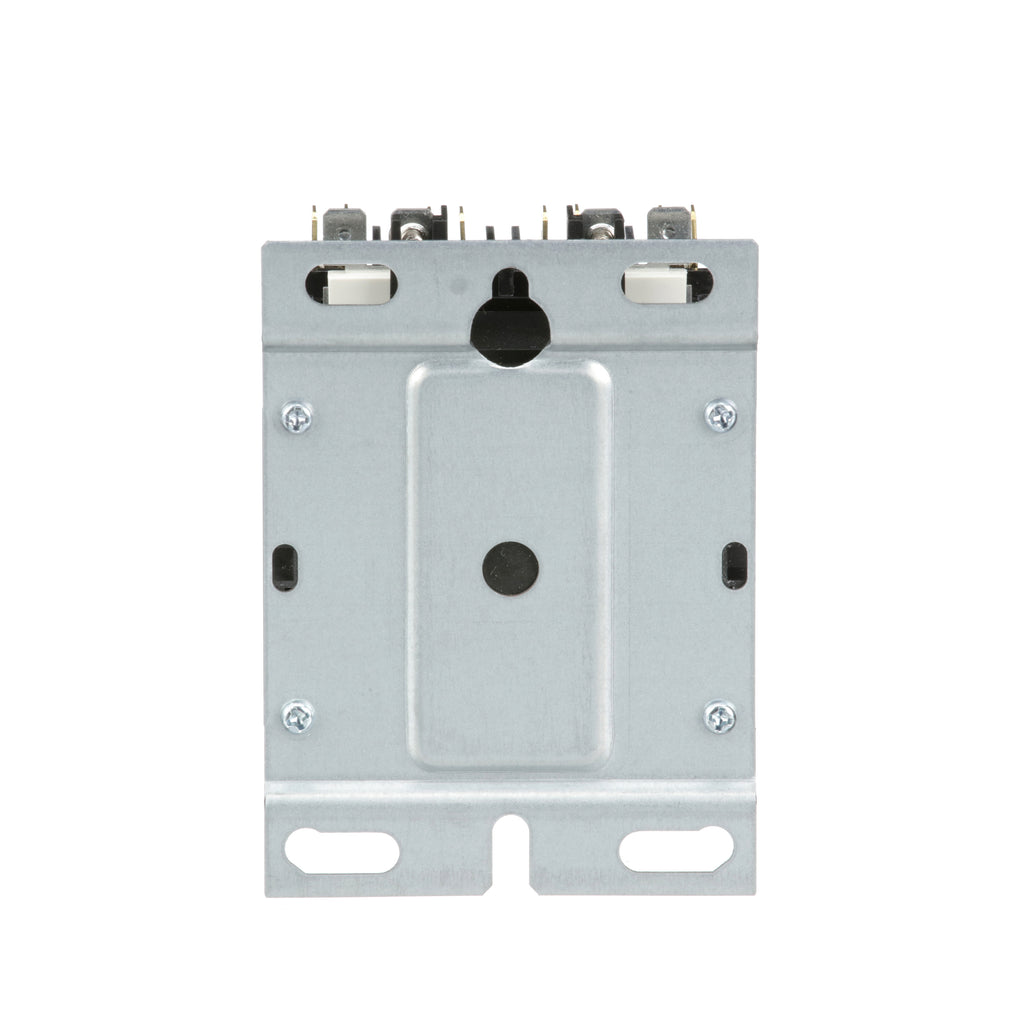

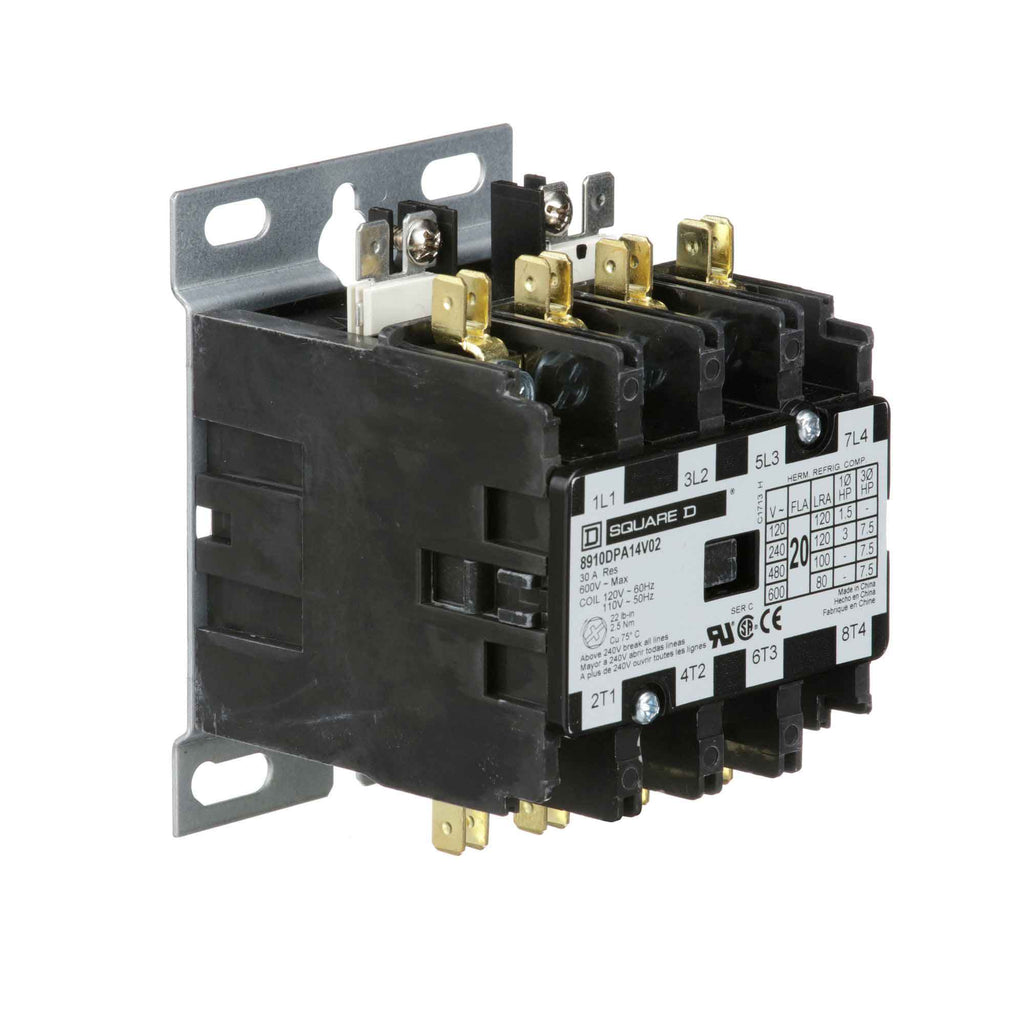

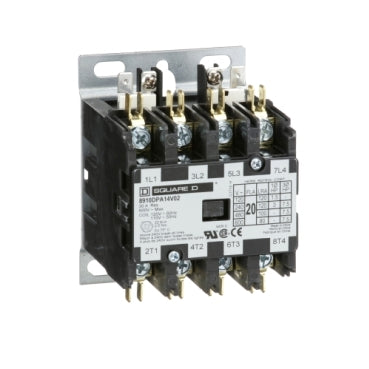

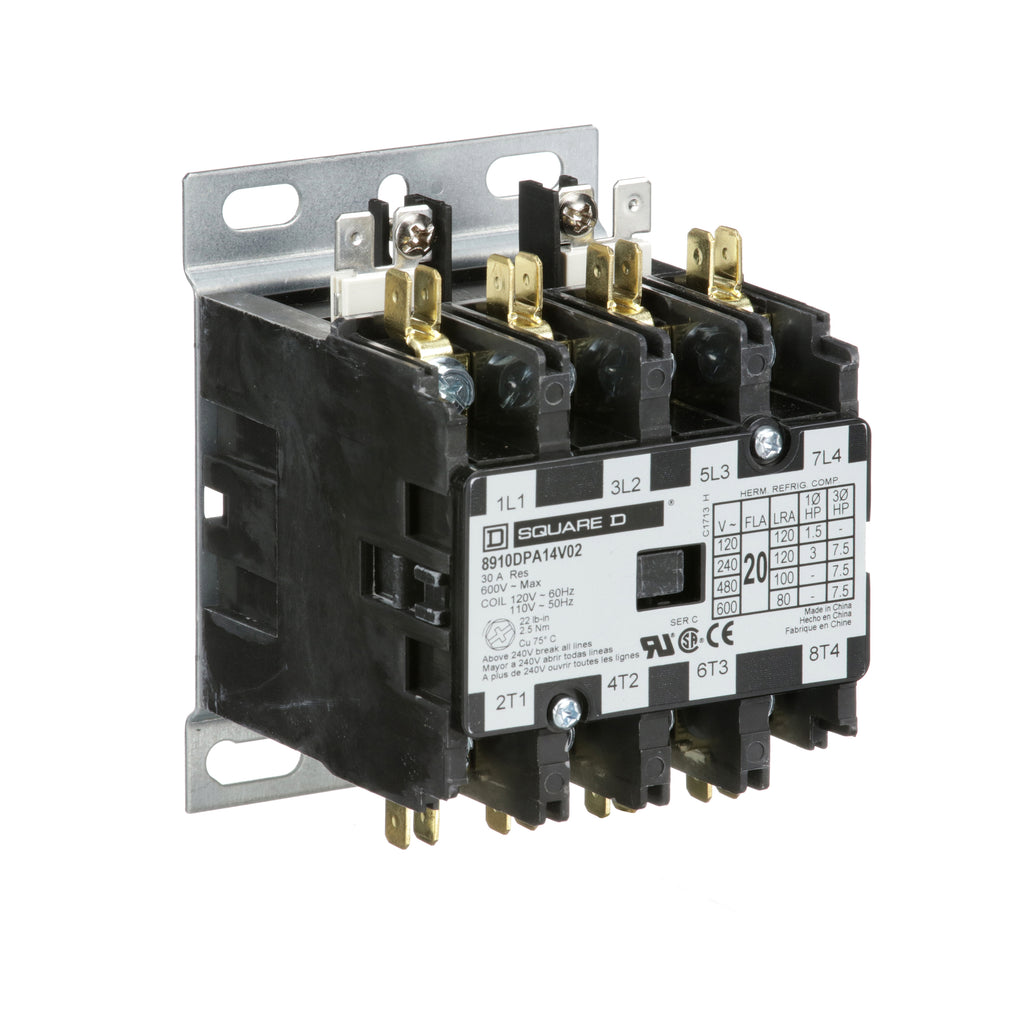

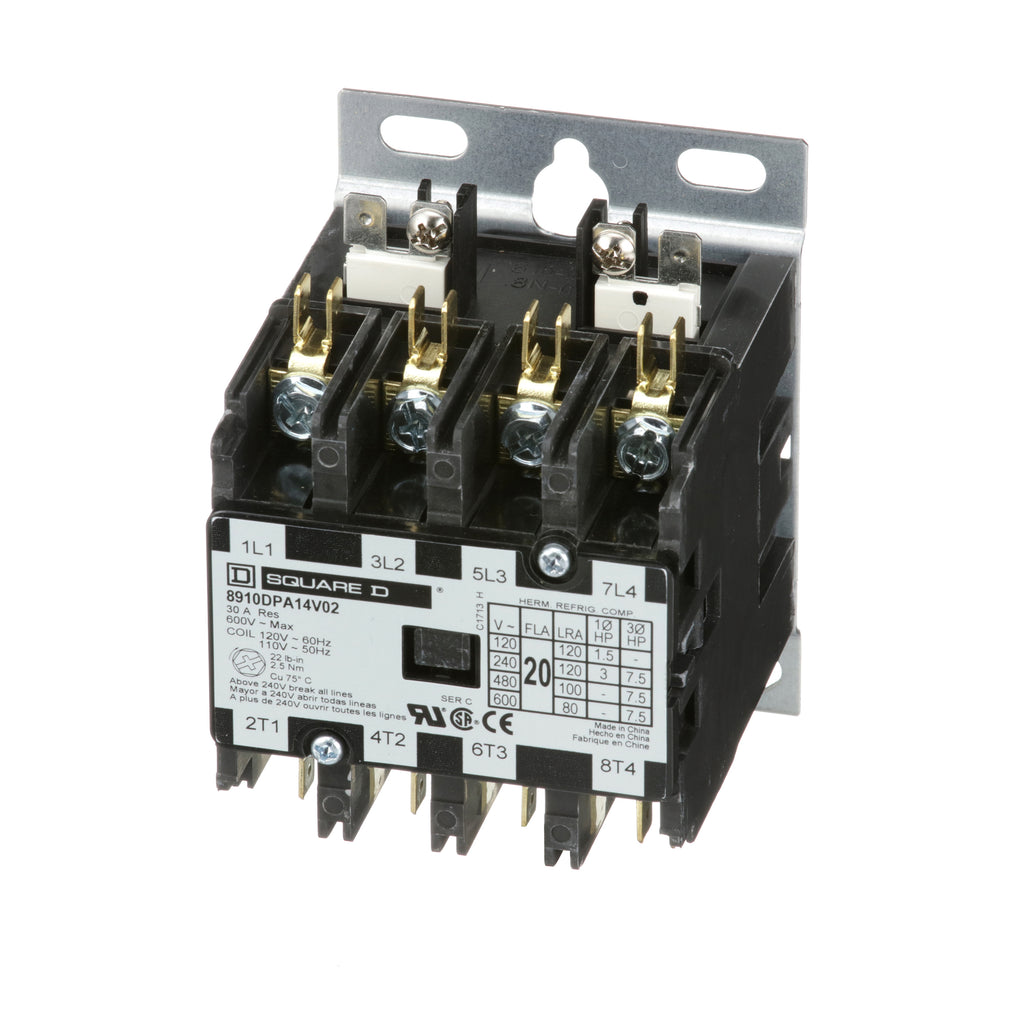

8910DPA14V02 is a Square D definite purpose contactor designed for motor control applications in HVAC, refrigeration, and industrial equipment. This 4-pole non-reversing contactor delivers reliable switching performance with a 20 ampere full load inductive rating and 25 ampere resistive rating. The unit features a 110/120VAC coil voltage and operates at 600VAC line voltage, making it suitable for 3-phase motor control up to 7.5 HP at 575VAC. Built with quick connect terminals and binder head screws for straightforward installation, this open-frame contactor provides durable electrical protection for demanding applications.
- Poles: 4
- Full Load Amps (Inductive): 20A
- Full Load Amps (Resistive): 25A
- Line Voltage: 600VAC
- Coil Voltage: 110/120VAC
- Phase: 3-Phase
- Type: Non-Reversing Definite Purpose
- Motor Power Rating: 7.5 HP at 575VAC 3-Phase
- Mounting: Open Frame
- Terminal Type: Quick Connect with Binder Head Screws
Specifications
- Part Number: 8910DPA14V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 4
- Horse Power : 1.5 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase-7.5 hp 230 V AC, 3 phases-7.5 hp 460 V AC, 3 phases-7.5 hp 575 V AC, 3 phases
- Aux Contacts : 4 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 110V
Product Data
- UPC : 785901080121
- GTIN : 00785901080121
- Dimensions : Depth 4.13 in (104.90 mm) Width 5 in (127.00 mm) Height 8.63 in (219.20 mm)
- Weight : 1.31
- Certification : UL recognized CSA
