Description
8910DPA13V09

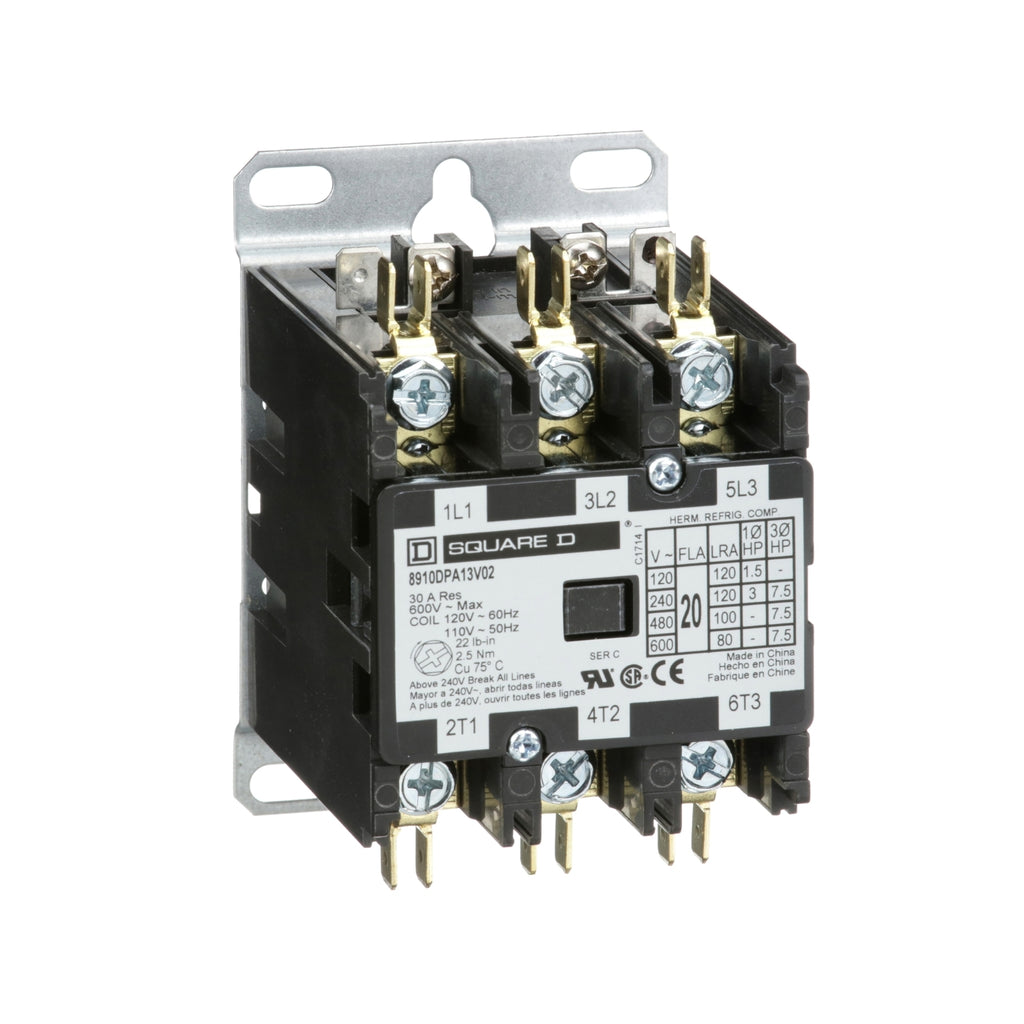

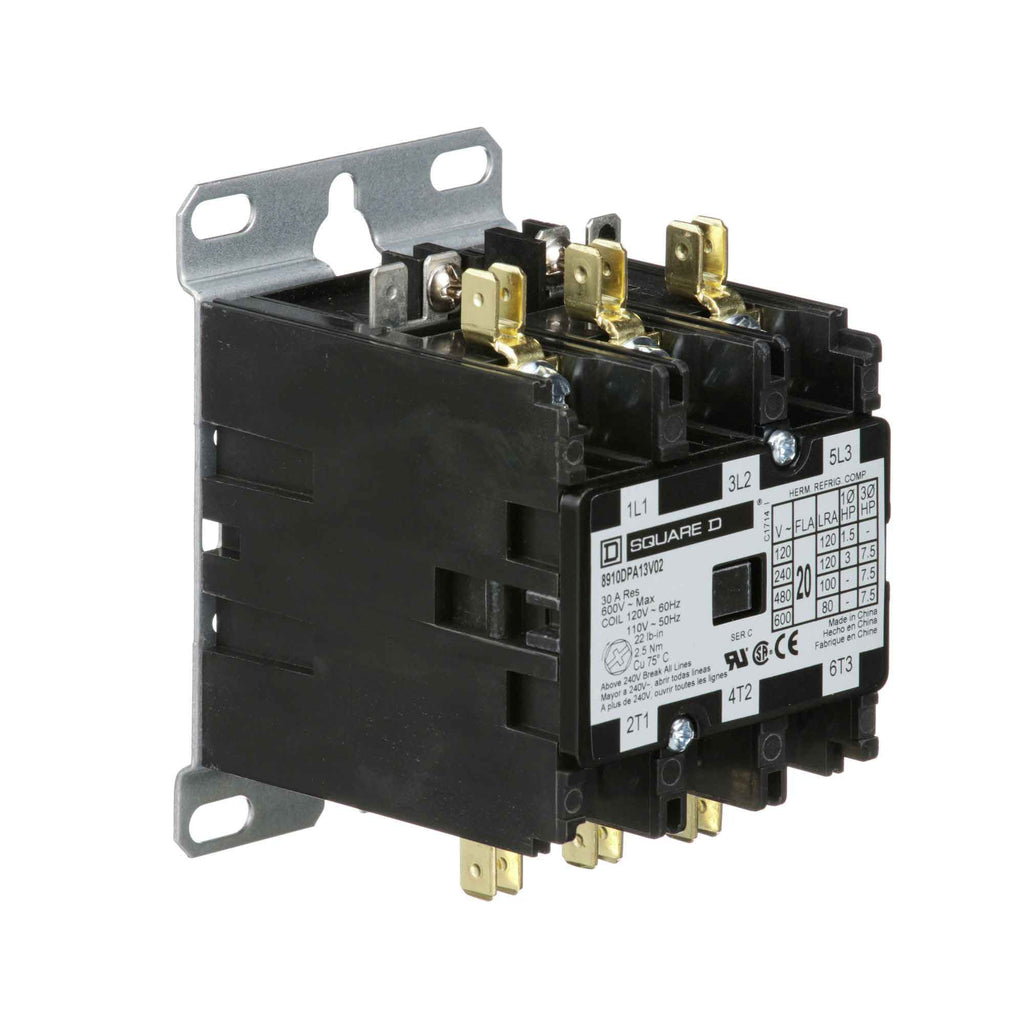

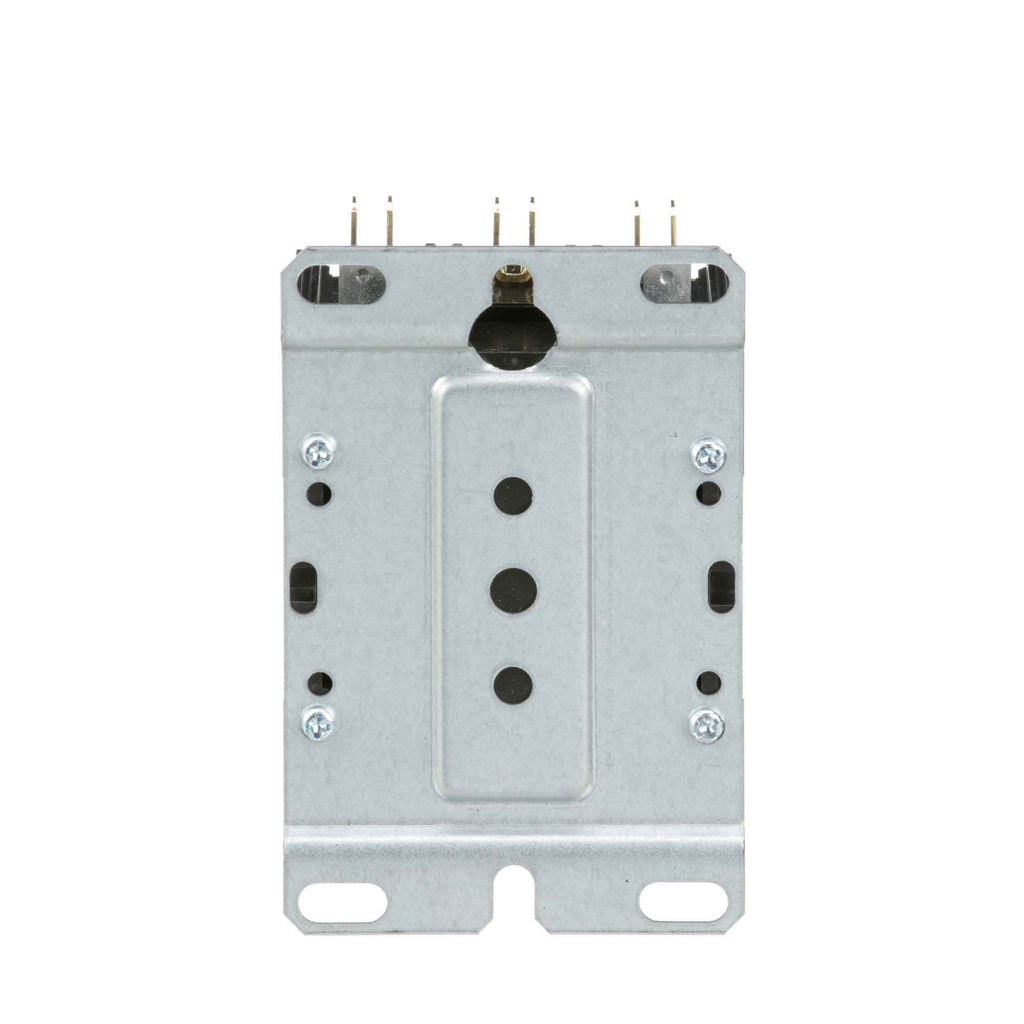

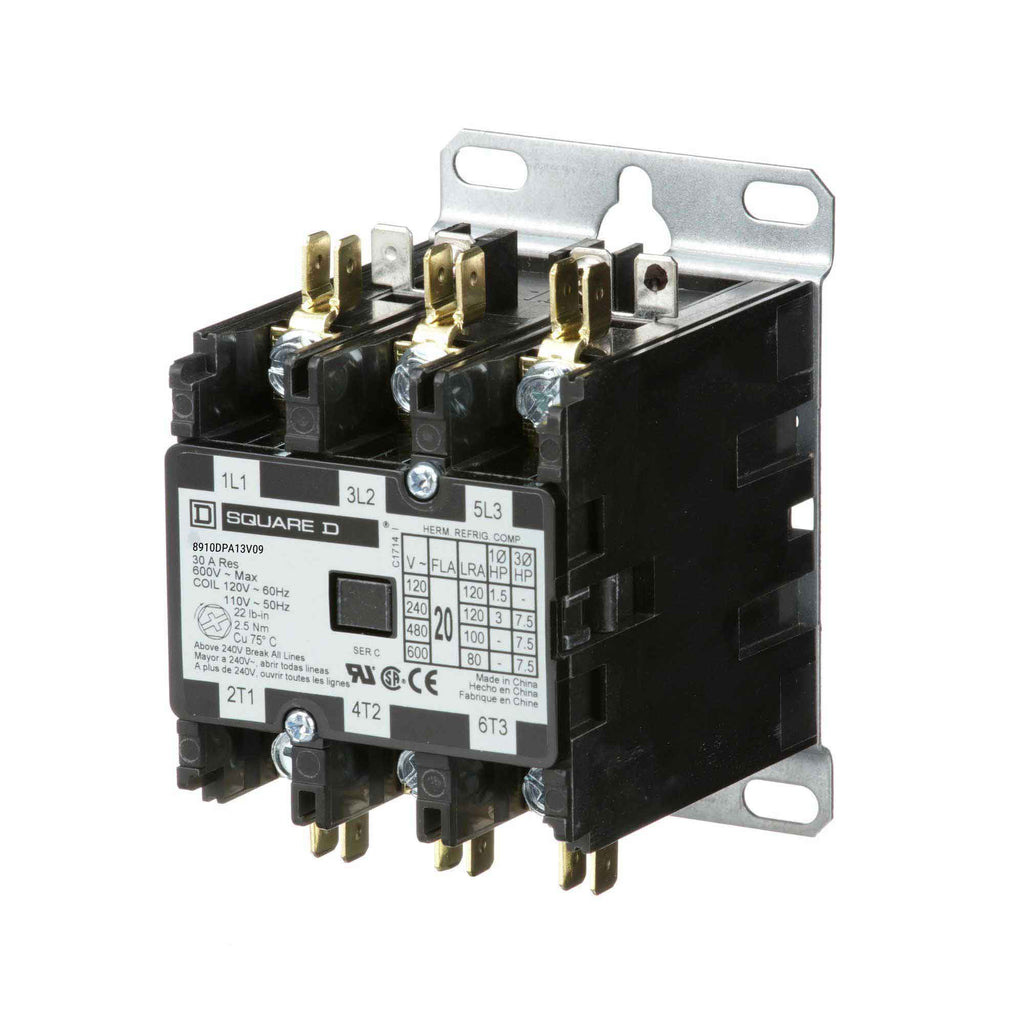

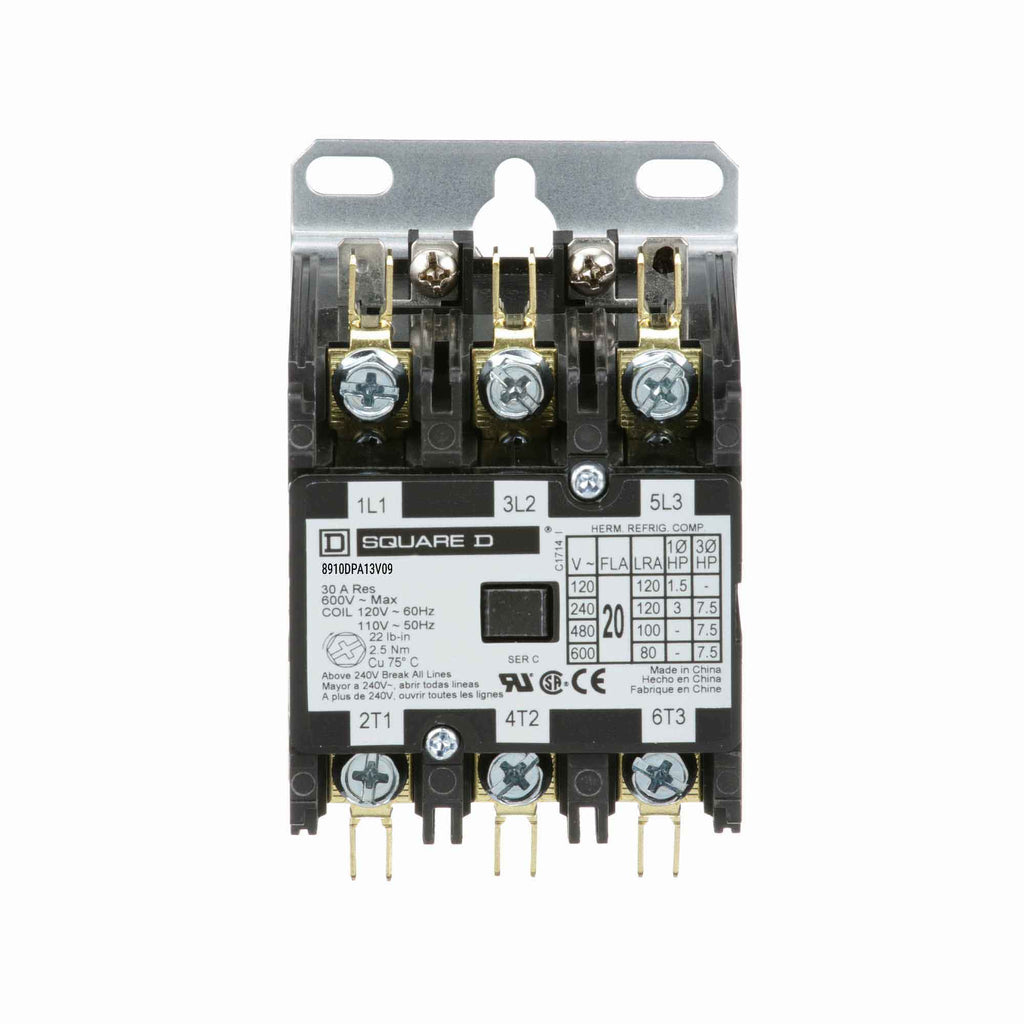

8910DPA13V09 is a Square D Class 8910 definite purpose contactor designed for reliable motor control applications. This 3-pole, 20A device features a 600V maximum voltage rating and is equipped with a 208-240V coil for versatile installation. Ideal for industrial and commercial use, it supports up to 7.5 HP at 460/575V and 5 HP at 230V. This contactor is part of the Class 8910 series, offering robust construction and dependable performance for demanding environments. Its open-frame design provides easy access for maintenance and inspection, while the standard magnetic operation ensures smooth switching. The device is suitable for both single and three-phase systems, making it a flexible solution for a wide range of motor control needs.
- Part Number: 8910DPA13V09
- Manufacturer: Square D
- Series: Class 8910
- Poles: 3
- Rated Current: 20A
- Maximum Voltage: 600V
- Coil Voltage: 208-240V
- Motor Power: 7.5 HP @ 460/575V, 5 HP @ 230V
- Mounting Type: Open Frame
- Interrupt Rating: 30A Resistive
- Contact Configuration: 3NO
- Standards: NEMA 1
Specifications
- Part Number: 8910DPA13V09
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- Horse Power : 1.5 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase-7.5 hp 230 V AC, 3 phases-7.5 hp 460 V AC, 3 phases-7.5 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 220V
- Coil Voltage Minimum : 220V
Product Data
- UPC : 785901080138
- GTIN : 00785901080138
- Weight : 1.08
- Certification : UL recognized CSA
