Description
8910DP42V09

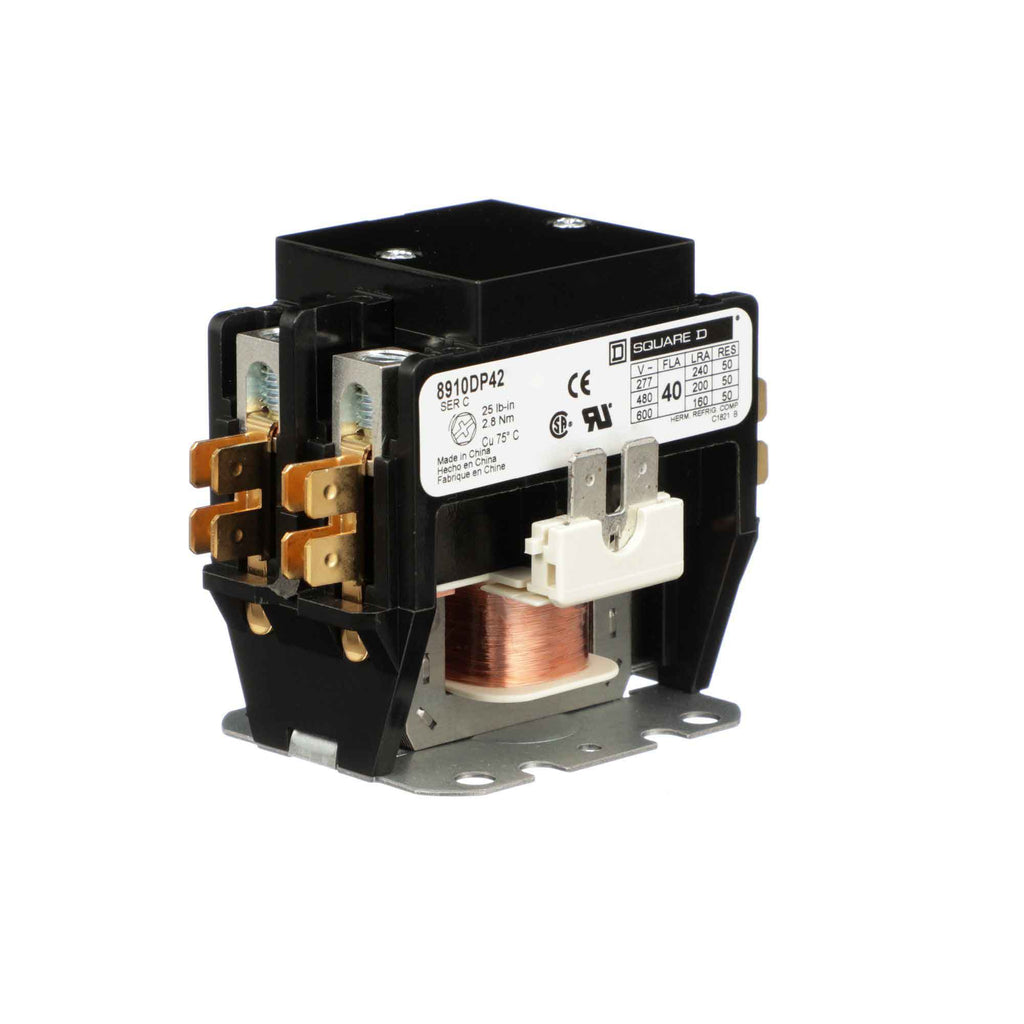

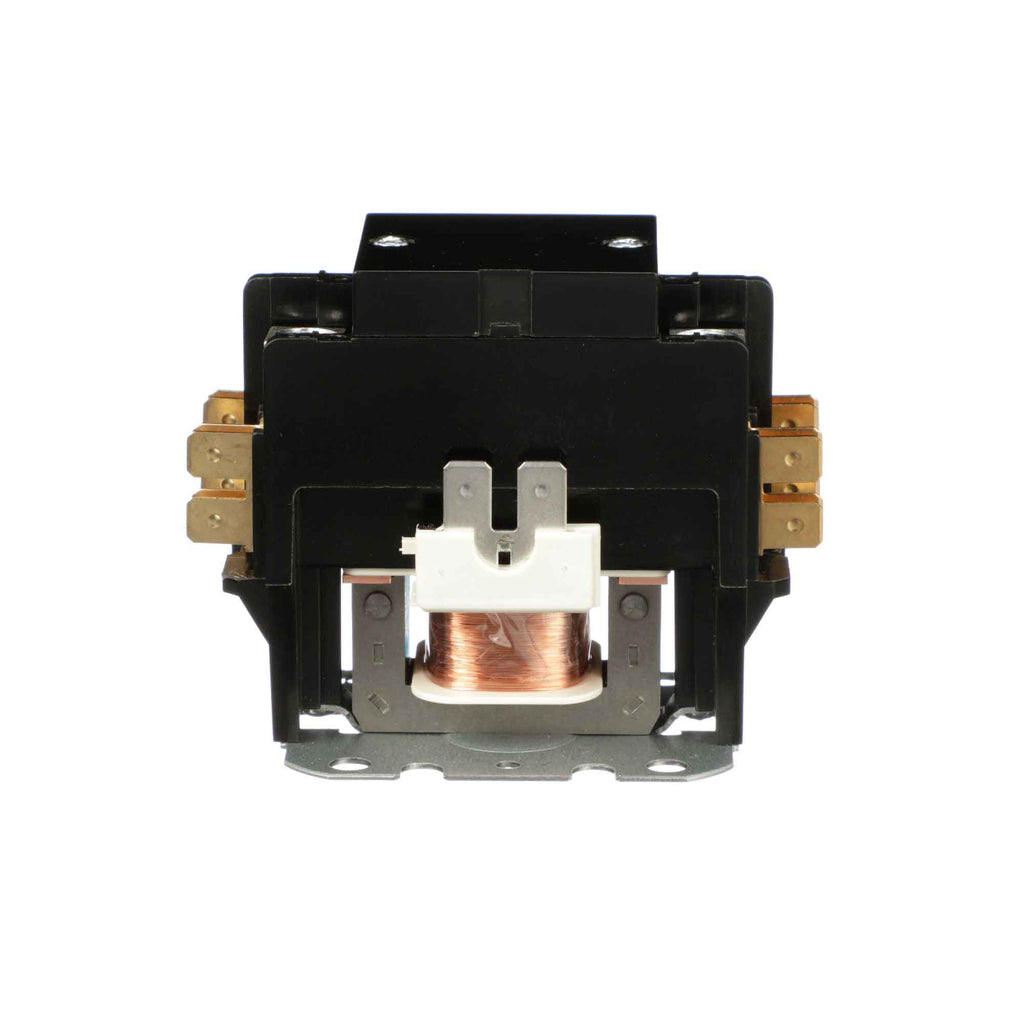

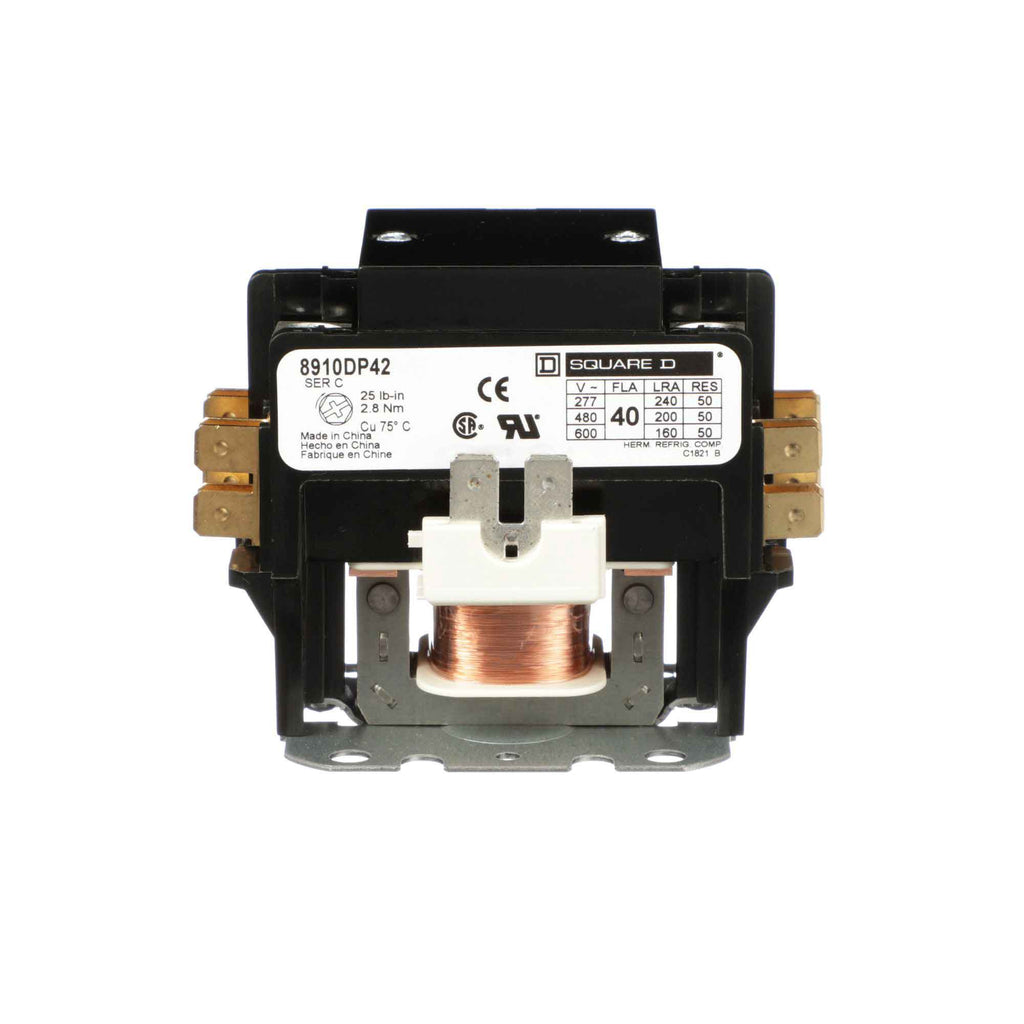

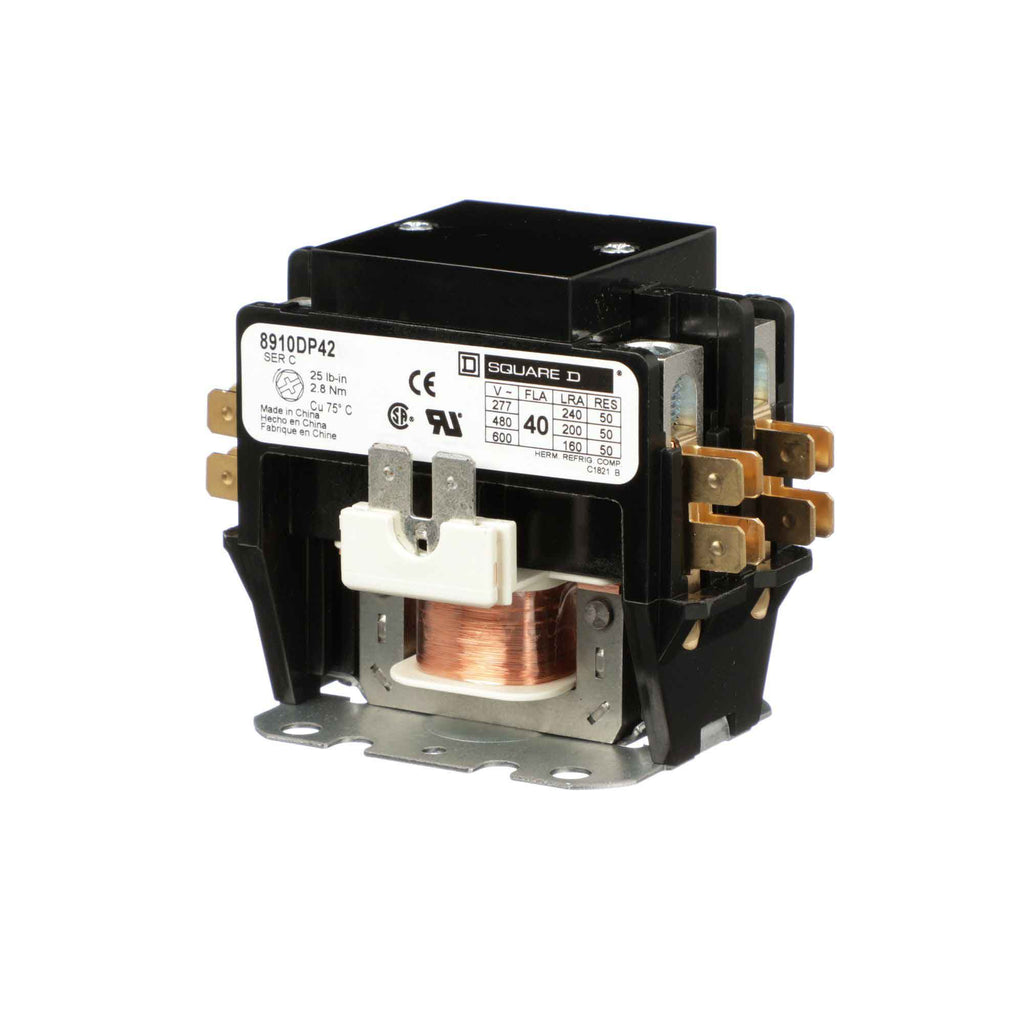

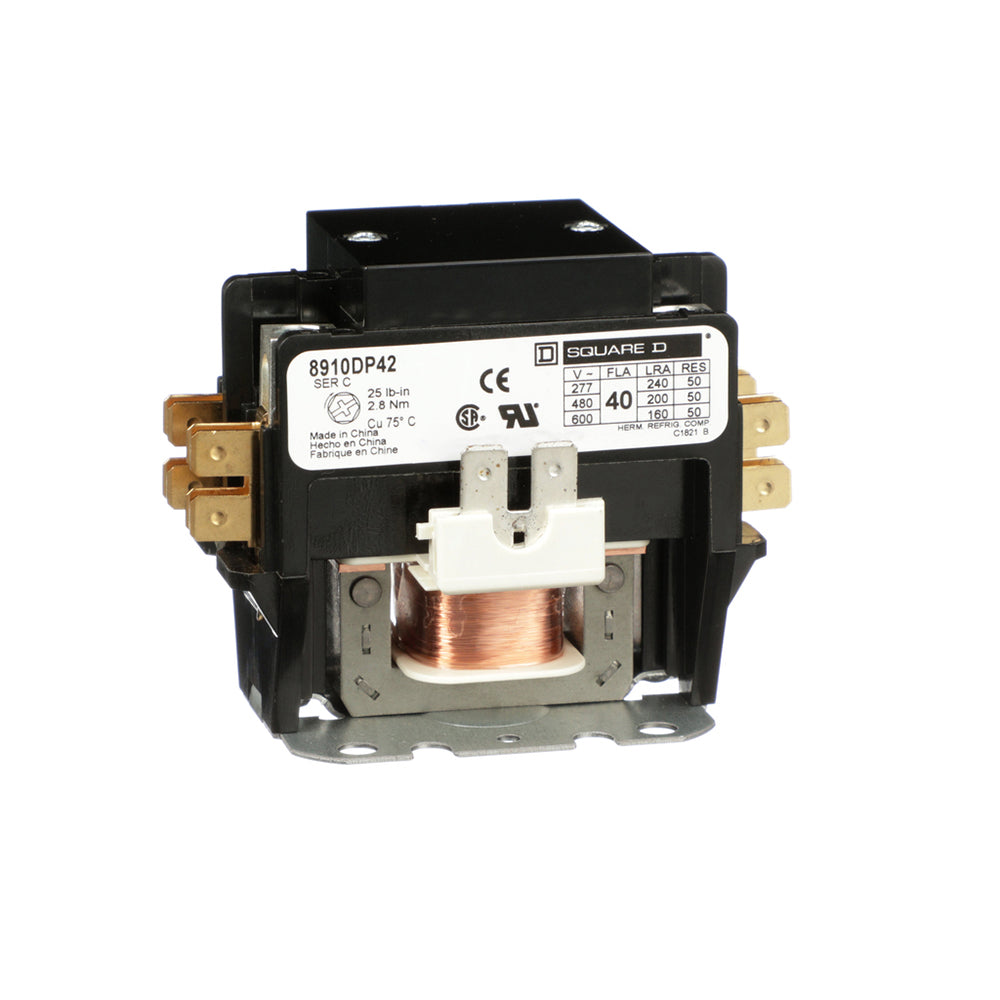

8910DP42V09 is a Square D definite purpose contactor designed for motor control applications with a 40 amp line rated current.
This contactor features 2 poles with 2 normally open (NO) contacts, suitable for single-phase systems. It supports a system voltage up to 600 V AC and coil voltages of 208-240 V AC at 60 Hz or 220 V AC at 50 Hz. The contactor is rated for motor power up to 2 hp at 115 V AC and 5 hp at 230 V AC, with locked rotor rated currents of 200 A at 460 V AC, 160 A at 575 V AC, and 240 A at 277 V AC. It includes quick connect terminals and box lugs for electrical connections and is UL listed, CSA certified, and CE marked.
- Line Rated Current: 40 A
- Poles: 2 (2 NO contacts)
- System Voltage: 600 V AC
- Coil Voltage: 208-240 V AC 60 Hz / 220 V AC 50 Hz
- Phase: Single-phase
- Motor Power: 2 hp at 115 V AC, 5 hp at 230 V AC
- Locked Rotor Current: 200 A at 460 V AC, 160 A at 575 V AC, 240 A at 277 V AC
- Electrical Connections: Quick connect terminals, box lugs
- Certifications: UL listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 220 VAC coil.
Specifications
- Part Number: 8910DP42V09
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 600
- Amperage : 40
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 220V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 220V
- Frequency : 50 Hz
Product Data
- UPC : 785901024194
- GTIN : 00785901024194
- Country of Origin : China

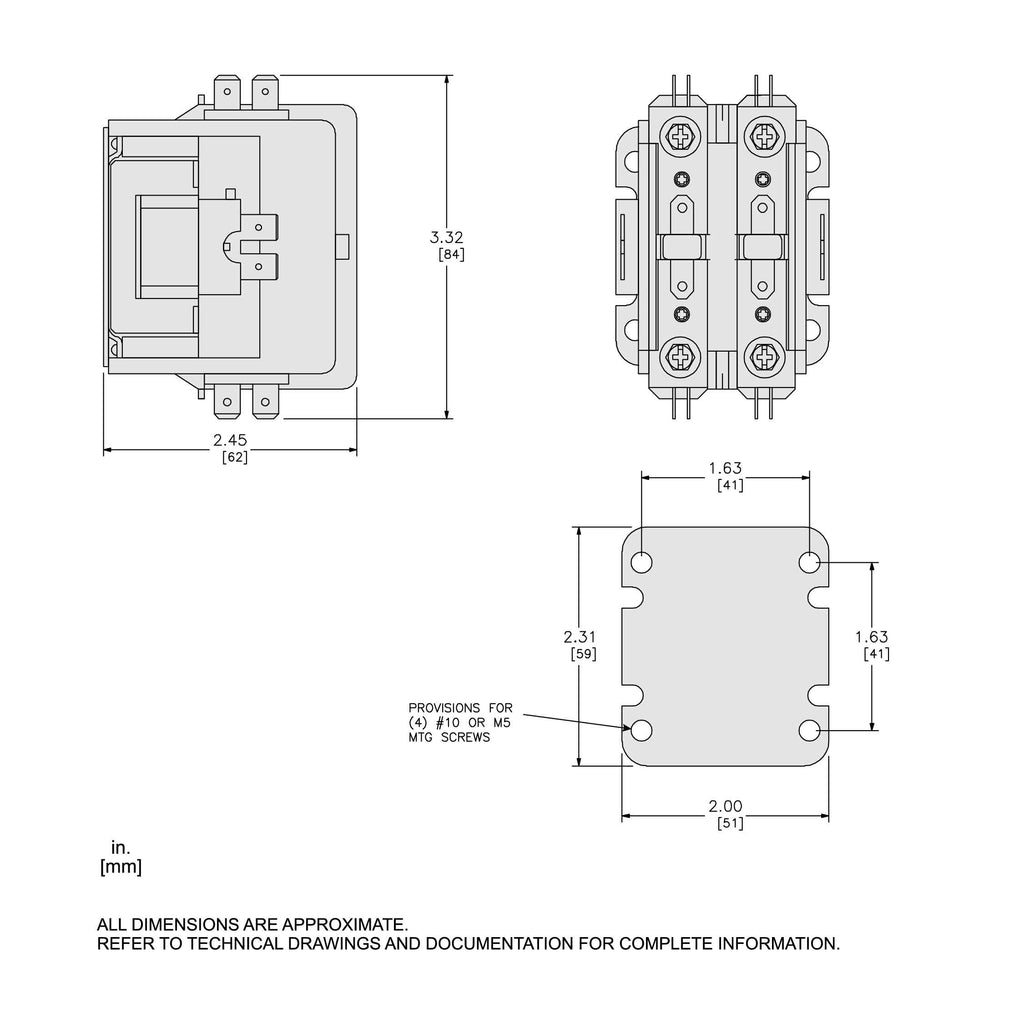

- Dimensions : 2.16 in x 3.29 in
- Weight : 0.64
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, RoHS, UL Listed
