Description
8910DP42V02

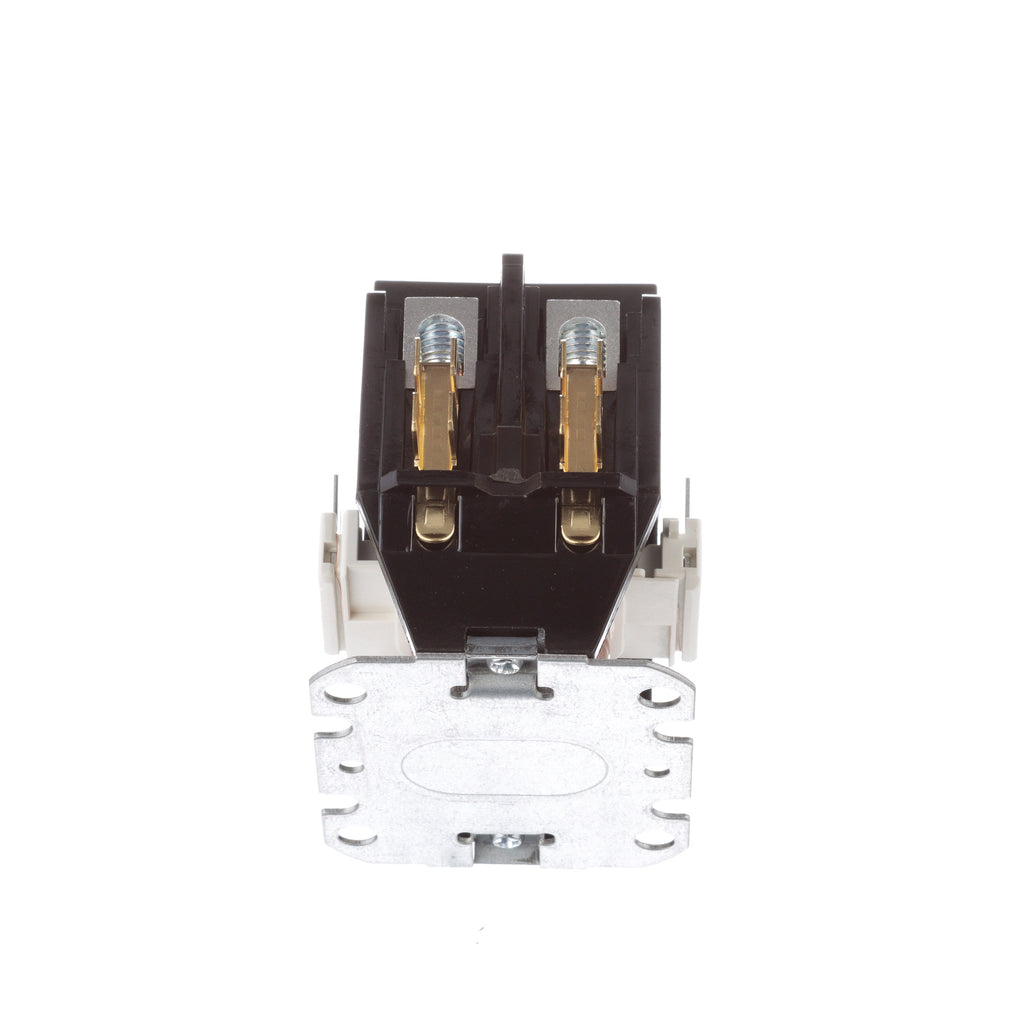

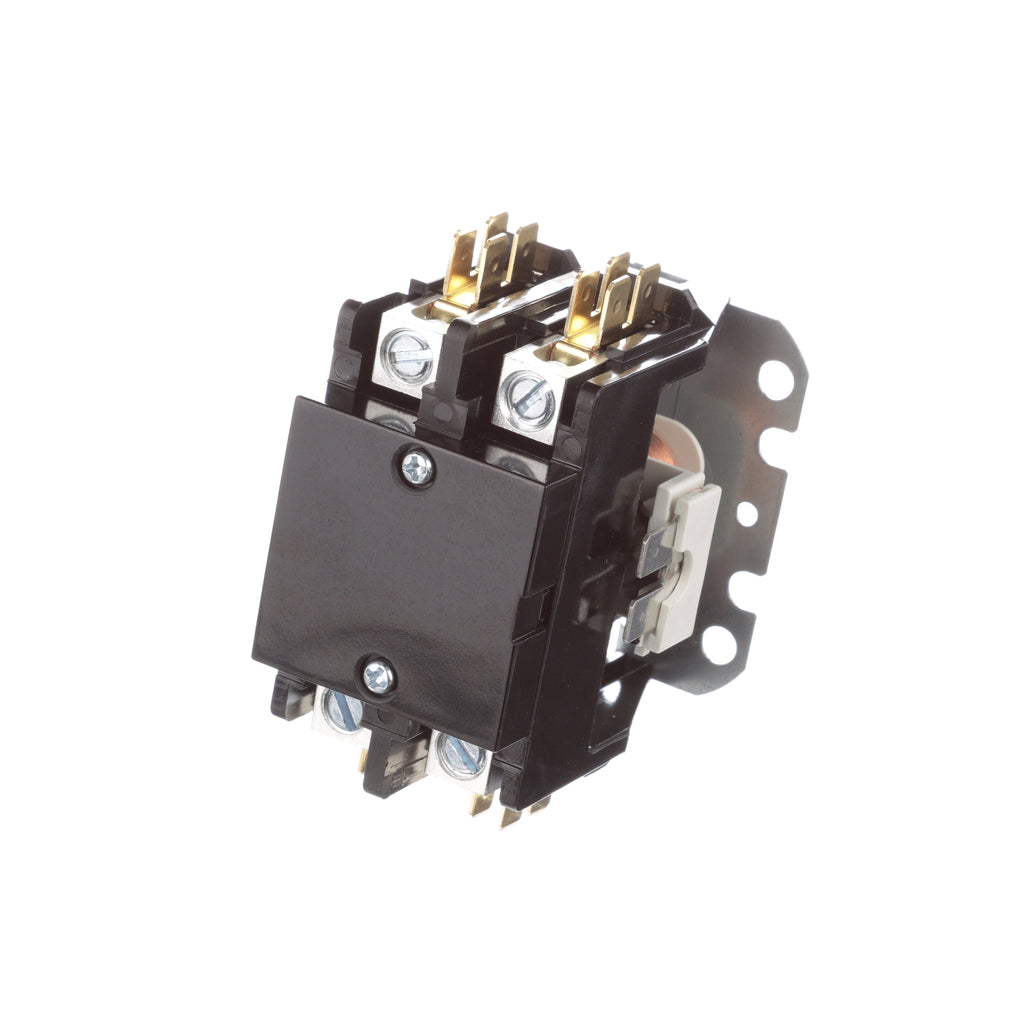

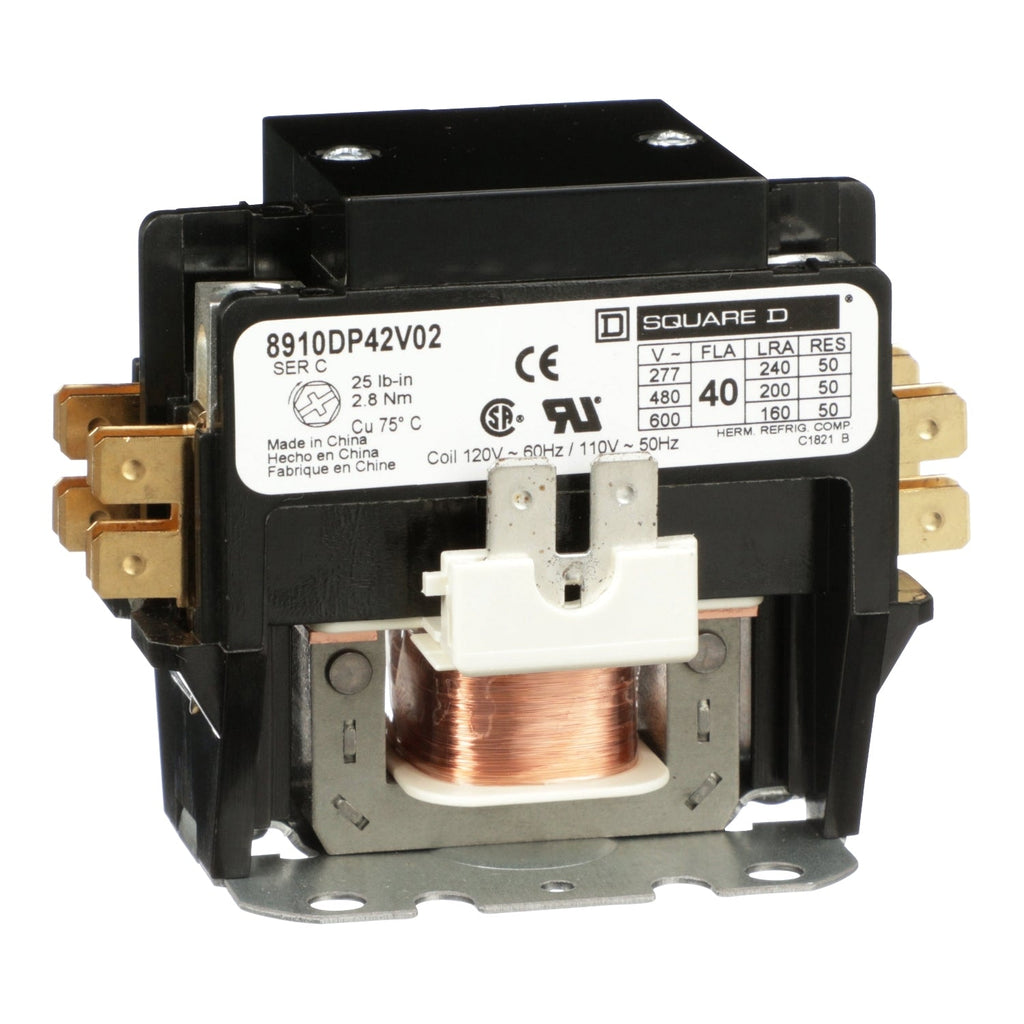

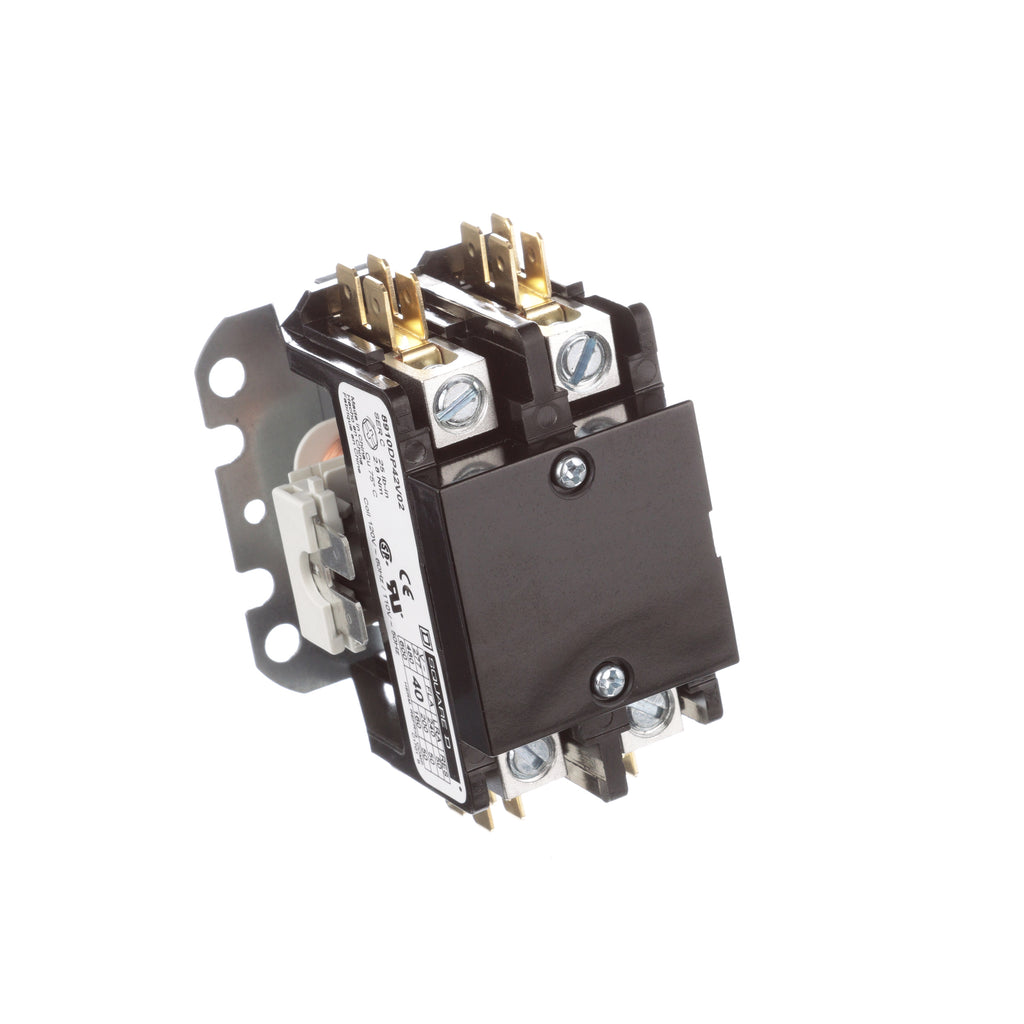

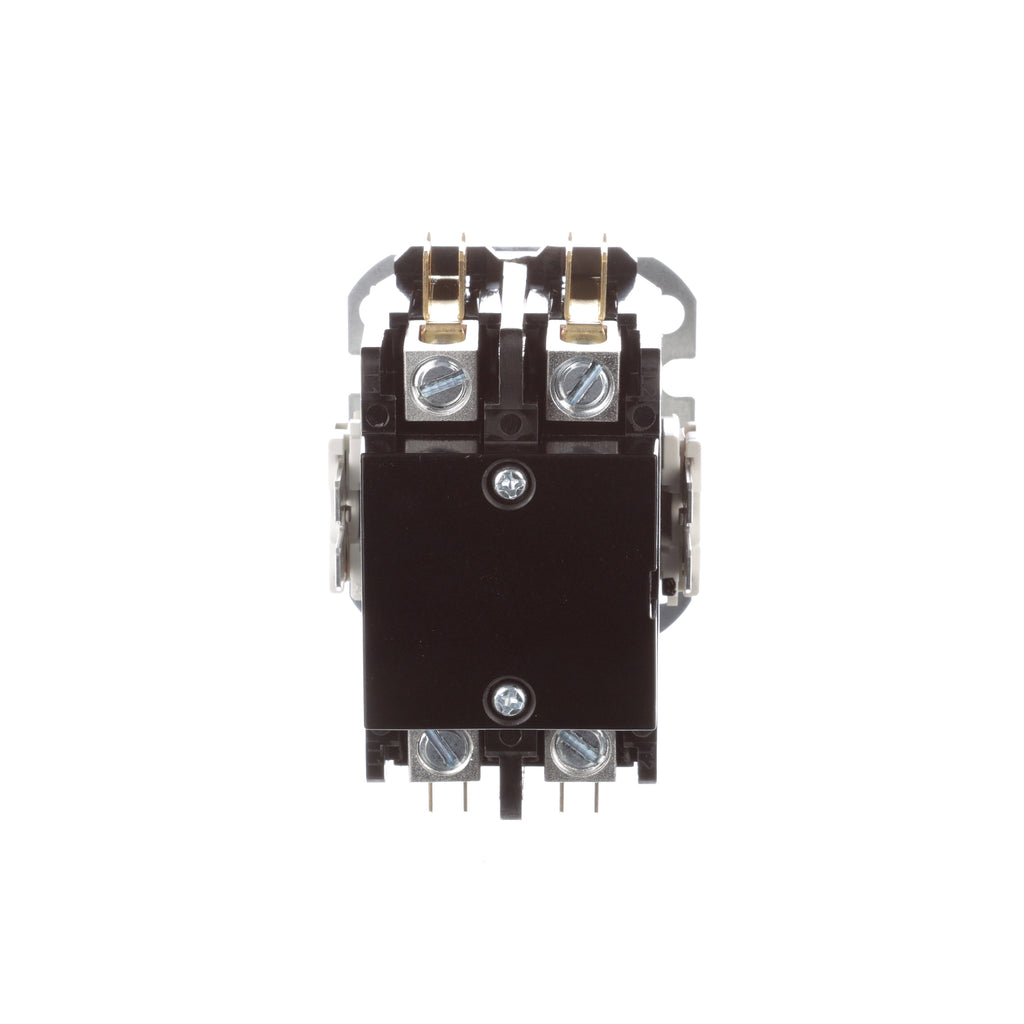

8910DP42V02 is a Square D Class 8910 Definite Purpose Contactor designed for reliable motor control in single-phase applications. This 2-pole contactor features a 40A current rating and is rated for 600V AC operation, making it suitable for a wide range of industrial and commercial uses. The 8910DP42V02 includes a 110/120V AC 50/60 Hz control coil and quick connect terminals for easy installation. It is UL listed, CSA certified, and CE marked for safety and compliance. The contactor is non-reversing and features 2 normally open (NO) poles for straightforward motor starting and stopping.
- Part Number: 8910DP42V02
- Manufacturer: Square D (Schneider Electric)
- Series: Class 8910
- Type: Definite Purpose Contactor
- Rated Current: 40A
- Rated Voltage: 600V AC
- Number of Poles: 2
- Control Circuit Voltage: 110/120V AC 50/60 Hz
- Motor Power: 2 HP @ 115V AC, 5 HP @ 230V AC
- Mounting Type: Quick Connect Terminals
- Interrupt Rating: 200A @ 460V AC, 160A @ 575V AC, 240A @ 277V AC
- Certifications: UL Listed, CSA, CE
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8910DP42V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 600
- Amperage : 40
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
- Coil Voltage Minimum : 110V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901024187
- GTIN : 00785901024187
- Country of Origin : China
- Dimensions : 2.16 in x 3.29 in
- Weight : 0.57
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, RoHS, UL Listed
