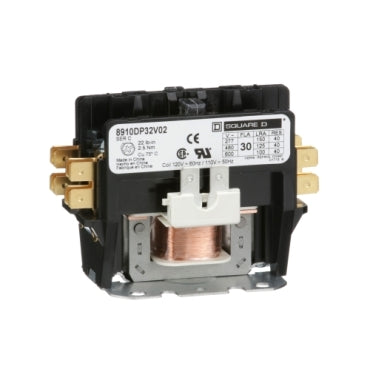

8910DP32V02 - Square D 30 Amp 2-Pole 120VAC Definite Purpose Contactor, NEMA 1, Non-Reversing, 2NO, 600V Interrupt Rating

8910DP32V02

8910DP32V02 Square D definite purpose contactor for reliable motor control in commercial and industrial applications.

This non-reversing, 2-pole magnetic contactor is designed for single-phase loads, featuring a 120VAC coil and NEMA 1 enclosure. It offers robust performance with quick-connect terminals for easy installation.

Key Specifications
• Amperage: 30A full load, 40A resistive
• Voltage: 120VAC coil (60Hz), 110VAC (50Hz)
• Poles: 2
• Mounting Type: Panel mount
• Interrupt Rating: 600VAC
• Series/Frame: 8910DP
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: NEMA 1
• Contact Configuration: 2NO (normally open)
• Electrical Connection: Quick connect terminals
• Enclosure: NEMA 1
• Application: Definite purpose, non-reversing

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DP32V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DP
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901073338
• GTIN : 00785901073338
• Country of Origin : China
• Dimensions : 2.16 in x 3.29 in
• Weight : 0.6
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, RoHS, UL Listed
