Description
8910DP31V14

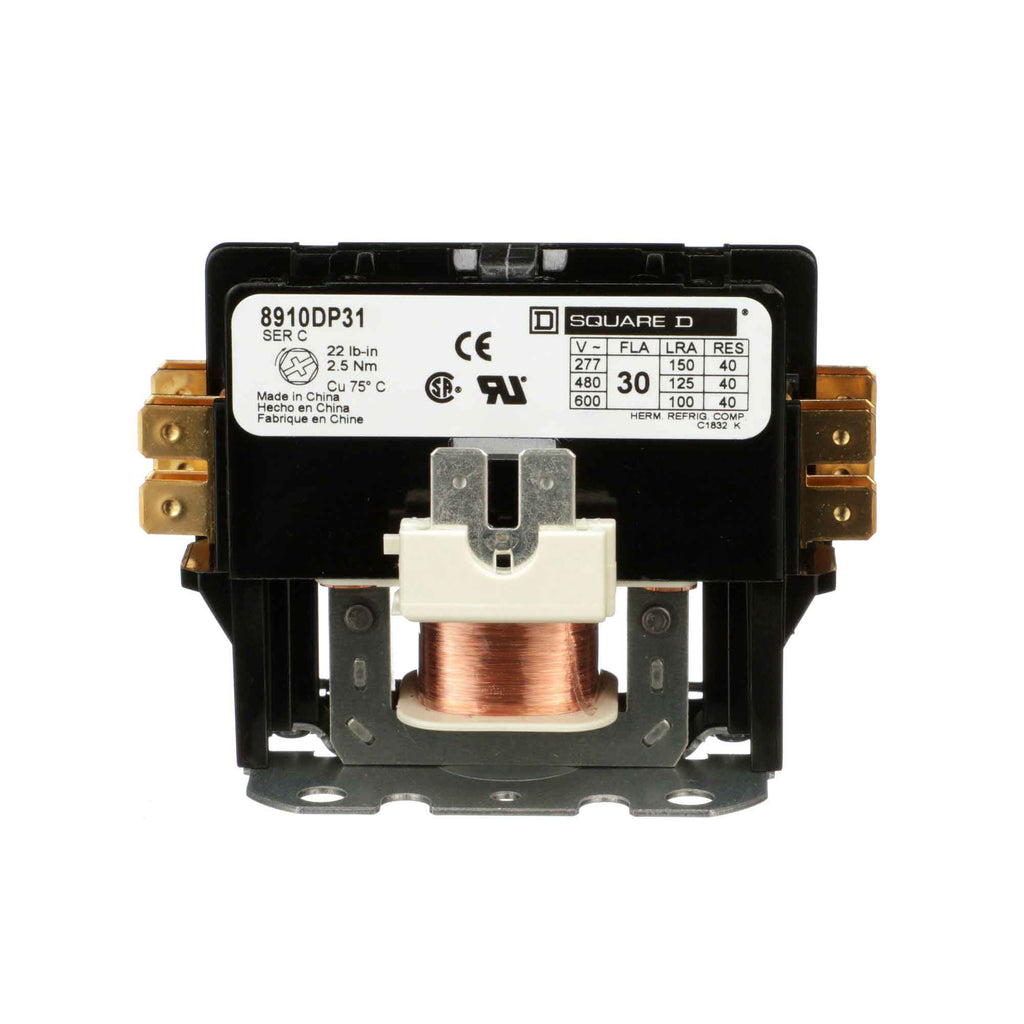

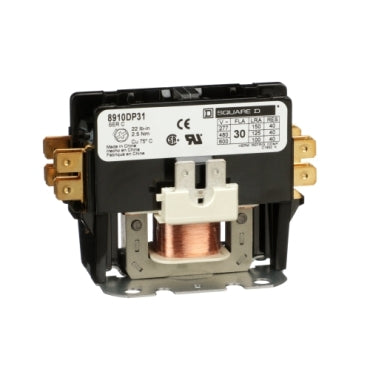

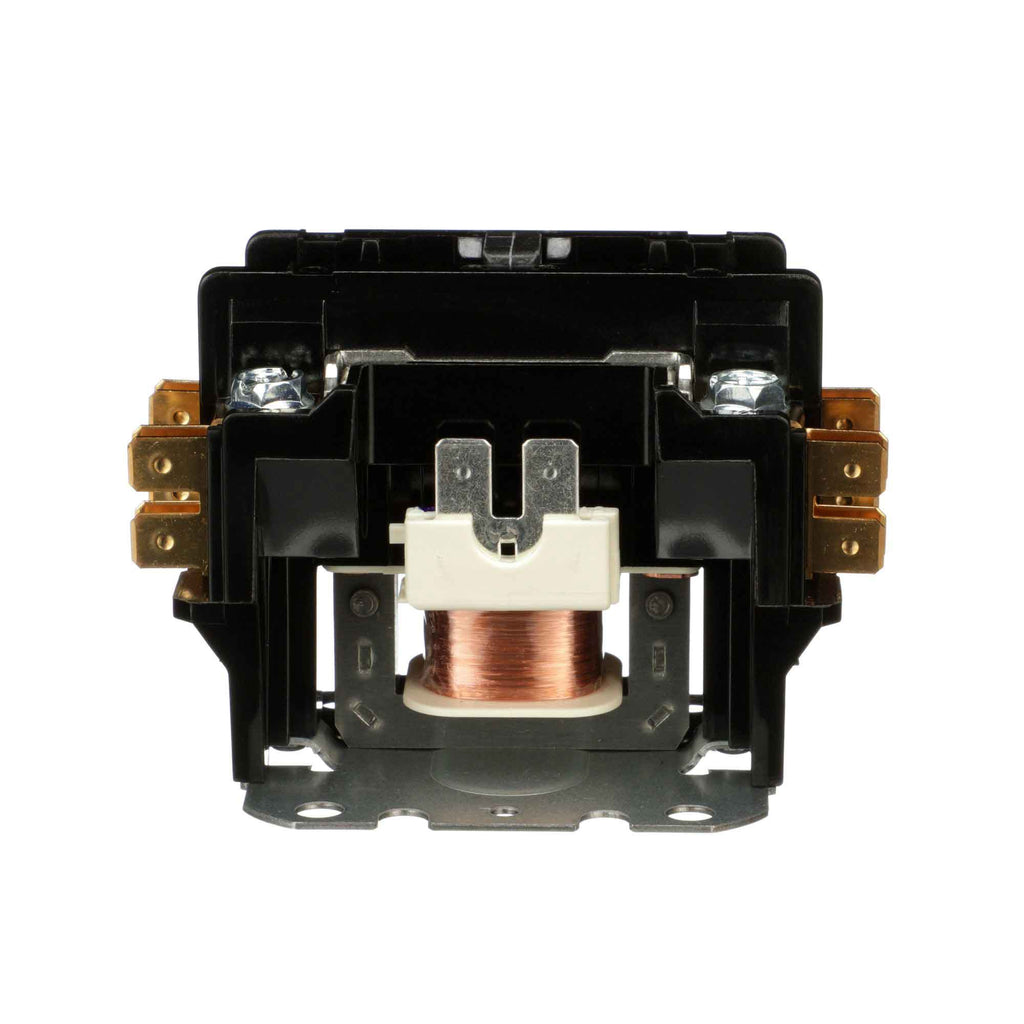

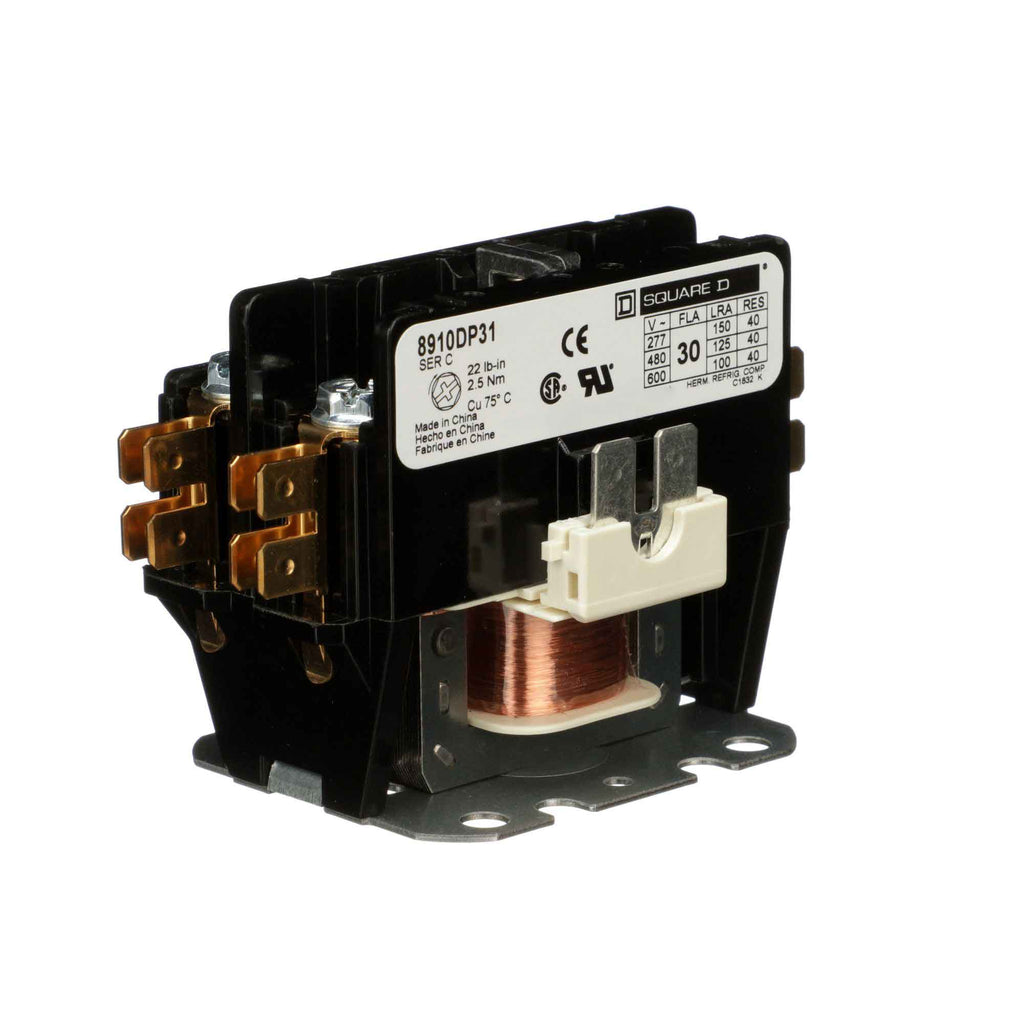

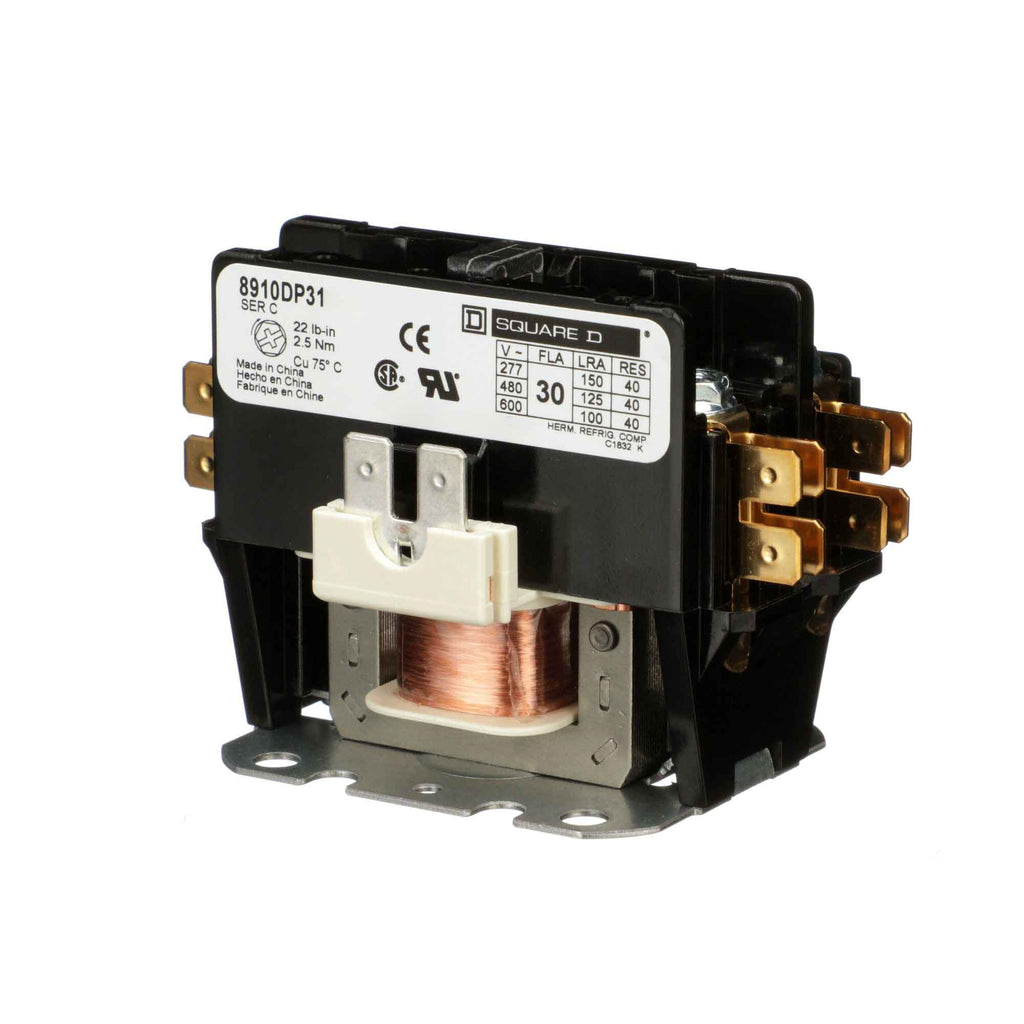

8910DP31V14 is a Square D Class 8910 definite purpose contactor designed for reliable motor control in single-phase applications. This 1 pole, 30A contactor features a 24VAC coil and is suitable for loads up to 2HP at 115VAC and 3HP at 230VAC. It is commonly used in HVAC, refrigeration, and other light industrial applications where dependable switching is required. The 8910DP31V14 offers a robust design with a non-replaceable coil and quick-connect terminals for easy installation. It is UL Recognized and CSA certified, ensuring compliance with industry safety standards. The contactor is rated for 50/60 Hz operation and provides a mechanical life of up to 500,000 operations.
- Part Number: 8910DP31V14
- Manufacturer: Square D
- Series: Class 8910
- Poles: 1
- Amperage: 30A Inductive, 40A Resistive
- Coil Voltage: 24VAC 50/60 Hz
- Mounting Type: Panel Mount
- Interrupt Rating: 600VAC Maximum
- HP Rating: 2HP @ 115VAC, 3HP @ 230VAC
- Standards: UL Recognized, CSA Certified
- Terminals: Quick Connect
- Application: Definite Purpose Motor Control
Additional Information
This Definite Purpose Contactor includes a 600 VAC coil.
Specifications
- Part Number: 8910DP31V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 6
- Amperage : 3
- Phase : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Horse Power : 2 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 24V
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 24V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901748212
- GTIN : 00785901748212
- Country of Origin : China
- Dimensions : 2.16 in x 3.29 in
- Weight : 0.51
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, RoHS, UL Listed
