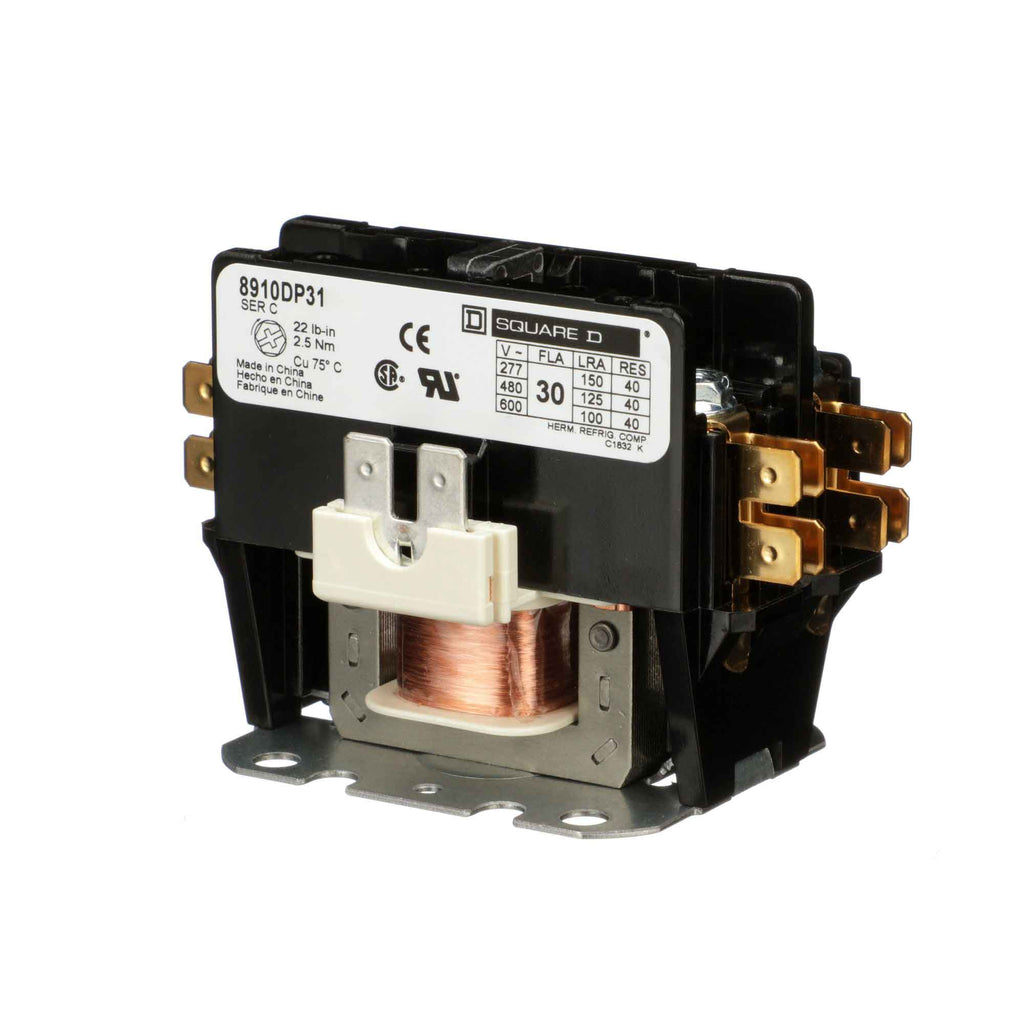

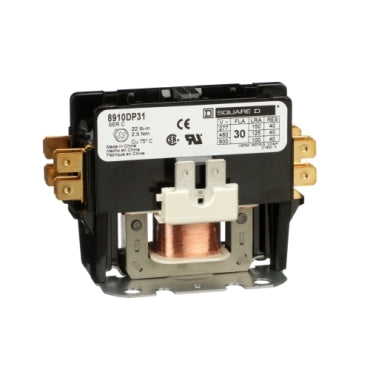

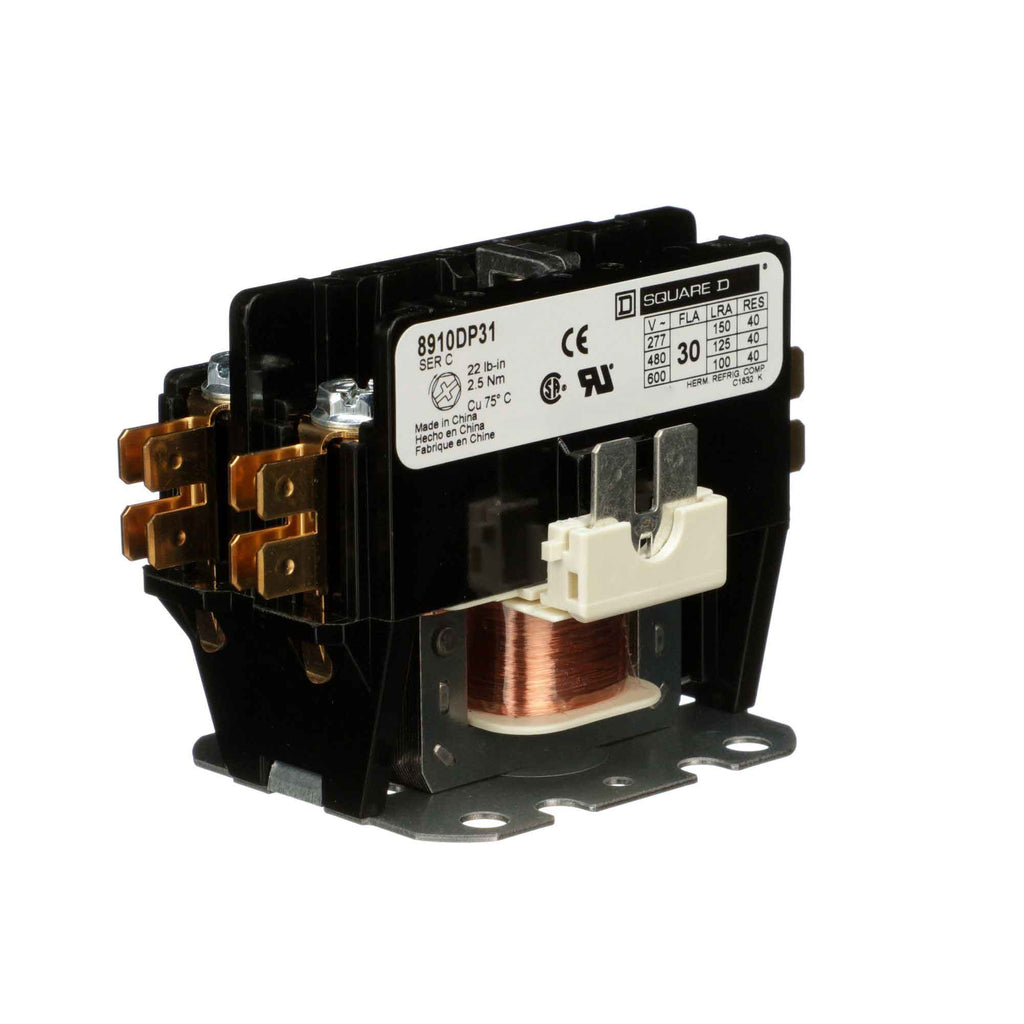

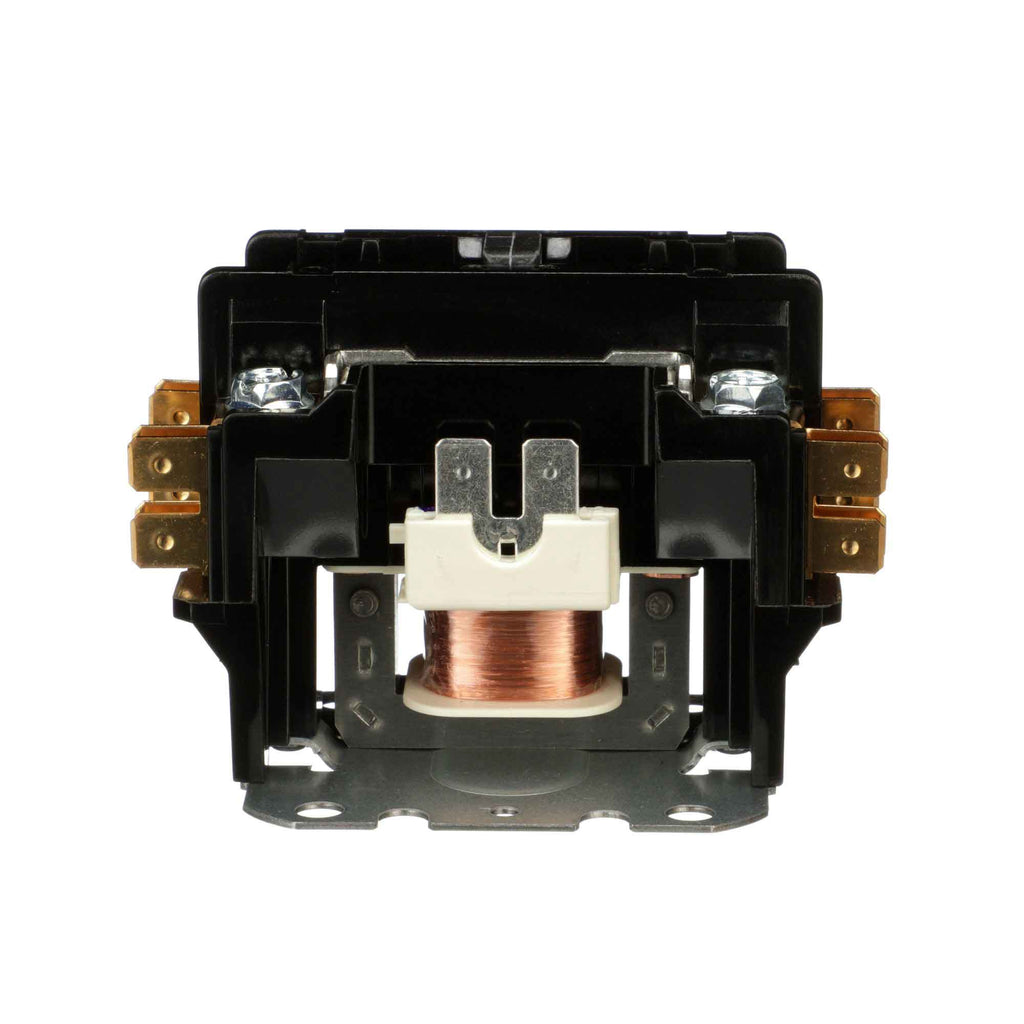

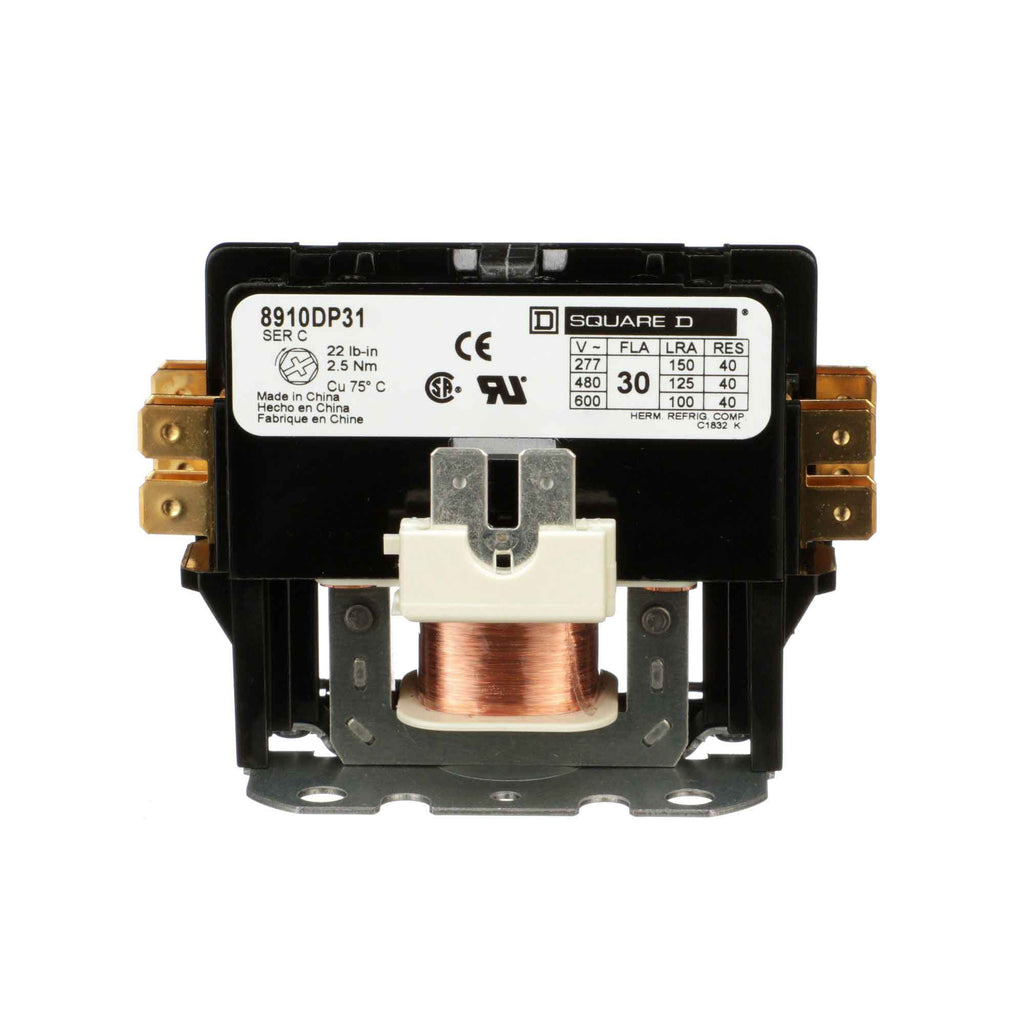

8910DP31V04 - Square D Definite Purpose Contactor 30A 1 Pole 277VAC 60Hz

8910DP31V04

8910DP31V04 is a Square D definite purpose contactor designed for reliable motor control applications. This device features a 1-pole configuration and is rated for 30 amps at 277VAC, 60Hz, making it suitable for a variety of industrial and commercial uses. The contactor is nonreversing and includes quick connect terminals for easy installation. It is part of the Class 8910 series and is built to meet demanding operational requirements. This contactor is ideal for controlling motors up to 2 HP at 115VAC single phase and 3 HP at 230VAC single phase. It is designed for open mounting and operates efficiently at 50/60Hz. The device is engineered for durability and consistent performance in motor control circuits.

• Part Number: 8910DP31V04
• Manufacturer: Square D
• Series: Class 8910
• Type: Definite Purpose Contactor
• Poles: 1
• Amperage: 30A
• Voltage: 277VAC
• Frequency: 60Hz
• Mounting: Open
• Quick Connect Terminal
• Nonreversing
• Maximum Horsepower: 2 HP @ 115VAC, 3 HP @ 230VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DP31V04
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DP
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 1
• Horse Power : 2 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 277V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 277V

Product Data

• UPC : 785901186335
• GTIN : 00785901186335
• Country of Origin : China
• Dimensions : 2.008 in (51 mm) x 3.3 in (84 mm) x 2.4 in (61 mm) (Height x Width x Depth)
• Weight : 0.5
• Certification : UL RECOGNIZED - CSA CERTIFIED - CE MARKED
