Description
8910DP31V02

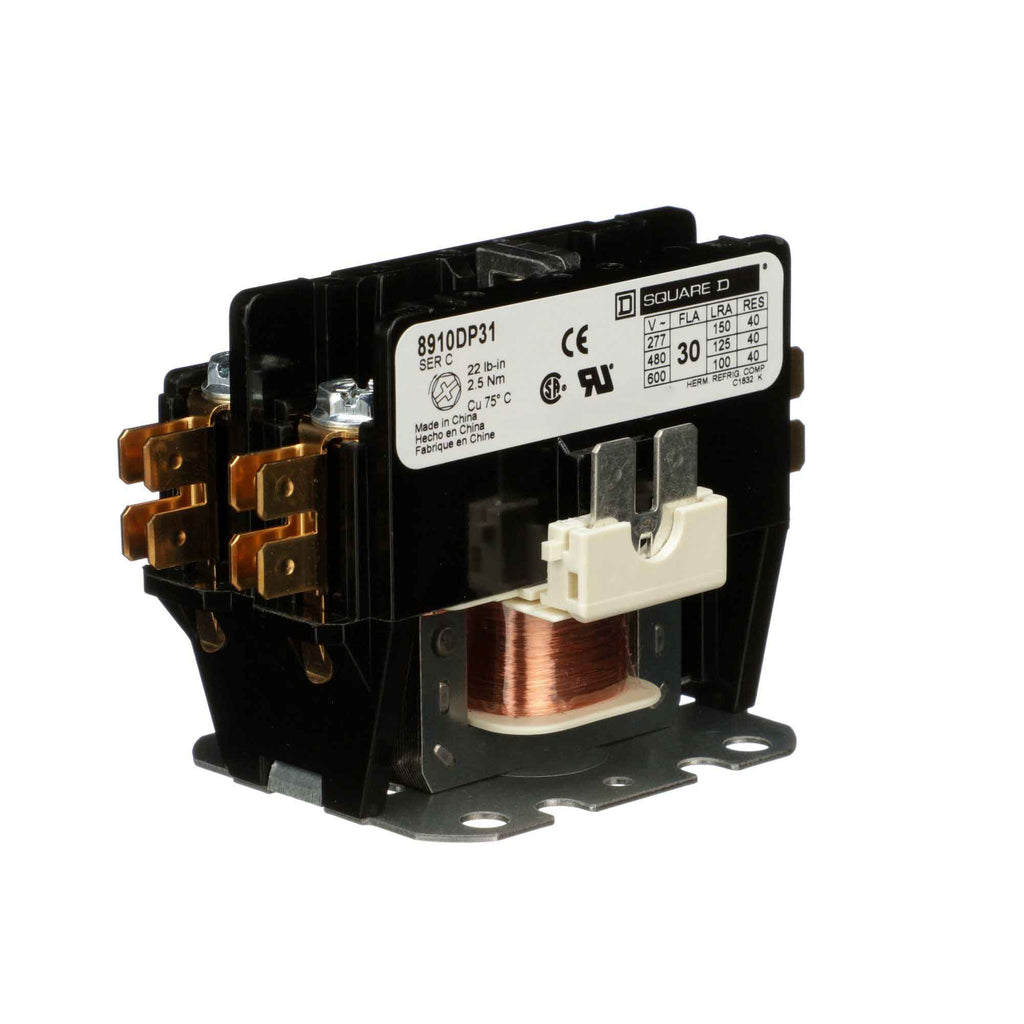

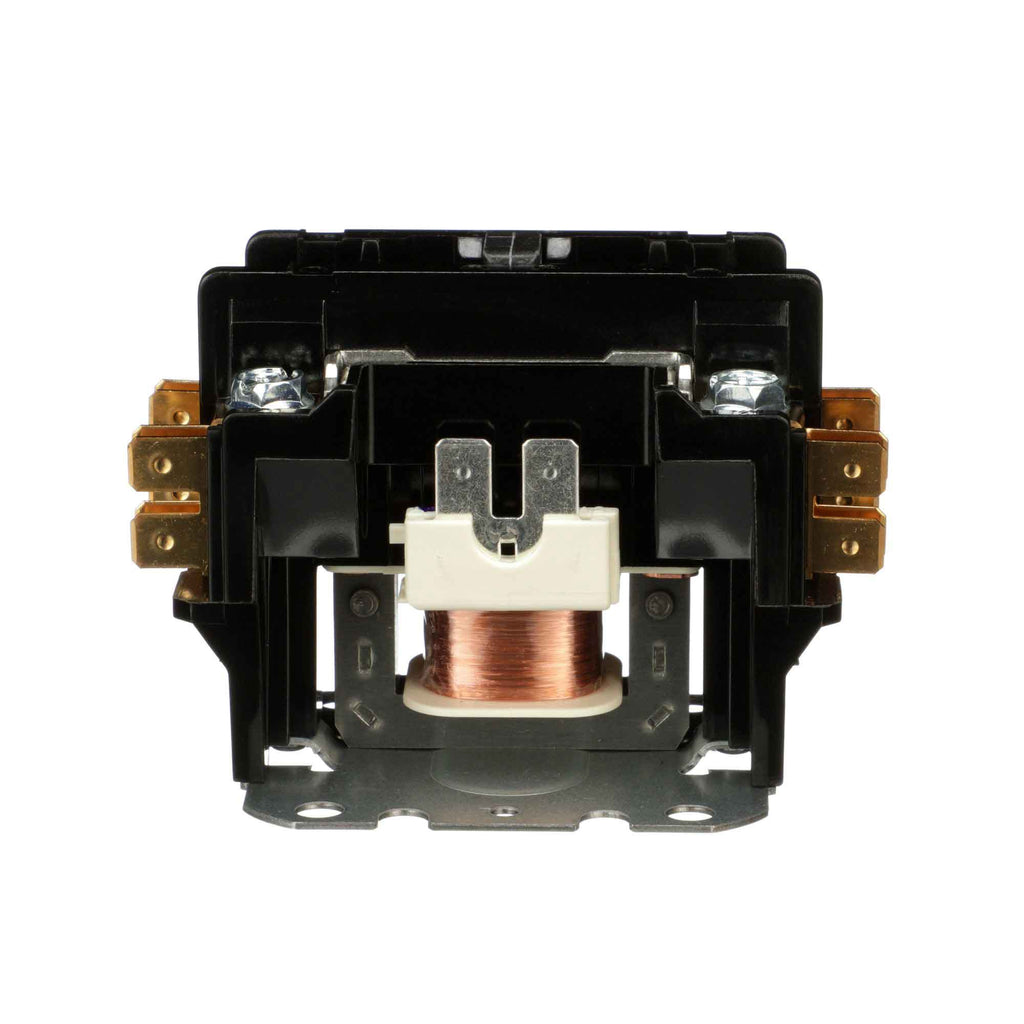

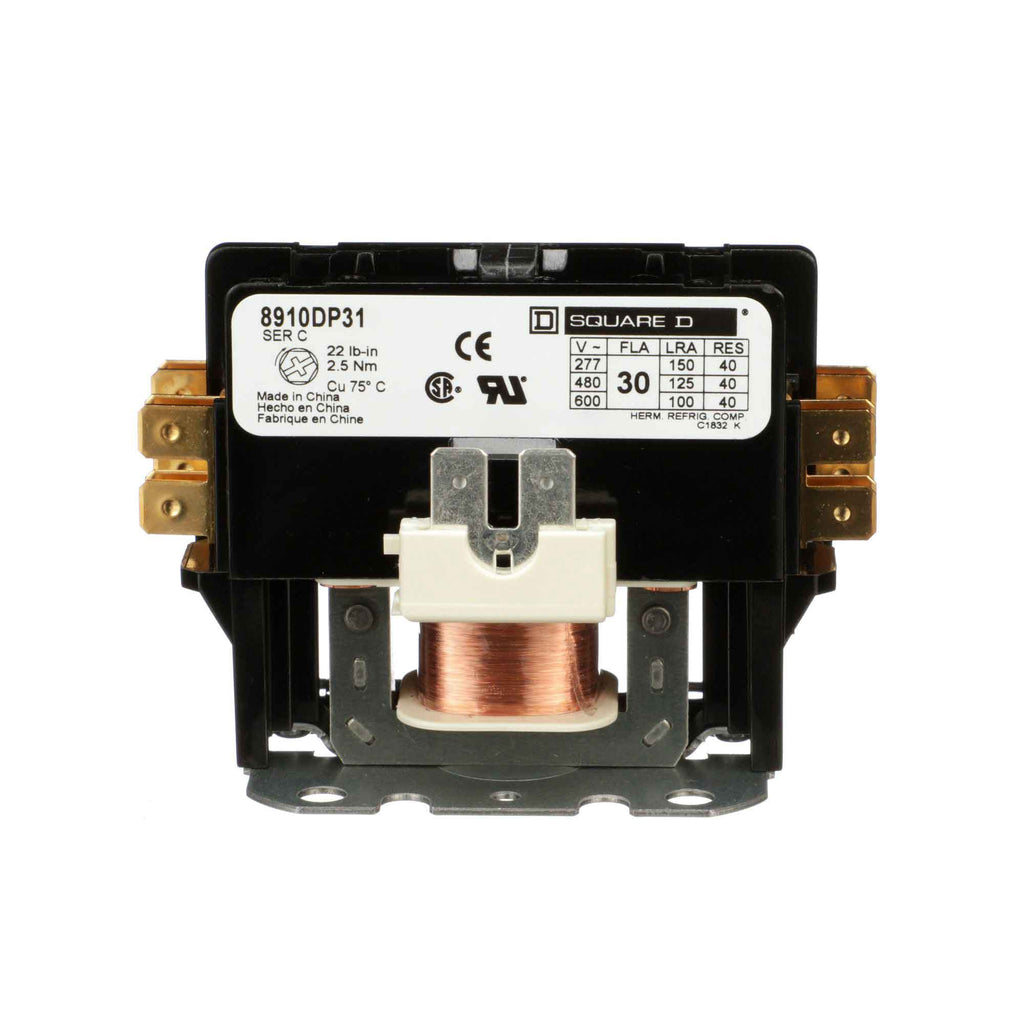

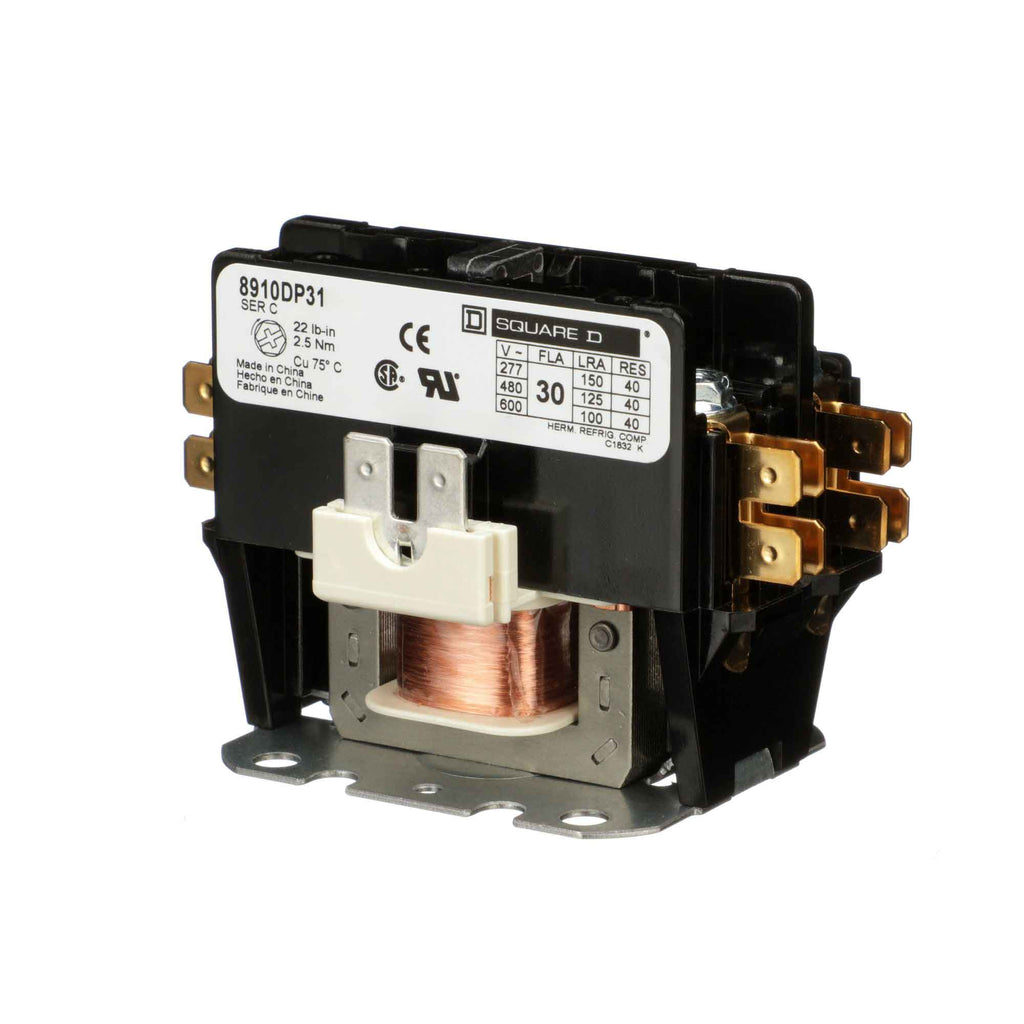

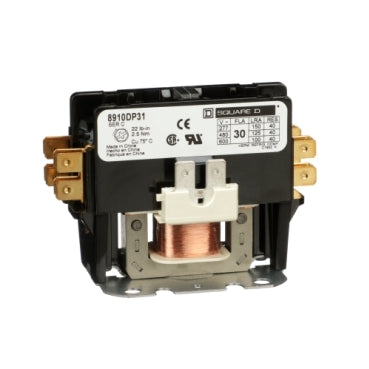

8910DP31V02 is a Square D Class 8910 definite purpose contactor designed for motor control applications. 8910DP31V02 features a 30 amp rating, 600 volt maximum voltage, and a single pole configuration with a 120V coil. It supports 1 phase operation and is suitable for controlling motors up to 2 HP at 115V and 3 HP at 230V AC. This contactor is UL listed, CSA certified, and built for reliable performance in industrial environments.
- Manufacturer: Square D
- Part Number: 8910DP31V02
- Category: Motor Control Contactor
- Amperage: 30 A
- Voltage: 600 V maximum
- Poles: 1
- Coil Voltage: 120 V AC
- Phase: 1
- Horsepower Rating: 2 HP @ 115 V, 3 HP @ 230 V
- Type: Definite Purpose (DP)
- Certifications: UL Listed, CSA Certified
- Dimensions: Approx. 2.22 x 2.16 x 3.29 inches
Additional Information
This Definite Purpose Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8910DP31V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 1
- Horse Power : 2 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 120V
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 110V
- Frequency : 50/60 Hz
Product Data
- UPC : 785901909378
- GTIN : 00785901909378
- Country of Origin : China
- Dimensions : 2.16 in x 3.29 in
- Weight : 0.51
- Certification : CSA, RoHS, UL Listed
