Description

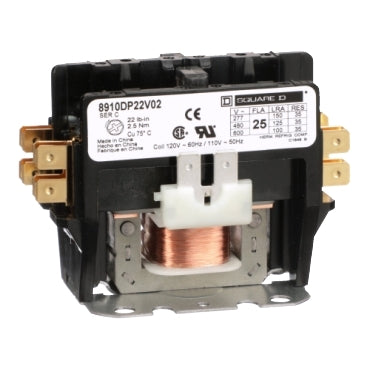

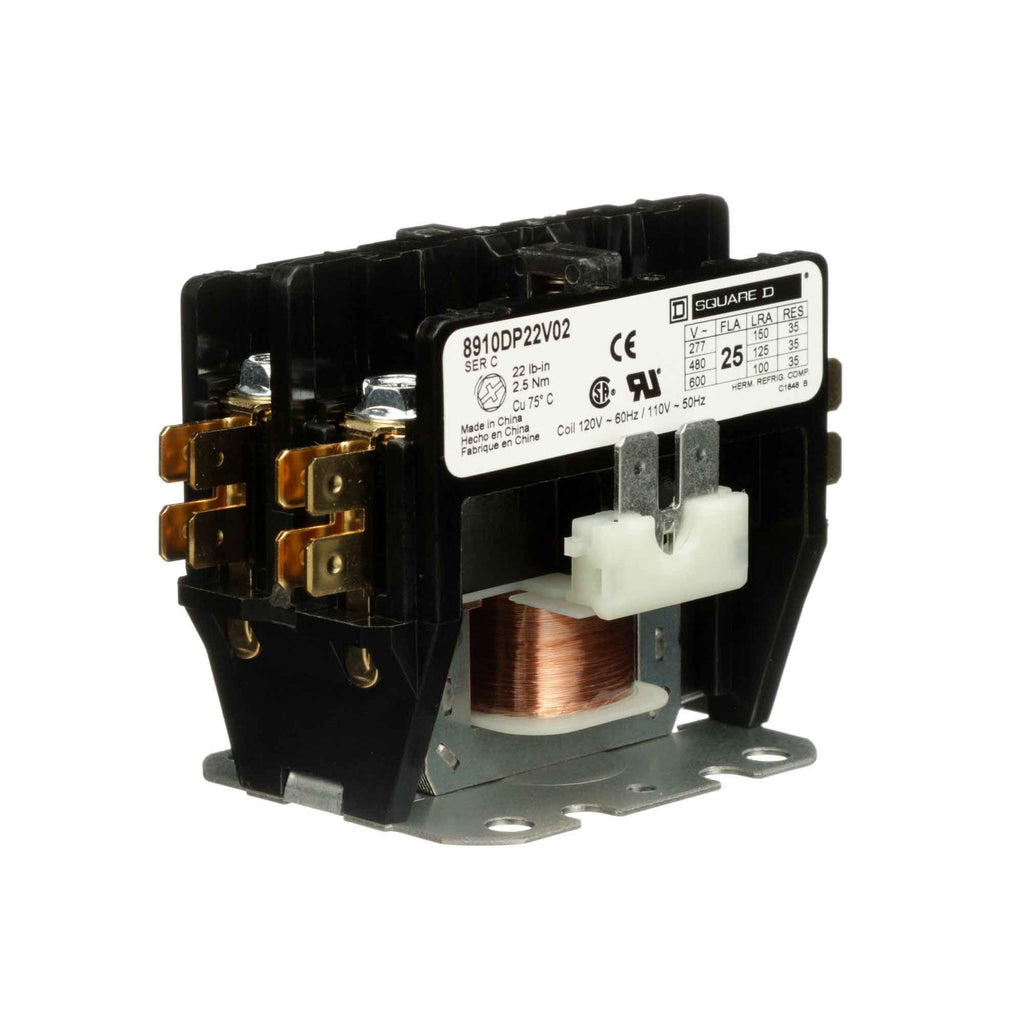

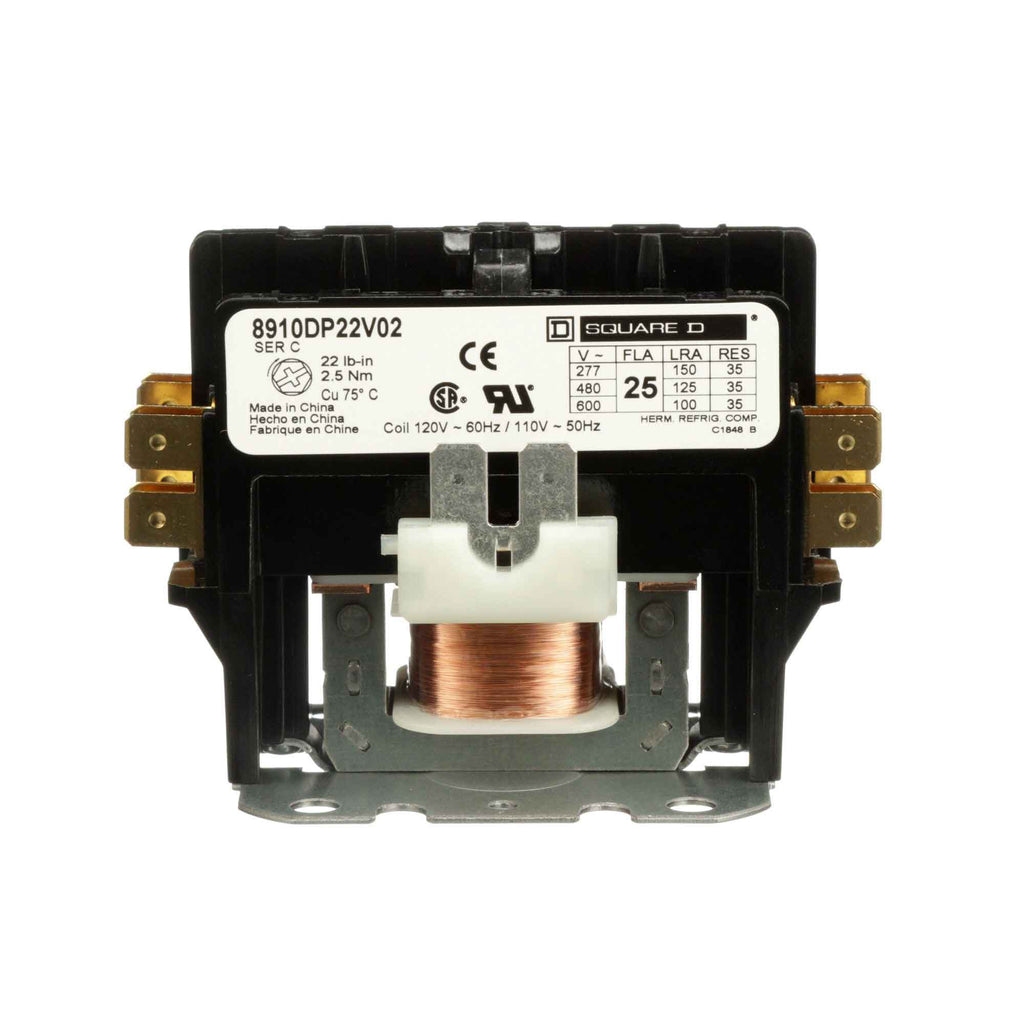

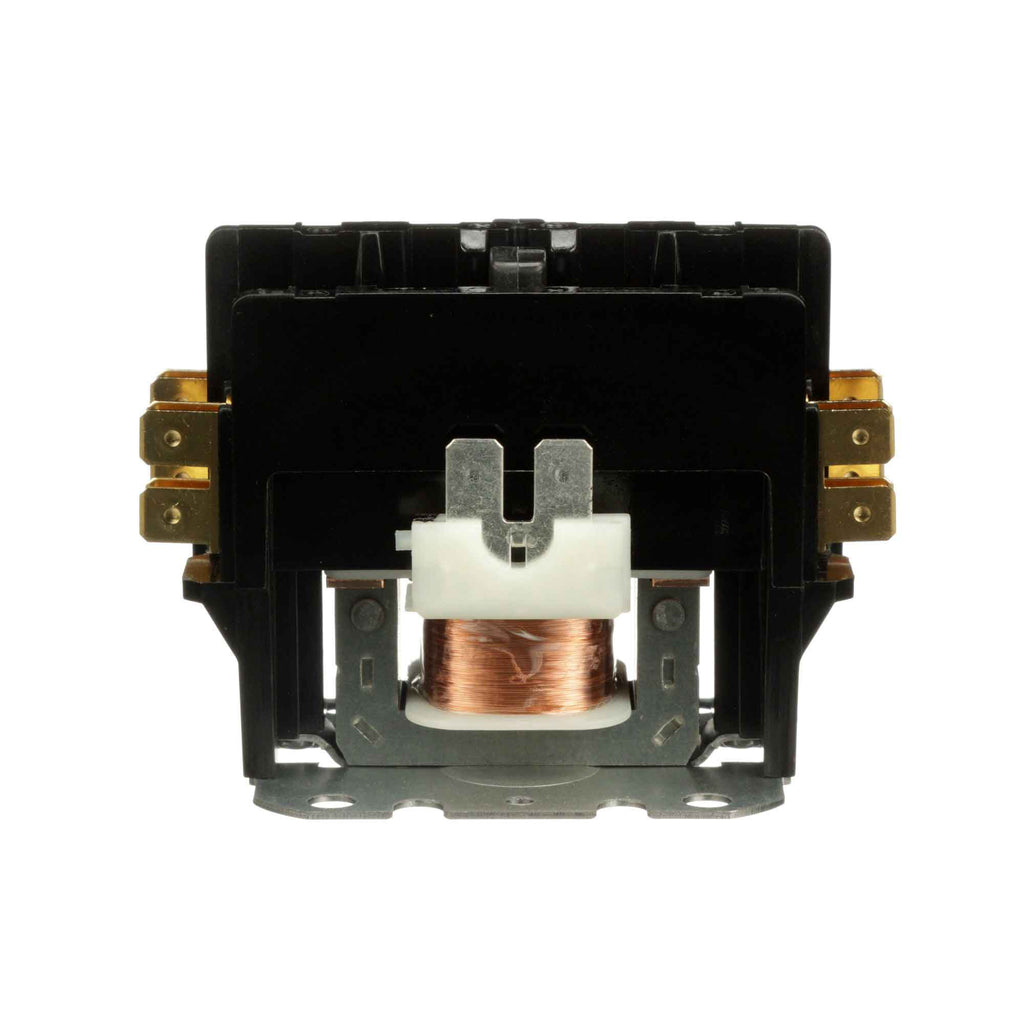

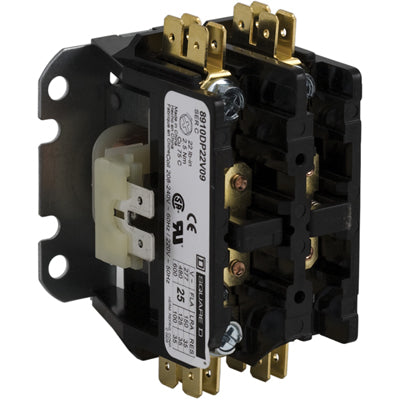

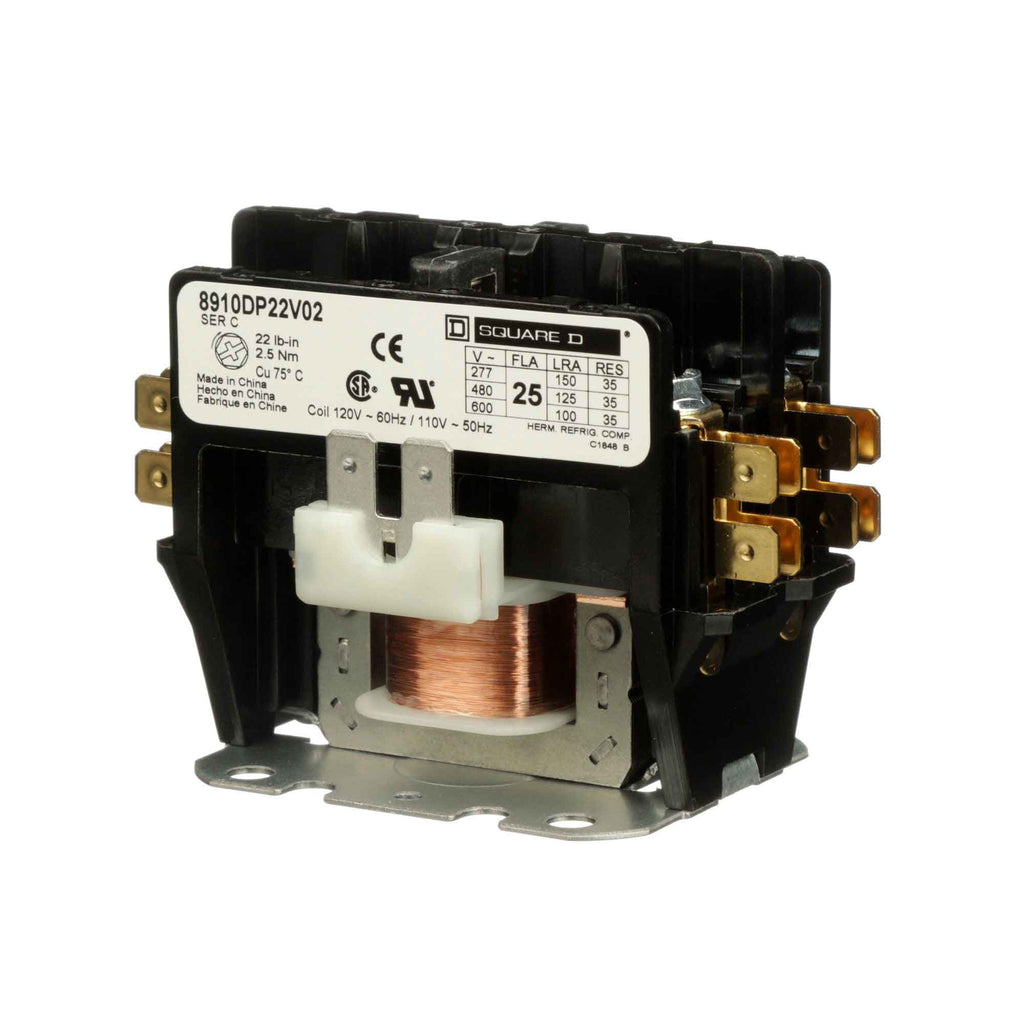

8910DP22V02
8910DP22V02 is a Square D Class 8910 definite purpose magnetic contactor designed for reliable motor control applications. This 2-pole contactor features a 120V AC coil and is rated for 25A at 600V, making it suitable for 1-phase motor loads up to 2 hp at 115V AC or 3 hp at 230V AC. The open enclosure design allows for easy integration into control panels and industrial equipment. The 8910DP22V02 contactor is part of the Square D Class 8910 series, known for durability and consistent performance in demanding environments. It is commonly used in HVAC, commercial, and light industrial applications where reliable switching of motor loads is required. The contactor supports 2 normally open (NO) contacts and is suitable for both resistive and motor loads.
- Part Number: 8910DP22V02
- Manufacturer: Square D
- Series: Class 8910
- Number of Poles: 2
- Rated Current: 25A
- Rated Voltage: 600V
- Coil Voltage: 120V AC
- Motor Power Rating: 2 hp at 115V AC, 3 hp at 230V AC
- Contact Configuration: 2 NO
- Enclosure Type: Open
- Resistive Ampere Rating: 35A
- Phase: 1
Specifications
- Part Number: 8910DP22V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 25
- Phase : 1
- Poles : 2
- Horse Power : 2 hp 115 V AC, 1 phase-3 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 110V
Product Data
- GTIN : 00785901073314

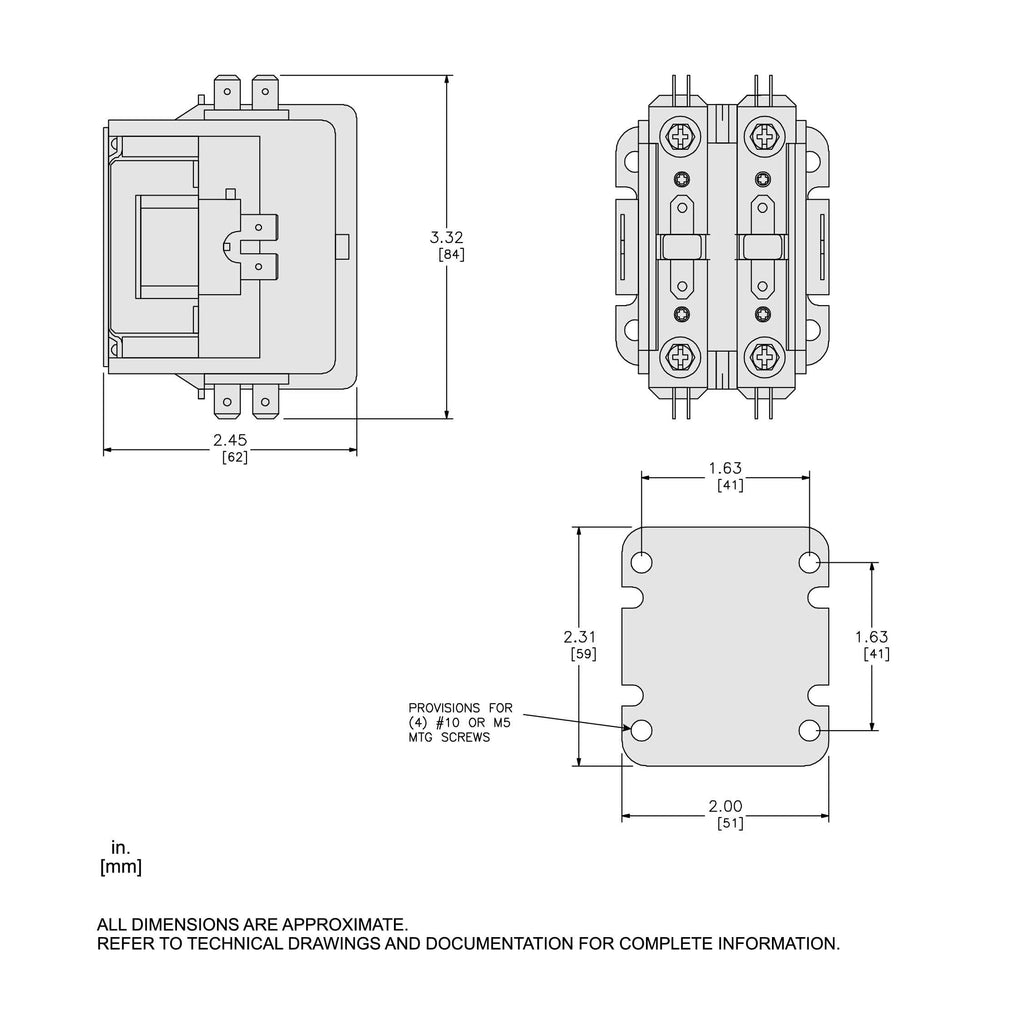

- Dimensions : Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
- Weight : 0.6
- Certification : UL recognized CSA
