8910DP12V02

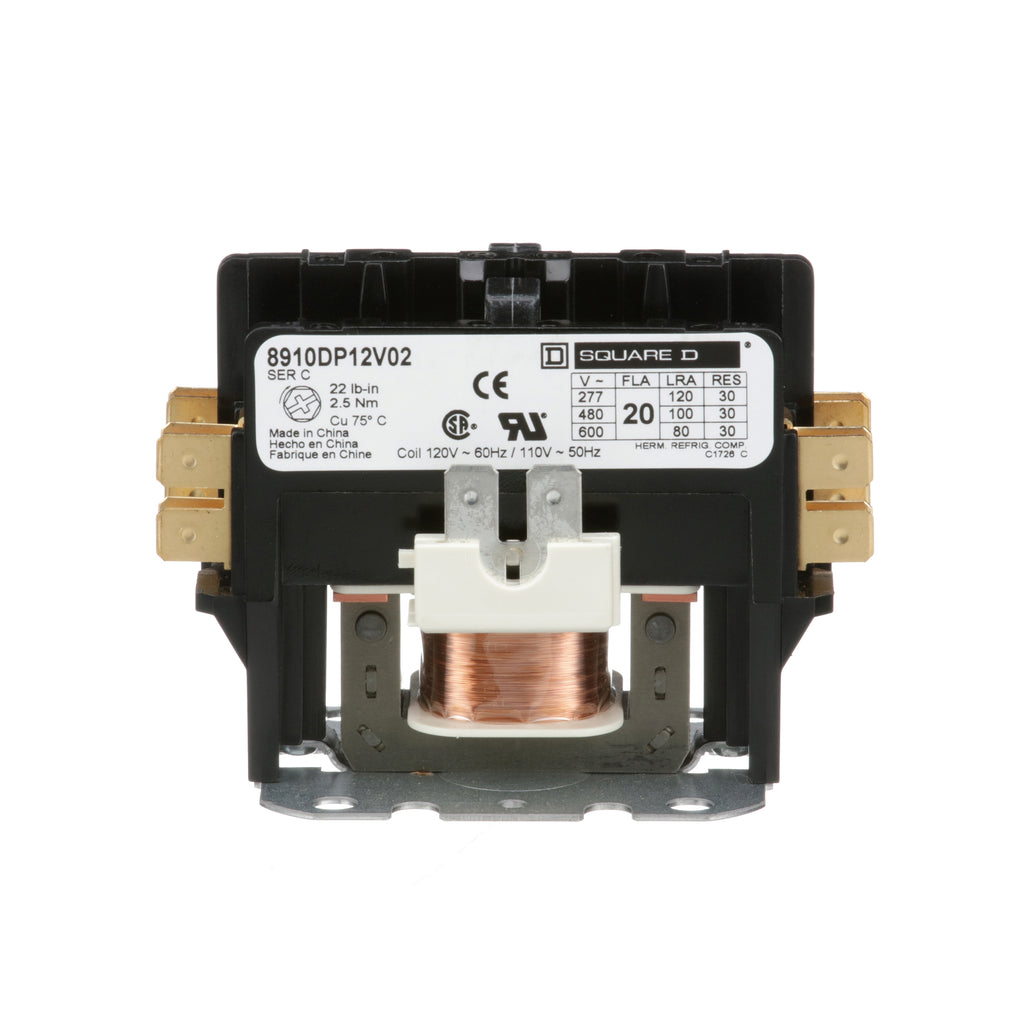

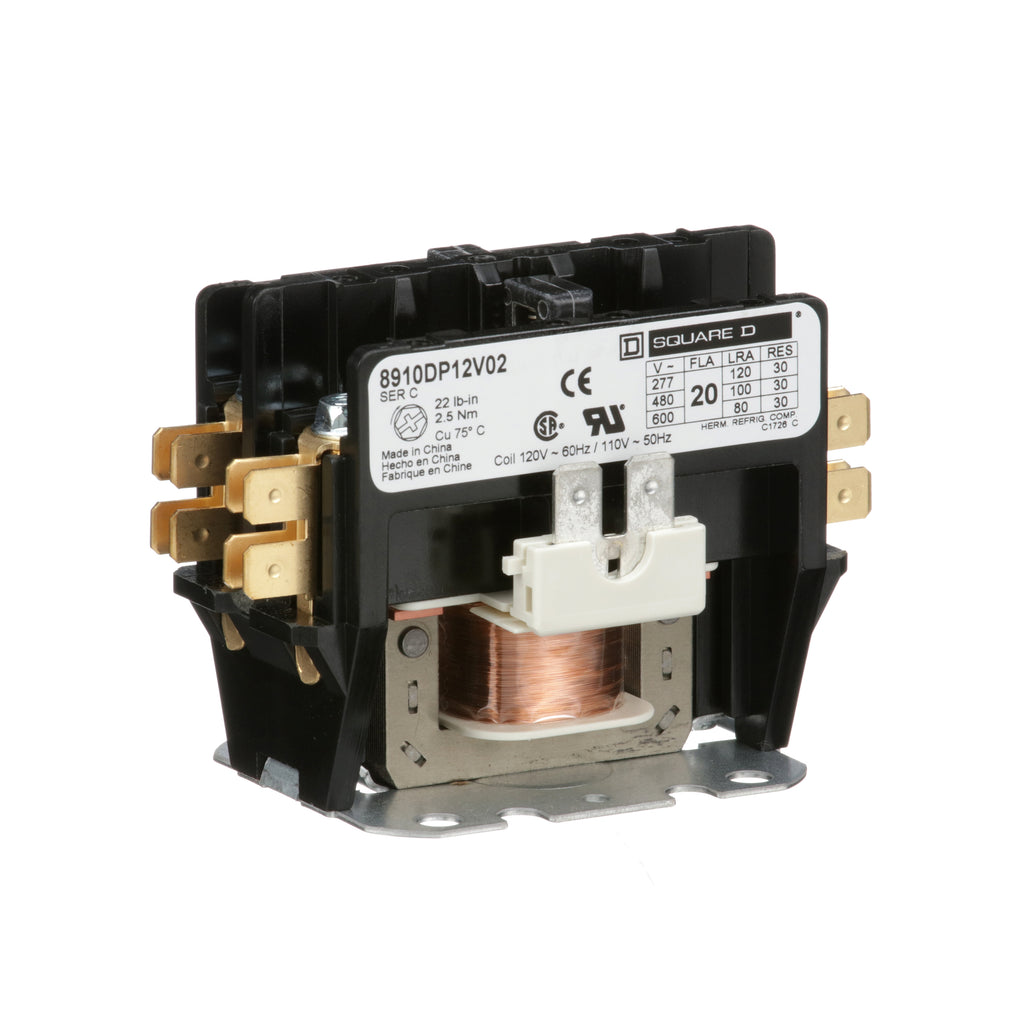

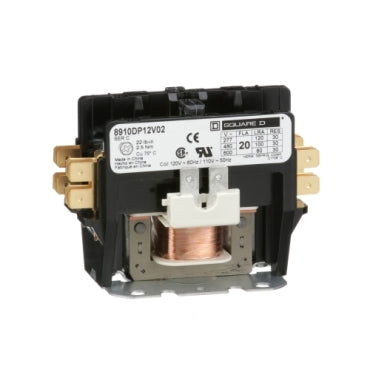

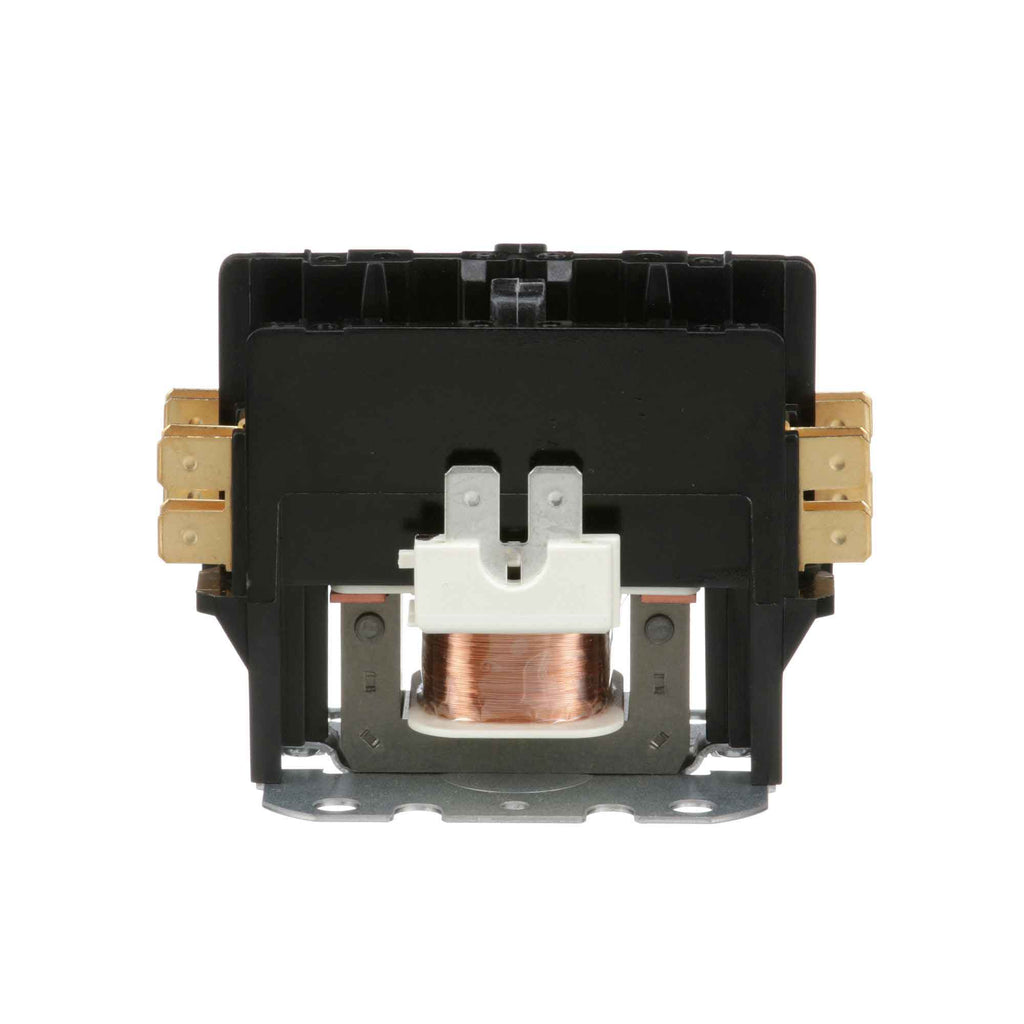

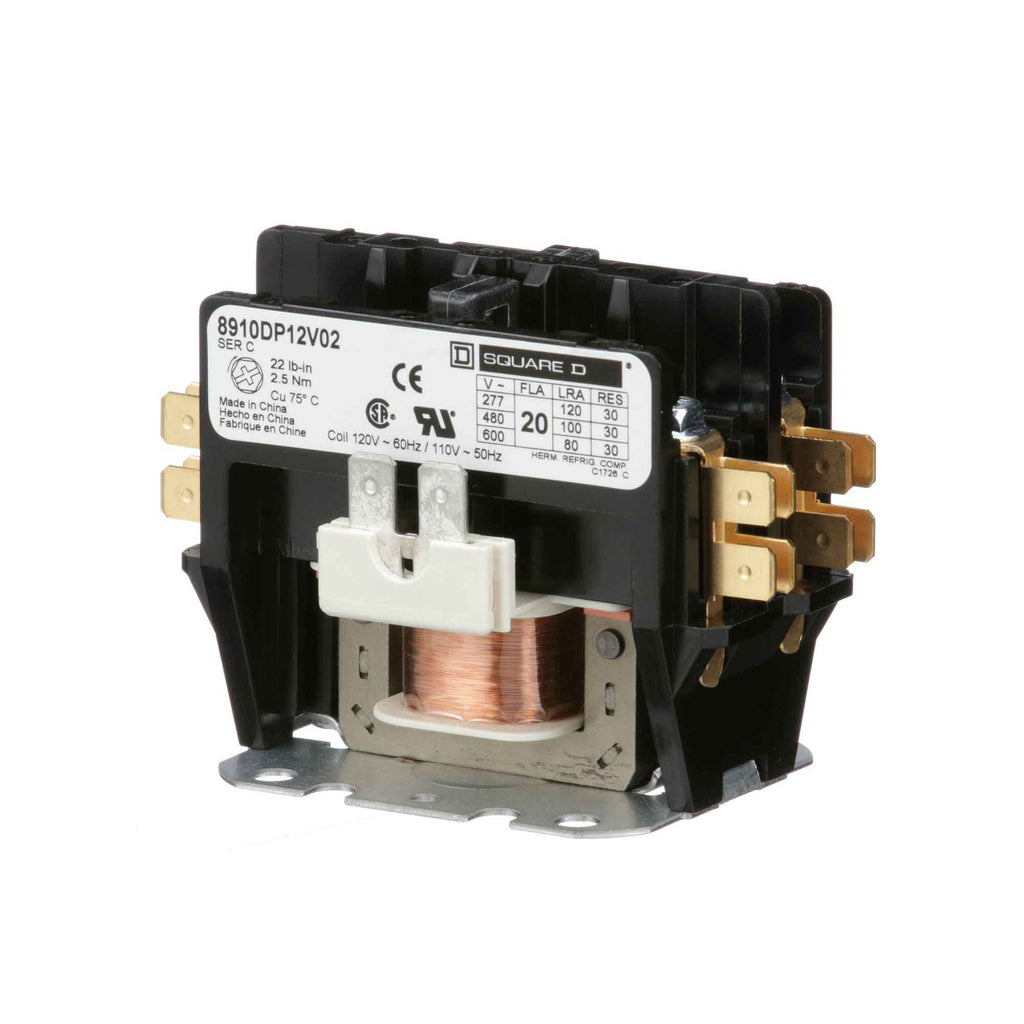

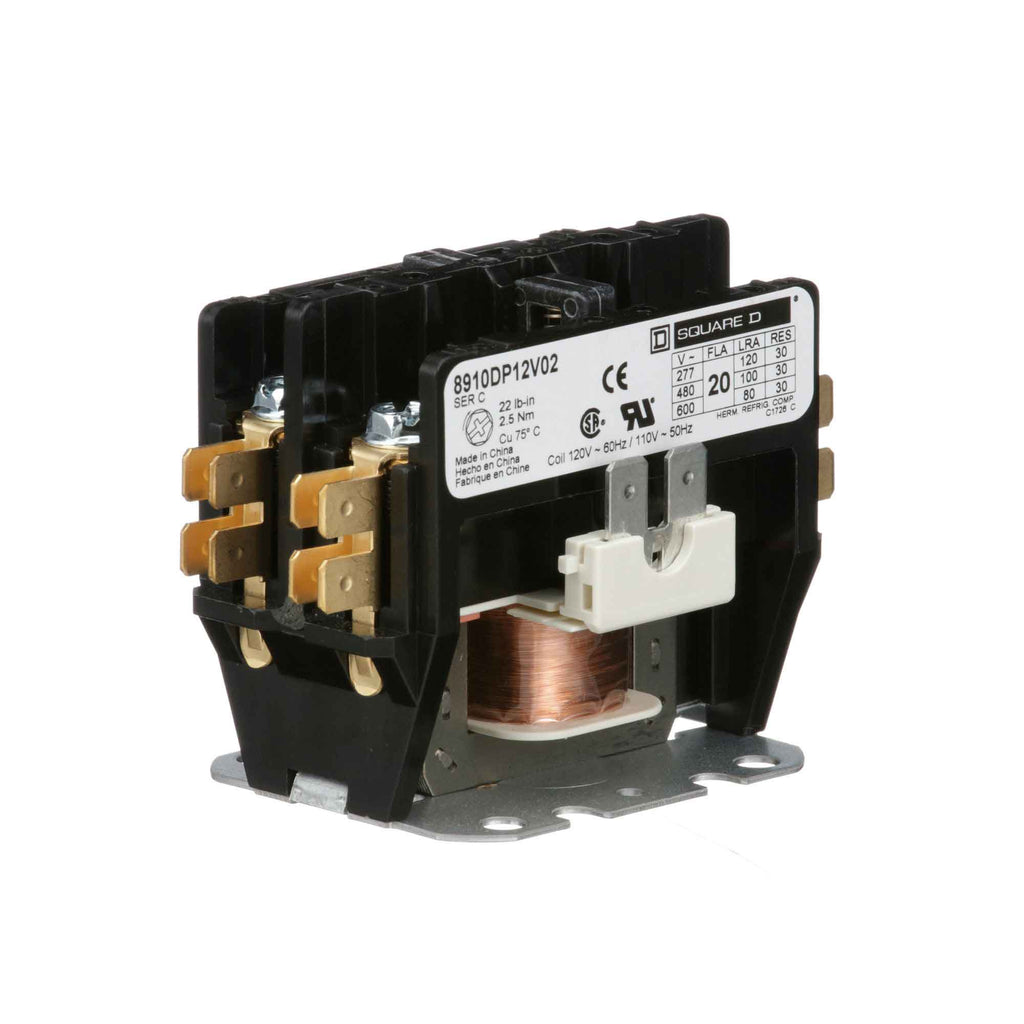

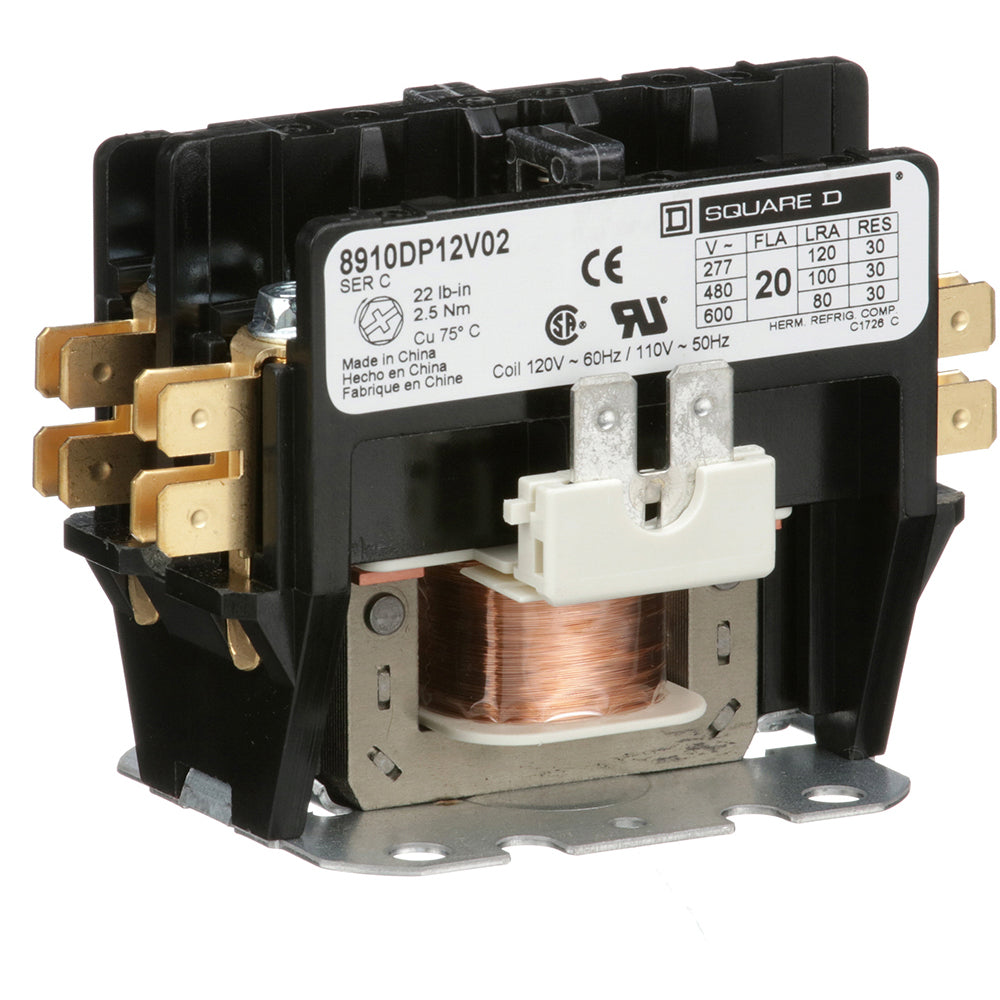

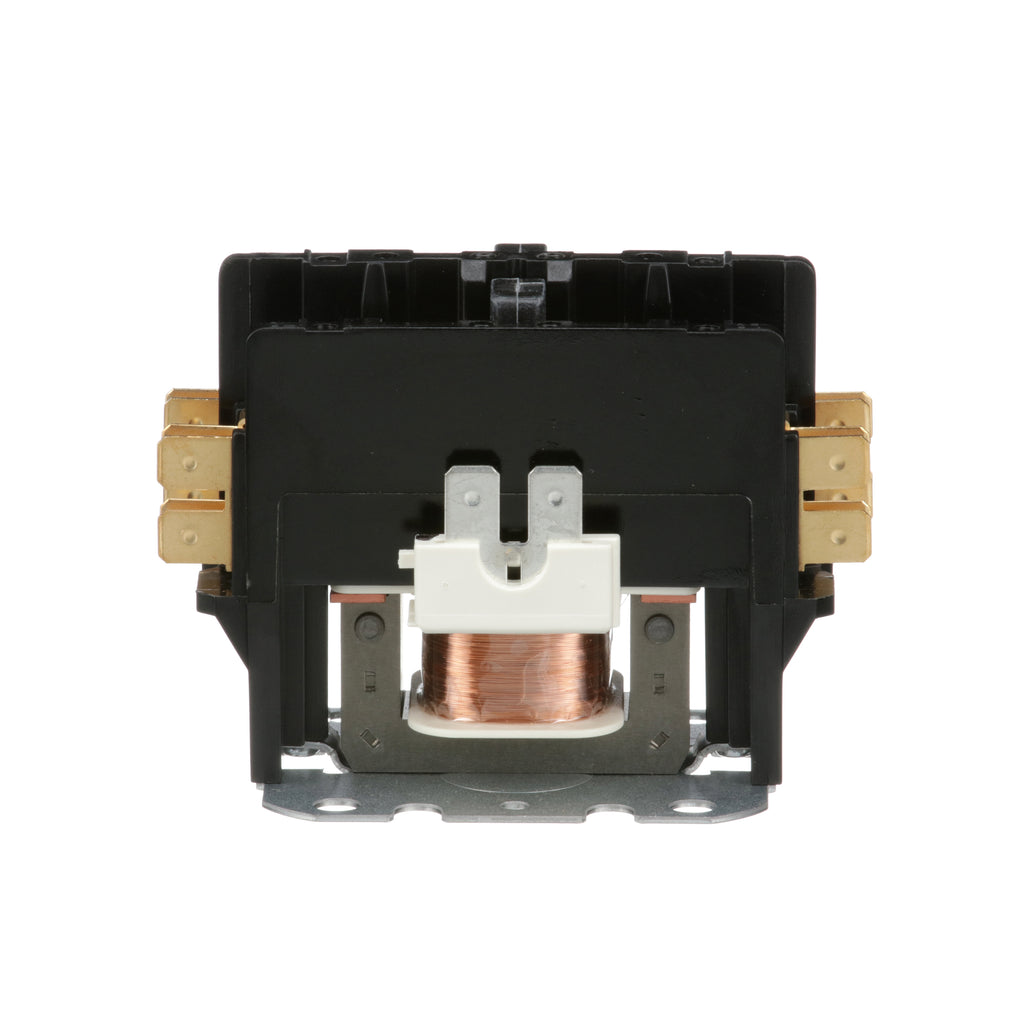

8910DP12V02 is a Square D definite purpose contactor designed for motor control applications with a 20 amp rating and 2 poles.
This contactor features a 20 amp full load current rating and supports up to 600 VAC line voltage. It includes a 110/120 VAC coil voltage suitable for 1-phase operation. The device has normally open contacts and is designed for surface mounting. It is part of the Class 8910 family and is intended for non-reversing motor control. The product is open enclosure type and complies with California Proposition 65 standards. This model has been discontinued but remains a reliable choice for controlling motors up to 1 HP at 115 VAC single phase.
- Key Specifications
- Amperage: 20 Amp
- Voltage: 600 VAC line voltage
- Coil Voltage: 110/120 VAC
- Number of Poles: 2
- Phase: 1
- Contact Configuration: Normally Open (2 NO)
- Mounting Type: Surface mount
- Enclosure: Open
- Motor Power Rating: 1 HP at 115 VAC
- Standards: California Proposition 65
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 8910DP12V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 600
- Amperage : 20
- Poles : 2
- Horse Power : 1 hp 115 V AC, 1 phase-2 hp 230 V AC, 1 phase
- Aux Contacts : 2 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 110V
Product Data
- GTIN : 00785901073291
- Dimensions : Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
- Weight : 0.51
- Certification : UL recognized CSA
