Description
8910DP11V02

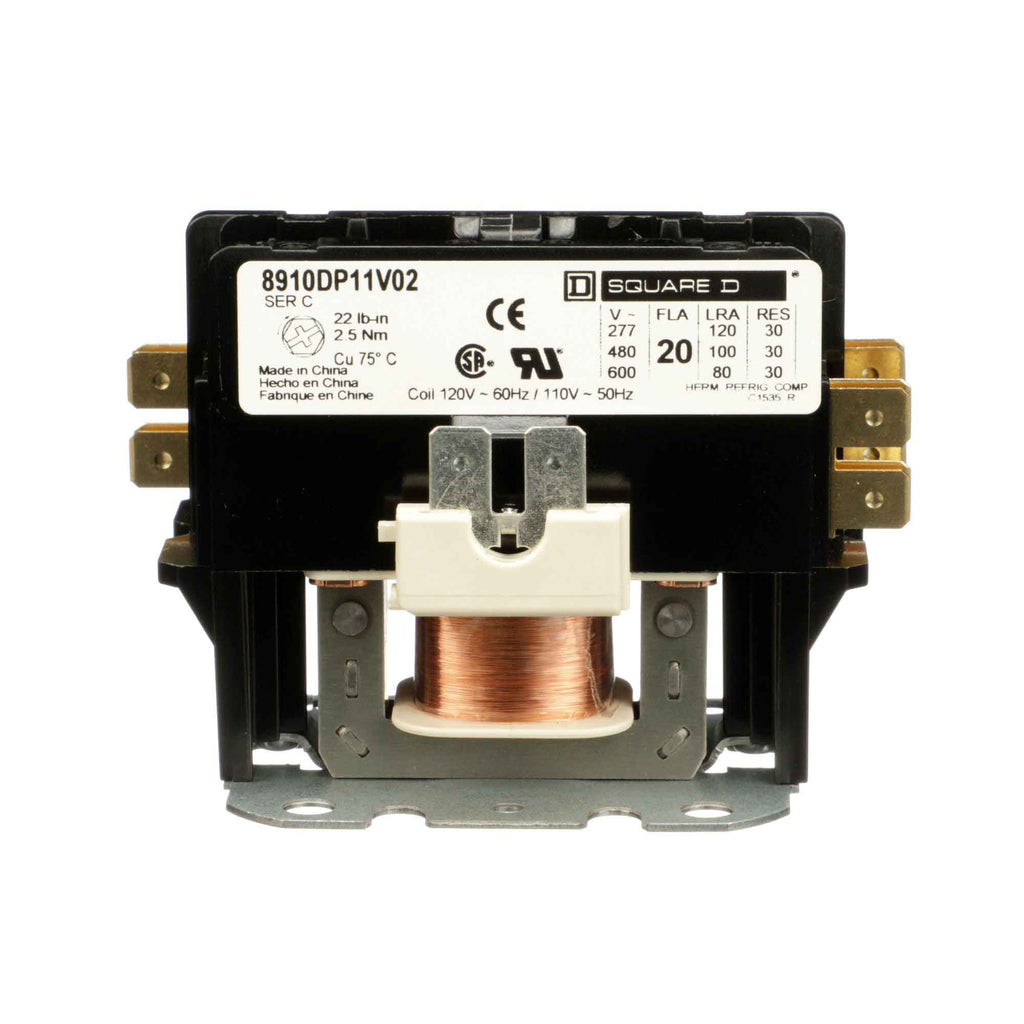

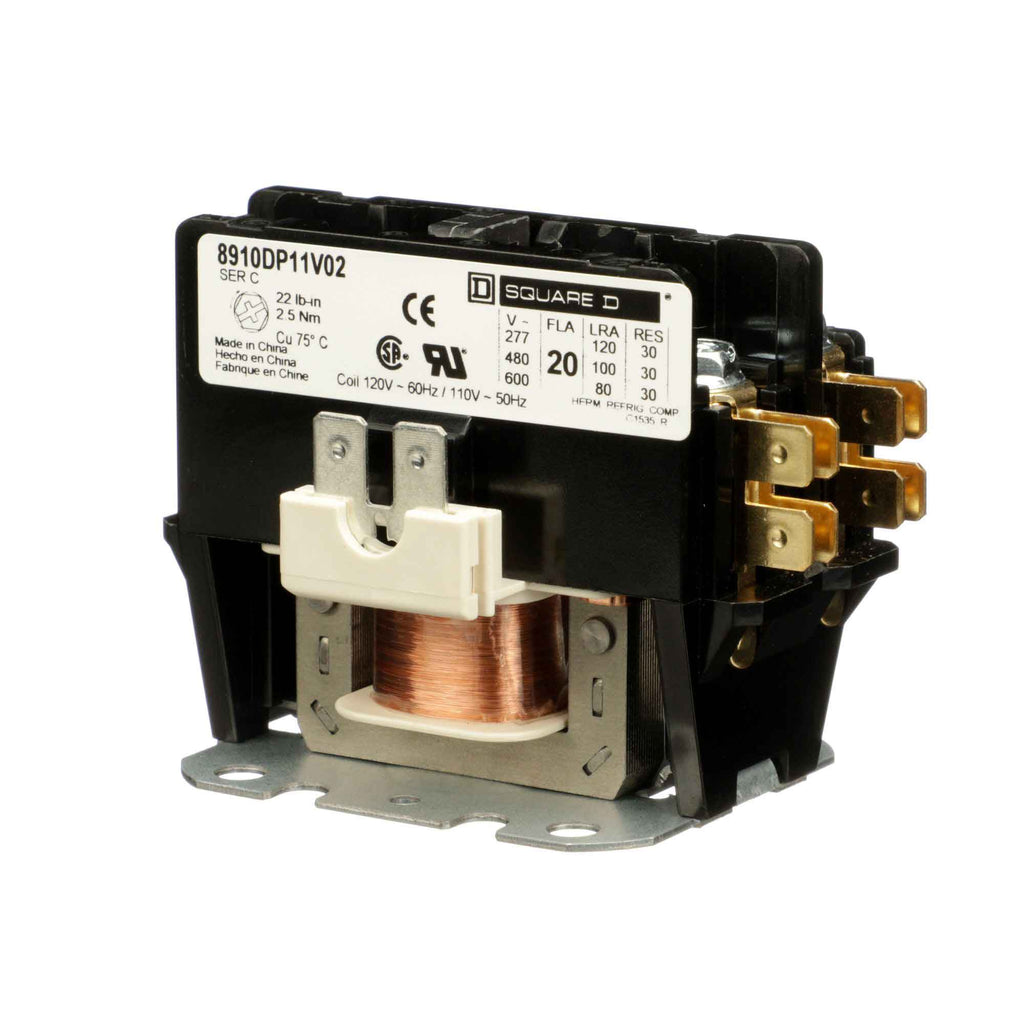

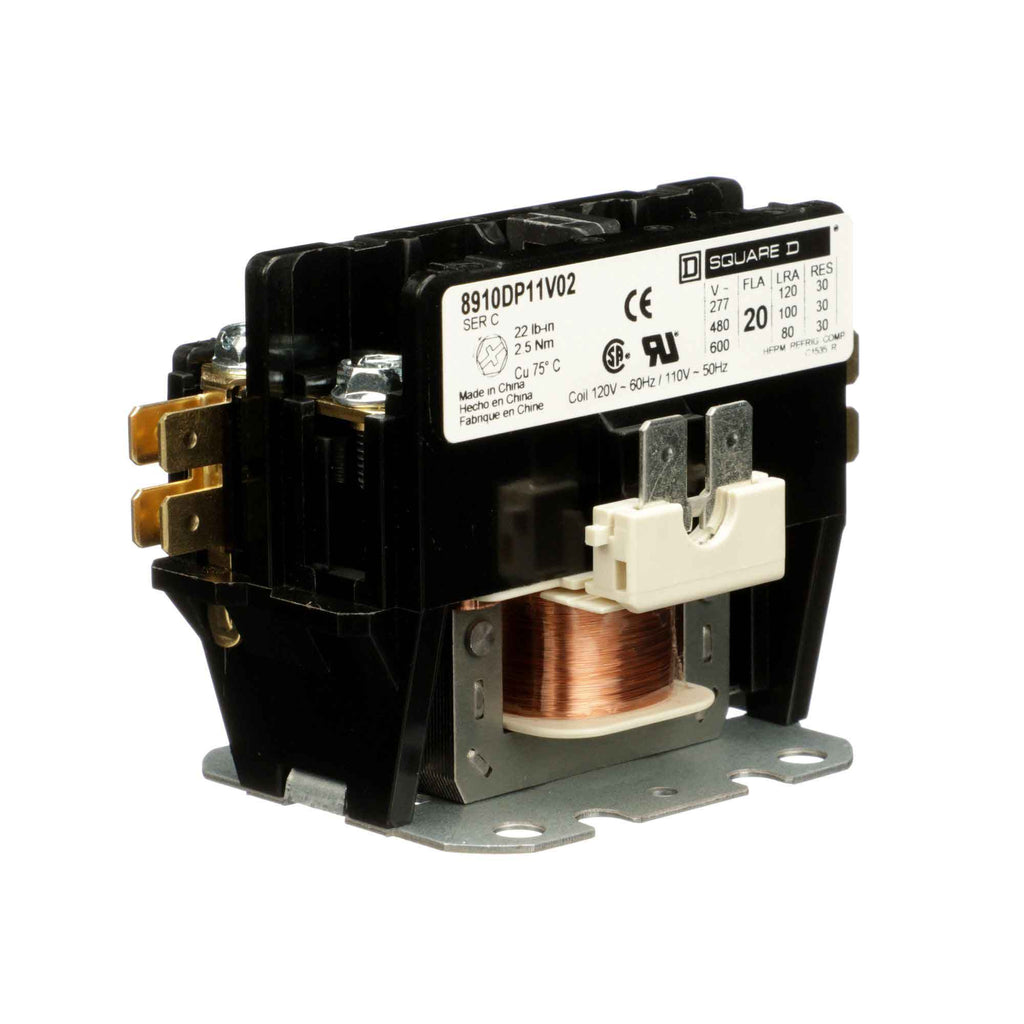

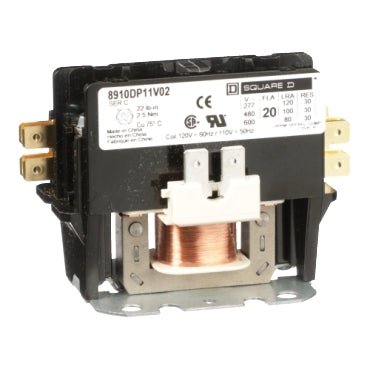

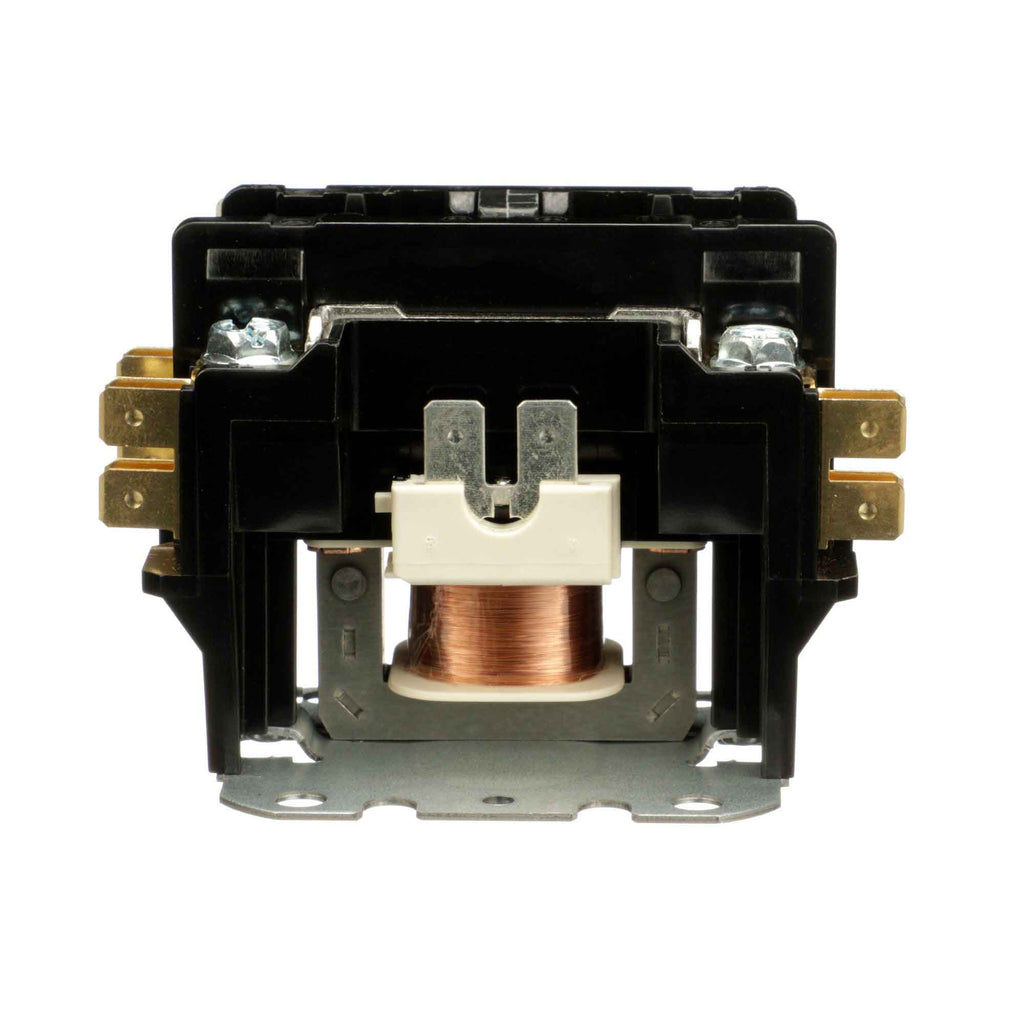

8910DP11V02 is a Square D definite purpose contactor designed for motor control applications with a 20 ampere full load rating and 1-pole configuration. This contactor features a 110/120 VAC 50/60 Hz coil and is rated for 1 horsepower at 115 VAC single phase or 2 horsepower at 230 VAC single phase operation. The device includes one normally open contact with a 30 ampere resistive rating and supports locked rotor rated currents of 100 amperes at 460 VAC, 80 amperes at 575 VAC, and 120 amperes at 277 VAC.
- Amperage: 20 A
- Voltage: 110/120 VAC
- Frequency: 50/60 Hz
- Poles: 1
- Contact Configuration: 1 NO
- Motor Power: 1 hp at 115 VAC, 2 hp at 230 VAC
- Full Load Rating: 20 A
- Resistive Rating: 30 A
- Product Family: Class 8910 DP
Specifications
- Part Number: 8910DP11V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DP
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 1
- Horse Power : 1 hp 115 V AC, 1 phase-2 hp 230 V AC, 1 phase
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 120V
- Coil Voltage Minimum : 110V
Product Data
- GTIN : 00785901073253
- Dimensions : Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
- Weight : 0.51
- Certification : UL recognized CSA
