Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903SPO1V02

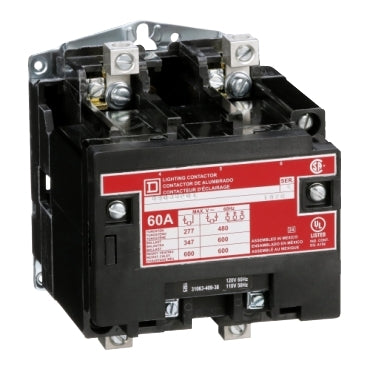

8903SPO1V02 is a Square D 2 pole, 60 amp electrically held lighting contactor designed for motor control applications. 8903SPO1V02 features a 600VAC rating with a 110/120VAC 50/60 Hz coil and is part of the Square D 8903 series. This open-style contactor includes 2 normally open contacts and is UL Listed and CSA Certified for reliable performance in lighting control. It supports easy servicing by allowing coil and contact replacements without full unit changeout.
- Manufacturer: Square D
- Part Number: 8903SPO1V02
- Amperage: 60 Amps
- Voltage Rating: 600 VAC
- Poles: 2
- Coil Voltage: 110/120 VAC 50/60 Hz
- Type: Electrically Held Lighting Contactor
- Series/Frame: 8903
- Contact Configuration: 2 Normally Open (NO)
- Mounting: Open Style (various enclosures available)
- Certifications: UL Listed, CSA Certified
- Application: Lighting and motor control
Additional Information
This Type S Multipole Lighting Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8903SPO1V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : S
- Amperage : 60
- Phase : 1
- Poles : 2
- Aux Contacts : Without
- Coil Voltage Maximum : 120
- Full Load Amps : 60 A
- Frequency : 50/60 Hz
Product Data
- UPC : 785901619468
- GTIN : 00785901619468
- Country of Origin : Mexico
- Dimensions : 5.5 in (140 mm) x 4.3 in (110 mm) x 4.9 in (125 mm) (Height x Width x Depth)
- Weight : 5.399
- Certification : CSA, UL Listed
