Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

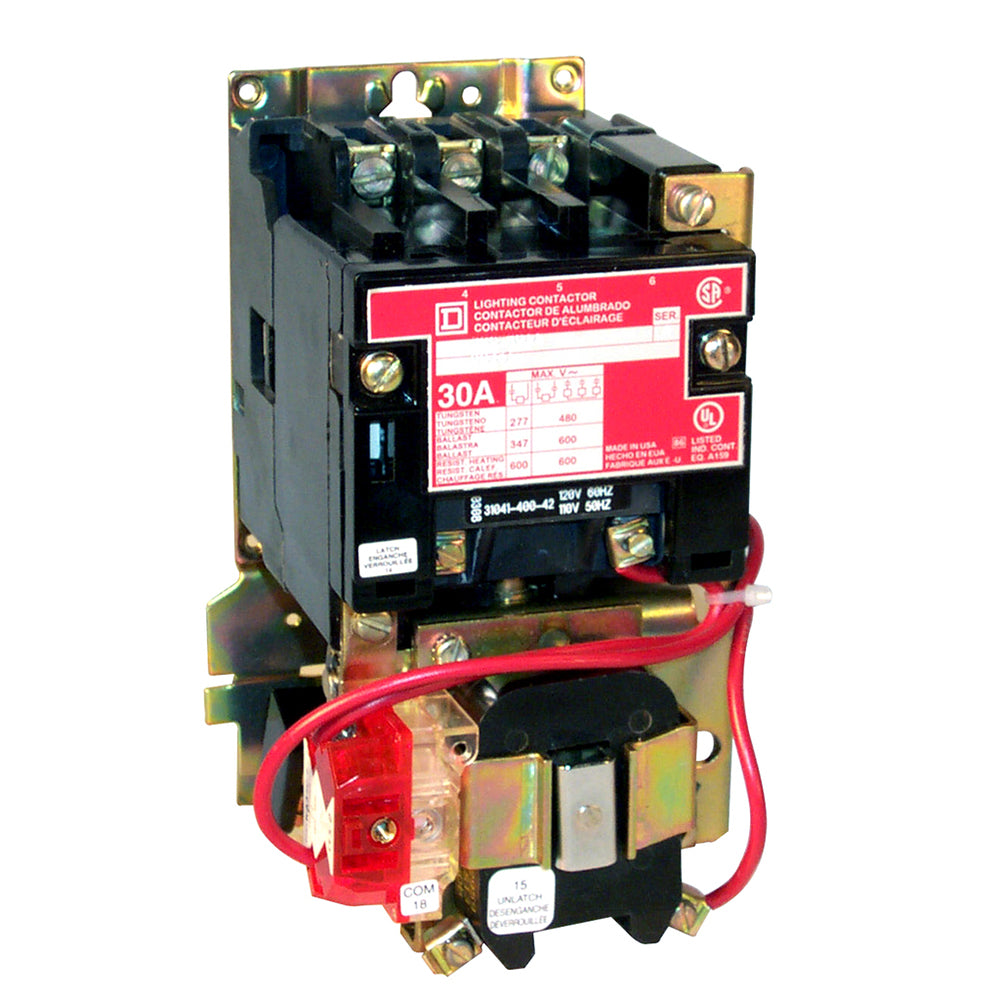

8903SMO12V02
8903SMO12V02 is a Square D Class 8903 lighting contactor designed for motor control applications with a 30 amp rating and 600VAC voltage capacity.This 4 pole contactor features a mechanically held design with a 120VAC coil operating at 50/60 Hz. It is suitable for switching lighting loads and other motor control tasks, providing reliable performance in industrial and commercial environments. The contactor uses lug-type electrical connections and complies with the Class 8903 frame series.
- Amperage: 30 Amps
- Voltage: 600 VAC
- Poles: 4
- Coil Voltage: 110/120 VAC 50/60 Hz
- Mounting Type: Open style
- Interrupt Rating: Not specified
- Series/Frame: Class 8903
- Trip Unit: Mechanically held
- Electrical Connection: Lugs
- Application: Lighting and motor control
- Manufacturer: Square D
Additional Information
This Type S Multipole Lighting Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8903SMO12V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : S
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Aux Contacts : Without
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : 50/60 Hz
Product Data
- UPC : 785901102465
- GTIN : 785901102465
- Country of Origin : Mexico
- Dimensions : 6.02 in (153 mm) x 4.5 in (115 mm) x 4.7 in (119 mm) (Height x Width x Depth)
- Weight : 6.971 lb
- Certification : CSA, UL Listed
