Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

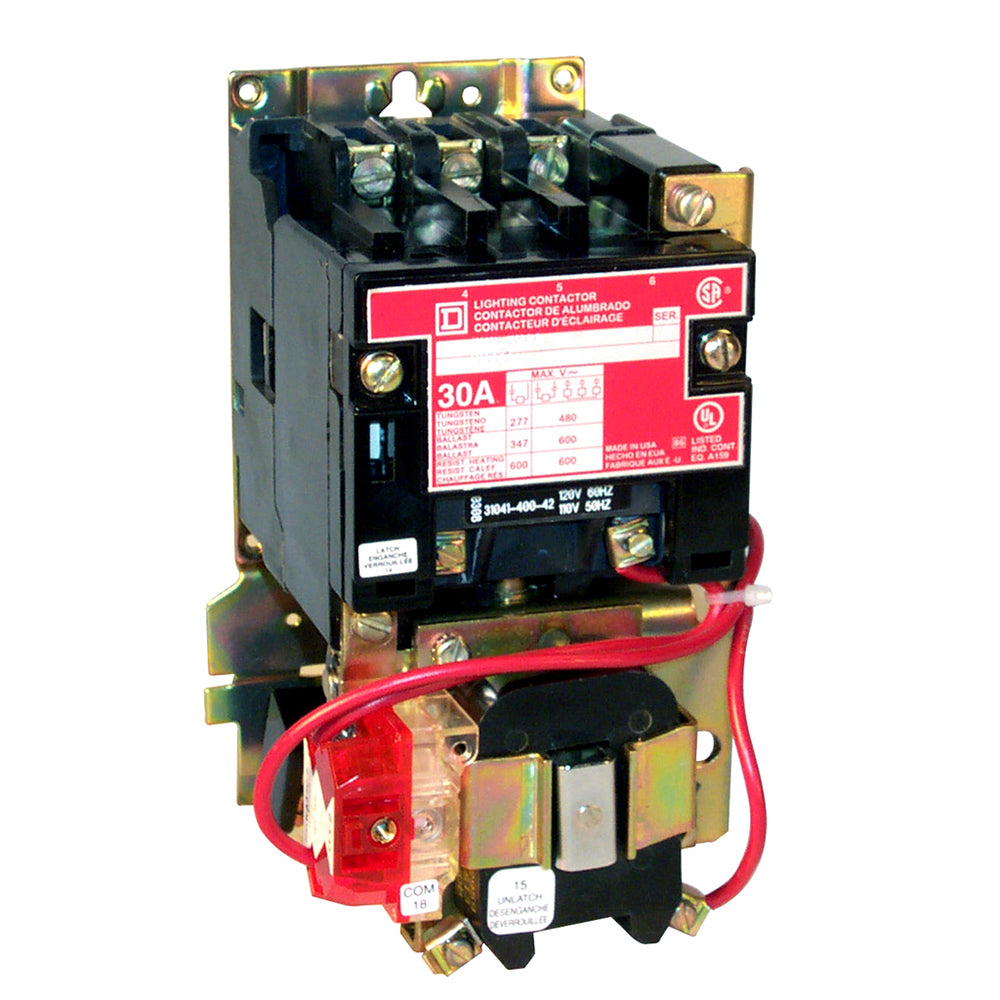

8903SMO10V02
8903SMO10V02 is a Square D Class 8903 Type S mechanically held lighting contactor with a 30 amp rating and 2 poles designed for motor control applications.8903SMO10V02 features a 600VAC system voltage rating and operates with a 110V AC 50 Hz / 120V AC 60 Hz coil voltage. It is a non-reversing contactor with surface mounting and lug electrical connections. This device is not NEMA rated and is intended for lighting control with a separate control circuit.
- Amperage: 30A
- Voltage: 600VAC system voltage
- Coil Voltage: 110V AC 50 Hz / 120V AC 60 Hz
- Number of Poles: 2
- Mounting Type: Surface mount
- Interrupt Rating: Not rated
- Frame/Series: Class 8903 Type S
- Trip Unit: Mechanically held
- Control Circuit: Separate control circuit
- Electrical Connection: Lugs
- Non-Reversing
- NEMA Degree of Protection: Not rated
Additional Information
This Type S Multipole Lighting Contactor includes a 110 VAC coil.
Specifications
- Part Number: 8903SMO10V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : S
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Aux Contacts : Without
- Coil Voltage Maximum : 120
- Full Load Amps : 30 A
- Frequency : 50/60 Hz
Product Data
- UPC : 78590110244
- GTIN : 00785901102441
- Country of Origin : Mexico
- Dimensions : 6.02 in (153 mm) x 3.8 in (96 mm) x 4.7 in (119 mm) (Height x Width x Depth)
- Weight : 5.919
- Certification : CSA, UL Listed
