Description
8903LXO80V02

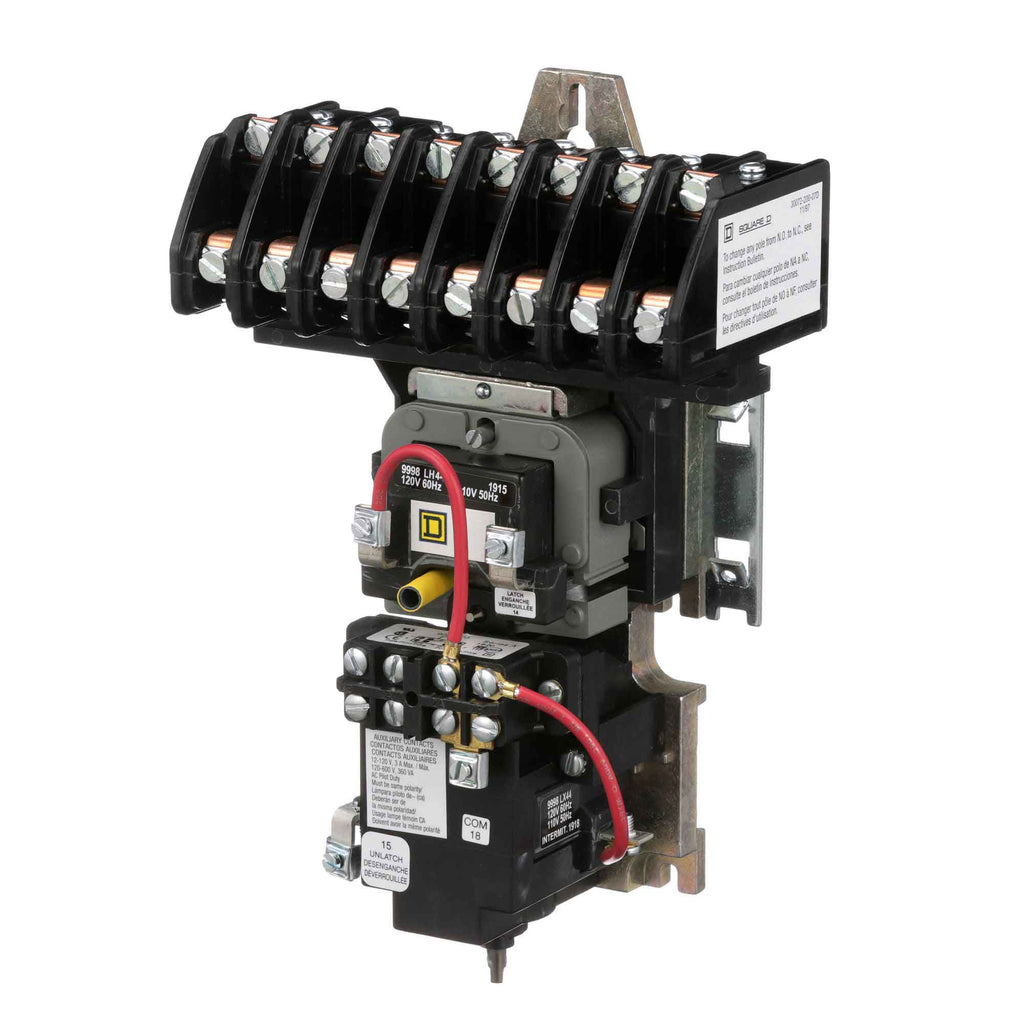

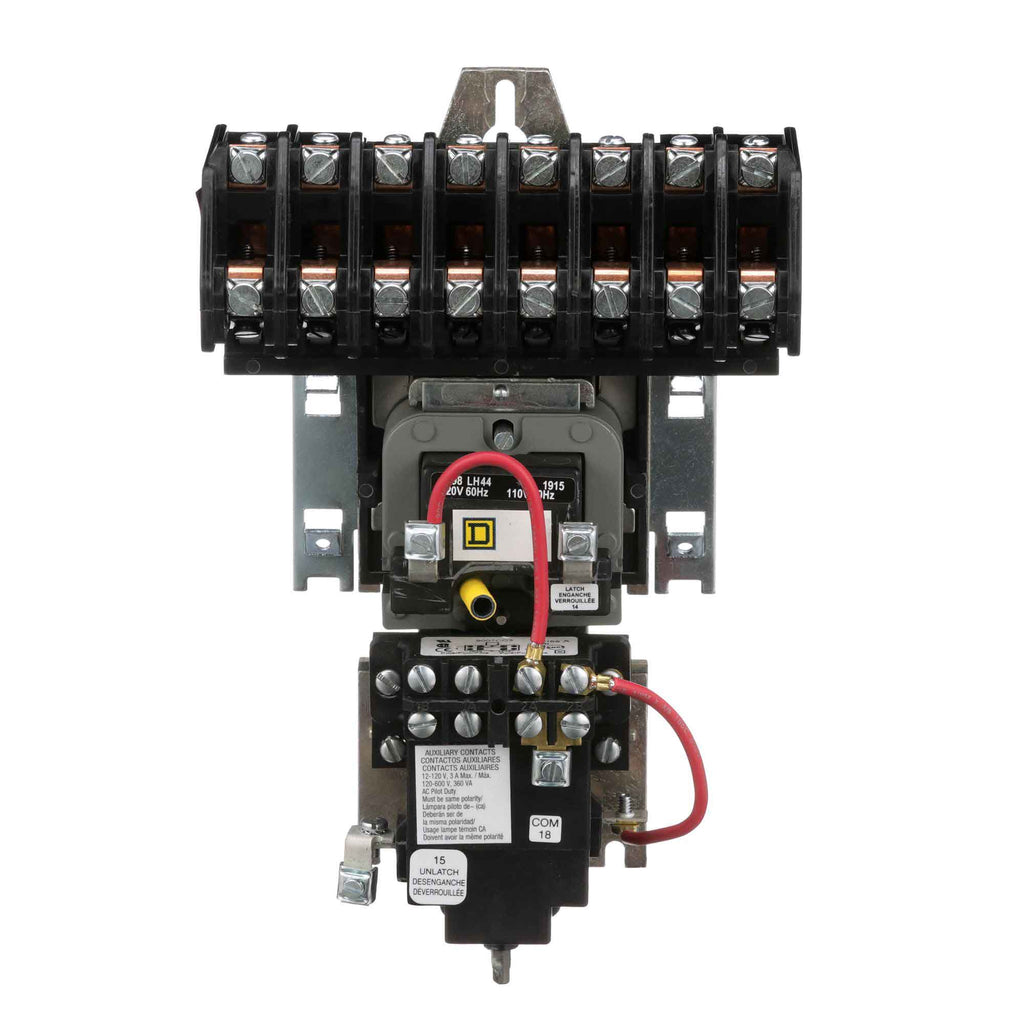

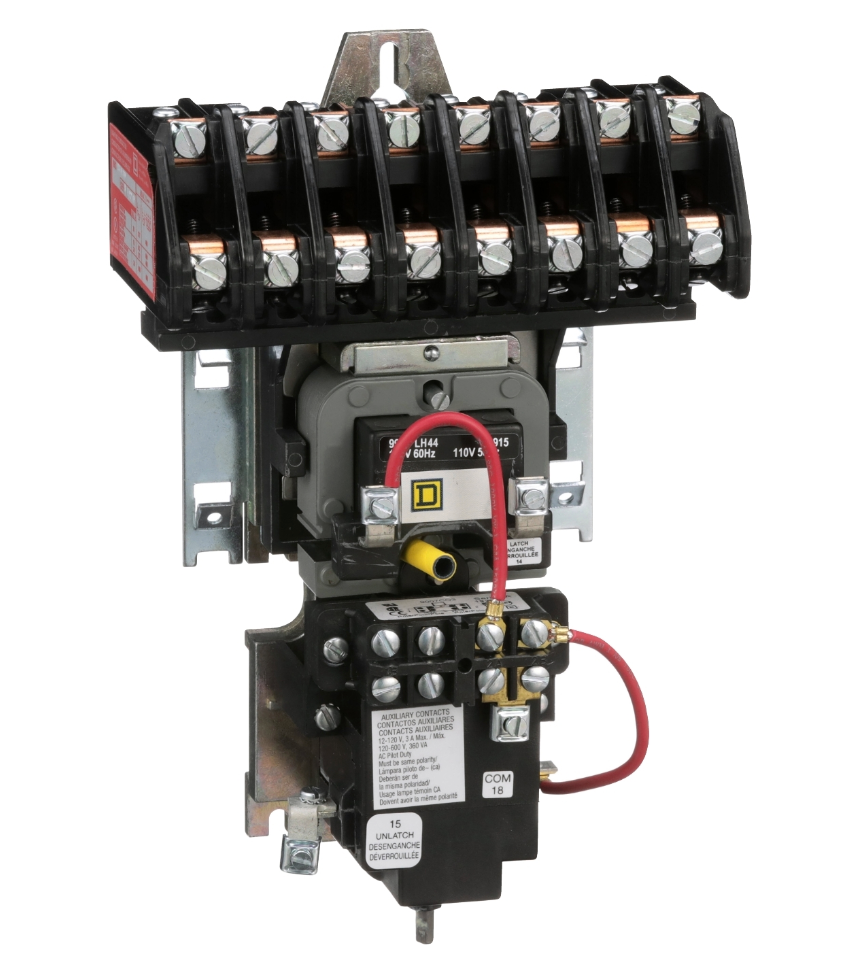

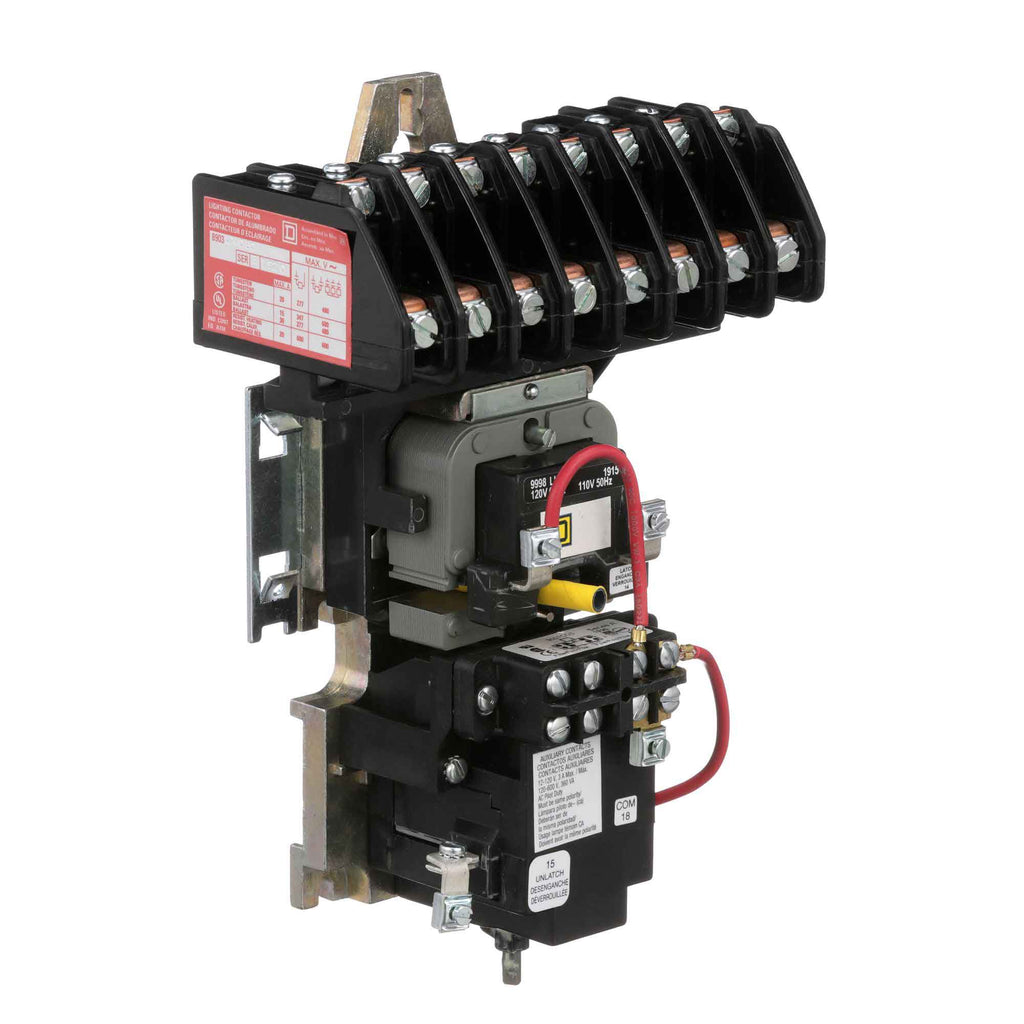

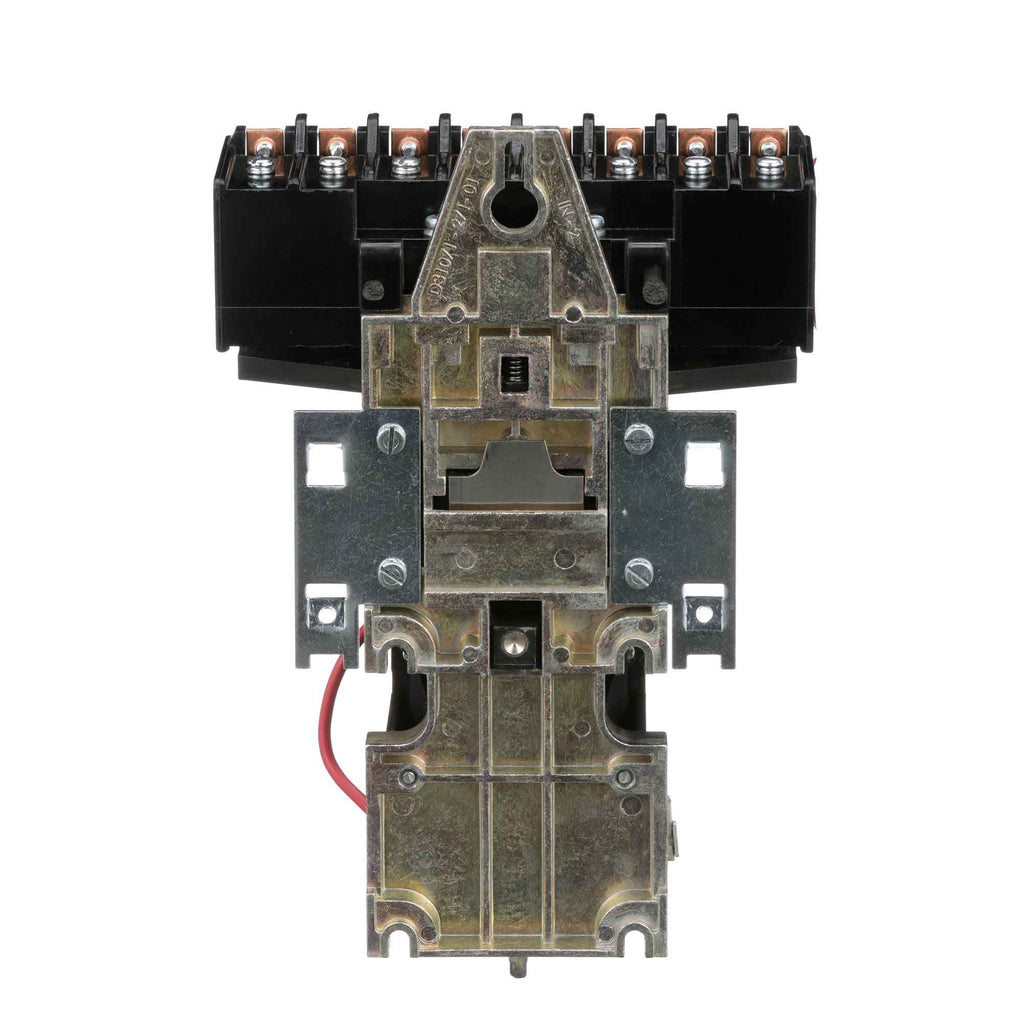

8903LXO80V02 is a Square D 8-pole lighting contactor designed for motor control applications with a 30 amp rating and 120 volt coil voltage.This Class 8903 multipole lighting contactor features mechanically held contacts, suitable for 3-phase systems, with a coil voltage of 110/120 VAC at 50/60 Hz. It supports 30A fluorescent and 20A tungsten loads, includes 8 normally open (NO) contacts, and is designed for surface mounting in a NEMA open type enclosure. The contactor is UL listed and uses silver cadmium oxide double-break contacts for reliable switching.
- Key Specifications
- Manufacturer: Square D
- Part Number: 8903LXO80V02
- Amperage: 30A Fluorescent, 20A Tungsten
- Voltage: 110/120 VAC Coil
- Poles: 8 (8 NO contacts)
- Phase: 3-phase
- Mounting Type: Surface
- Type: Mechanically Held Lighting Contactor
- Series/Frame: Class 8903
- Contact Material: Silver Cadmium Oxide
- Certifications: UL Listed
- Enclosure: NEMA Open Type
- Part Number: 8903LXO80V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : LX
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 8
- Coil Voltage Maximum : 120
- Full Load Amps : 30 A
- Coil Voltage Minimum : 110
- UPC : 785901057406
- GTIN : 00785901057406
- Country of Origin : Mexico
- Dimensions : 8.8 in (224 mm) x 5.6 in (143 mm) x 3.3 in (83 mm) (Height x Width x Depth)
- Weight : 5.3 lb
- Certification : CSA, REACH, RoHS, UL Listed
Additional Information
This includes a 110 VAC coil.
