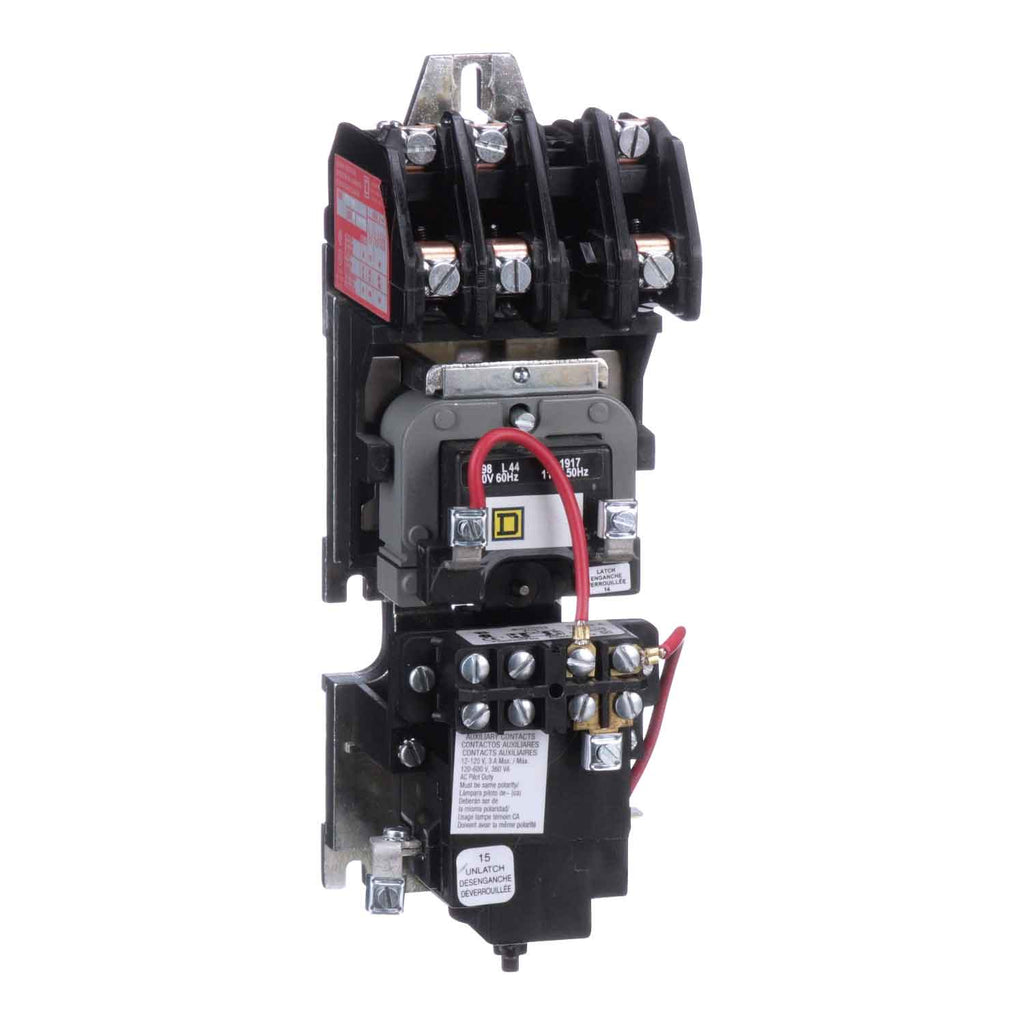

8903LXO30V04 - Square D 30A 600V 3 Pole Lighting Contactor 277VAC Coil Open Type

8903LXO30V04

8903LXO30V04 is a Square D Class 8903 lighting contactor designed for motor control applications with a 30 amp rating and 3 poles.8903LXO30V04 features a mechanically held, multipole lighting contactor design with a 277 VAC coil voltage and 600 V maximum voltage rating. It is an open type contactor suitable for lighting loads including fluorescent and tungsten applications. The contactor supports 3 normally open poles and is part of the Type L/LX series.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 VAC maximum
• Coil Voltage: 277 VAC, 60 Hz
• Poles: 3 Pole (3 Normally Open)
• Mounting Type: Open style
• Interrupt Rating: Suitable for lighting loads (30A fluorescent, 20A tungsten)
• Series/Frame: Class 8903, Type L/LX
• Trip Unit: Mechanically held
• Certifications: Schneider Electric / Square D OEM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 277 VAC coil.

Specifications

• Part Number: 8903LXO30V04
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : LX
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 277

Product Data

• UPC : 78590105729
• GTIN : 00785901057291
• Country of Origin : Mexico
• Dimensions : 8.8 in (224 mm) x 2.9 in (73 mm) x 3.3 in (83 mm) (Height x Width x Depth)
• Weight : 8.699
• Certification : UL listed - CSA
