8903LXO20V01 - Square D 2-Pole Mechanically Held Lighting Contactor 30A 24VAC

8903LXO20V01

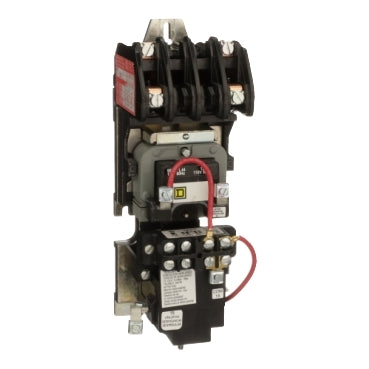

8903LXO20V01 is a Square D mechanically held lighting contactor designed for reliable switching and control of lighting loads in commercial and industrial applications. This two-pole contactor features a compact open enclosure design suitable for space-constrained installations. Type L/LX Mechanically Held Multi-Pole Lighting Contactor, the 8903LXO20V01 delivers dependable performance with separate control circuit operation. The unit is rated for 30 amperes at fluorescent loads and supports multiple voltage configurations for flexible system integration. Operating at 24 VAC 60 Hz control voltage with 2NO contact configuration, this contactor provides 1000 cycles per minute operating capability across 50/60 Hz frequency ratings.

• Part Number: 8903LXO20V01
• Manufacturer: Square D
• Series: 8903LX
• Type: Mechanically Held Multi-Pole Lighting Contactor
• Poles: 2
• Contact Configuration: 2NO (Normally Open)
• Current Rating: 30A Fluorescent / 20A Tungsten
• Control Voltage: 24 VAC 60 Hz
• Frequency: 50/60 Hz
• Voltage Rating: 600V
• Enclosure: Open
• Operating Temperature: 0 to 40 degrees Celsius
• Operating Cycles: 1000 cpm
• Dimensions: 8.82 in H x 2.87 in W x 3.27 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 24 VAC coil.

Specifications

• Part Number: 8903LXO20V01
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : LX
• Voltage : 600
• Amperage : 30
• Poles : 2
• Coil Voltage Maximum : 24
• Full Load Amps : 30 A

Product Data

• UPC : 785901057253
• GTIN : 00785901057253
• Country of Origin : Mexico
• Dimensions : 8.8 in (224 mm) x 2.9 in (73 mm) x 3.3 in (83 mm) (Height x Width x Depth)
• Weight : 8.69
• Certification : CSA, REACH, RoHS, UL Listed
