Description
8903LXO1200V04

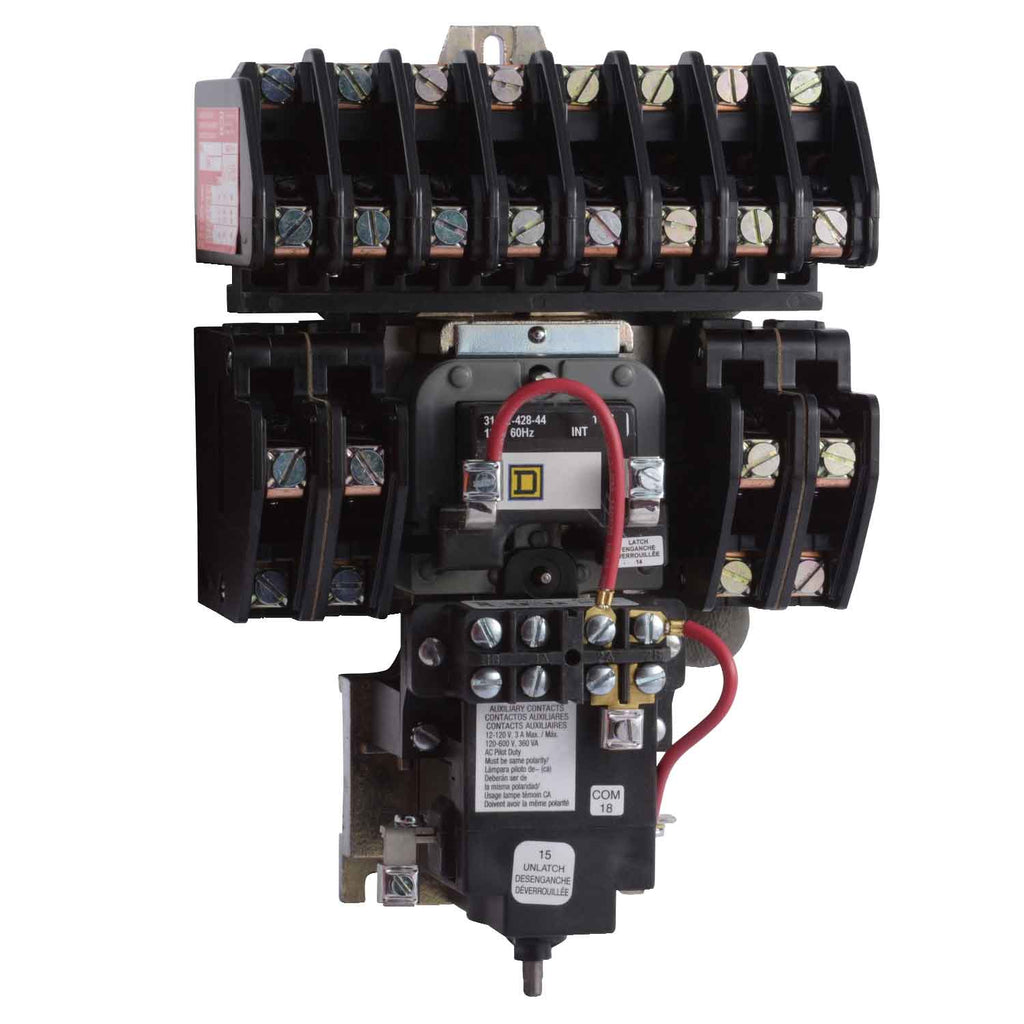

8903LXO1200V04 is a Square D Class 8903 lighting contactor designed for motor control applications with 12 poles and a 30 Amp current rating.This mechanically held contactor operates at 600VAC maximum voltage with a 277VAC coil voltage, suitable for three-phase systems. It features screw clamp connections and is chassis or DIN rail mountable. The device is UL and CSA approved and RoHS compliant, ensuring reliable performance in commercial and industrial environments.
- Manufacturer: Square D
- Series/Frame: 8903
- Amperage: 30 Amps
- Voltage Rating: 600VAC
- Coil Voltage: 277VAC
- Poles: 12 (12 NO contacts)
- Phase: 3
- Mounting Type: Chassis Mount, DIN Rail
- Connection Type: Screw Clamp
- Configuration: Mechanically Held Lighting Contactor
- Certifications: UL, CSA, RoHS
Additional Information
This includes a 277 VAC coil.
Specifications
- Part Number: 8903LXO1200V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : LX
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 12
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
Product Data
- UPC : 785901057475
- GTIN : 00785901057475
- Country of Origin : Mexico
- Dimensions : 8.8 in (224 mm) x 5.6 in (143 mm) x 3.3 in (83 mm) (Height x Width x Depth)
- Weight : 6.171
- Certification : CSA, REACH, RoHS, UL Listed
