Description
8903LXO1000V04

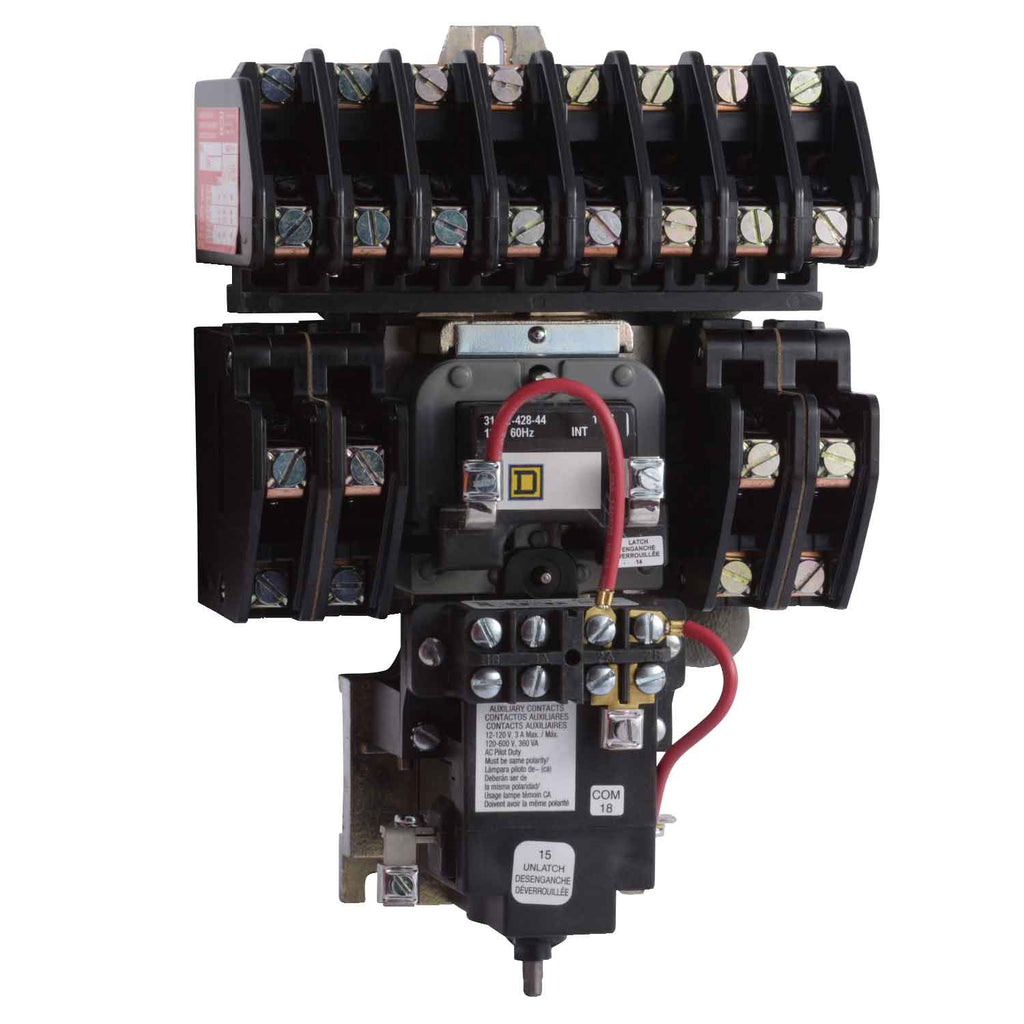

8903LXO1000V04 is a mechanically held lighting contactor designed for reliable motor control applications.This Square D contactor features a 30 ampere rating with a 600 VAC voltage capacity and 10 poles. It is an open type, mechanically held device suitable for lighting control with a 277 VAC coil at 60 Hz. The contactor is UL and CSA listed, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Coil Voltage: 277 VAC, 60 Hz
- Number of Poles: 10
- Contact Configuration: 10 Normally Open (10NO)
- Type: Mechanically Held Lighting Contactor
- Enclosure: Open Type (No Enclosure)
- Certifications: UL Listed, CSA Approved
- Part Number: 8903LXO1000V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : LX
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 10
- Coil Voltage Maximum : 277
- UPC : 785901023395
- GTIN : 00785901023395
- Country of Origin : Mexico
- Dimensions : 8.8 in (224 mm) x 5.6 in (143 mm) x 3.3 in (83 mm) (Height x Width x Depth)
- Weight : 9.374
- Certification : UL listed - CSA
Additional Information
This includes a 277 VAC coil.
