Description
8903LXG80V04

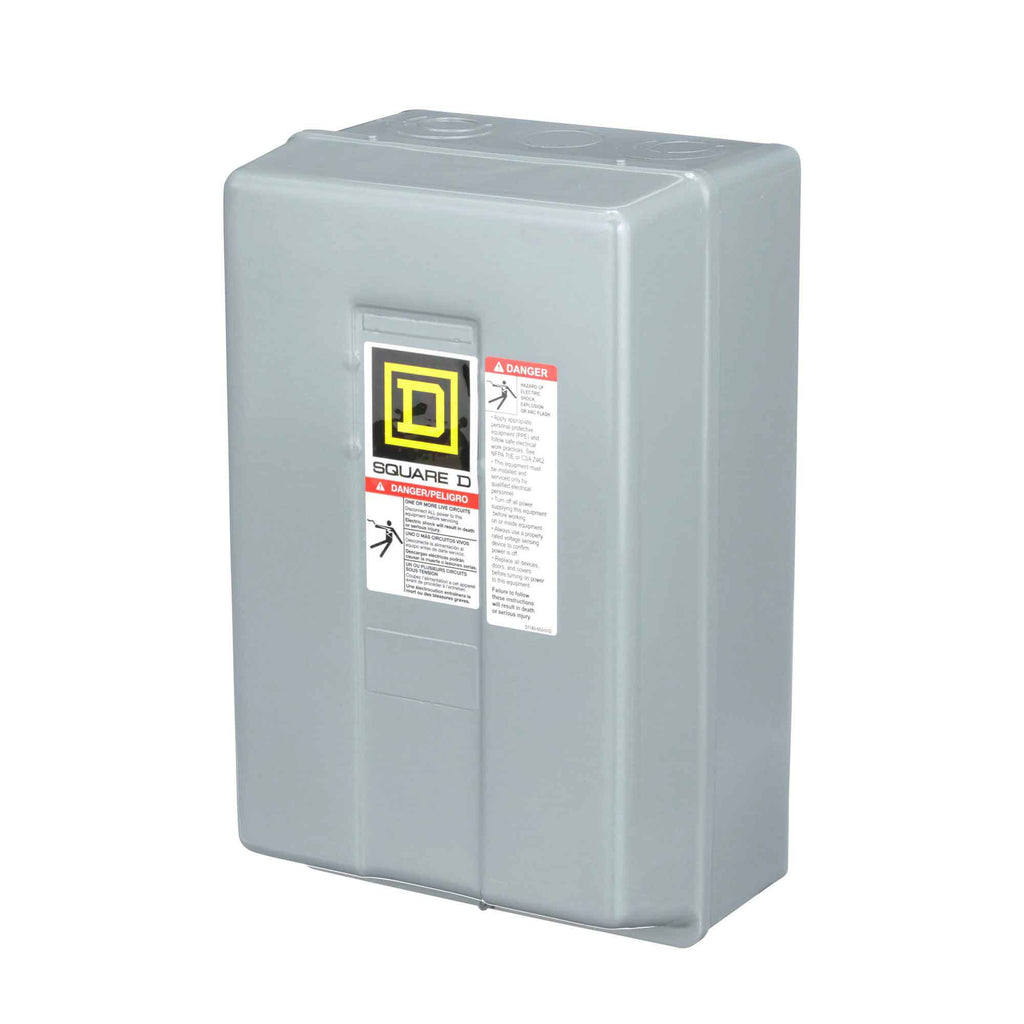

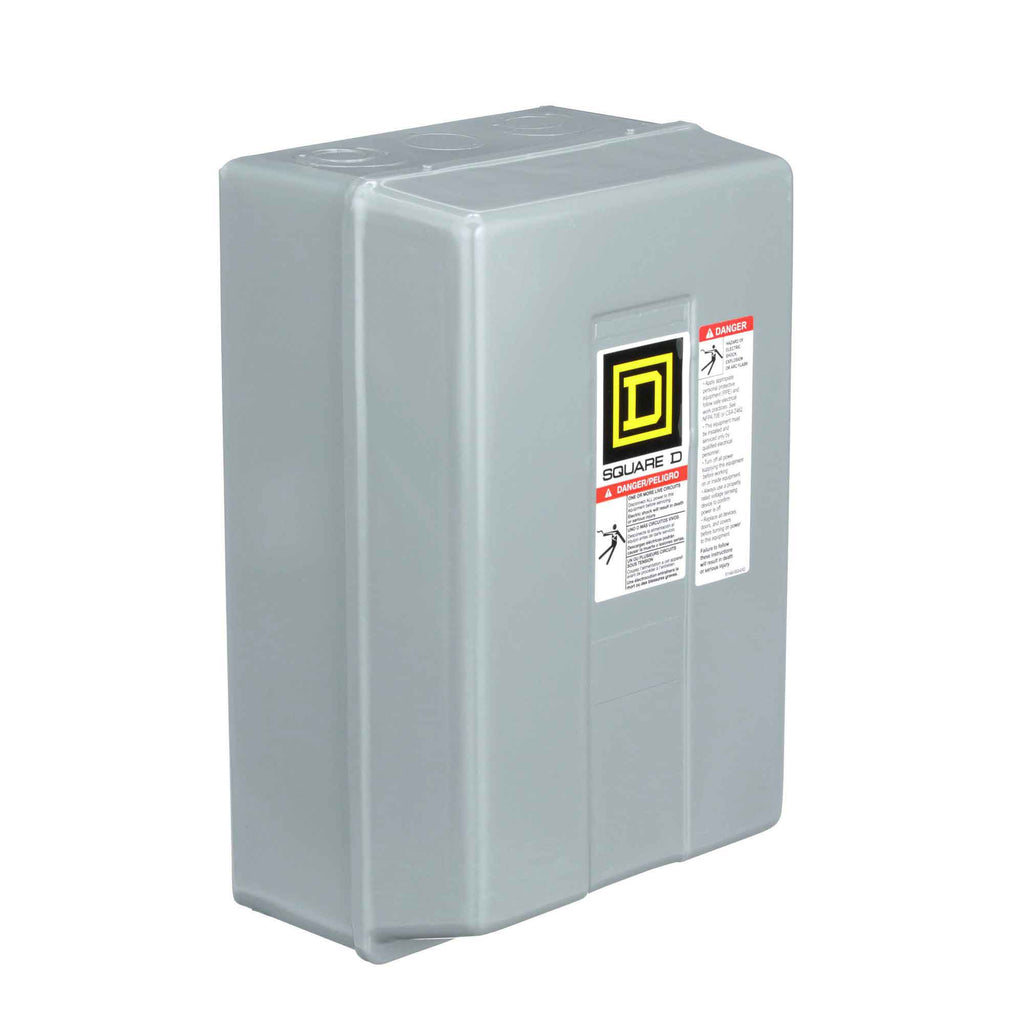

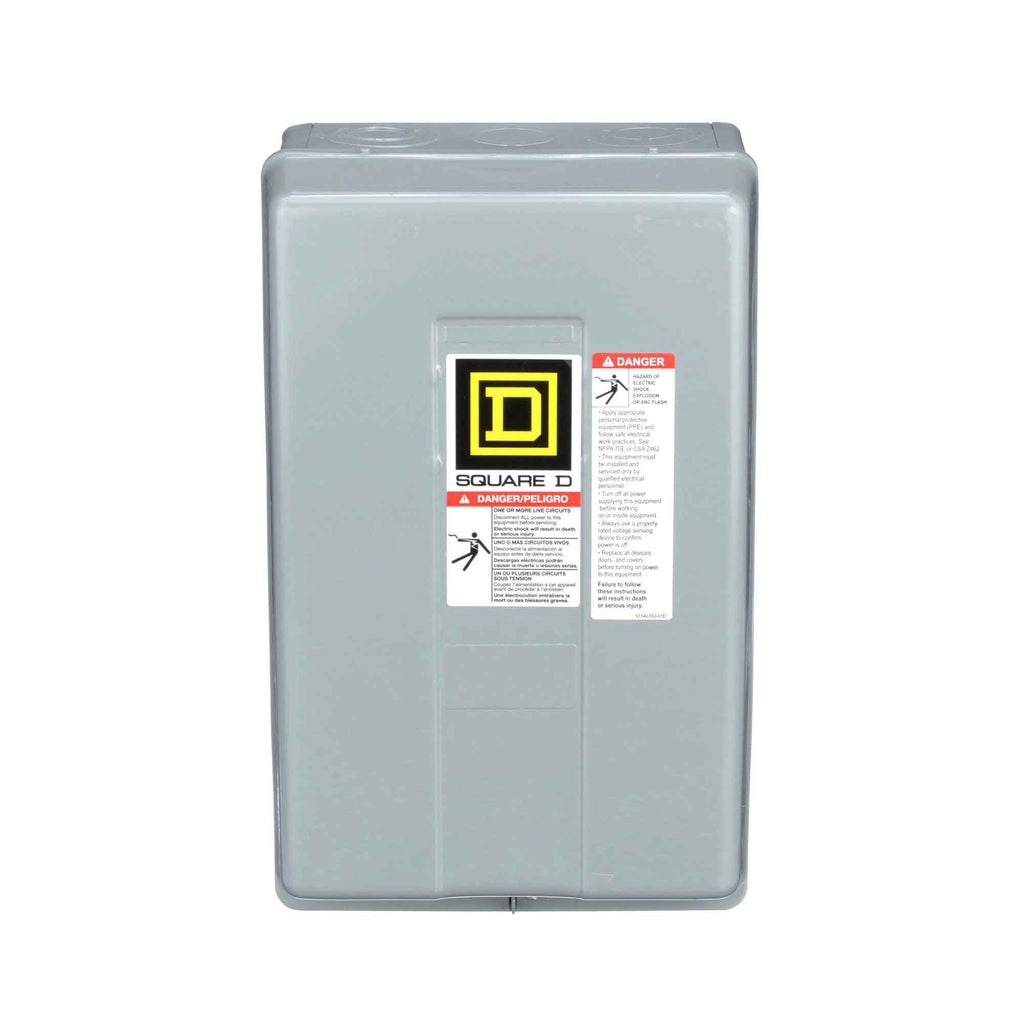

8903LXG80V04 is a Square D Class 8903 8 pole, 30A, 600V, 3-phase mechanically held lighting contactor designed for reliable motor and lighting control applications. This contactor features a 277VAC coil and is built with a NEMA 1 enclosure for standard indoor use. The 8903LXG80V04 is part of the Square D Class 8903 series, offering robust performance for commercial and industrial lighting and motor control. Its mechanically held design ensures energy efficiency and long service life, while the 8-pole configuration provides flexibility for complex control circuits. The contactor is suitable for surface mounting and features silver cadmium oxide double break contacts for reliable switching.
- Part Number: 8903LXG80V04
- Manufacturer: Square D
- Series/Frame: Class 8903
- Amperage: 30A
- Voltage: 600VAC
- Poles: 8
- Phase: 3

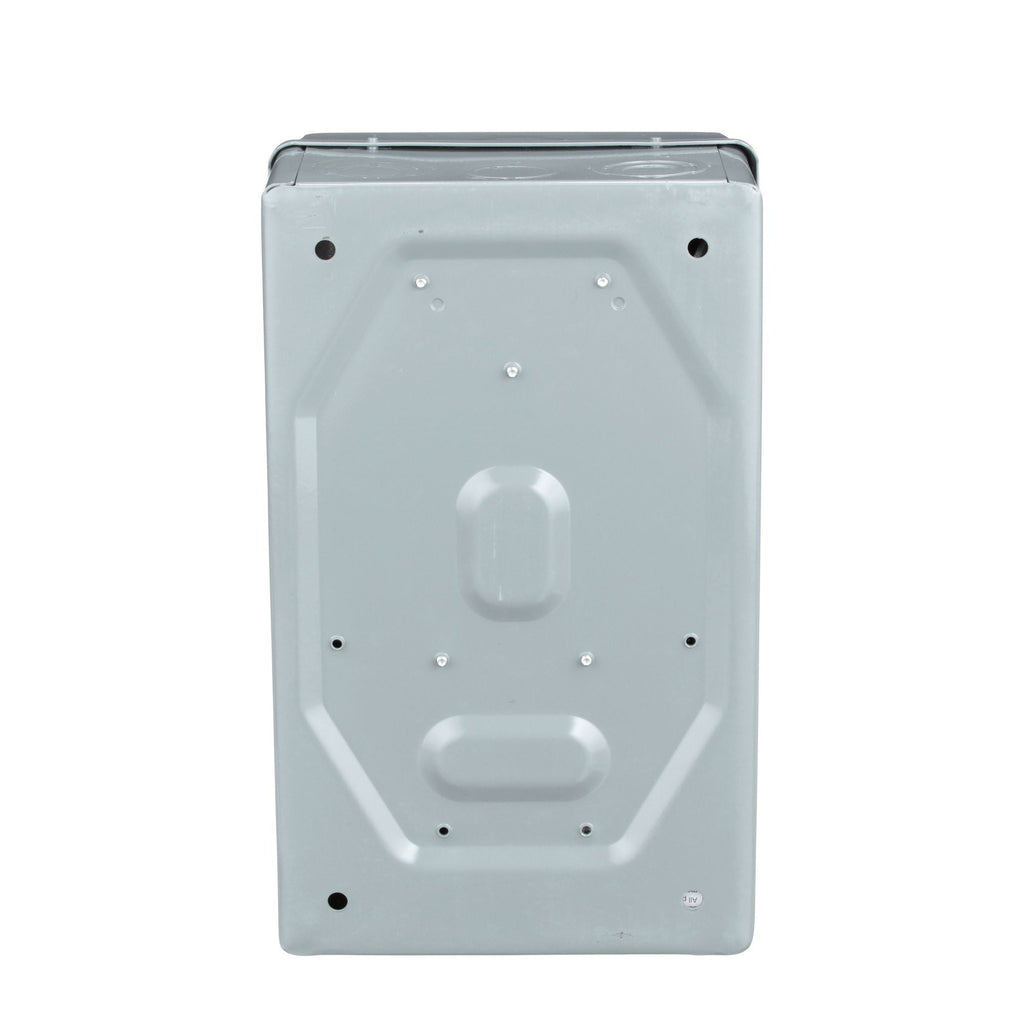

- Mounting Type: Surface
- Coil Voltage: 277VAC 60Hz
- Enclosure: NEMA 1
- Contact Type: Mechanically Held
- Application: Lighting and Motor Control
Additional Information
This includes a 277 VAC coil.
Specifications
- Part Number: 8903LXG80V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : LX
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 8
- Coil Voltage Maximum : 277
Product Data
- UPC : 785901057413
- GTIN : 00785901057413
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 11.72
- Certification : UL listed - CSA
