8903LXG80V02CR6 - Square D 30A 600V 8-Pole Mechanically Held Lighting Contactor NEMA 1

8903LXG80V02CR6

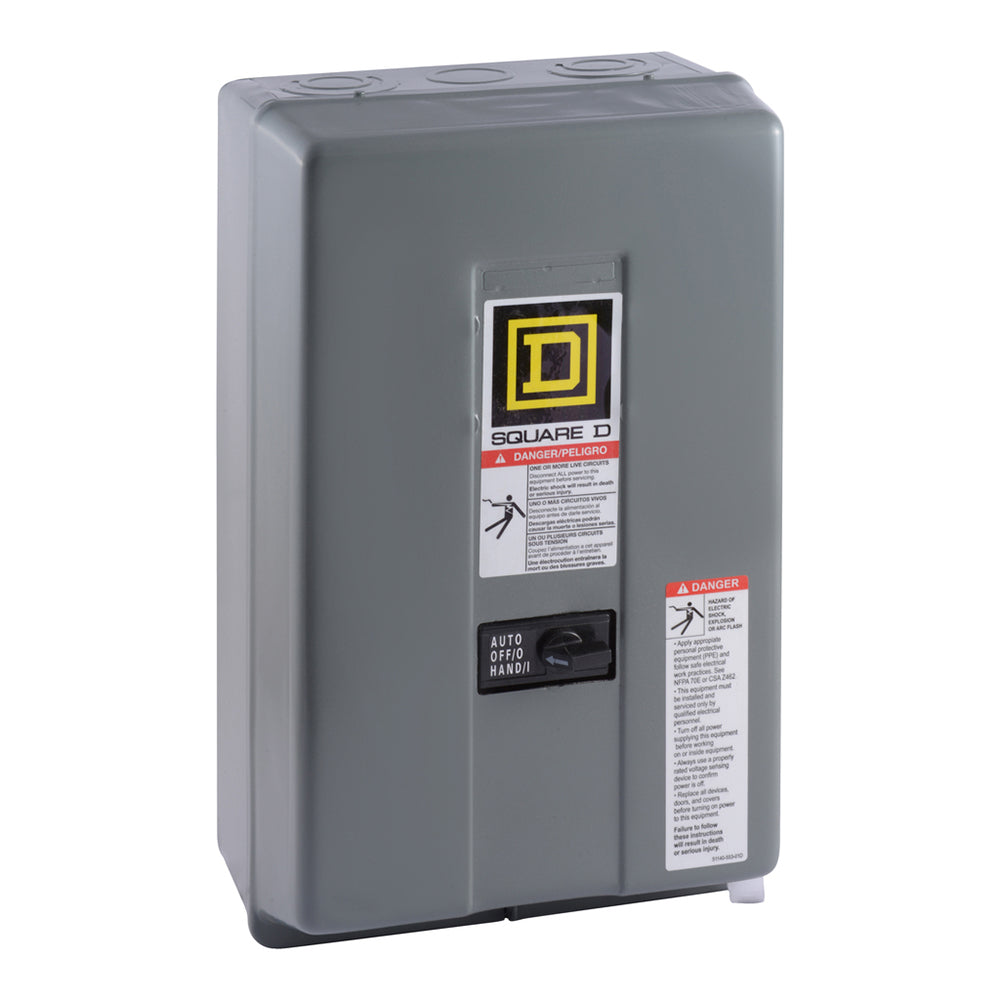

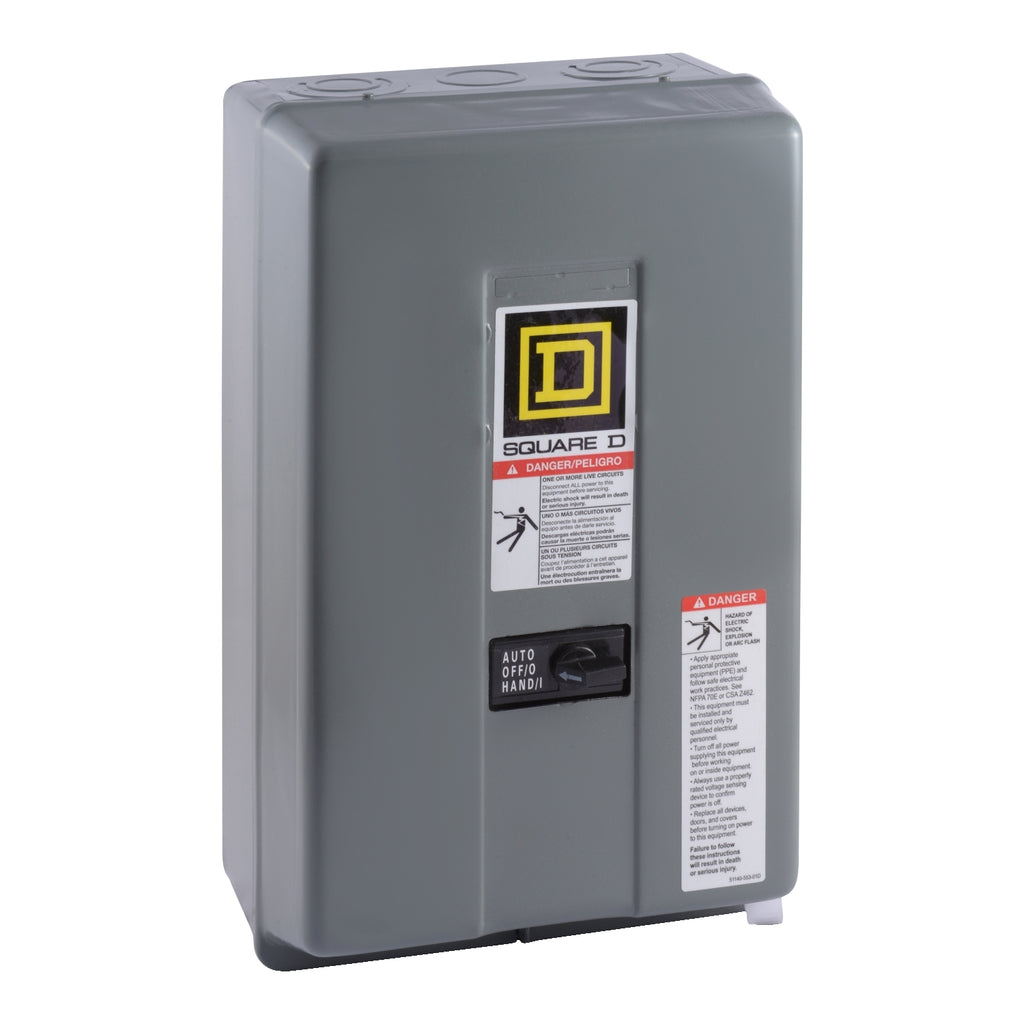

8903LXG80V02CR6 is a Square D Type LX mechanically held lighting contactor designed for reliable control of lighting circuits in commercial and industrial applications. This contactor features an 8-pole configuration, 30A current rating, and is rated for 600V AC operation with a 110/120V AC coil. The device is built with a NEMA 1 enclosure and is suitable for fluorescent and tungsten lighting loads. Contacts are field convertible, allowing for flexible installation and maintenance. This contactor is engineered for durability and ease of use, with a painted finish and compact dimensions. It is UL and CSA approved, meeting industry standards for safety and performance. The mechanically held design ensures energy efficiency and long service life, making it ideal for applications where frequent switching is required.

• 30A current rating
• 600V AC maximum voltage
• 8-pole configuration
• 110/120V AC coil, 50/60 Hz
• NEMA 1 enclosure
• Mechanically held design
• Field convertible contacts
• UL and CSA approved
• Painted finish
• Compact dimensions: 7.8 in W x 6.02 in D x 12.68 in H
• Suitable for fluorescent and tungsten lighting loads
• Type LX series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 110 VAC coil.

Specifications

• Part Number: 8903LXG80V02CR6
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : LX
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 8
• Coil Voltage Maximum : 120
• Full Load Amps : 30
• Coil Voltage Minimum : 110

Product Data

• UPC : 078590102336
• GTIN : 00785901023364
• Country of Origin : Mexico
• Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
• Weight : 12.2
• Certification : UL Listed; CSA
