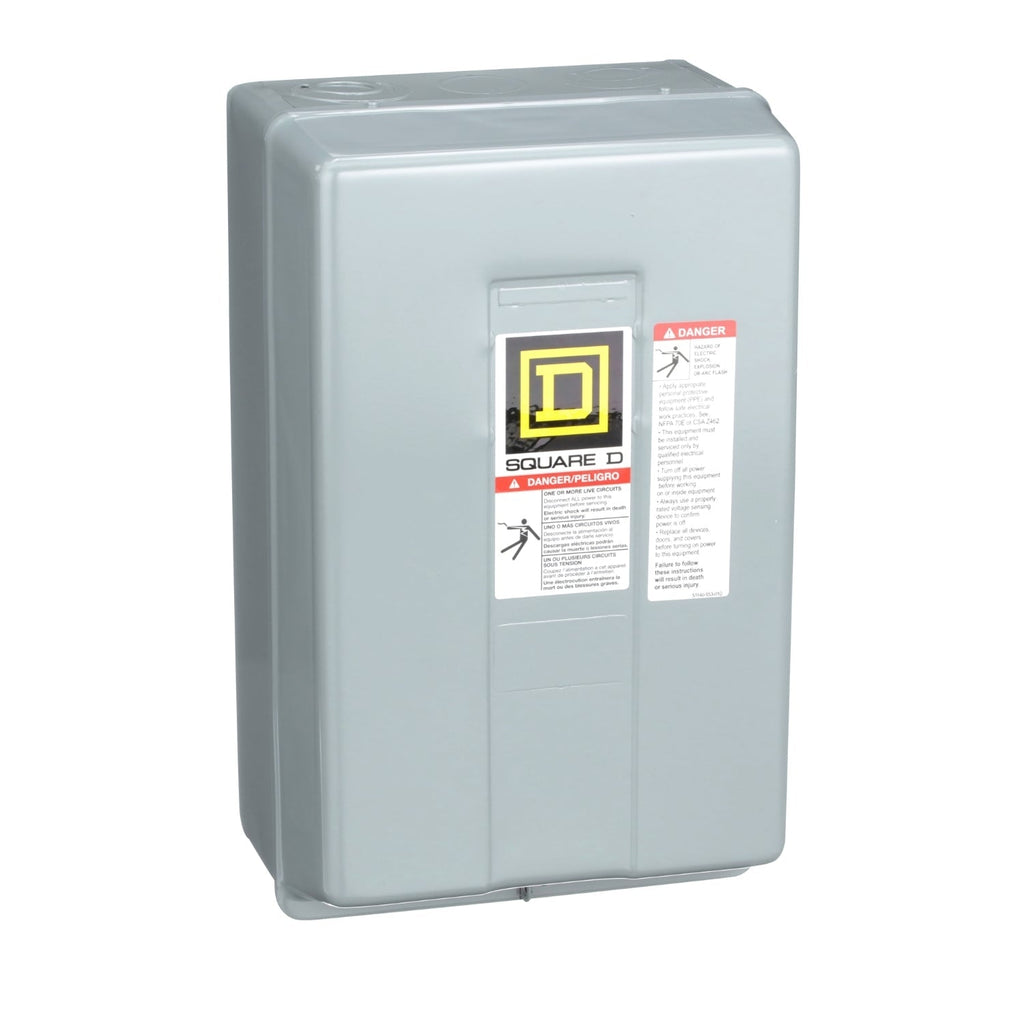

8903LXG40V02 - Square D 4 Pole 30A Mechanically Held Lighting Contactor 120V NEMA 1

8903LXG40V02

8903LXG40V02 is a Square D 4 pole, 30A mechanically held lighting contactor designed for reliable control of lighting circuits. This contactor features a 120V coil, NEMA 1 enclosure, and is suitable for fluorescent and tungsten lighting loads. It uses screw clamp connections for secure wiring and is built for surface mounting applications. The device is UL listed and features silver cadmium oxide double-break contacts for long life and dependable operation. This lighting contactor is ideal for commercial and industrial lighting control where multi-pole switching and mechanical holding are required. The robust design ensures stable performance in demanding environments, and the NEMA 1 enclosure provides basic protection against dust and light splashing water.

• Part Number: 8903LXG40V02
• Manufacturer: Square D
• Series: 8903LX
• Amperage: 30A
• Voltage: 120V AC
• Poles: 4
• Mounting Type: Surface
• Enclosure: NEMA 1
• Contactor Type: Mechanically Held Lighting
• Coil Voltage: 110V 50Hz / 120V 60Hz
• Contacts: Silver Cadmium Oxide, Double-Break
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 110 VAC coil.

Specifications

• Part Number: 8903LXG40V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : LX
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 120
• Full Load Amps : 30
• Coil Voltage Minimum : 110

Product Data

• UPC : 785901057345
• GTIN : 00785901057345
• Country of Origin : Mexico
• Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
• Weight : 10.85
• Certification : UL Listed; CSA
