Description
8903LW1000V02

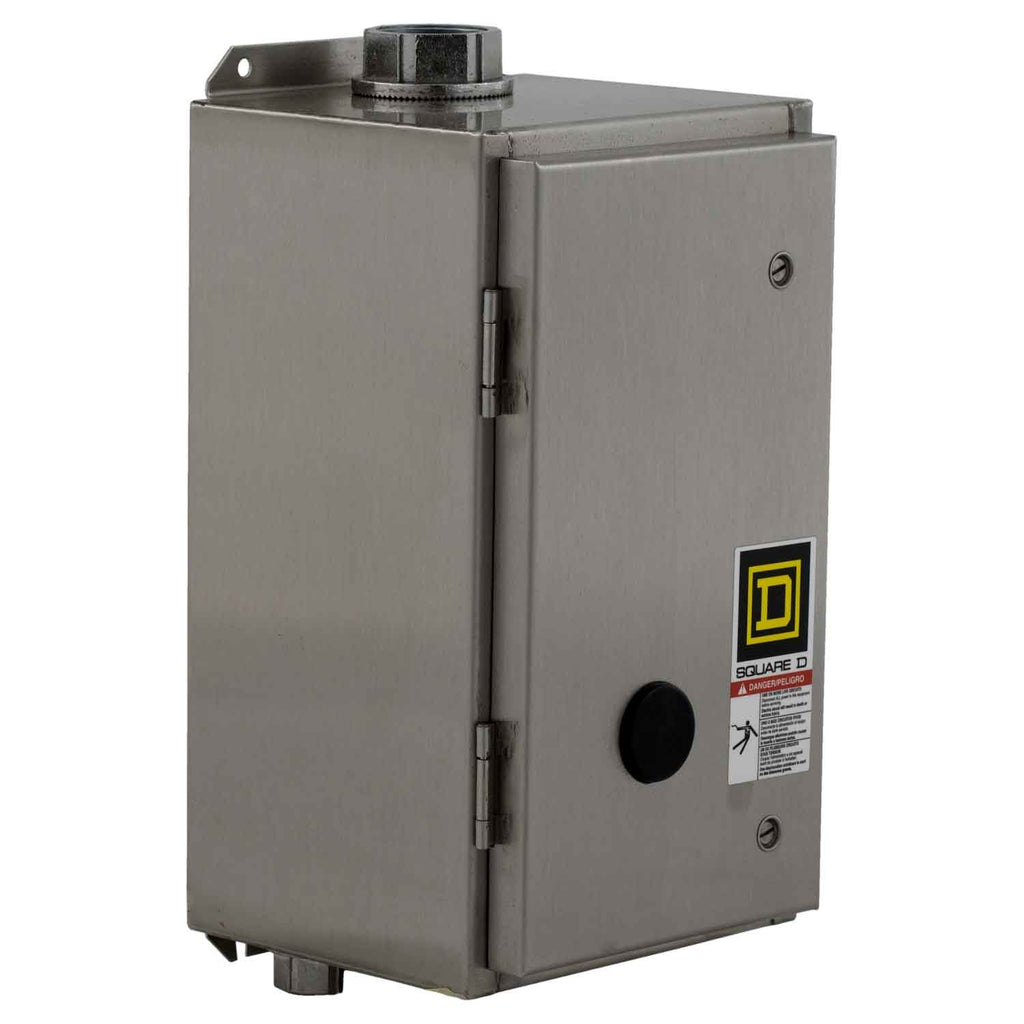

8903LW1000V02 is a Square D Class 8903 electrically held lighting contactor designed for demanding motor control applications. This 10 pole, 30A, 600V 3-phase contactor features a 110/120V AC coil and is built for reliable operation in industrial environments. The device is constructed with NEMA 4/4X stainless steel for durability and protection against harsh conditions. This contactor is ideal for use in motor control centers and lighting circuits where high reliability and robust construction are required. The contacts are rated for both fluorescent and tungsten loads, and the device is electrically held for fail-safe operation.
- Part Number: 8903LW1000V02
- Manufacturer: Square D
- Series: Class 8903
- Amperage: 30A
- Number of Poles: 10
- Voltage: 600V
- Phase: 3-Phase
- Coil Voltage: 110/120V AC
- Mounting Type: NEMA 4/4X Stainless Steel
- Application: Motor Control, Lighting
- Control Circuit: Electrically Held
- Load Type: Fluorescent, Tungsten
Specifications
- Part Number: 8903LW1000V02
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 10
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
Product Data
- Dimensions : 16.2 in (411 mm) x 8.1 in (206 mm) x 7.9 in (200 mm) (Height x Width x Depth)
- Weight : 21.78
- Certification : UL listed - CSA
