Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

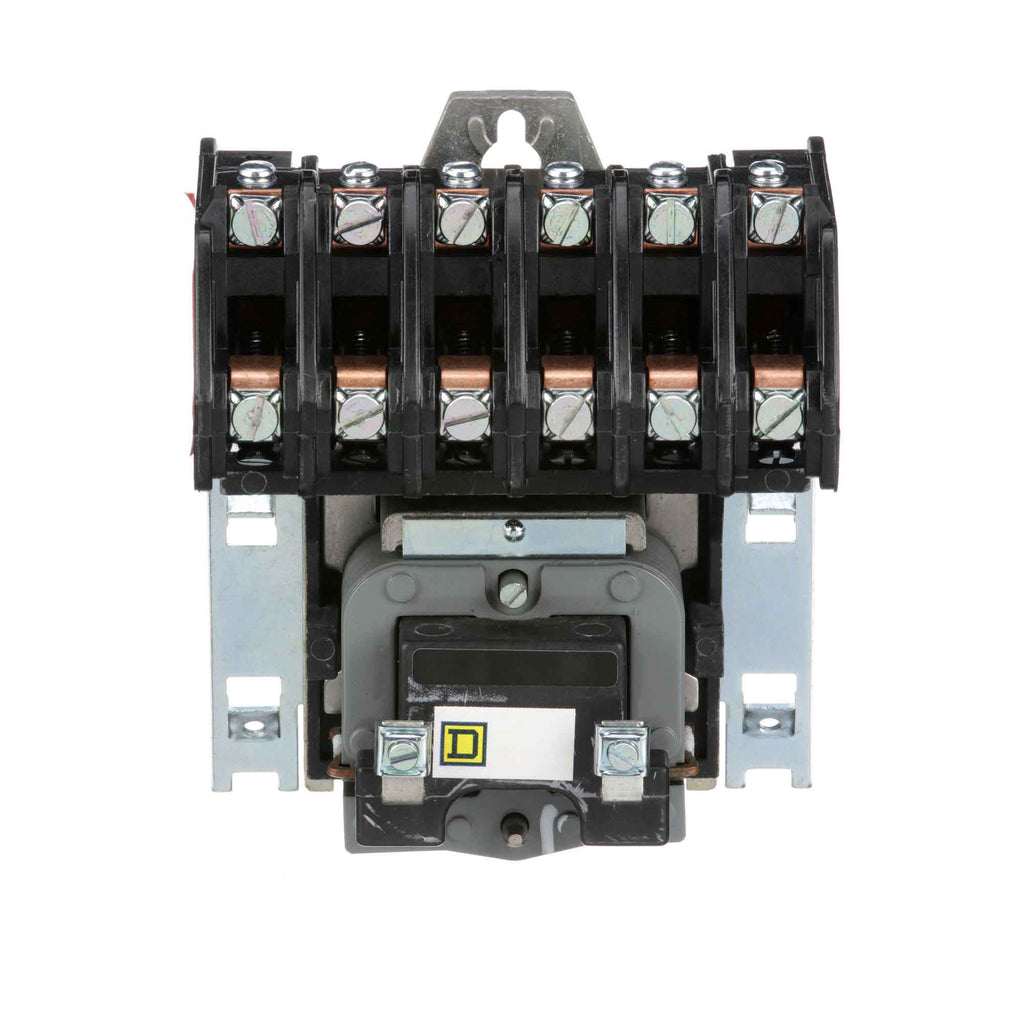

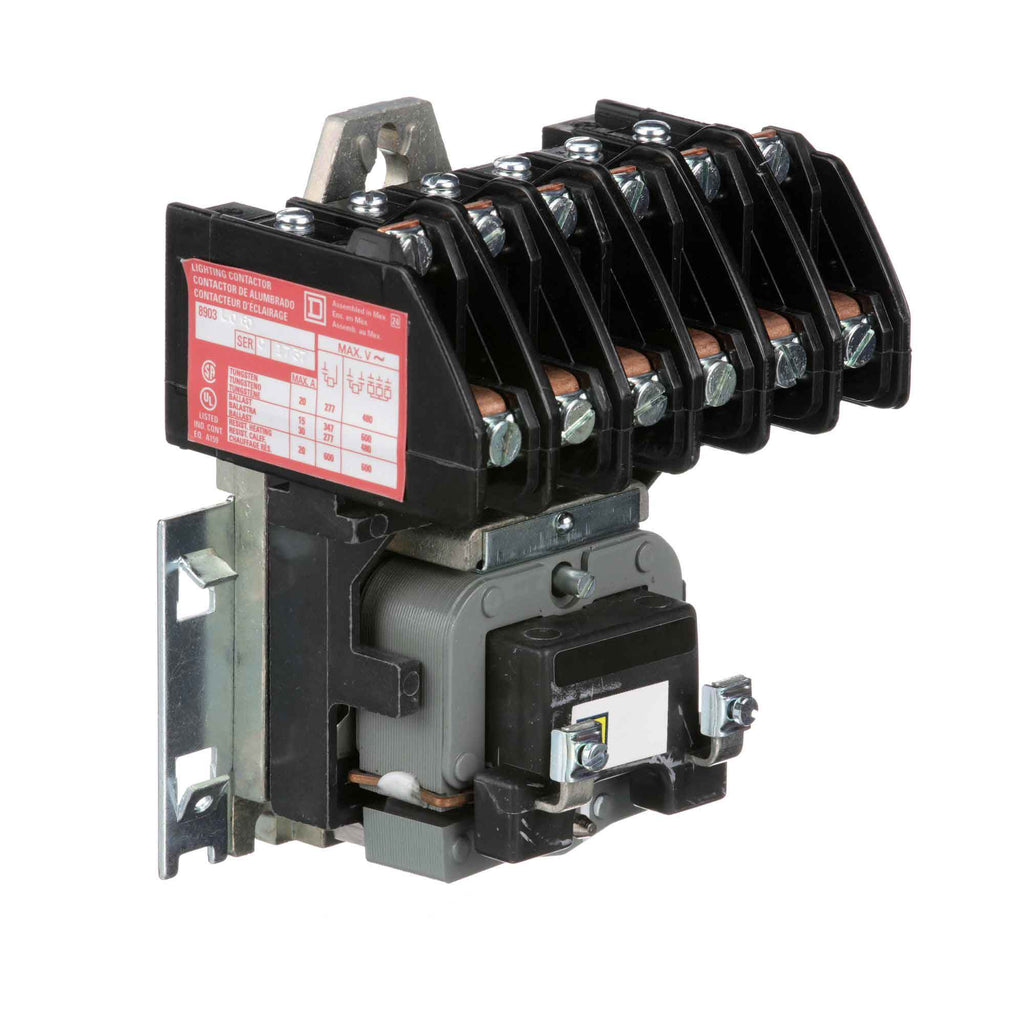

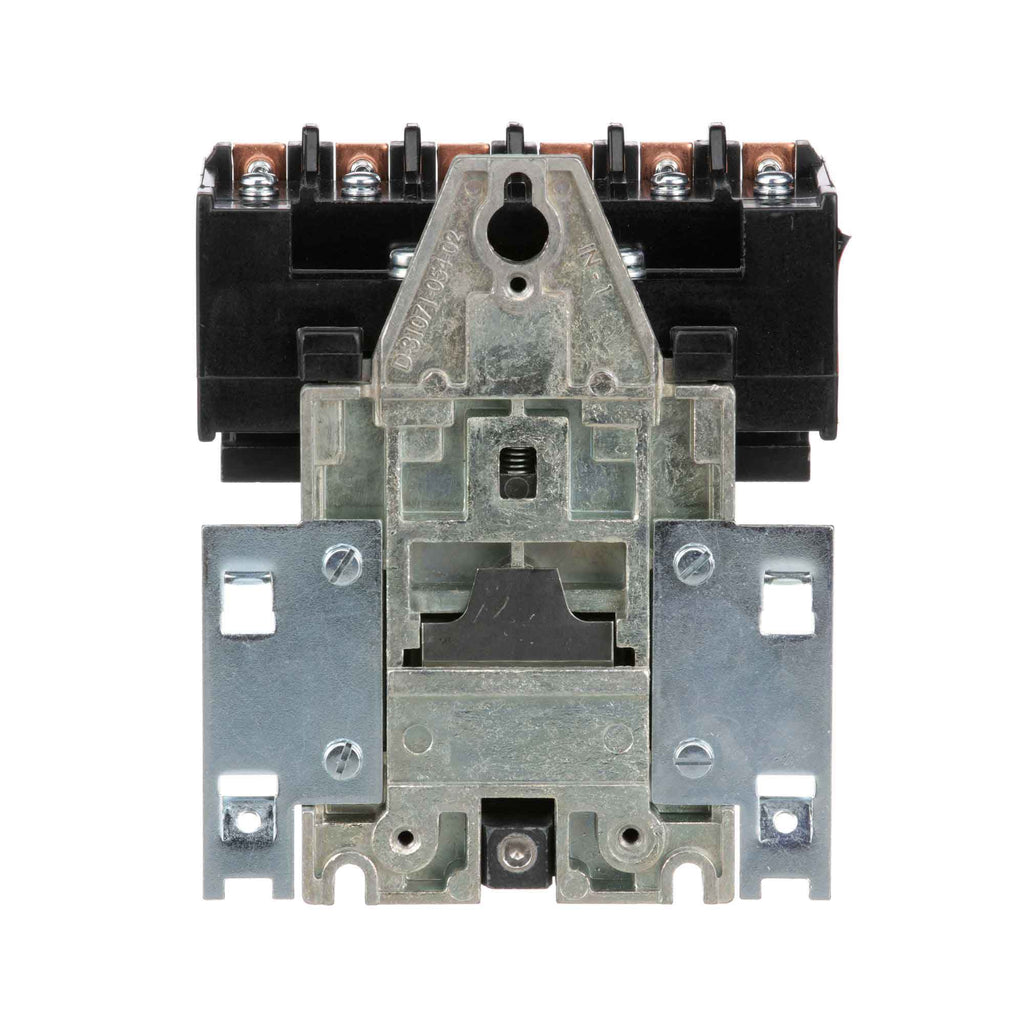

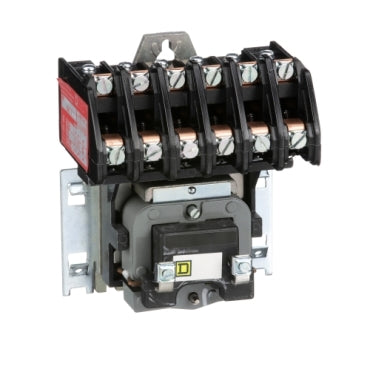

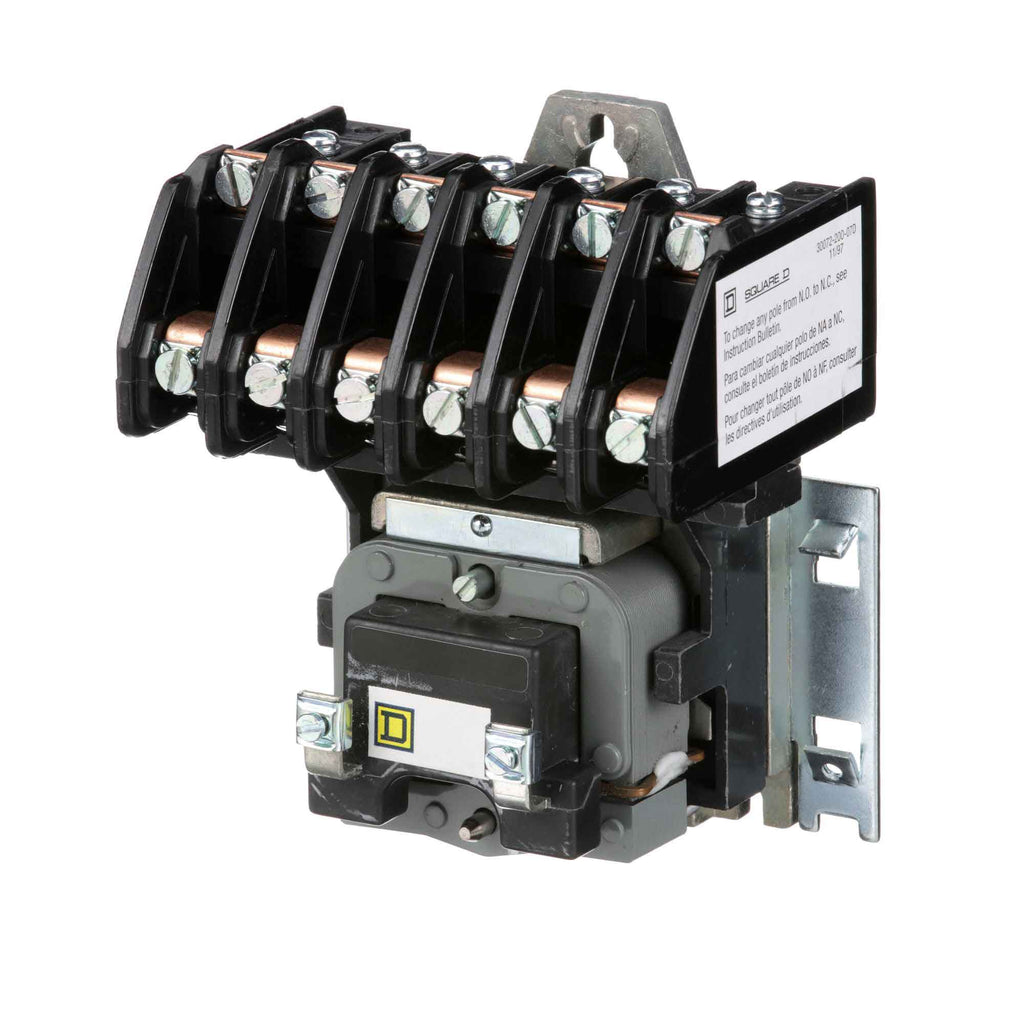

8903LO60V04
8903LO60V04 is a Square D Class 8903 electrically held lighting contactor designed for motor control applications.This 6 pole, 3 phase contactor features a 30 amp rating at 600 volts with a 277 volt coil and open type mounting.
- Manufacturer: Square D
- Part Number: 8903LO60V04
- Category: Motor Control
- Poles: 6 (6 Normally Open contacts)
- Phase: 3
- Full Load Amps: 30 A
- Voltage Rating: 600 V
- Coil Voltage: 277 V AC, 60 Hz
- Contact Type: Electrically Held
- Mounting Type: Open
- Series/Frame: Class 8903
- Contact Rating: 30A Fluorescent, 20A Tungsten
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LO60V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 6
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
Product Data
- UPC : 785901455899
- GTIN : 00785901455899
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 4.3 in (108 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 3.269
- Certification : CSA, REACH, RoHS, UL Listed
