Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LO40V04

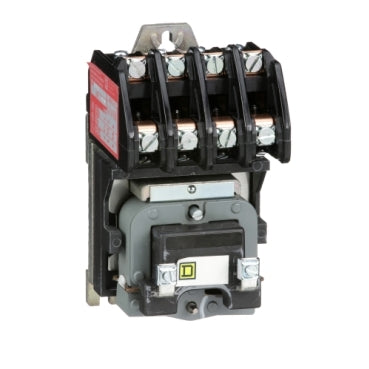

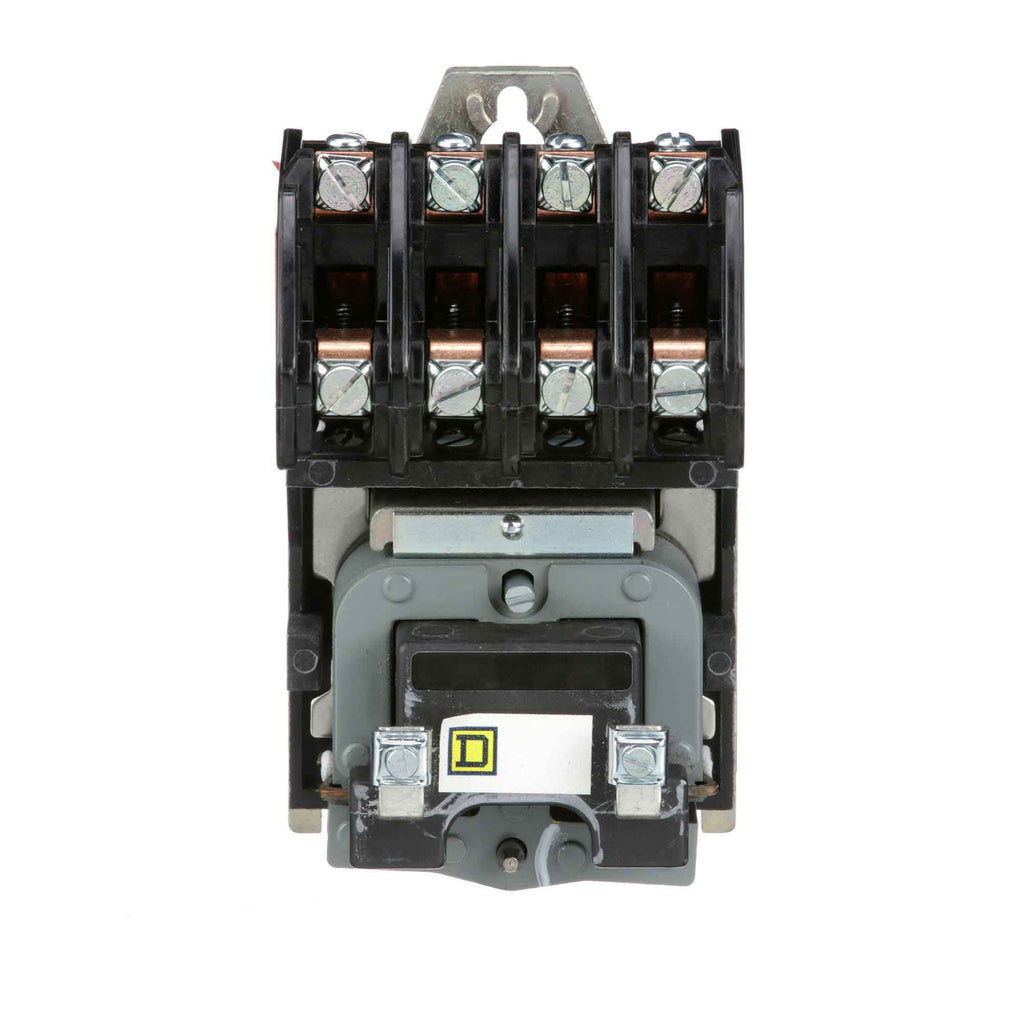

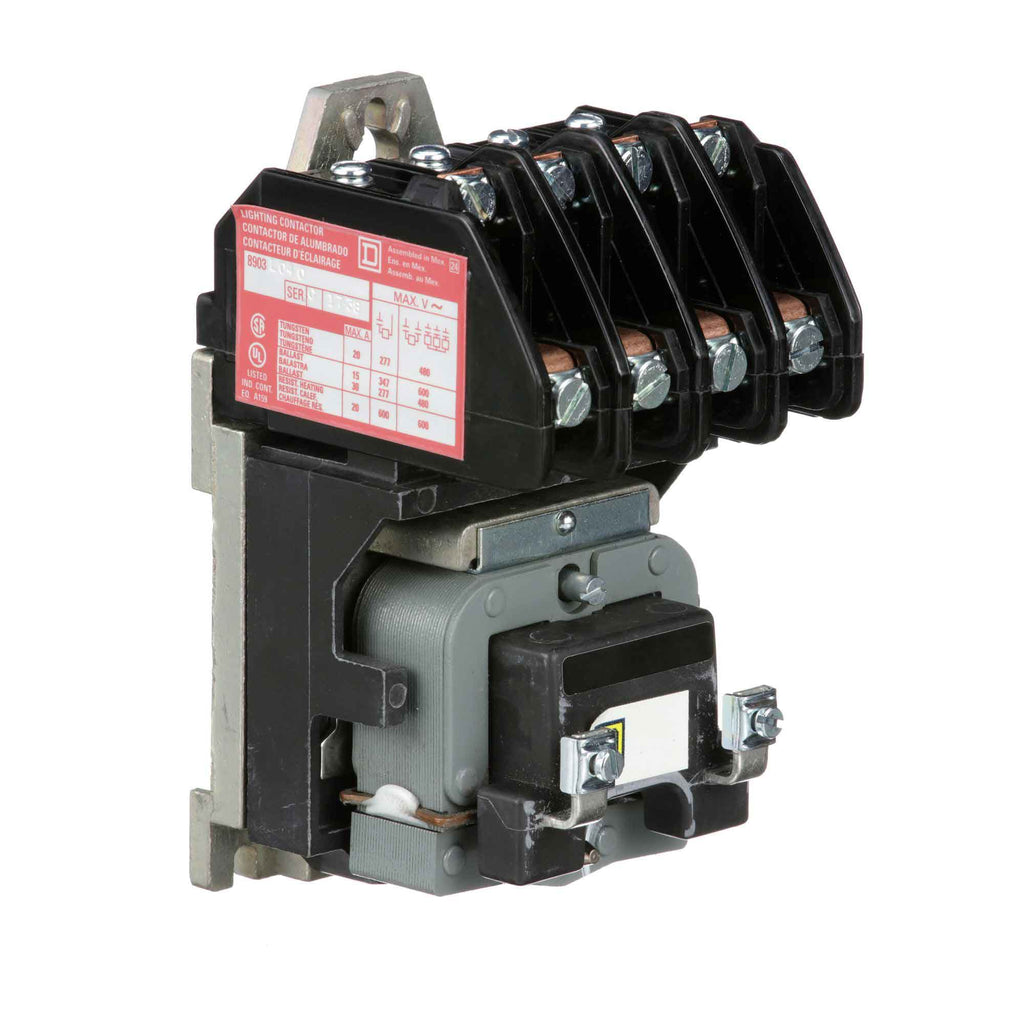

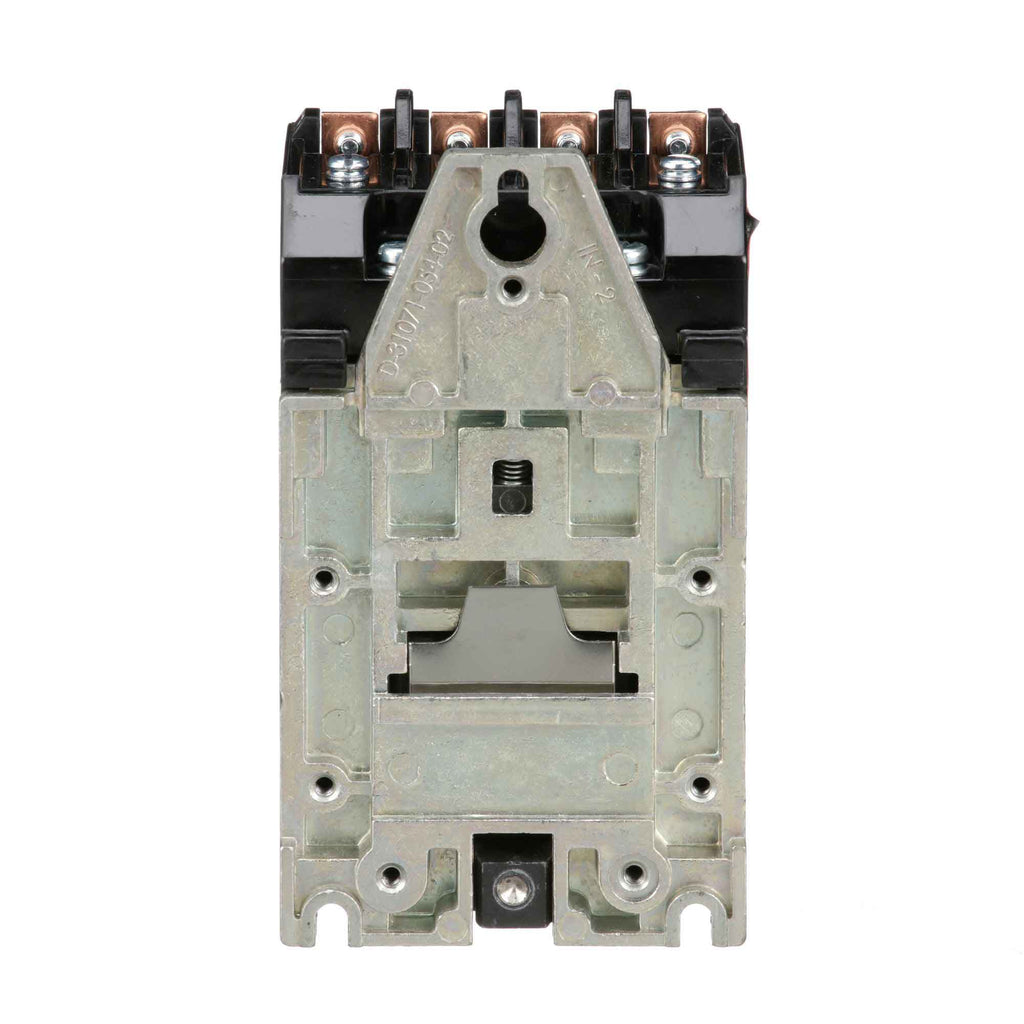

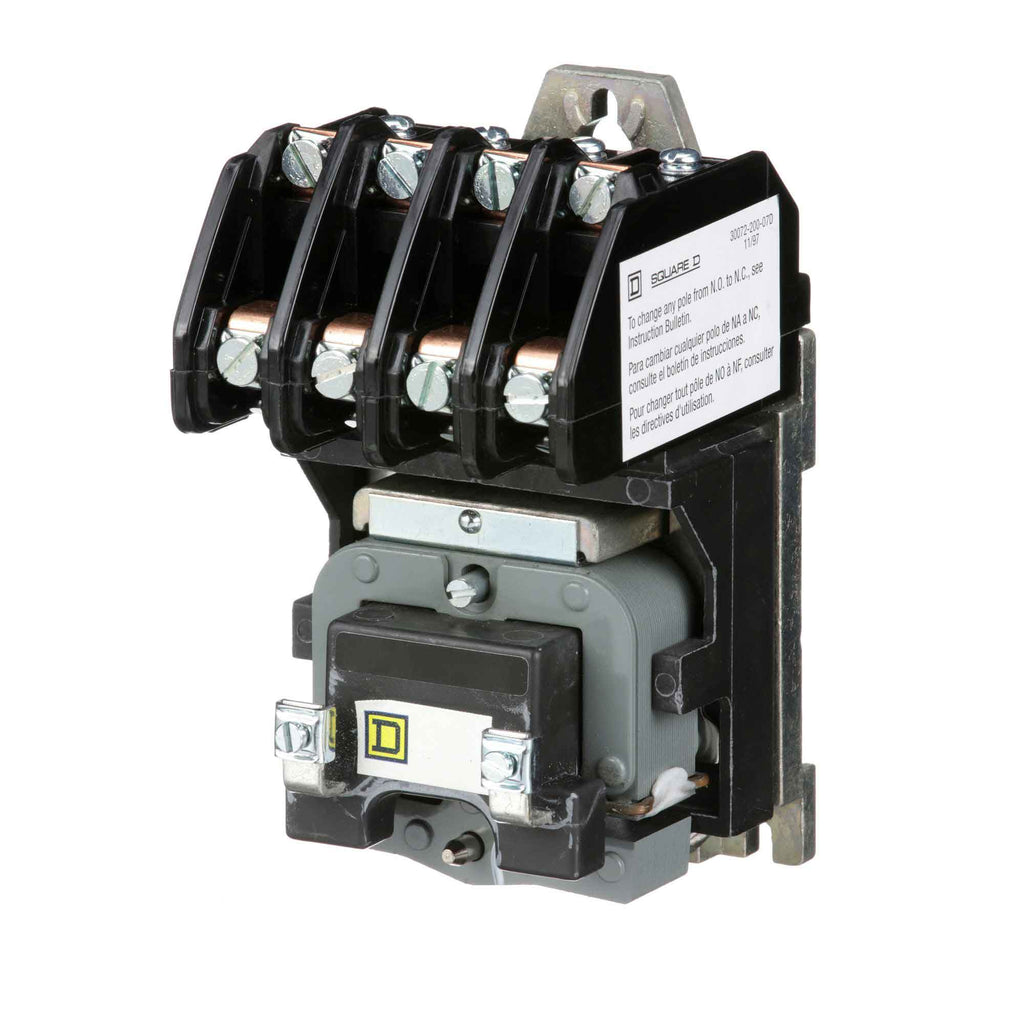

8903LO40V04 is a Square D 4-pole lighting contactor rated for 30 amps and 600 volts with a 277 VAC coil.8903LO40V04 is an electrically held multipole lighting contactor from Square D's Class 8903 series. It features a 4-pole, 3-phase design with a 30 amp current rating and 600 VAC voltage rating. The coil voltage is 277 VAC at 60 Hz. This contactor is surface mountable and designed for open type NEMA construction with silver cadmium oxide double break contacts for reliable switching in lighting control applications.
- Manufacturer: Square D
- Part Number: 8903LO40V04
- Series: Class 8903
- Amperage: 30A
- Voltage: 600 VAC
- Coil Voltage: 277 VAC
- Poles: 4
- Phase: 3
- Mounting Type: Surface
- Contactor Type: Lighting
- Contact Material: Silver Cadmium Oxide
- Construction: NEMA Open Type
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LO40V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
Product Data
- UPC : 785901456117
- GTIN : 00785901456117
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 2.9 in (73 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 2.879
- Certification : CSA, REACH, RoHS, UL Listed
