Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LO20V04

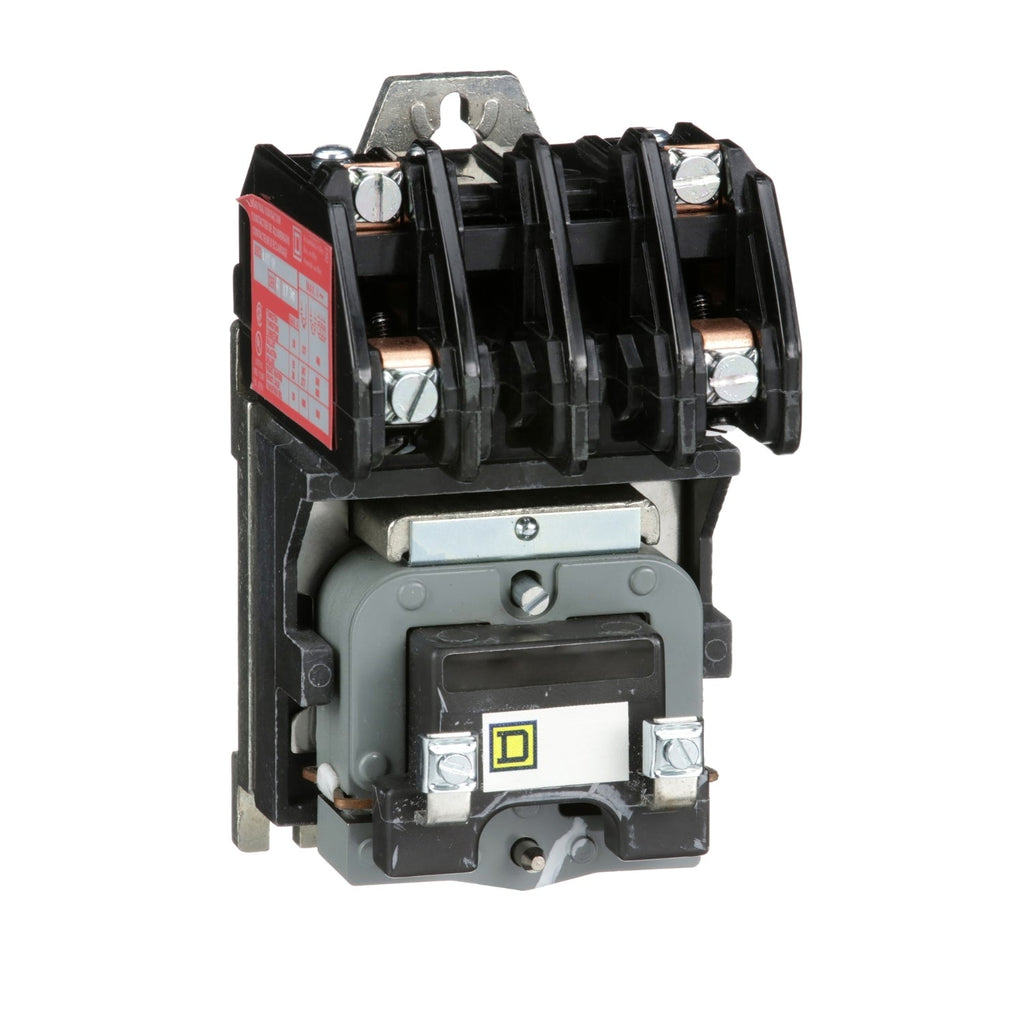

8903LO20V04 is a Square D Class 8903 electrically held lighting contactor designed for motor control applications.This 2 pole contactor supports a maximum voltage of 600 VAC and a coil voltage of 277 VAC at 60 Hz. It is rated for 30 amps full load current, suitable for fluorescent lighting loads, and 20 amps for tungsten loads. The contactor is open type with no enclosure and features screw-type terminal connections. It complies with UL listing, CSA certification, and RoHS standards.
- Key Specifications
- Amperage: 30A (Fluorescent), 20A (Tungsten)
- Voltage Rating: 600 VAC
- Coil Voltage: 277 VAC @ 60 Hz
- Number of Poles: 2
- Contactor Type: Electrically Held
- Enclosure: Open (No Enclosure)
- Frame/Series: Class 8903
- Contact Configuration: 2 Normally Open (2NO)
- Terminal Type: Screw
- Certifications: UL Listed, CSA, RoHS Compliant
- Part Number: 8903LO20V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
- UPC : 785901626084
- GTIN : 00785901626084
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 2.9 in (73 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 2.74
- Certification : CSA, REACH, RoHS, UL Listed
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
