Description
8903LO1200V04

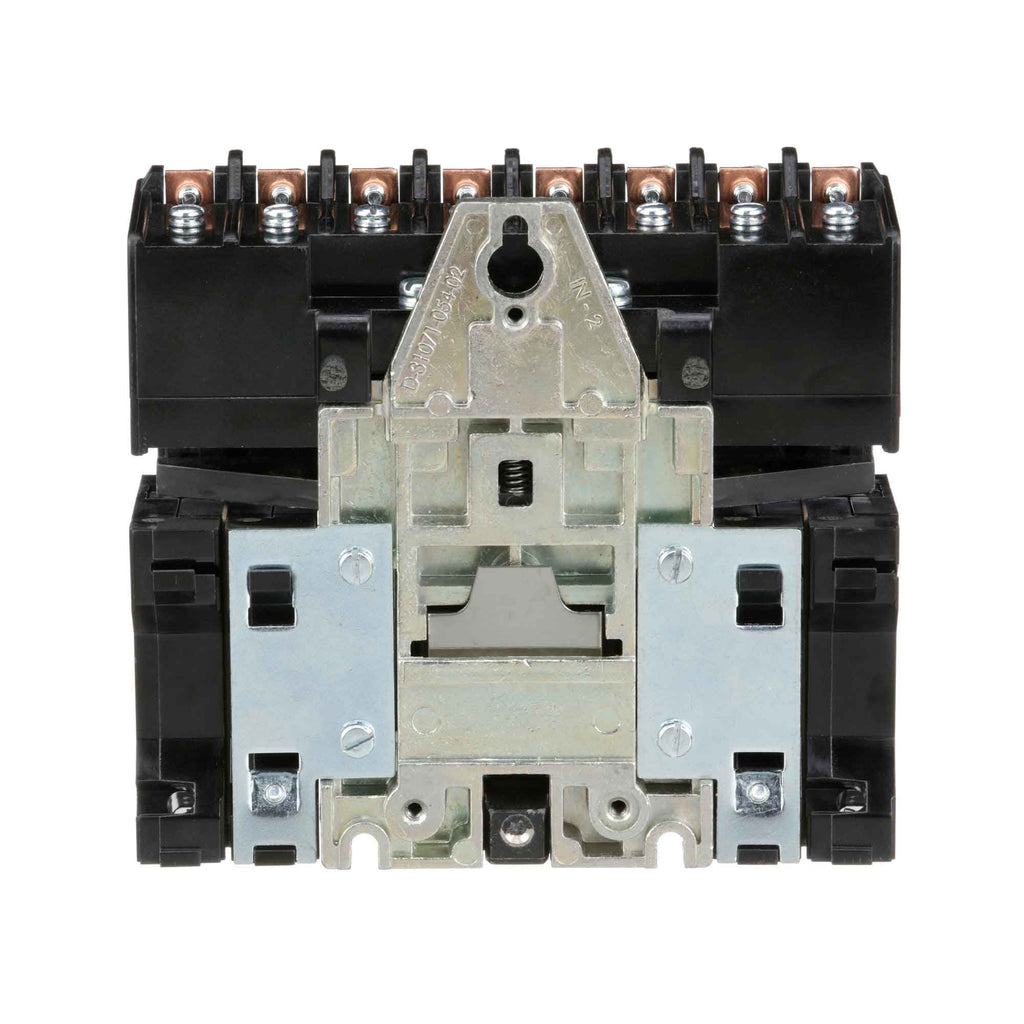

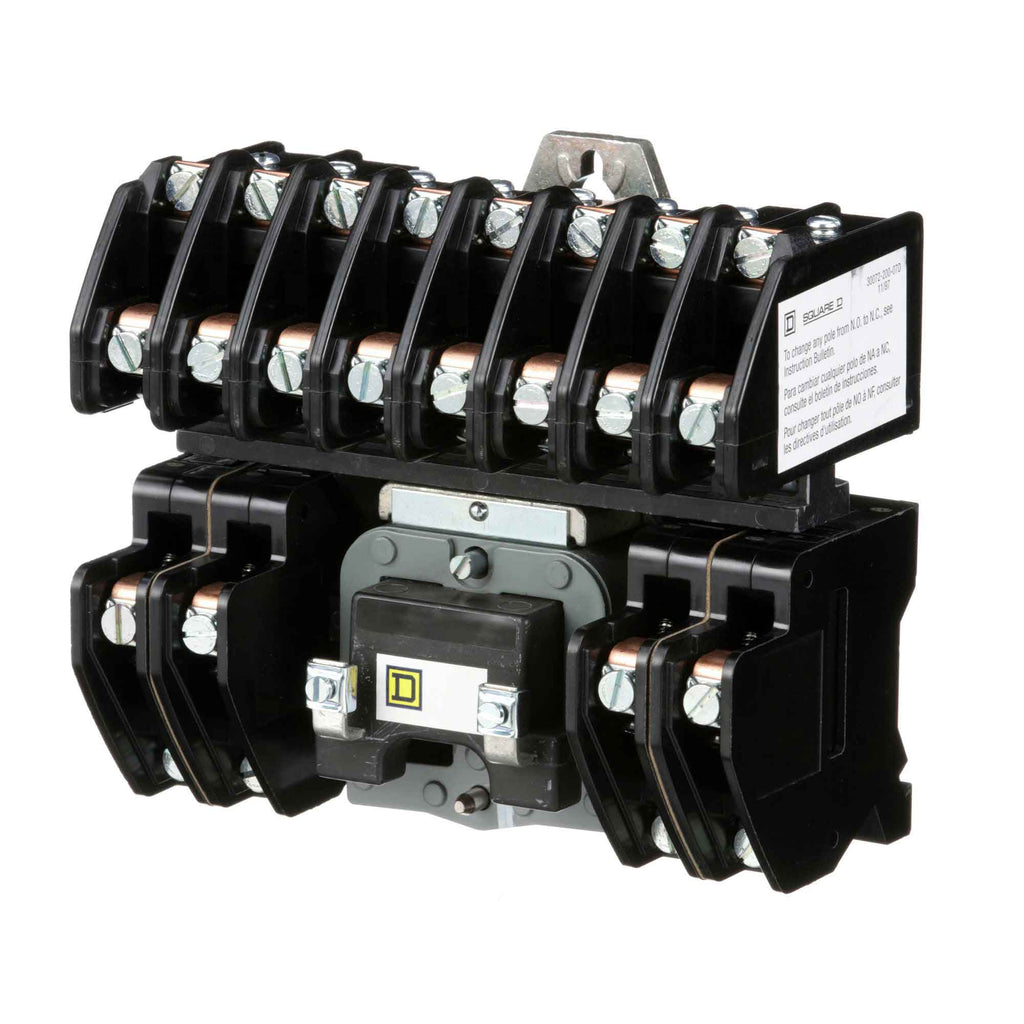

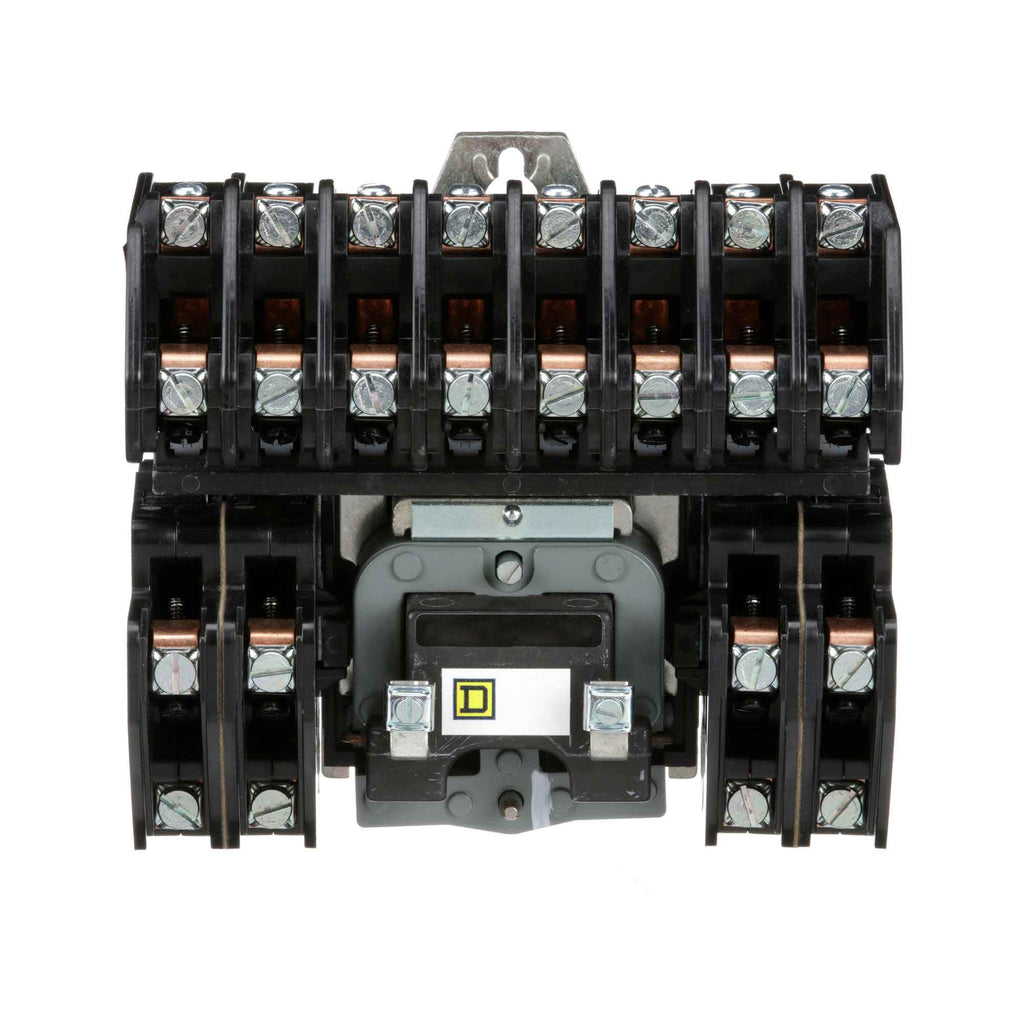

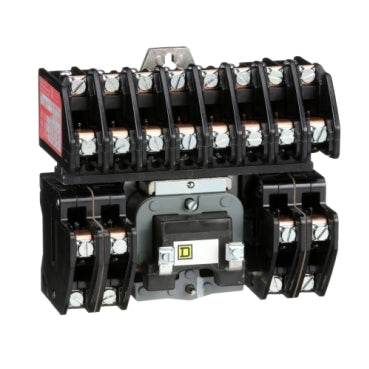

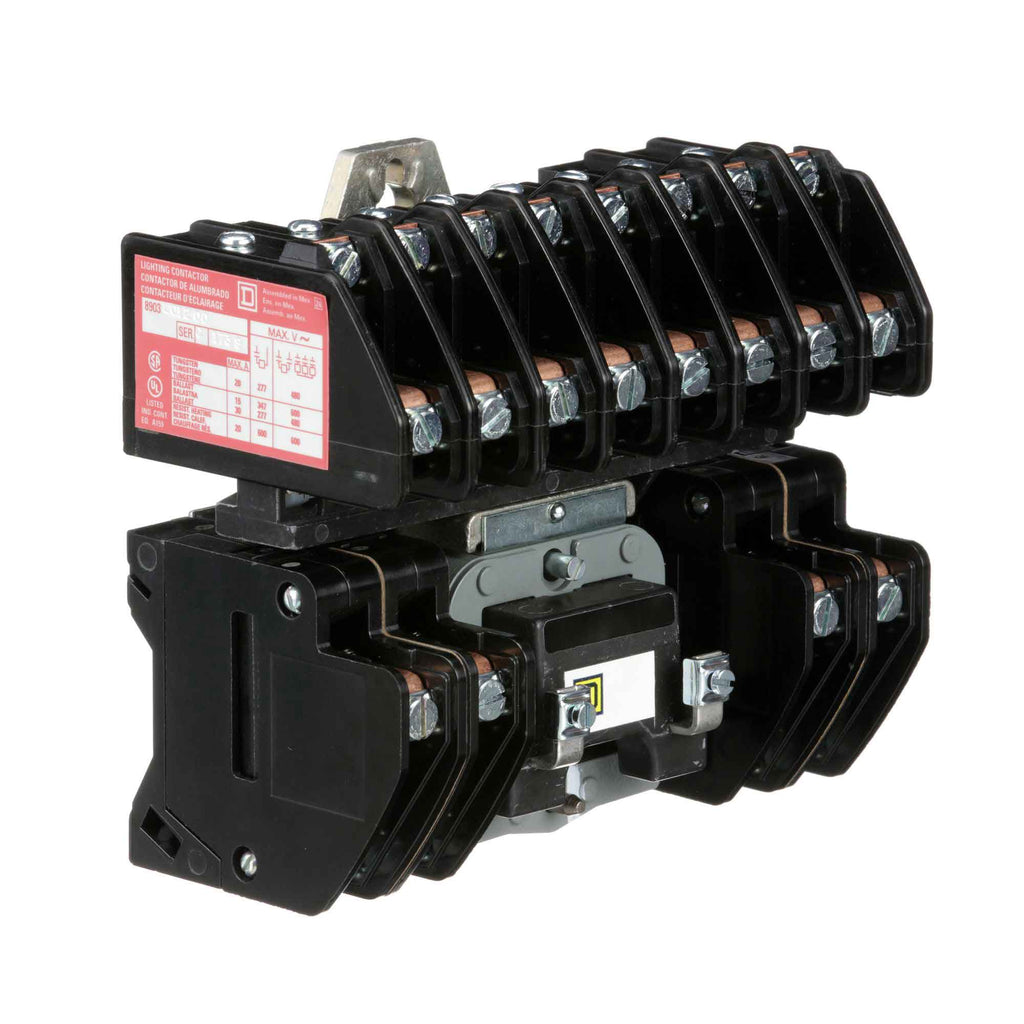

8903LO1200V04 is a Square D Class 8903 electrically held lighting contactor designed for motor control applications.This 12-pole, 3-phase contactor operates at 600 VAC with a 277 V coil voltage and supports a full load current of 30 amps. It features 12 normally open (NO) contacts and is built for open type mounting. The contactor is part of the Type L series and is suitable for lighting control with a coil rated for 60 Hz operation. It is engineered for reliable switching in commercial and industrial environments.
- Manufacturer: Square D
- Part Number: 8903LO1200V04
- Amperage: 30 A
- Voltage: 600 VAC
- Coil Voltage: 277 V AC, 60 Hz
- Number of Poles: 12
- Contact Configuration: 12 Normally Open (NO)
- Type: Electrically Held Lighting Contactor, Type L
- Mounting: Open Type
- Series/Frame: Class 8903
- Phase: 3
- Interrupt Rating: Not explicitly specified
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LO1200V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 12
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
Product Data
- UPC : 785901022947
- GTIN : 00785901022947
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 5.6 in (143 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 4.361
- Certification : CSA, REACH, RoHS, UL Listed
