Description
8903LO1000V04

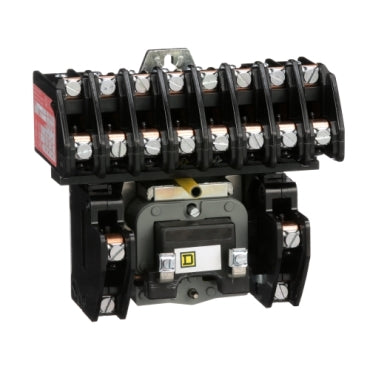

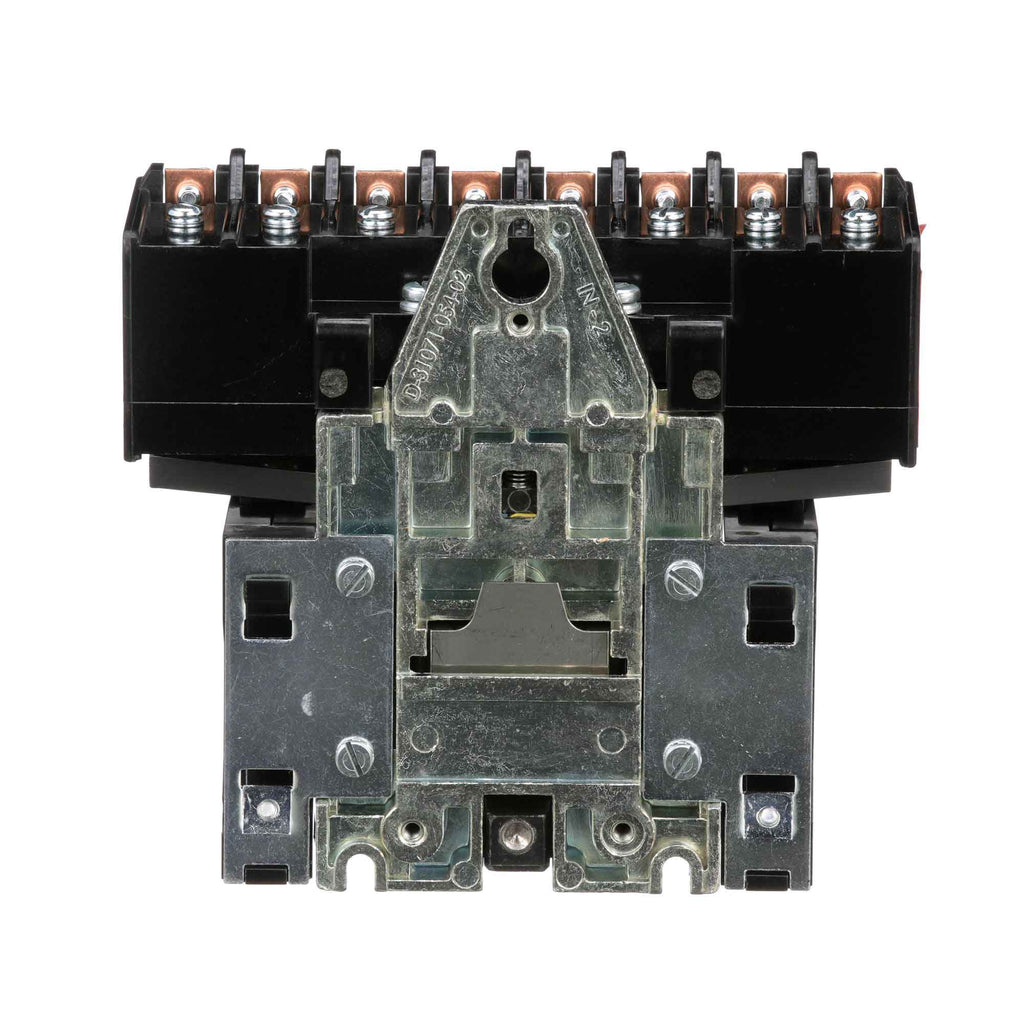

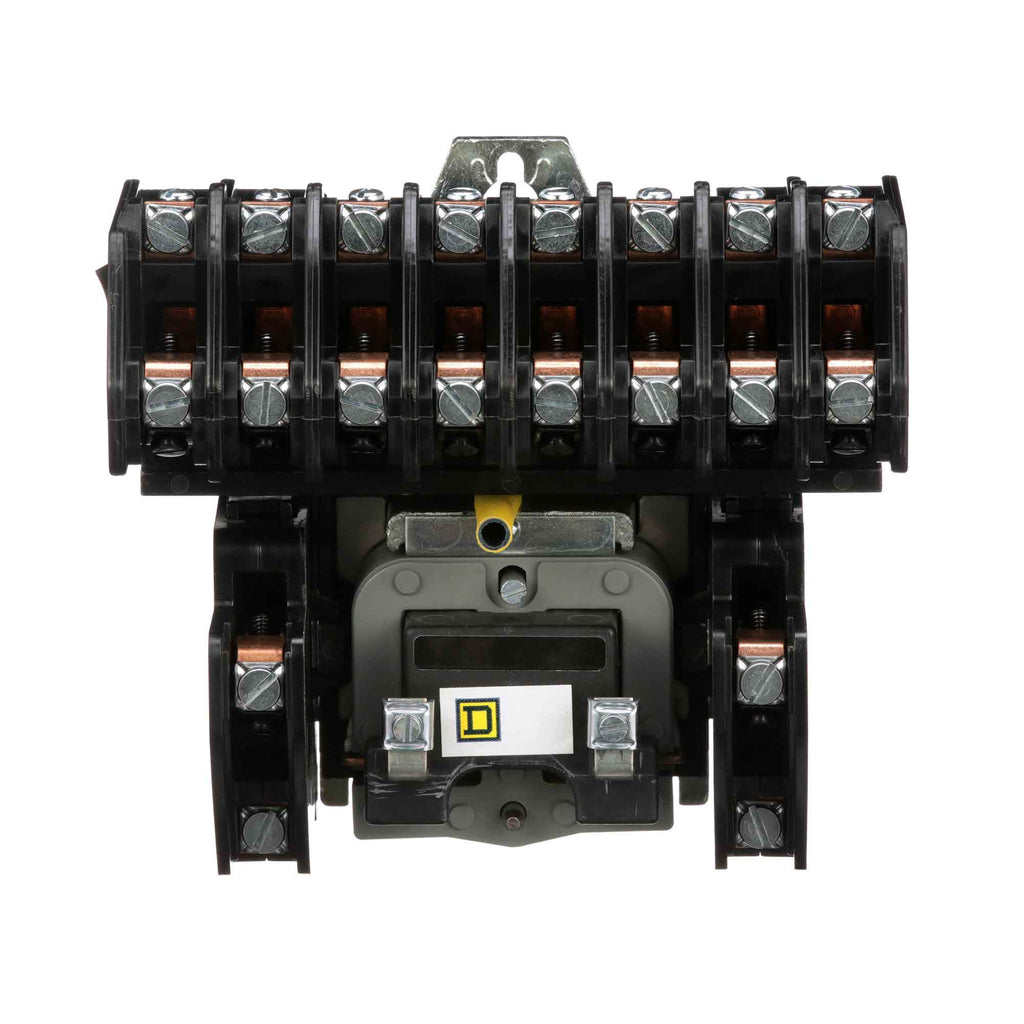

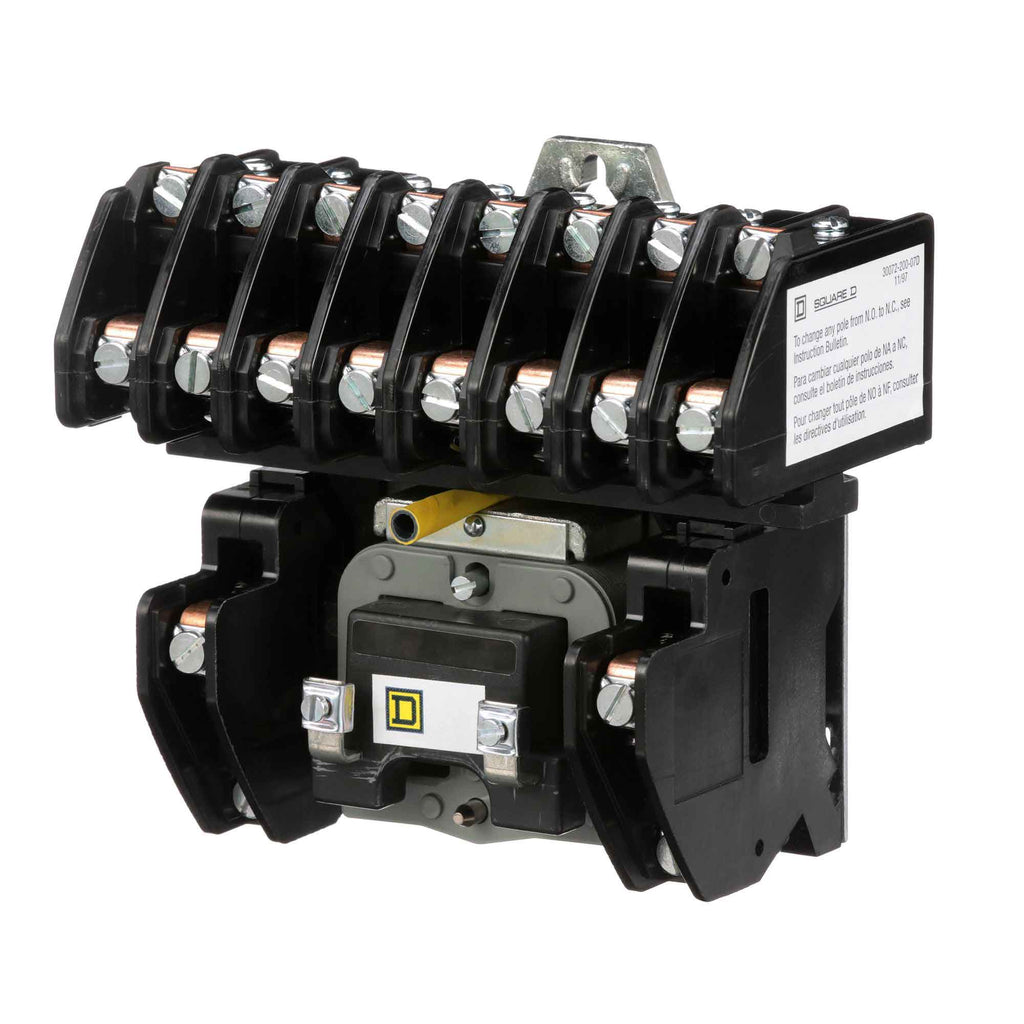

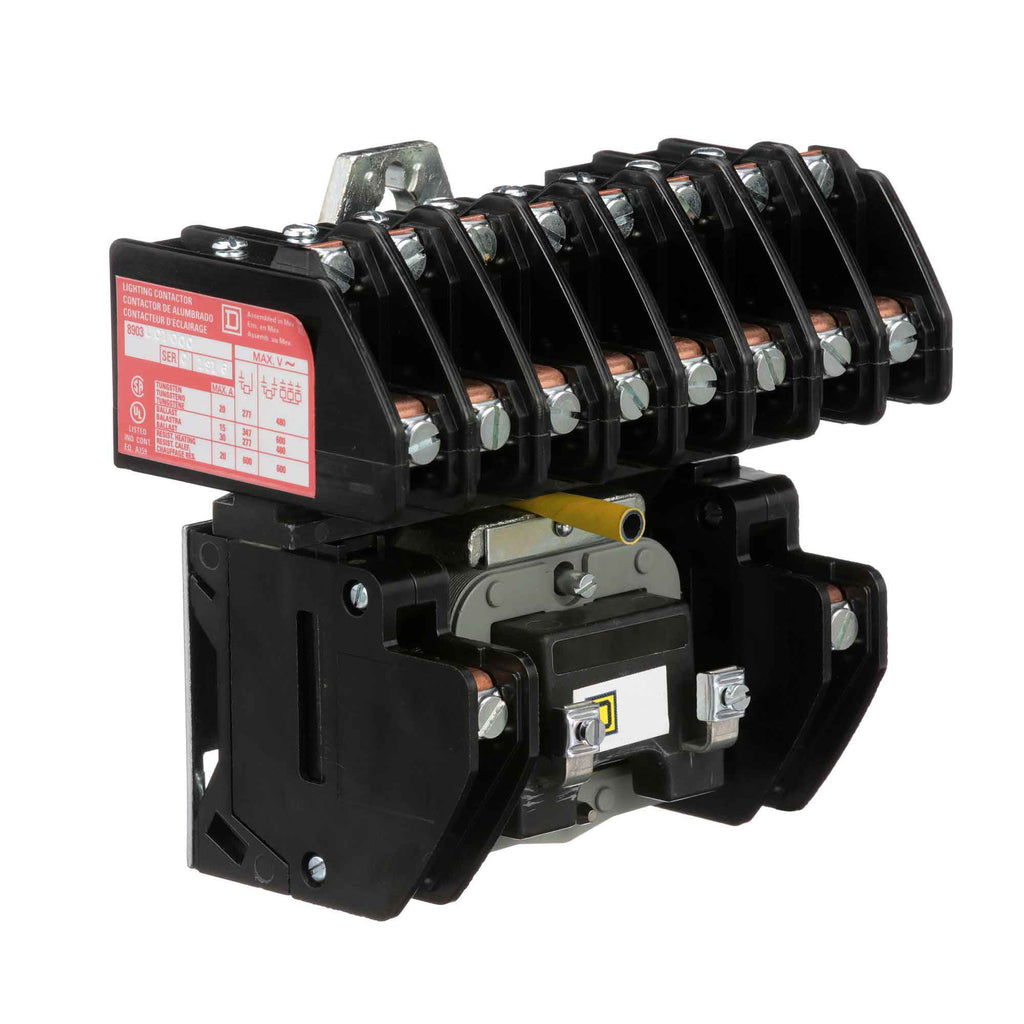

8903LO1000V04 is a Square D 10-pole lighting contactor designed for electrically held operation with a 30 amp rating and 600 volt capacity.8903LO1000V04 features a Type L multipole design suitable for lighting control applications. It operates with a 277 VAC coil at 60 Hz and supports 3-phase power. The contactor is open frame style, compatible with fluorescent, incandescent, and LED lighting loads, and is rated for 30 amps continuous current.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Number of Poles: 10
- Coil Voltage: 277 VAC, 60 Hz
- Type: Electrically Held Lighting Contactor
- Frame/Series: Class 8903, Type L
- Mounting: Open Frame
- Phase: 3-Phase
- Compatible Loads: Fluorescent, Incandescent, LED
- Weight: Approximately 4 lbs
- Country of Origin: Mexico
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LO1000V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 10
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
Product Data
- UPC : 785901022930
- GTIN : 00785901022930
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 5.6 in (143 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 3.96
- Certification : CSA, REACH, RoHS, UL Listed
