Description
8903LH80V04

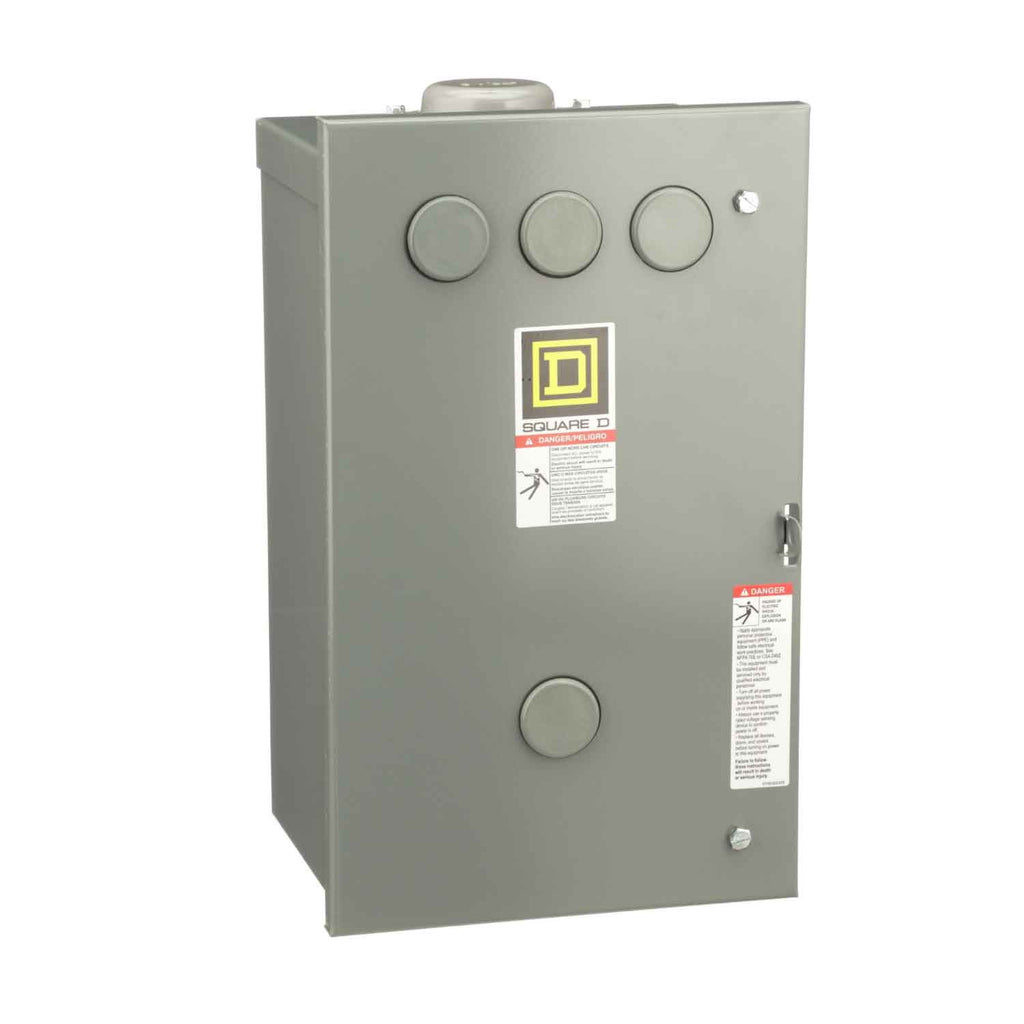

8903LH80V04 is a Square D Type L electrically held multipole lighting contactor designed for reliable motor control applications.This contactor features 8 poles and supports 30 amps at 600 volts with a 277 VAC 60 Hz coil. It is built to NEMA 3R standards for outdoor and indoor use, providing robust protection against environmental conditions. The device is part of Square D's Class 8903 series, known for durable and efficient lighting contactors.
- Manufacturer: Square D
- Part Number: 8903LH80V04
- Series: Class 8903
- Type: L Multipole Lighting Contactor
- Poles: 8
- Amperage: 30A
- Voltage: 600V
- Coil Voltage: 277 VAC, 60 Hz
- Mounting: NEMA 3R enclosure rating
- Electrically held
Specifications
- Part Number: 8903LH80V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 8
- Coil Voltage Maximum : 277
Product Data
- UPC : 078590118279
- GTIN : 00785901182795
- Dimensions : 16.3 in (414 mm) x 9.8 in (250 mm) x 8.6 in (219 mm) (Height x Width x Depth)
- Weight : 21.78
- Certification : UL listed - CSA
