Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
8903LG40V04

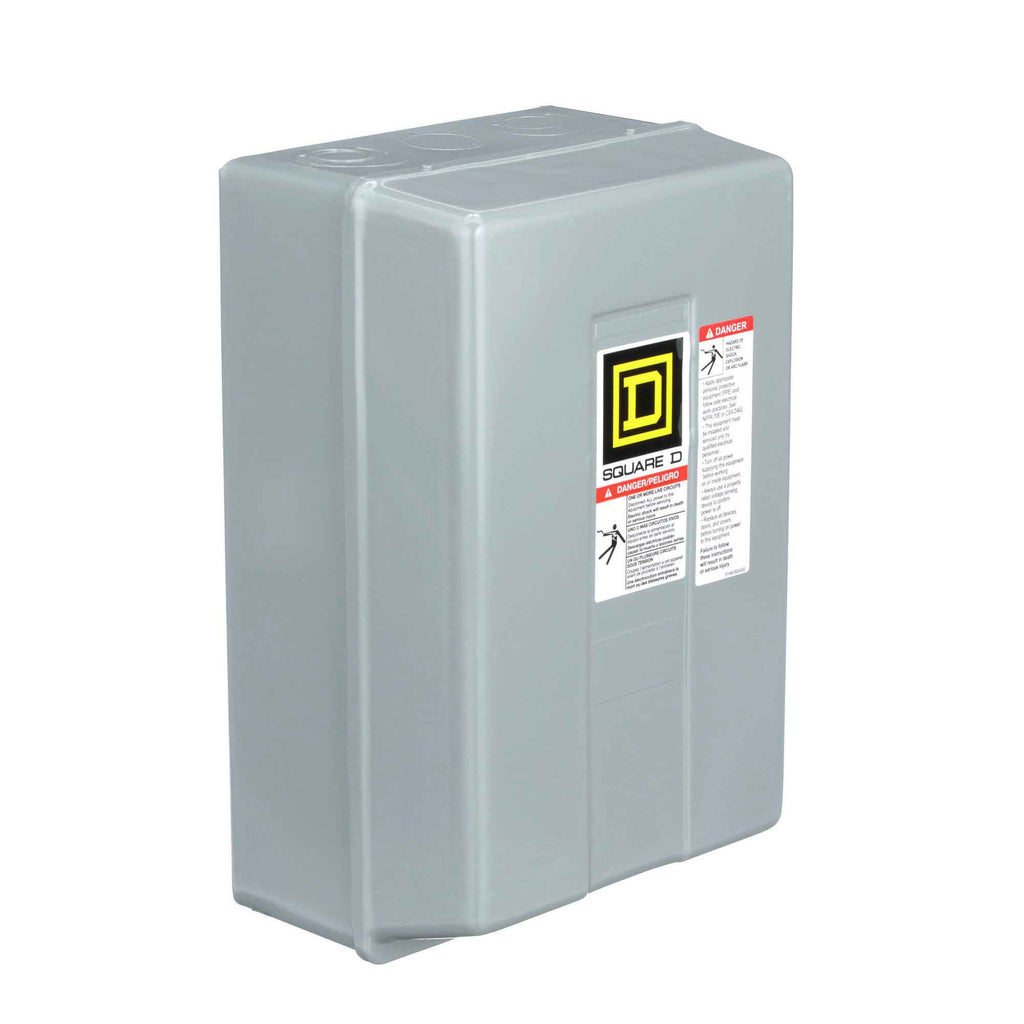

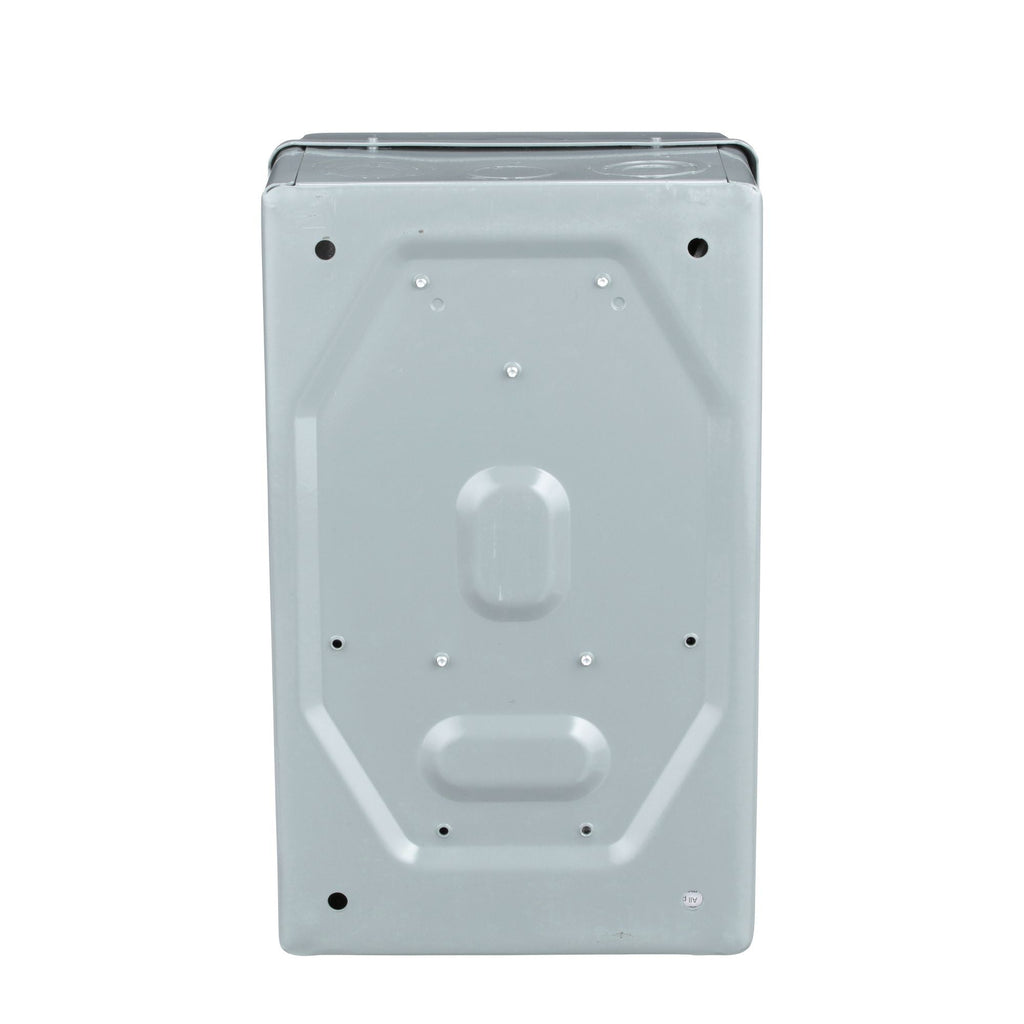

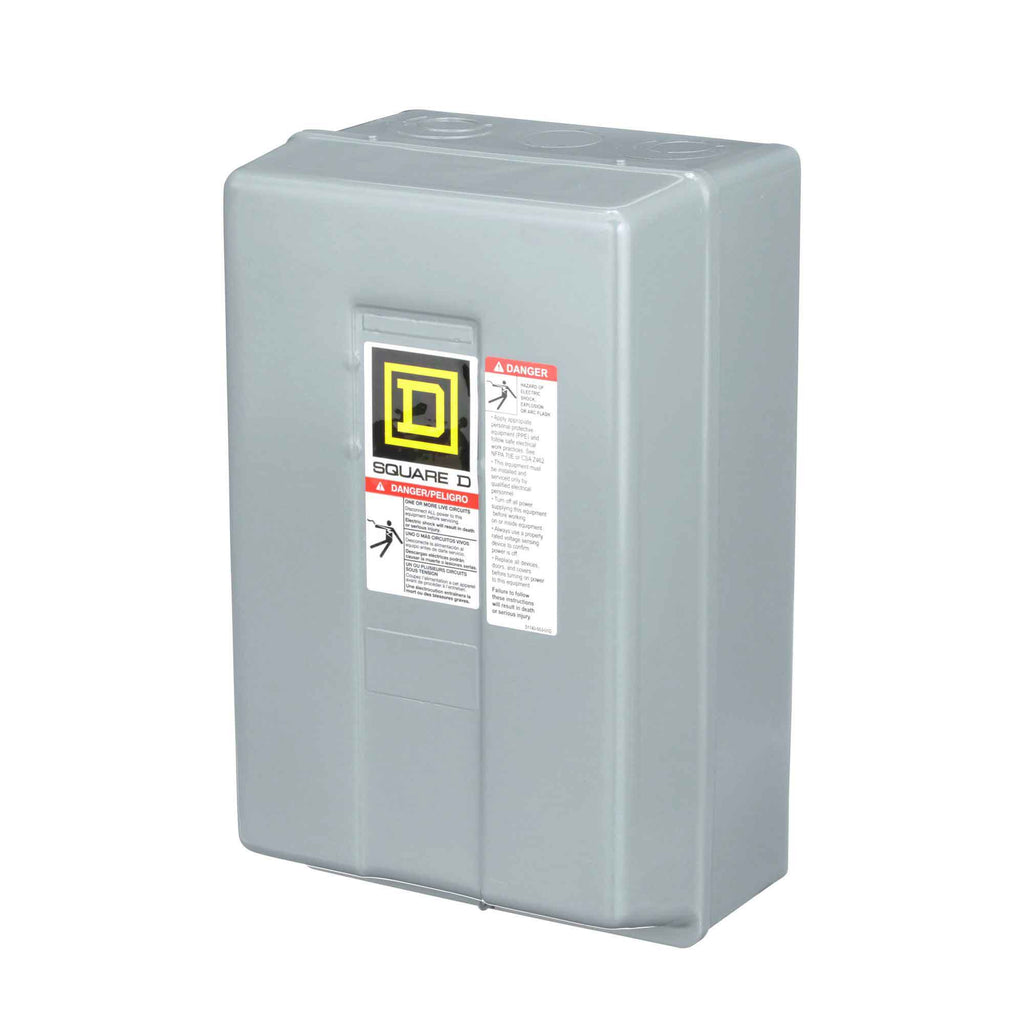

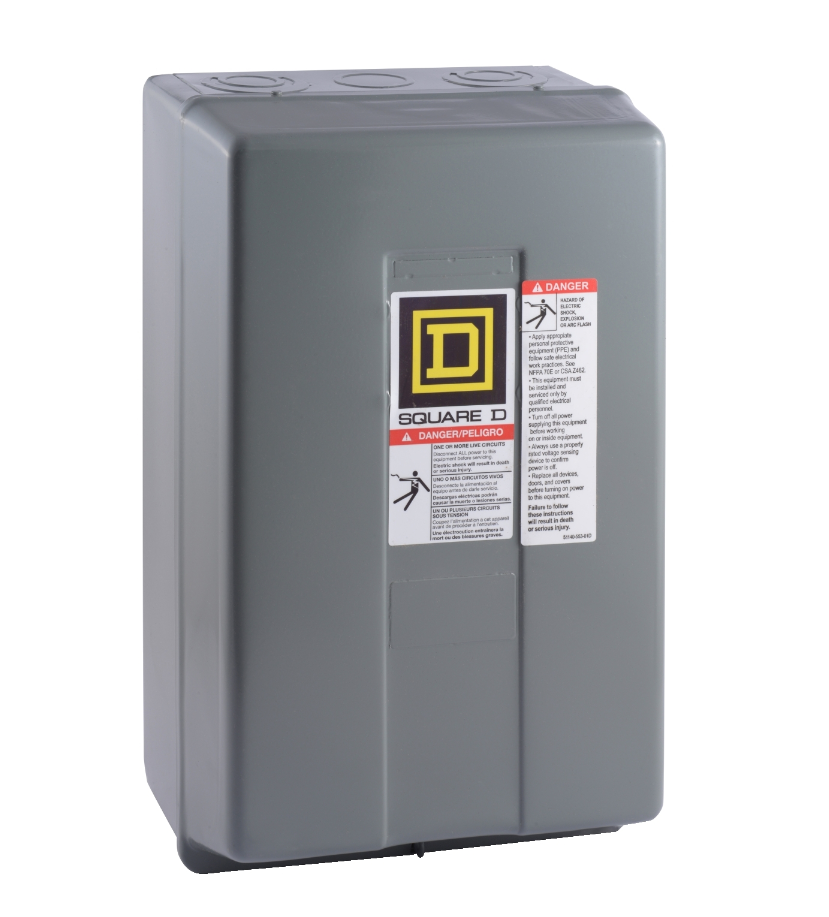

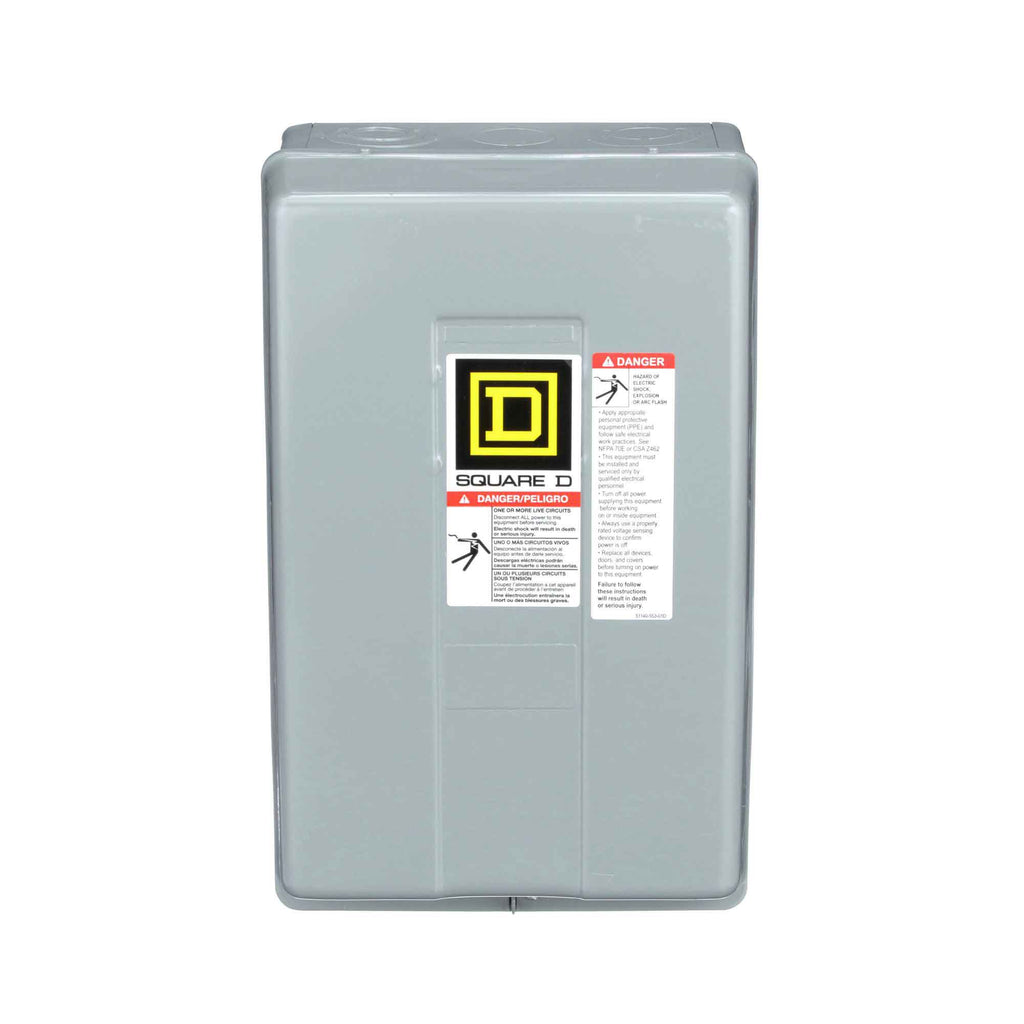

8903LG40V04 is a Square D electrically held lighting contactor designed for motor control applications.This 4-pole, 30 amp contactor operates at 600 volts with a 277 VAC coil and features a NEMA 1 enclosure. It is part of the Class 8903 series, suitable for multipole lighting control with 4 normally open contacts. The device is UL listed and CSA certified, providing reliable and rugged performance in industrial environments.
- Manufacturer: Square D
- Part Number: 8903LG40V04
- Amperage: 30 A
- Voltage: 600 V
- Coil Voltage: 277 VAC
- Number of Poles: 4
- Contact Configuration: 4 Normally Open (4 NO)
- Enclosure Type: NEMA 1
- Series/Frame: Class 8903
- Type: Electrically Held Lighting Contactor
- Certifications: UL Listed, CSA Certified
- Mounting: Panel Mount
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LG40V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Coil Voltage Maximum : 277
- Full Load Amps : 30
- Frequency : 60 Hz
Product Data
- UPC : 785901625650
- GTIN : 00785901625650
- Country of Origin : Mexico
- Dimensions : 12.7 in (322 mm) x 7.8 in (198 mm) x 6.02 in (153 mm) (Height x Width x Depth)
- Weight : 9.641
- Certification : UL Listed; CSA
